Model GE TFX24EGE Refrigerator – Common Parts & Diagrams
0

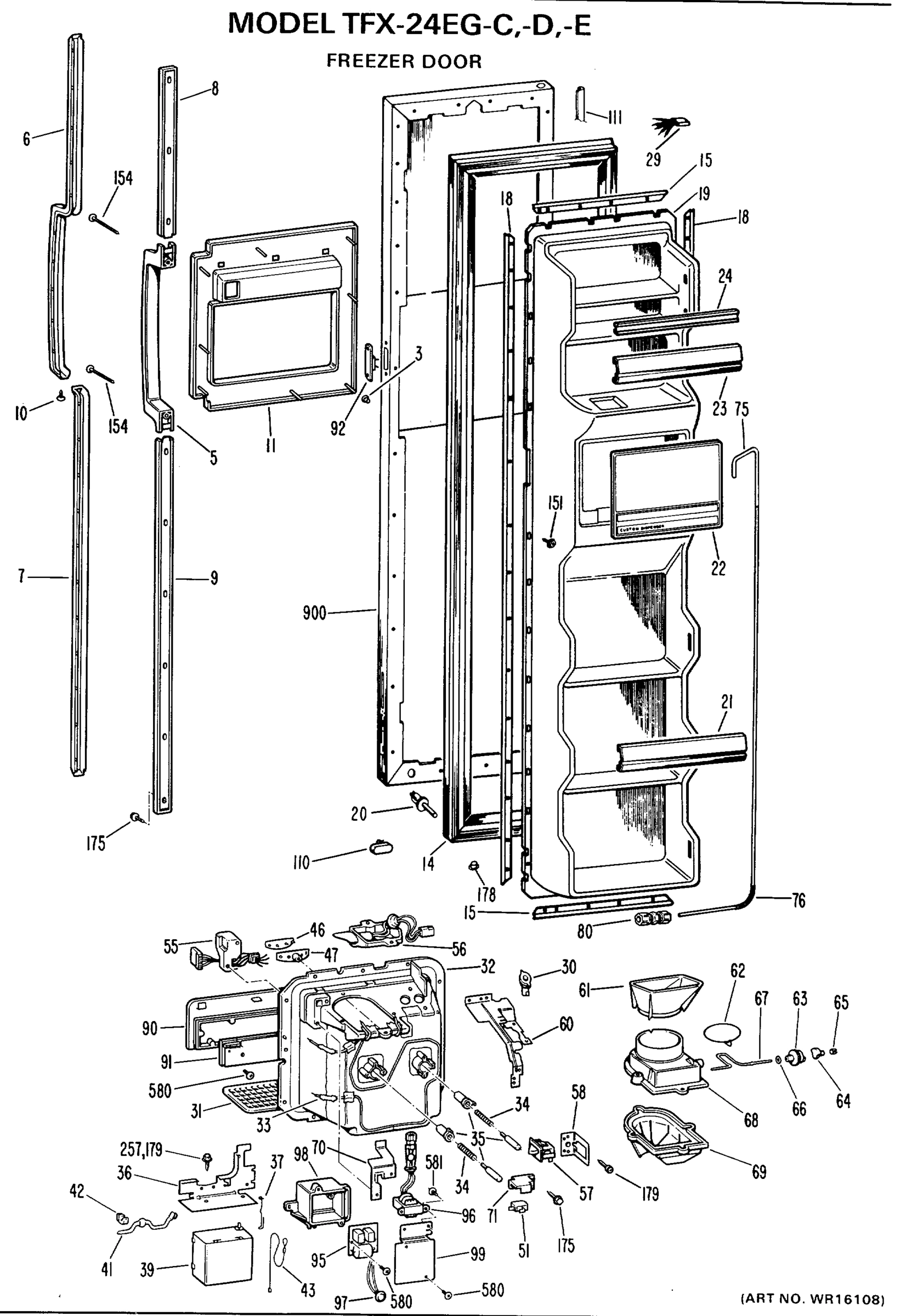

FREEZER DOOR
FREEZER SECTION
FRESH FOOD DOOR
FRESH FOOD SECTION
Common parts from model GE TFX24EGE Refrigerator
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
5
GEN WR12X0544 GEN WR12X0544 Contact Us For Availability
6
GEN WR02X7299 GEN WR02X7299 Contact Us For Availability
6
GEN WR12X0549 GEN WR12X0549 Contact Us For Availability
7
FASTENER DOOR HANDLE GEN WR01X1246 Contact Us For Availability
7
GEN WR12X0543 GEN WR12X0543 Contact Us For Availability
8
GEN WR12X0545 GEN WR12X0545 Contact Us For Availability
9
GEN WR12X0546 GEN WR12X0546 Contact Us For Availability
10
GEN WR01X1700 GEN WR01X1700 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1069 GEN WR38X1069 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0297 GEN WR24X0297 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0450 GEN WR77X0450 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
21
GEN WR71X1450 GEN WR71X1450 Contact Us For Availability
22
GEN WR01X1688 GEN WR01X1688 Contact Us For Availability
22
GEN WR17X2048 GEN WR17X2048 Contact Us For Availability
23
GEN WR71X1449 GEN WR71X1449 Contact Us For Availability
24
GEN WR71X1448 GEN WR71X1448 Contact Us For Availability
29
HARNESS O. DOOR RECESS GEN WR49X0301 Contact Us For Availability
30
GEN WR02X4571 GEN WR02X4571 Contact Us For Availability
31
GEN WR02X3953 GEN WR02X3953 Contact Us For Availability
32
GEN WR14X0245 GEN WR14X0245 Contact Us For Availability
32
GEN WR14X0340 GEN WR14X0340 Contact Us For Availability
32
RECESS DISPENSER GEN WR17X2047 Contact Us For Availability
33
GEN WR51X0304 GEN WR51X0304 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
GEN WR02X4235 GEN WR02X4235 Contact Us For Availability
37
CLIP TIME DELAY GEN WR02X4248 Contact Us For Availability
39
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
41
CRANK & RIVET ASM DISP GEN WR17X1048 Contact Us For Availability
42
BEARING CRANK DISP GEN WR02X4234 Contact Us For Availability
43
KEEPER LANYARD DISP GEN WR02X4069 Contact Us For Availability
43
LANYARD DISPENSER GEN WR02X4237 Contact Us For Availability
46
GEN WR02X3950 GEN WR02X3950 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
55
GEN WR23X0306 GEN WR23X0306 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X4570 GEN WR02X4570 Contact Us For Availability
56
GEN WR02X7243 GEN WR02X7243 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
58
GEN WR02X4771 GEN WR02X4771 Contact Us For Availability
60
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
GEN WR17X1586 GEN WR17X1586 Contact Us For Availability
63
PULLEY TIME DELAY DISP GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM DISP GEN WR17X5881 Contact Us For Availability
70
GEN WR02X7245 GEN WR02X7245 Contact Us For Availability
71
HOUSING-DISP SWITCH GEN WR02X7068 Contact Us For Availability
72
GEN WR02X7237 GEN WR02X7237 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
75
GEN WR17X1408 GEN WR17X1408 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
91
ASM LOGIC BOARD GEN WR55X0014 Contact Us For Availability
91
GEN WR02X7313 GEN WR02X7313 Contact Us For Availability
91
GEN WR02X7314 GEN WR02X7314 Contact Us For Availability
92
GEN WR23X0310 GEN WR23X0310 Contact Us For Availability
93
GEN WR01X1709 GEN WR01X1709 Contact Us For Availability
93
MAGNET SENSOR-DOOR ALARM GEN WR02X7315 Contact Us For Availability
95
GEN WR55X0013 GEN WR55X0013 Contact Us For Availability
96
GEN WR62X0039 GEN WR62X0039 Contact Us For Availability
97
GEN WR52X0023 GEN WR52X0023 Contact Us For Availability
98
GEN WR02X7349 GEN WR02X7349 Contact Us For Availability
99
GEN WR02X7350 GEN WR02X7350 Contact Us For Availability
101
GEN WR03X0408 GEN WR03X0408 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0295 GEN WR24X0295 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X0905 GEN WR38X0905 Contact Us For Availability
106
GEN WR22X0256 GEN WR22X0256 Contact Us For Availability
108
GEN WR77X0462 GEN WR77X0462 Contact Us For Availability
109
GEN WR71X1503 GEN WR71X1503 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X1037 GEN WR38X1037 Contact Us For Availability
112
GEN WR71X1452 GEN WR71X1452 Contact Us For Availability
114
GEN WR17X1391 GEN WR17X1391 Contact Us For Availability
116
GEN WR02X7316 GEN WR02X7316 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
119
GEN WR02X7287 GEN WR02X7287 Contact Us For Availability
154
GEN WR01X1701 GEN WR01X1701 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
180
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5379 Contact Us For Availability
202
RETAINER BREAKER-BTM. GEN WR02X7032 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X5872 Contact Us For Availability
205
GEN WR71X1649 GEN WR71X1649 Contact Us For Availability
206
GEN WR71X1648 GEN WR71X1648 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X1022 GEN WR38X1022 Contact Us For Availability
210
GEN WR02X7215 GEN WR02X7215 Contact Us For Availability
211
GEN WR21X0119 GEN WR21X0119 Contact Us For Availability
212
GEN WR17X1980 GEN WR17X1980 Contact Us For Availability
213
GEN WR38X1023 GEN WR38X1023 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
214
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
215
CLIP EVAP COVER GEN WR02X3543 Contact Us For Availability
215
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
215
GEN WR17X2003 GEN WR17X2003 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
GEN WR02X4545 GEN WR02X4545 Contact Us For Availability
221
GEN WR17X1245 GEN WR17X1245 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
L0W SIDE ASM GEN WR85X0103 Contact Us For Availability
228
REFRIGERANT GEN WR97X5017 Contact Us For Availability
230
GEN WR02X4557 GEN WR02X4557 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0258 GEN WR51X0258 Contact Us For Availability
231
GEN WR02X3440 GEN WR02X3440 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
232
GEN WR02X4970 GEN WR02X4970 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
239
GEN WR23X0303 GEN WR23X0303 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X1425 GEN WR17X1425 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
250
GEN WR02X4844 GEN WR02X4844 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X0307 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X1487 GEN WR17X1487 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2005 GEN WR17X2005 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GRILLE O.CASE(BLK) GEN WR74X0188 Contact Us For Availability
289
GEN WR02X7158 GEN WR02X7158 Contact Us For Availability
290
GEN WR02X7159 GEN WR02X7159 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
SPRING DEFLECTOR GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
AUGER HELIX DISP GEN WR17X2054 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
SHELF BUCKET BTM DISP GEN WR71X1729 Contact Us For Availability
361
GEN WR17X2051 GEN WR17X2051 Contact Us For Availability
362
GEN WR02X4587 GEN WR02X4587 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X7311 GEN WR02X7311 Contact Us For Availability
370
GEN WR60X0111 GEN WR60X0111 Contact Us For Availability
375
HARNESS MOTOR DISP. GEN WR23X0194 Contact Us For Availability
381
GEN WR02 GEN WR02 Contact Us For Availability
386
GEN WZ04X0363 GEN WZ04X0363 Contact Us For Availability
386
GEN WZ06X0077 GEN WZ06X0077 Contact Us For Availability
400
GEN WR71X1651 GEN WR71X1651 Contact Us For Availability
402
GEN WR38X0959 GEN WR38X0959 Contact Us For Availability
403
GEN WR72X0062 GEN WR72X0062 Contact Us For Availability
404
GEN WR71X1650 GEN WR71X1650 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X0649 GEN WR32X0649 Contact Us For Availability
408
GEN WR32X0650 GEN WR32X0650 Contact Us For Availability
409
GEN WR02X7214 GEN WR02X7214 Contact Us For Availability
410
GEN WR17X1556 GEN WR17X1556 Contact Us For Availability
411
GEN WR17X1558 GEN WR17X1558 Contact Us For Availability
412
GEN WR02X4941 GEN WR02X4941 Contact Us For Availability
413
GEN WR02X4942 GEN WR02X4942 Contact Us For Availability
414
GEN WR32X0675 GEN WR32X0675 Contact Us For Availability
415
GEN WR32X0676 GEN WR32X0676 Contact Us For Availability
416
GEN WR02X4790 GEN WR02X4790 Contact Us For Availability
417
GEN WR17X1557 GEN WR17X1557 Contact Us For Availability
418
GEN WR14X0287 GEN WR14X0287 Contact Us For Availability
419
GEN WR14X0288 GEN WR14X0288 Contact Us For Availability
420
GEN WR32X0856 GEN WR32X0856 Contact Us For Availability
421
GEN WR17X1928 GEN WR17X1928 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
CLIP-CONTROL HOUSING GEN WR01X5463 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
CAP MULLION DUCT GEN WR02X4799 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
435
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
447
GEN WR02X7246 GEN WR02X7246 Contact Us For Availability
447
GEN WR02X7247 GEN WR02X7247 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0500 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
471
GEN WR32X0709 GEN WR32X0709 Contact Us For Availability
472
GEN WR38X0954 GEN WR38X0954 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
474
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
675
SCR 8-18 AB RNDW 5/8 SS GEN WZ06X0094 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
729
GEN WR62X0038 GEN WR62X0038 Contact Us For Availability
730
GEN WR84X0051 GEN WR84X0051 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7225 GEN WR02X7225 Contact Us For Availability
734
CLAMP RELAY COVER GEN WR02X7226 Contact Us For Availability
734
GEN WR07X0174 GEN WR07X0174 Contact Us For Availability
735
GEN WR02X7227 GEN WR02X7227 Contact Us For Availability
735
GEN WR08X0085 GEN WR08X0085 Contact Us For Availability
736
GEN WR02X7228 GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0046 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
748
GEN WR17X2004 GEN WR17X2004 Contact Us For Availability
801
COIL ASM-WATER(BLUE) GEN WR62X0027 Contact Us For Availability
801
COIL-ICE GEN WR62X0044 Contact Us For Availability
802
ELBOW WATER FITTING GEN WR57X0052 Contact Us For Availability
803
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
WATER TANK ASM DISP GEN WR17X1505 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
825
GEN WR23X0305 GEN WR23X0305 Contact Us For Availability
910
GEN WR78X7736 GEN WR78X7736 Contact Us For Availability
32767
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
32767
GEN WR02X7108 GEN WR02X7108 Contact Us For Availability
32767
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
× ![]()
