Model GE TFS22ZPDABS Refrigerator – Common Parts & Diagrams

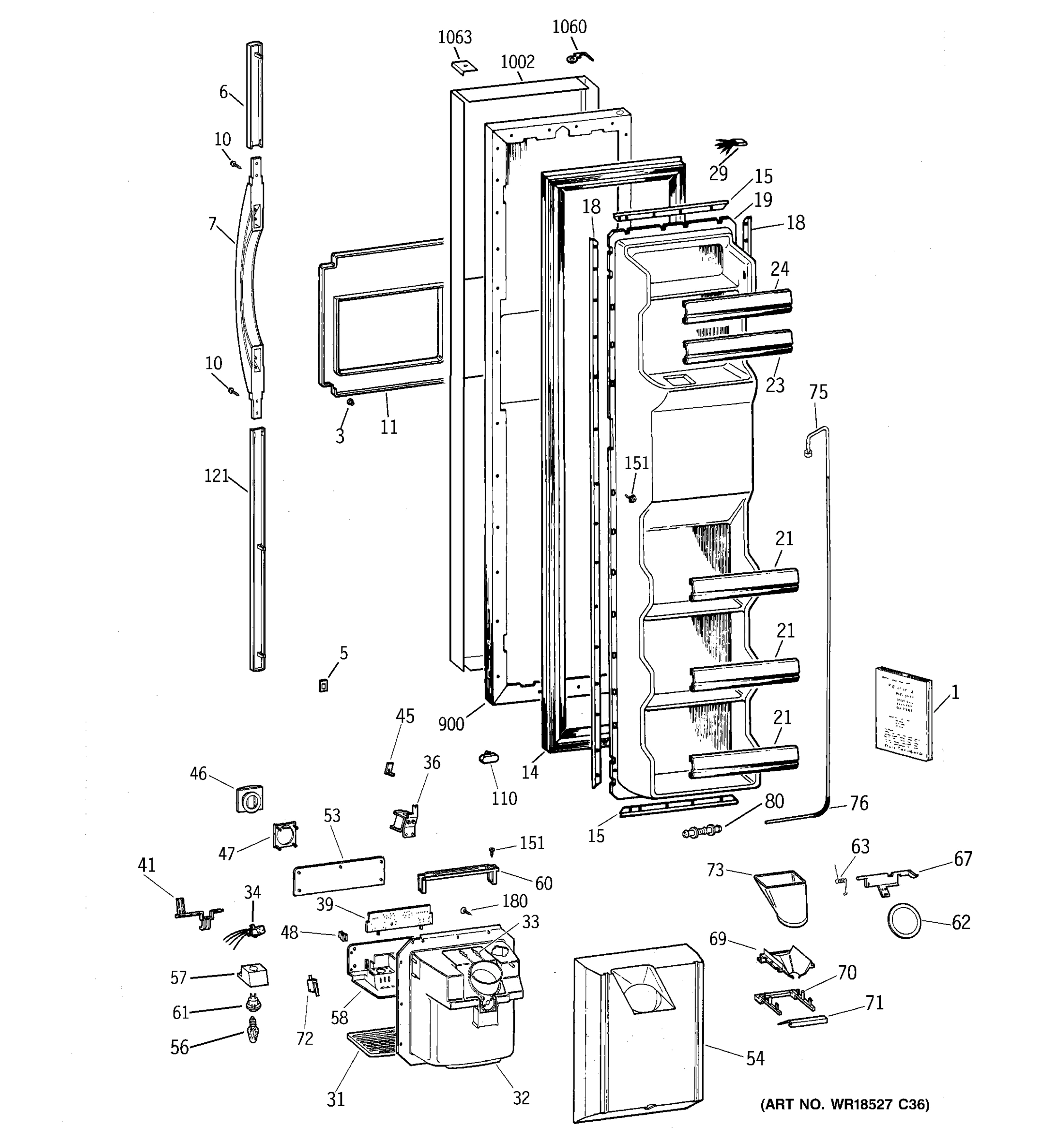

FREEZER DOOR

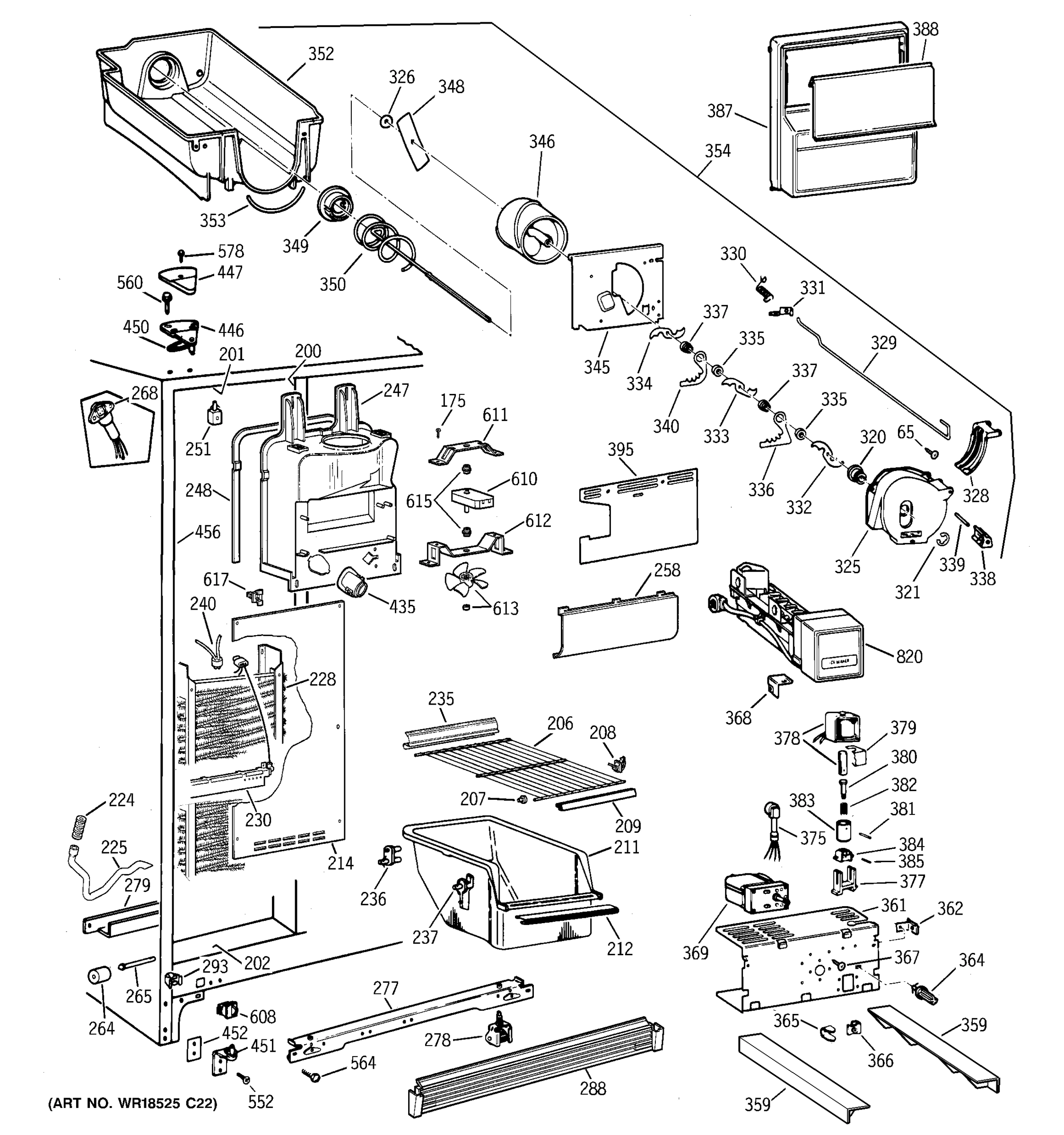

FREEZER SECTION

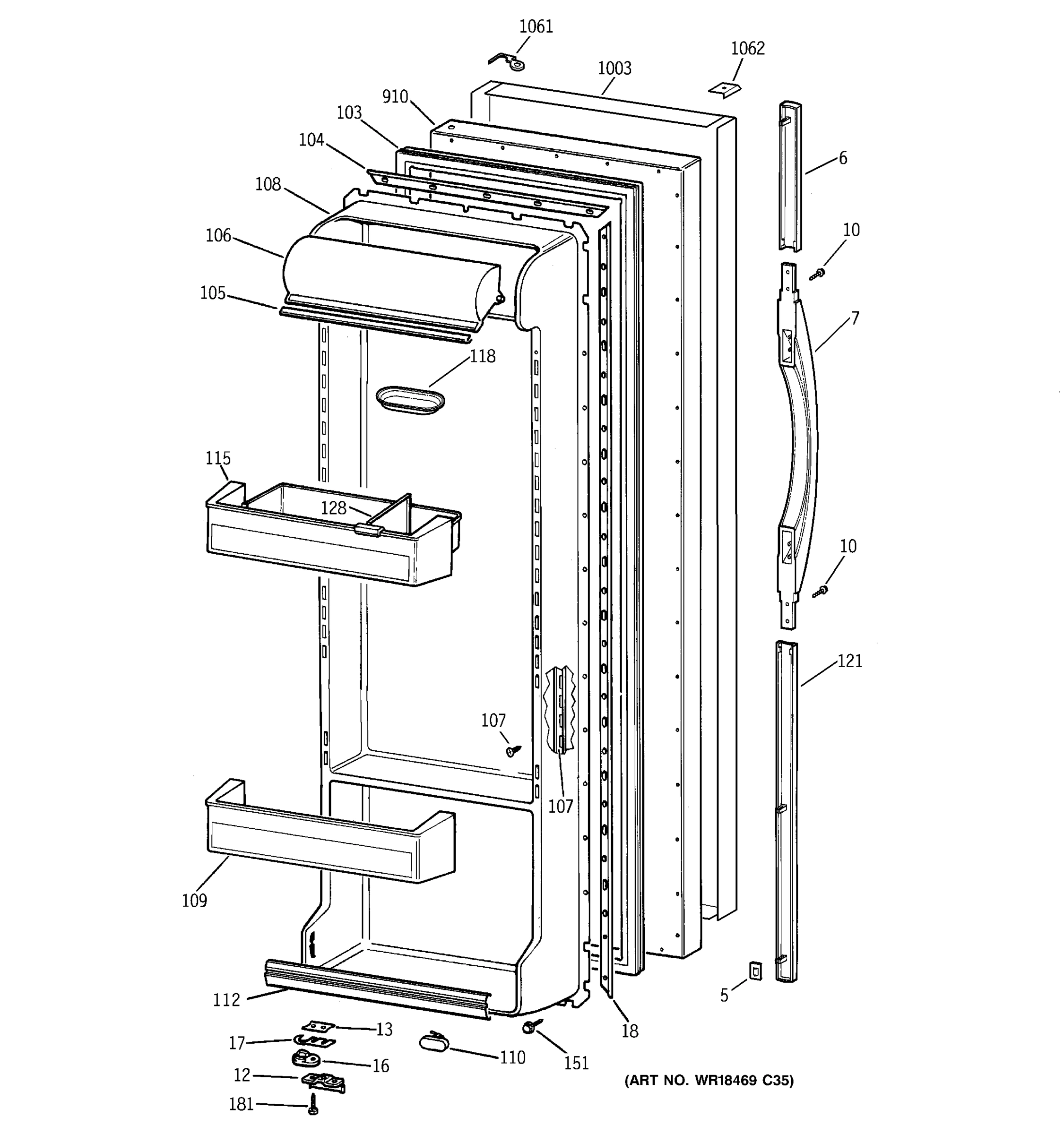

FRESH FOOD DOOR

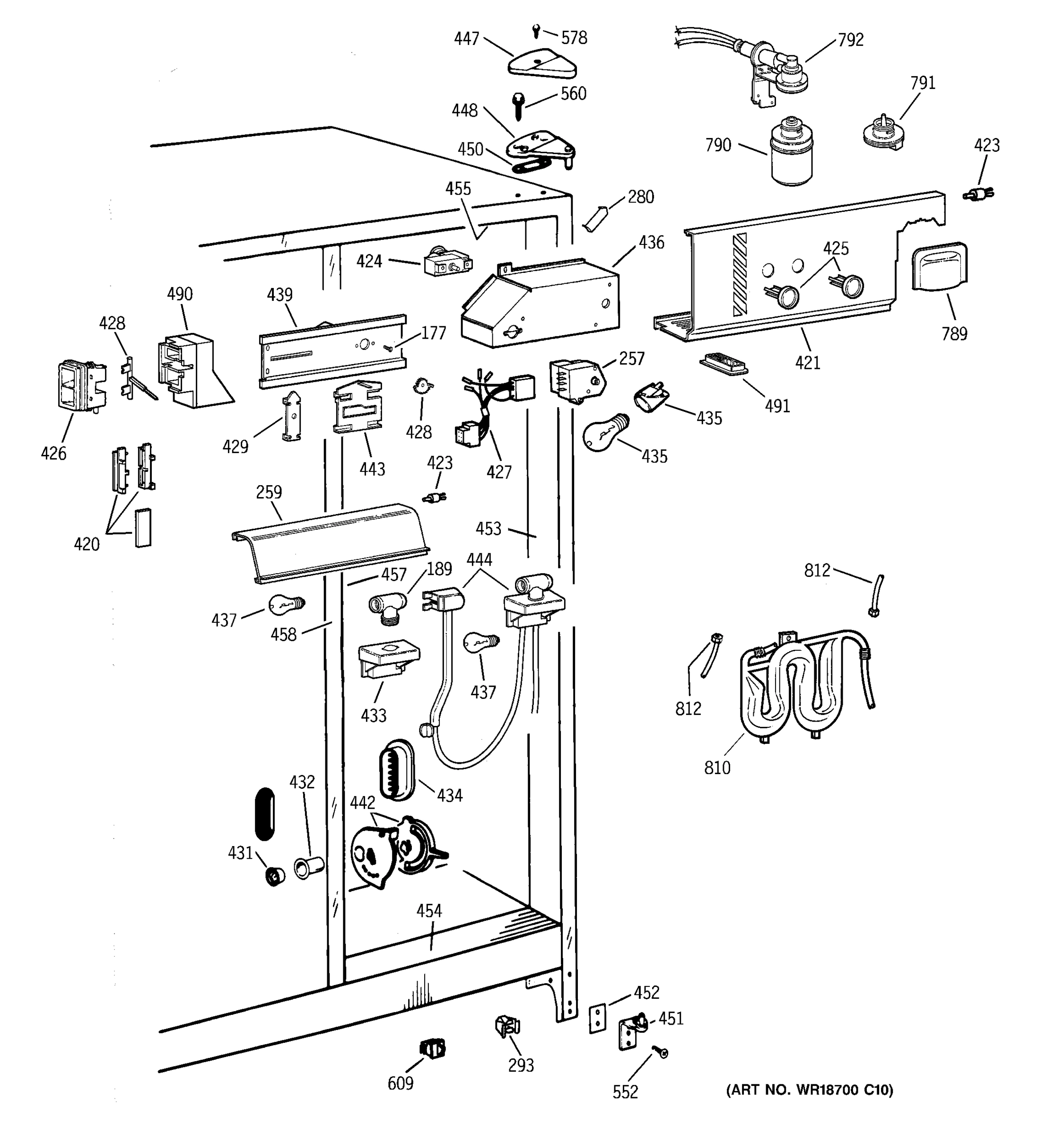

FRESH FOOD SECTION

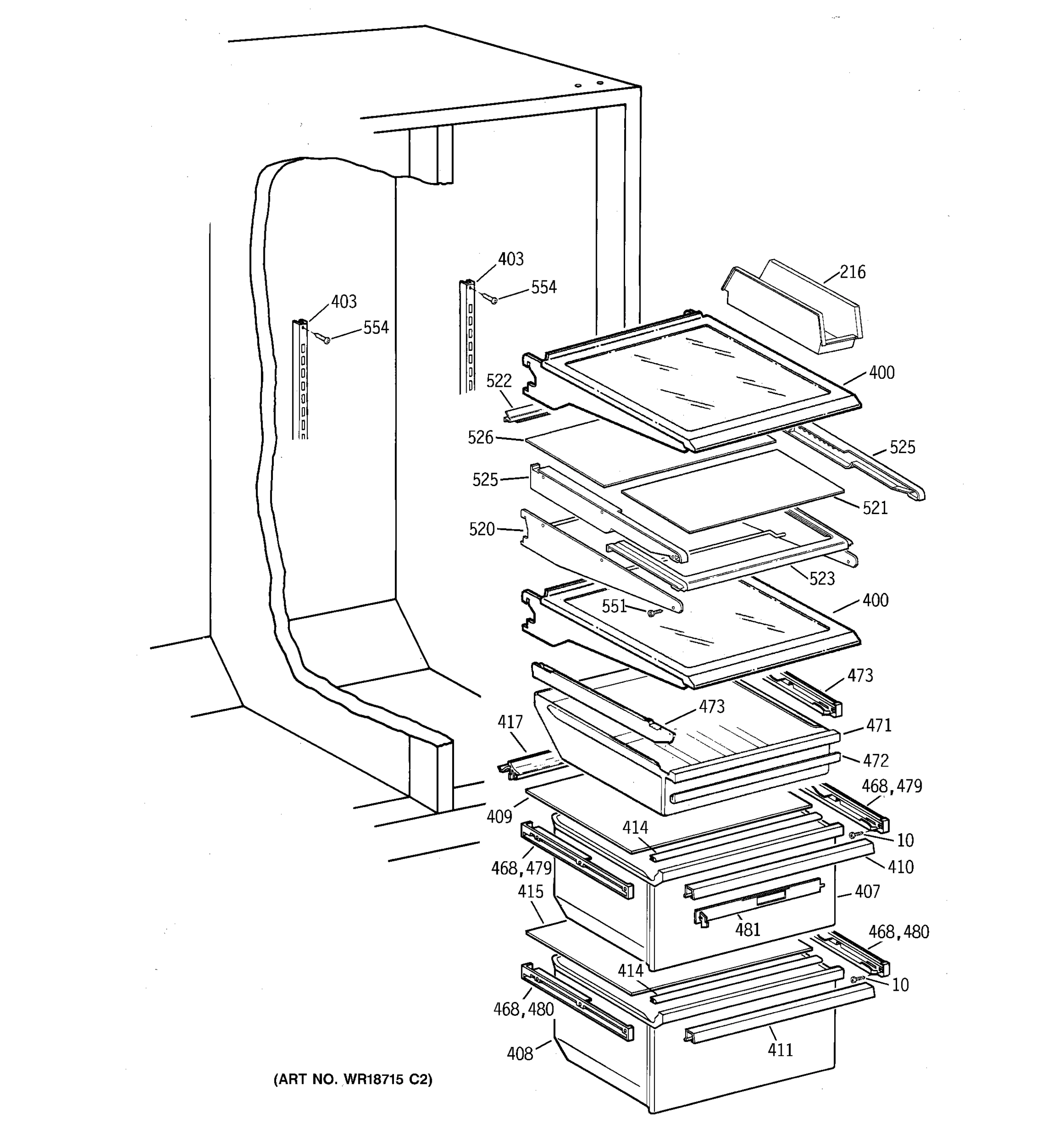

FRESH FOOD SHELVES

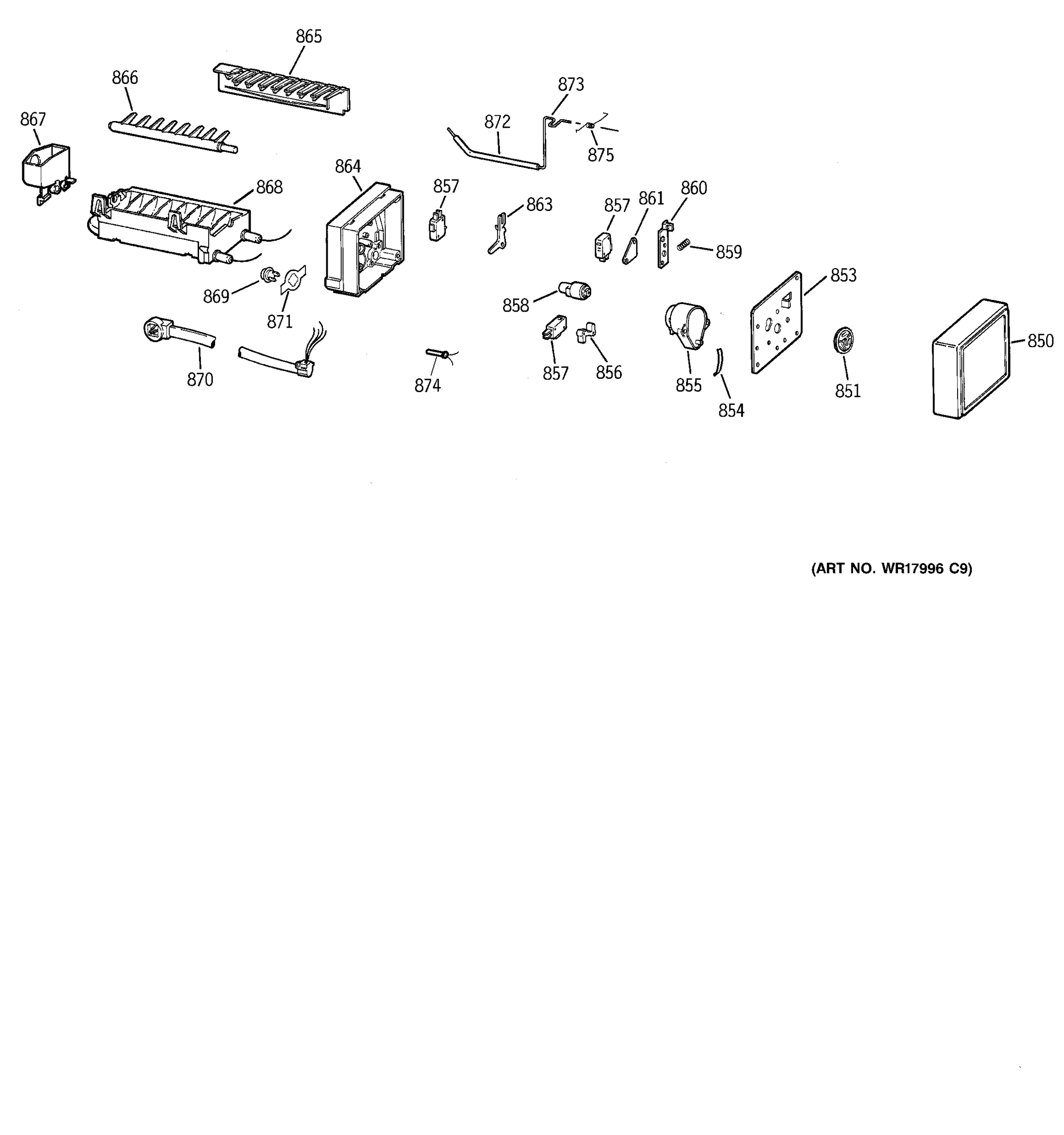

ICEMAKER WR30X0327

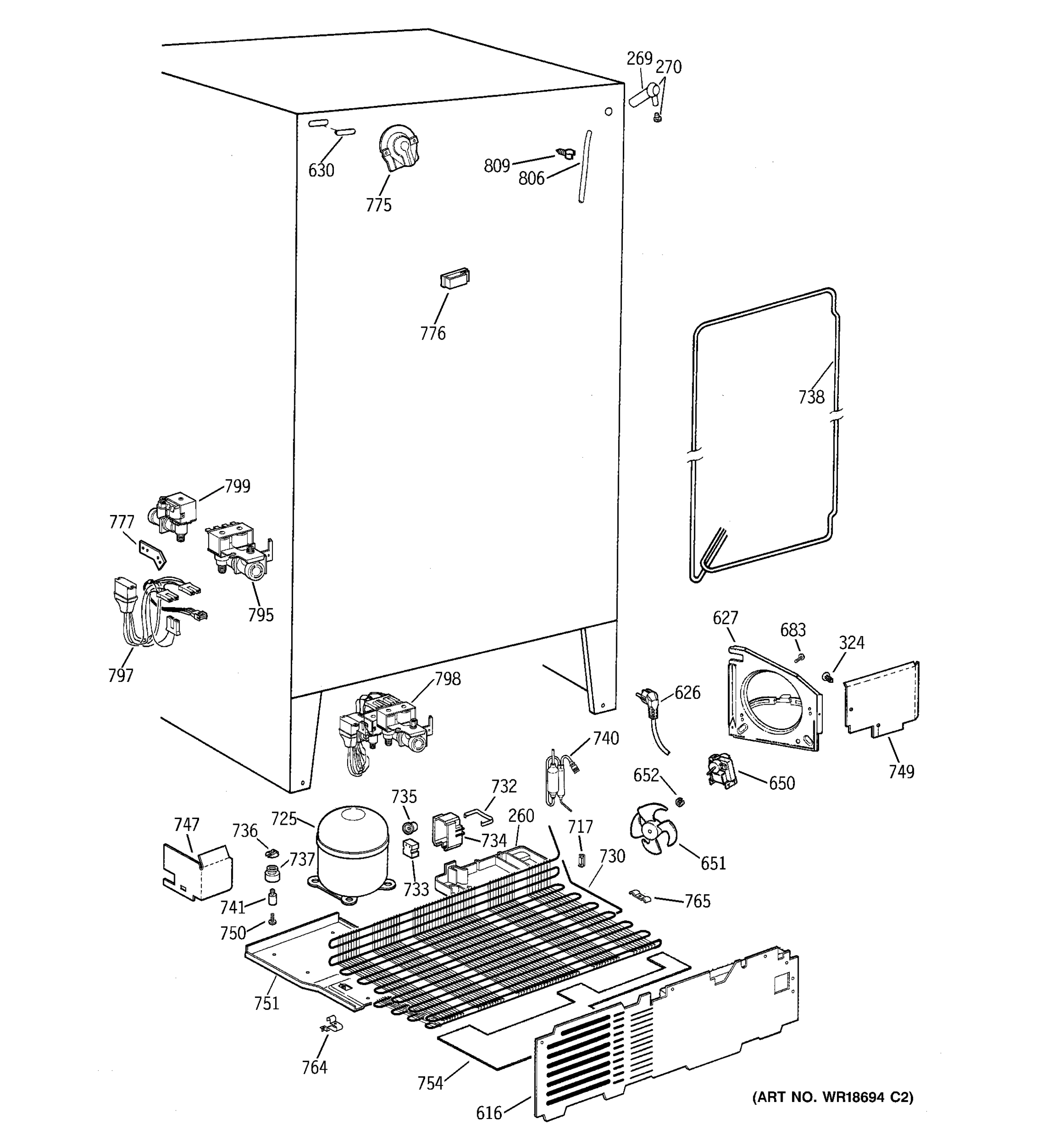

UNIT PARTS
Common parts from model GE TFS22ZPDABS Refrigerator
5
GEN WR02X10432 GEN WR02X10432 Contact Us For Availability
6
GEN WR12X10133 GEN WR12X10133 Contact Us For Availability
7
GEN WR12X10132 GEN WR12X10132 Contact Us For Availability
12
STOP DOOR BK GEN WR02X7213 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X7490 Contact Us For Availability
17
SHIM RISER CAM .031 GEN WR02X7491 Contact Us For Availability
17
SHIM RISER CAM .093 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
32
GEN WR17X10517 GEN WR17X10517 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
71
GEN WR17X10282 GEN WR17X10282 Contact Us For Availability
103
GEN WR24X0535 GEN WR24X0535 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2147 GEN WR38X2147 Contact Us For Availability
106
GEN WR22X0383 GEN WR22X0383 Contact Us For Availability
107
GEN WR01X10163 GEN WR01X10163 Contact Us For Availability
107
GEN WR72X10036 GEN WR72X10036 Contact Us For Availability
108
GEN WR77X10023 GEN WR77X10023 Contact Us For Availability
109
GEN WR71X10194 GEN WR71X10194 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR17X10433 GEN WR17X10433 Contact Us For Availability
115
GEN WR71X10193 GEN WR71X10193 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X10134 GEN WR12X10134 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
177
GEN WR01X5034 GEN WR01X5034 Contact Us For Availability
181
GEN WR01X10161 GEN WR01X10161 Contact Us For Availability
189
GEN WR02X9243 GEN WR02X9243 Contact Us For Availability
200
GEN WR40X1741 GEN WR40X1741 Contact Us For Availability
201
GEN WR40X1742 GEN WR40X1742 Contact Us For Availability
202
GEN WR40X1743 GEN WR40X1743 Contact Us For Availability
206
GEN WR71X1888 GEN WR71X1888 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X2151 GEN WR38X2151 Contact Us For Availability
211
GEN WR21X0188 GEN WR21X0188 Contact Us For Availability
212
GEN WR38X2149 GEN WR38X2149 Contact Us For Availability
214
GEN WR01X10064 GEN WR01X10064 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X3919 GEN WR17X3919 Contact Us For Availability
216
GEN WR32X1575 GEN WR32X1575 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR02X10395 GEN WR02X10395 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
230
GEN WR51X10031 GEN WR51X10031 Contact Us For Availability
235
GEN WR38X2180 GEN WR38X2180 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X10226 GEN WR17X10226 Contact Us For Availability
248
GEN WR14X0493 GEN WR14X0493 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3484 GEN WR17X3484 Contact Us For Availability
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
265
AXLE WHEEL FRONT GEN WR02X3595 Contact Us For Availability
265
AXLE WHEEL REAR GEN WR02X4742 Contact Us For Availability
268
IM RECEPTACLE GEN WR23X0312 Contact Us For Availability
269
TUBE WATER FILL I/M GEN WR02X7927 Contact Us For Availability
277
GEN WR17X3136 GEN WR17X3136 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X10437 GEN WR17X10437 Contact Us For Availability
280
GEN WR02X8524 GEN WR02X8524 Contact Us For Availability
288
GEN WR74X0216 GEN WR74X0216 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2760 GEN WR17X2760 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4309 GEN WR17X4309 Contact Us For Availability
352
GEN WR30X0257 GEN WR30X0257 Contact Us For Availability
359
GEN WR71X10196 GEN WR71X10196 Contact Us For Availability
359
GEN WR71X10197 GEN WR71X10197 Contact Us For Availability
361
GEN WR17X10518 GEN WR17X10518 Contact Us For Availability
361
GEN WR17X10662 GEN WR17X10662 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X10059 GEN WR23X10059 Contact Us For Availability
387
GEN WR17X10375 GEN WR17X10375 Contact Us For Availability
395
GEN WR17X10220 GEN WR17X10220 Contact Us For Availability
400
GEN WR71X2623 GEN WR71X2623 Contact Us For Availability
403
GEN WR71X2588 GEN WR71X2588 Contact Us For Availability
408
GEN WR32X1493 GEN WR32X1493 Contact Us For Availability
409
GEN WR32X1500 GEN WR32X1500 Contact Us For Availability
410
GEN WR17X3950 GEN WR17X3950 Contact Us For Availability
411
GEN WR17X3951 GEN WR17X3951 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1473 GEN WR32X1473 Contact Us For Availability
417
GEN WR17X10506 GEN WR17X10506 Contact Us For Availability
420
GEN WR02X10115 GEN WR02X10115 Contact Us For Availability
420
GEN WR02X10116 GEN WR02X10116 Contact Us For Availability
420
GEN WR02X10117 GEN WR02X10117 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X10251 GEN WR17X10251 Contact Us For Availability
423
GEN WR02X10050 GEN WR02X10050 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X10016 GEN WR09X10016 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X10113 GEN WR02X10113 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
442
GEN WR17X10060 GEN WR17X10060 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
444
GEN WR23X10129 GEN WR23X10129 Contact Us For Availability
446
GEN WR13X0647 GEN WR13X0647 Contact Us For Availability
447
GEN WR02X8523 GEN WR02X8523 Contact Us For Availability
448
GEN WR13X0646 GEN WR13X0646 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X9443 GEN WR02X9443 Contact Us For Availability
453
GEN WR40X1744 GEN WR40X1744 Contact Us For Availability
454
GEN WR40X1745 GEN WR40X1745 Contact Us For Availability
455
GEN WR40X1746 GEN WR40X1746 Contact Us For Availability
456
GEN WR40X1747 GEN WR40X1747 Contact Us For Availability
457
GEN WR40X1748 GEN WR40X1748 Contact Us For Availability
458
GEN WR02X10334 GEN WR02X10334 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1750 GEN WR40X1750 Contact Us For Availability
471
GEN WR32X1339 GEN WR32X1339 Contact Us For Availability
472
GEN WR38X10111 GEN WR38X10111 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
480
GEN WR72X0253 GEN WR72X0253 Contact Us For Availability
481
GEN WR01X2079 GEN WR01X2079 Contact Us For Availability
490
GEN WR02X10114 GEN WR02X10114 Contact Us For Availability
491
GEN WR17X10250 GEN WR17X10250 Contact Us For Availability
520
GEN WR71X2247 GEN WR71X2247 Contact Us For Availability
521
GEN WR32X10097 GEN WR32X10097 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0220 GEN WR72X0220 Contact Us For Availability
525
GEN WR72X0221 GEN WR72X0221 Contact Us For Availability
526
GEN WR32X10096 GEN WR32X10096 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
560
GEN WR01X2140 GEN WR01X2140 Contact Us For Availability
564
SCR 1/4 14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
610
GEN WR60X10 GEN WR60X10 Contact Us For Availability
616
GEN WR82X10041 GEN WR82X10041 Contact Us For Availability
627
GEN WR17X10449 GEN WR17X10449 Contact Us For Availability
630
GEN WR02X8525 GEN WR02X8525 Contact Us For Availability
650
GEN WR60X10024 GEN WR60X10024 Contact Us For Availability
651
GEN WR60X10034 GEN WR60X10034 Contact Us For Availability
652
RING COMPRESSION GEN WR02X10323 Contact Us For Availability
683
GEN WR01X10127 GEN WR01X10127 Contact Us For Availability
717
GEN WR02X10335 GEN WR02X10335 Contact Us For Availability
730
GEN WR84X0188 GEN WR84X0188 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X10005 GEN WR08X10005 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
738
GEN WR84X0169 GEN WR84X0169 Contact Us For Availability
747
GEN WR17X10427 GEN WR17X10427 Contact Us For Availability
749
GEN WR17X4147 GEN WR17X4147 Contact Us For Availability
751
GEN WR17X10337 GEN WR17X10337 Contact Us For Availability
754
GEN WR82X10066 GEN WR82X10066 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
789
GEN WR17X10132 GEN WR17X10132 Contact Us For Availability
791
GEN WR02X10173 GEN WR02X10173 Contact Us For Availability
792
GEN WR17X10450 GEN WR17X10450 Contact Us For Availability
810
GEN WR17X10504 GEN WR17X10504 Contact Us For Availability
850
GEN WR29X0182 GEN WR29X0182 Contact Us For Availability
853
PLATE MOUNTING GEN WR29X5111 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
861
INSULATOR GEN WR29X5117 Contact Us For Availability
867
GEN WR29X0153 GEN WR29X0153 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
872
SLEEVE VINYL GEN WR29X5128 Contact Us For Availability
910
GEN WR78X10196 GEN WR78X10196 Contact Us For Availability
1003
GEN WR99X10002 GEN WR99X10002 Contact Us For Availability
1061
GEN WR02X10127 GEN WR02X10127 Contact Us For Availability
1062
GEN WR02X10125 GEN WR02X10125 Contact Us For Availability
1063
GEN WR02X10126 GEN WR02X10126 Contact Us For Availability
× ![]()
