Model GE TFE24ERAWH Refrigerator – Common Parts & Diagrams
0
1

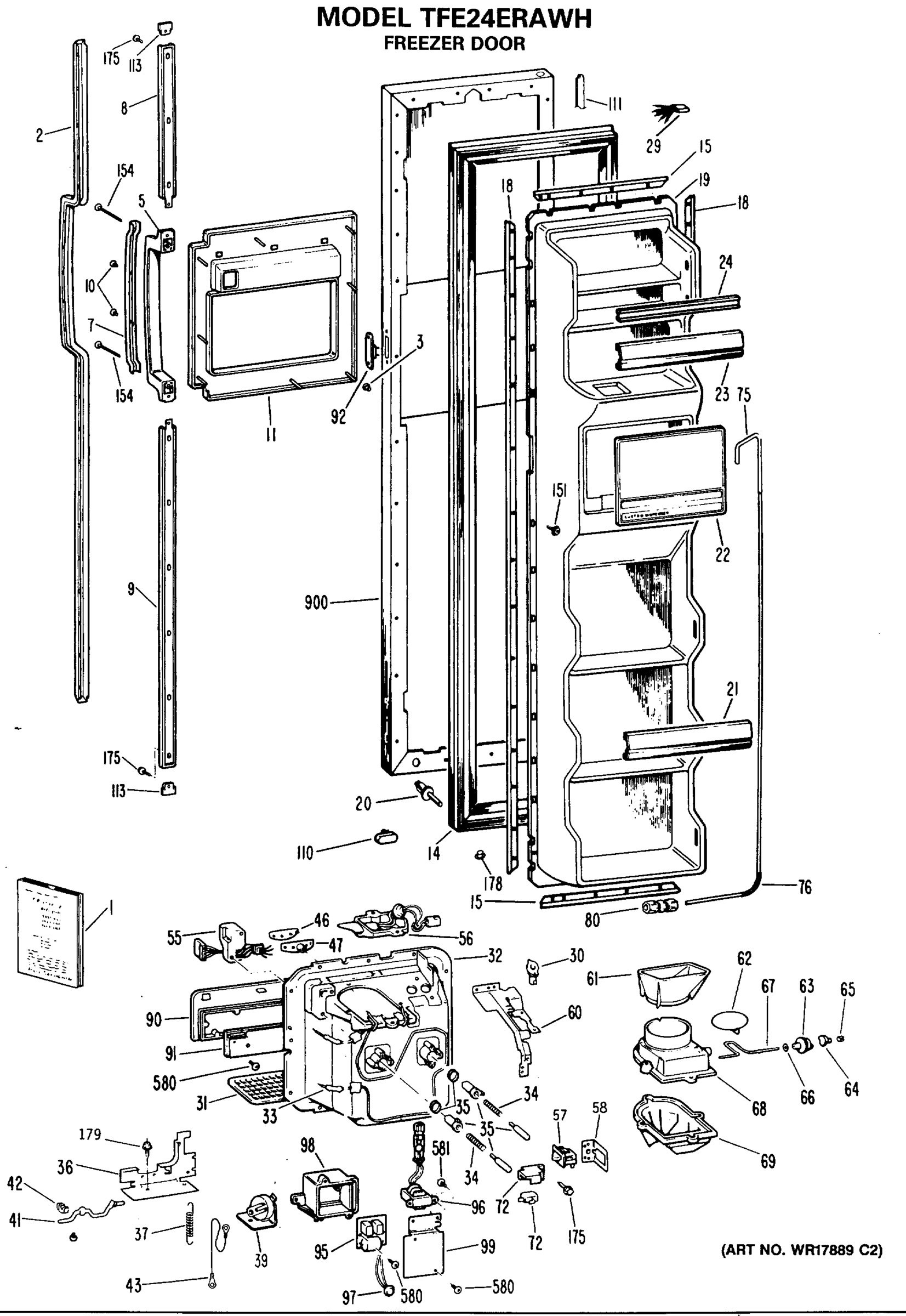

FREEZER DOOR

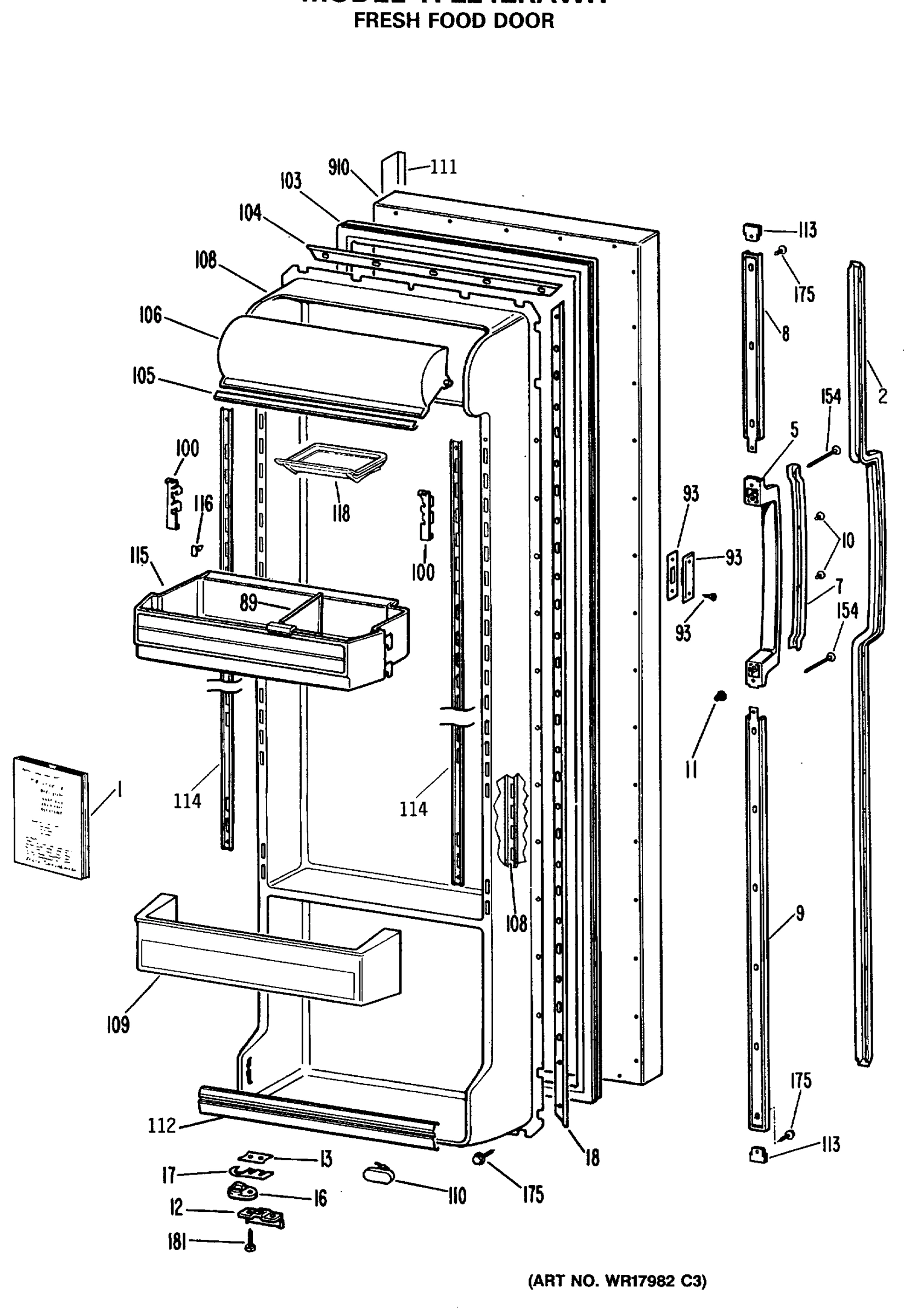

FRESH FOOD DOOR

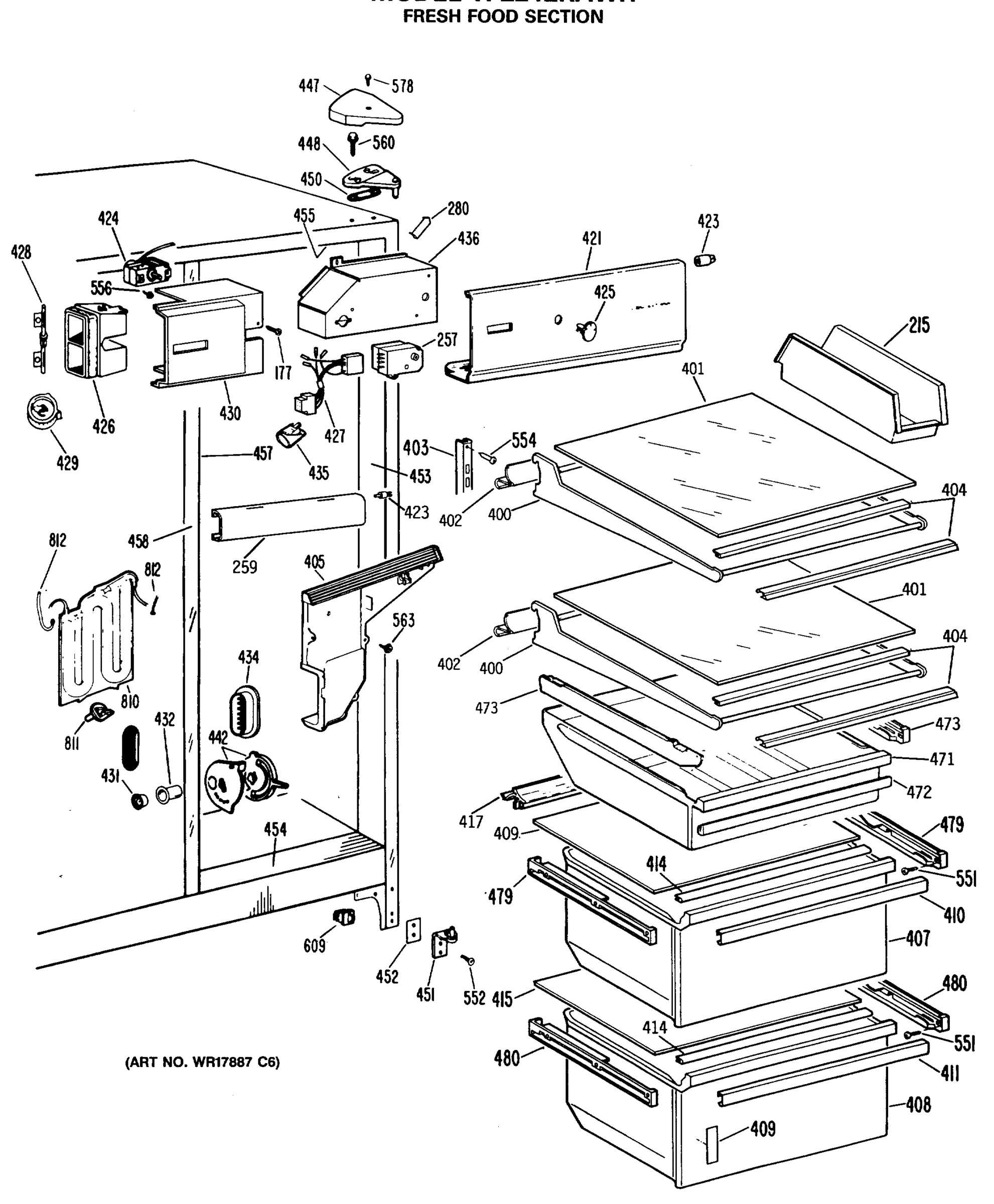

FRESH FOOD SECTION
Common parts from model GE TFE24ERAWH Refrigerator
1
GEN 49-6672 GEN 49-6672 Contact Us For Availability
2
GEN WR12X0622 GEN WR12X0622 Contact Us For Availability
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
5
GEN WR12X0618 GEN WR12X0618 Contact Us For Availability
7
GEN WR12X0620 GEN WR12X0620 Contact Us For Availability
8
GEN WR12X0621 GEN WR12X0621 Contact Us For Availability
9
GEN WR12X0616 GEN WR12X0616 Contact Us For Availability
10
GEN WR01X1766 GEN WR01X1766 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1314 GEN WR38X1314 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X5233 GEN WR24X5233 Contact Us For Availability
14
SCREW FAN MOTOR TO BRCKT GEN WZ05X0164 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0525 GEN WR77X0525 Contact Us For Availability
20
GEN WR23X0360 GEN WR23X0360 Contact Us For Availability
21
GEN WR17X3007 GEN WR17X3007 Contact Us For Availability
22
GEN WR17X2920 GEN WR17X2920 Contact Us For Availability
23
GEN WR17X3008 GEN WR17X3008 Contact Us For Availability
24
GEN WR17X3009 GEN WR17X3009 Contact Us For Availability
29
GEN WR49X0301 GEN WR49X0301 Contact Us For Availability
29
GEN WR49X0308 GEN WR49X0308 Contact Us For Availability
30
GEN WR02X4571 GEN WR02X4571 Contact Us For Availability
31
GEN WR02X3953 GEN WR02X3953 Contact Us For Availability
32
RECESS DISP GEN WR17X2047 Contact Us For Availability
33
GEN WR51X0348 GEN WR51X0348 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
GEN WR01X1824 GEN WR01X1824 Contact Us For Availability
35
GEN WR02X4822 GEN WR02X4822 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
GEN WR02X8414 GEN WR02X8414 Contact Us For Availability
37
GEN WR02X8403 GEN WR02X8403 Contact Us For Availability
39
GEN WR09X0462 GEN WR09X0462 Contact Us For Availability
41
GEN WR17X2820 GEN WR17X2820 Contact Us For Availability
42
GEN WR02X4234 GEN WR02X4234 Contact Us For Availability
45
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
46
GEN WR02X8471 GEN WR02X8471 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
55
GEN WR23X0306 GEN WR23X0306 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X4570 GEN WR02X4570 Contact Us For Availability
56
GEN WR02X7910 GEN WR02X7910 Contact Us For Availability
57
GEN WR23X0361 GEN WR23X0361 Contact Us For Availability
58
GEN WR02X8496 GEN WR02X8496 Contact Us For Availability
60
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
DOOR RECESS DUCT ASM GEN WR17X1586 Contact Us For Availability
63
GEN WR17X1457 GEN WR17X1457 Contact Us For Availability
64
ASM-TIME DELAY GEN WR17X1045 Contact Us For Availability
64
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
75
GEN WR17X1408 GEN WR17X1408 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
89
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
90
GEN WR55X0024 GEN WR55X0024 Contact Us For Availability
91
GEN WR02X7313 GEN WR02X7313 Contact Us For Availability
91
GEN WR02X7314 GEN WR02X7314 Contact Us For Availability
91
BOARD ASM. LOGIC GEN WR55X0016 Contact Us For Availability
92
GEN WR23X0346 GEN WR23X0346 Contact Us For Availability
93
GEN WR23X0347 GEN WR23X0347 Contact Us For Availability
95
GEN WR55X0013 GEN WR55X0013 Contact Us For Availability
96
GEN WR62X0061 GEN WR62X0061 Contact Us For Availability
97
GEN WR52X0024 GEN WR52X0024 Contact Us For Availability
98
GEN WR02X7349 GEN WR02X7349 Contact Us For Availability
99
GEN WR02X7350 GEN WR02X7350 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X5231 GEN WR24X5231 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1767 GEN WR38X1767 Contact Us For Availability
106
GEN WR22X0454 GEN WR22X0454 Contact Us For Availability
108
GEN WR72X0170 GEN WR72X0170 Contact Us For Availability
108
GEN WR77X0575 GEN WR77X0575 Contact Us For Availability
109
GEN WR71X2267 GEN WR71X2267 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X1425 GEN WR38X1425 Contact Us For Availability
112
GEN WR71X2232 GEN WR71X2232 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
114
GEN WR72X0171 GEN WR72X0171 Contact Us For Availability
115
GEN WR71X2266 GEN WR71X2266 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
215
GEN WR32X1250 GEN WR32X1250 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
GEN WR85X0201 GEN WR85X0201 Contact Us For Availability
230
GEN WR02X8487 GEN WR02X8487 Contact Us For Availability
230
GEN WR51X0334 GEN WR51X0334 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
235
GEN WR38X1815 GEN WR38X1815 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X2968 GEN WR17X2968 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
259
GEN WR17X2555 GEN WR17X2555 Contact Us For Availability
260
GEN WR32X1125 GEN WR32X1125 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2743 GEN WR17X2743 Contact Us For Availability
280
GEN WR02X8518 GEN WR02X8518 Contact Us For Availability
288
GRILLE BASE GEN WR74X0199 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2205 GEN WR71X2205 Contact Us For Availability
361
GEN WR17X2969 GEN WR17X2969 Contact Us For Availability
362
GEN WR02X7936 GEN WR02X7936 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X3010 GEN WR17X3010 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
400
GEN WR71X2123 GEN WR71X2123 Contact Us For Availability
401
GEN WR32X1263 GEN WR32X1263 Contact Us For Availability
402
GEN WR38X1787 GEN WR38X1787 Contact Us For Availability
403
GEN WR71X2124 GEN WR71X2124 Contact Us For Availability
404
GEN WR38X1789 GEN WR38X1789 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1277 GEN WR32X1277 Contact Us For Availability
408
GEN WR32X1278 GEN WR32X1278 Contact Us For Availability
409
GEN WR02X8476 GEN WR02X8476 Contact Us For Availability
409
GEN WR32X1264 GEN WR32X1264 Contact Us For Availability
410
GEN WR17X2960 GEN WR17X2960 Contact Us For Availability
411
GEN WR17X2961 GEN WR17X2961 Contact Us For Availability
414
GEN WR14X0406 GEN WR14X0406 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2971 GEN WR17X2971 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0511 GEN WR09X0511 Contact Us For Availability
425
GEN WR02X8626 GEN WR02X8626 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0357 GEN WR23X0357 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X8553 GEN WR02X8553 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X8434 GEN WR02X8434 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
442
GEN WR02X3883 GEN WR02X3883 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
446
GEN WR13X0617 GEN WR13X0617 Contact Us For Availability
447
GEN WR02 GEN WR02 Contact Us For Availability
447
GEN WR02X8262 GEN WR02X8262 Contact Us For Availability
448
GEN WR13X0616 GEN WR13X0616 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1631 GEN WR40X1631 Contact Us For Availability
454
GEN WR40X1629 GEN WR40X1629 Contact Us For Availability
455
GEN WR40X1635 GEN WR40X1635 Contact Us For Availability
457
GEN WR40X1640 GEN WR40X1640 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X1242 GEN WR32X1242 Contact Us For Availability
472
GEN WR38X1761 GEN WR38X1761 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
479
GEN WR72X0206 GEN WR72X0206 Contact Us For Availability
480
GEN WR72X0208 GEN WR72X0208 Contact Us For Availability
480
GEN WR72X0209 GEN WR72X0209 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
SCR 10-24 BP PA 1 1/2 S GEN WR01X1483 Contact Us For Availability
556
GEN WZ02X0460 GEN WZ02X0460 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
560
GEN WR01X1806 GEN WR01X1806 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
562
GEN WX05X0558 GEN WX05X0558 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
580
GEN WZ02X0561 GEN WZ02X0561 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
616
GEN WR82X0312 GEN WR82X0312 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
GEN WR17X2916 GEN WR17X2916 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0186 GEN WR60X0186 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0159 GEN WR84X0159 Contact Us For Availability
731
GEN WR02X8370 GEN WR02X8370 Contact Us For Availability
732
GEN WR02X8291 GEN WR02X8291 Contact Us For Availability
733
GEN WR07X0198 GEN WR07X0198 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0121 GEN WR08X0121 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0046 GEN WR84X0046 Contact Us For Availability
746
GEN WR17X2703 GEN WR17X2703 Contact Us For Availability
747
GEN WR17X2680 GEN WR17X2680 Contact Us For Availability
749
GEN WR17X2702 GEN WR17X2702 Contact Us For Availability
751
GEN WR17X2701 GEN WR17X2701 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
763
GEN WR50X0120 GEN WR50X0120 Contact Us For Availability
764
GEN WR02X8222 GEN WR02X8222 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
800
GEN WR57X0106 GEN WR57X0106 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
GEN WR17X2890 GEN WR17X2890 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
825
GEN WR23X0305 GEN WR23X0305 Contact Us For Availability
830
GEN WR17X2602 GEN WR17X2602 Contact Us For Availability
900
GEN WR78X8282 GEN WR78X8282 Contact Us For Availability
910
GEN WR78X8285 GEN WR78X8285 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
