Model Whirlpool TER20W0YW3 ELECTRIC RANGE – Common Parts & Diagrams
05 - WIRING HARNESS, LIT/OPTIONAL
01 - COOKTOP

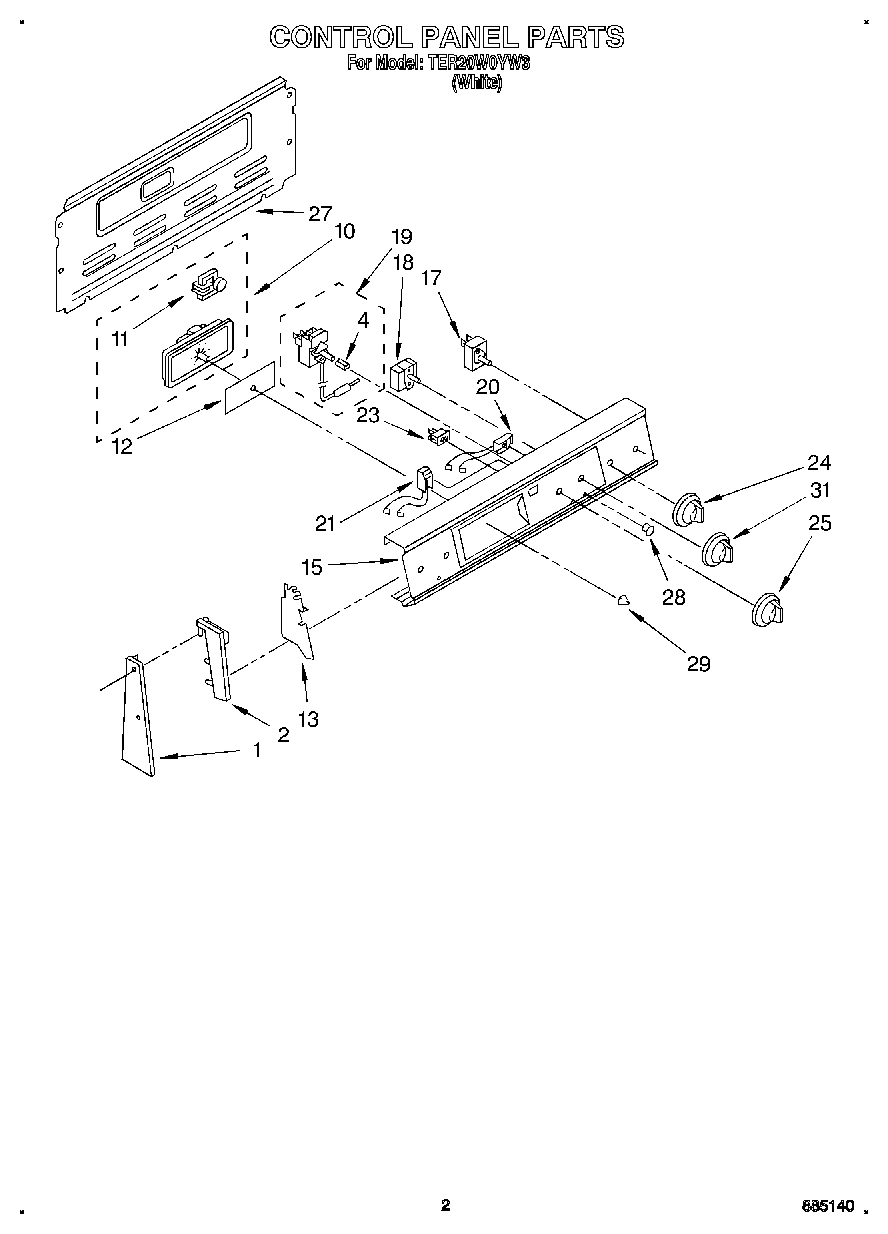

02 - CONTROL PANEL

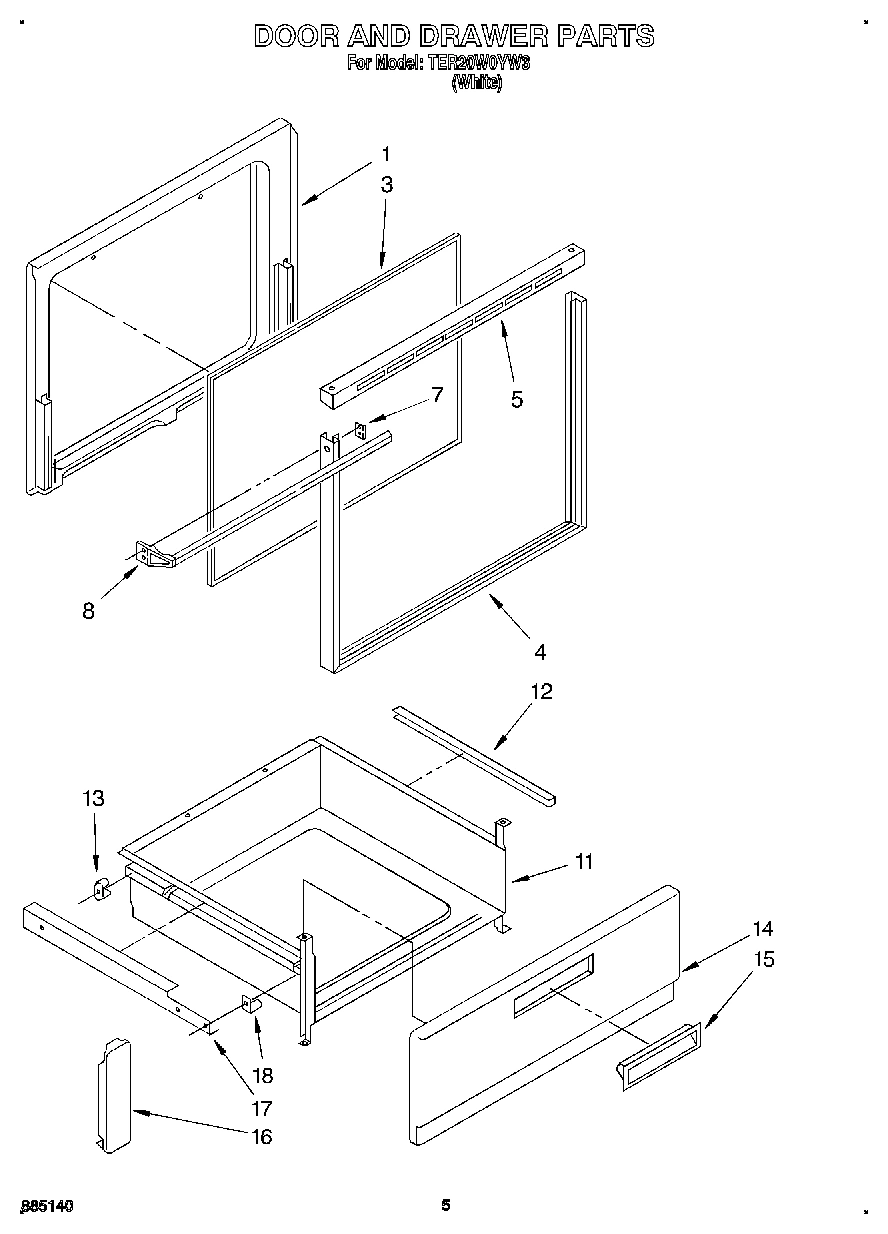

04 - DOOR AND DRAWER

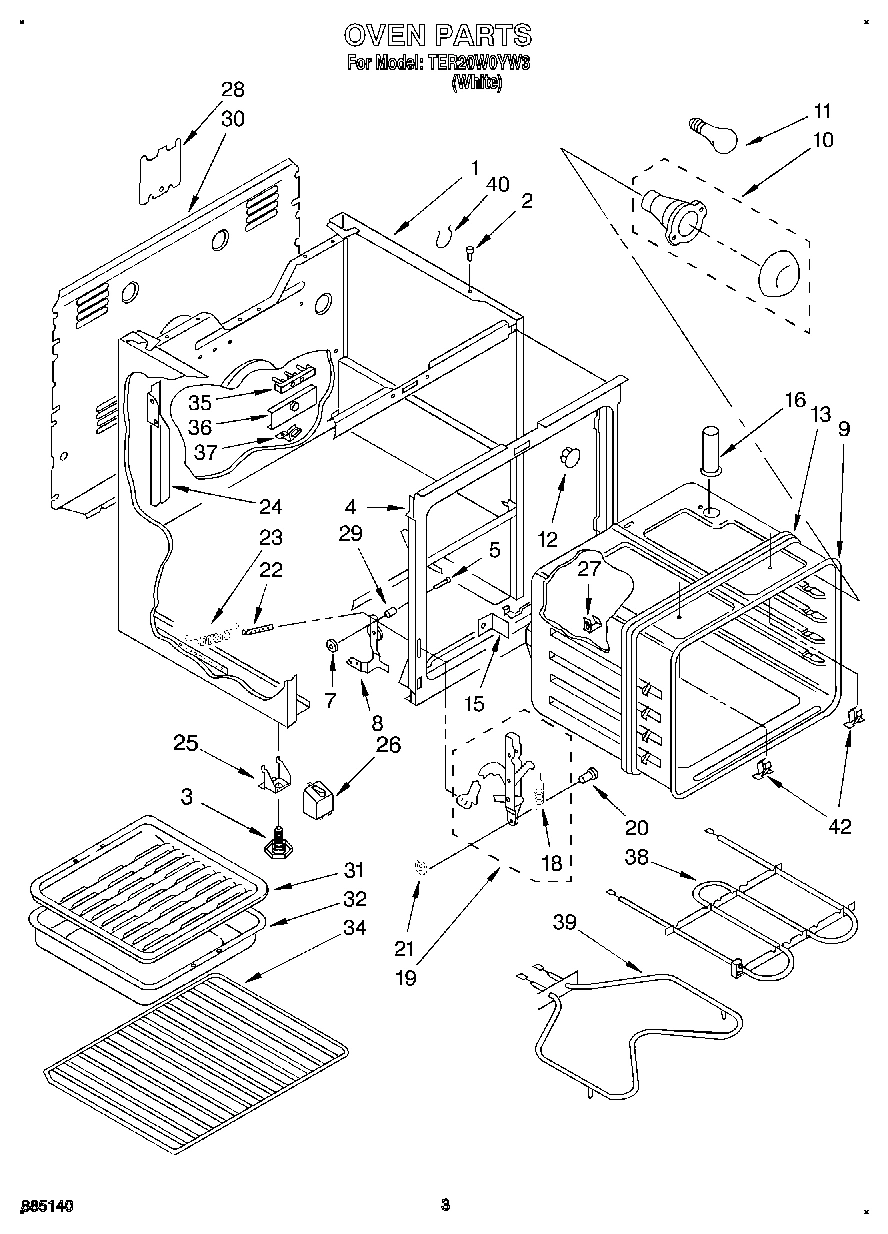

03 - OVEN
Common parts from model Whirlpool TER20W0YW3 ELECTRIC RANGE
1
End Trim R.H. WPL 3187671 Contact Us For Availability
1
End Trim L.H. WPL 3187672 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
3
Outer Glass Panel (Black Glass) WPL 3148186 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
WPL 799344 WPL 799344 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
4
Sleeve, Adaptor WPL 3169525 Contact Us For Availability
4
Screw (4) WPL 3149253 Contact Us For Availability
4
Frame, Panel WPL 3188997 Contact Us For Availability
4
Screw WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
5
Screw (2) WPL 3149333 Contact Us For Availability
5
Top, Door Vent WPL 3188692 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Handle, Door (Black color) WPL 3188695 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
10
Timer, Clock WPL 3169298 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
12
Glass, Timer WPL 3148852 Contact Us For Availability
12
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
12
Plug Button WPL 308535 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Shield (2) WPL 313608 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
13
Seal, Heat WPL 3169283 Contact Us For Availability
14
Panel, Drawer (White) WPL 3169430 Contact Us For Availability
15
Panel, Control WPL 3169194 Contact Us For Availability
15
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Bracket, Rail (2) WPL 3169420 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
17
Rail, Slide (L.H. (Includes No. 18)) WPL 3149256 Contact Us For Availability
18
Switch, Selector WPL 3150430 Contact Us For Availability
18
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
18
Glide, Front (2) WPL 3149257 Contact Us For Availability
18
Spring, Stop WPL 308207 Contact Us For Availability
19
Thermostat, Oven WPL 3169302 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
20
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
25
Support, Foot (2) WPL 3169418 Contact Us For Availability
26
Cover, Foot (2) WPL 3169448 Contact Us For Availability
27
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
28
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
Plate, Service WPL 307972 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Cover, Rear WPL 3148975 Contact Us For Availability
31
Knob, Selector WPL 3149984 Contact Us For Availability
34
Oven Rack (2) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
