Model Whirlpool TER20W0YW2 ELECTRIC RANGE – Common Parts & Diagrams

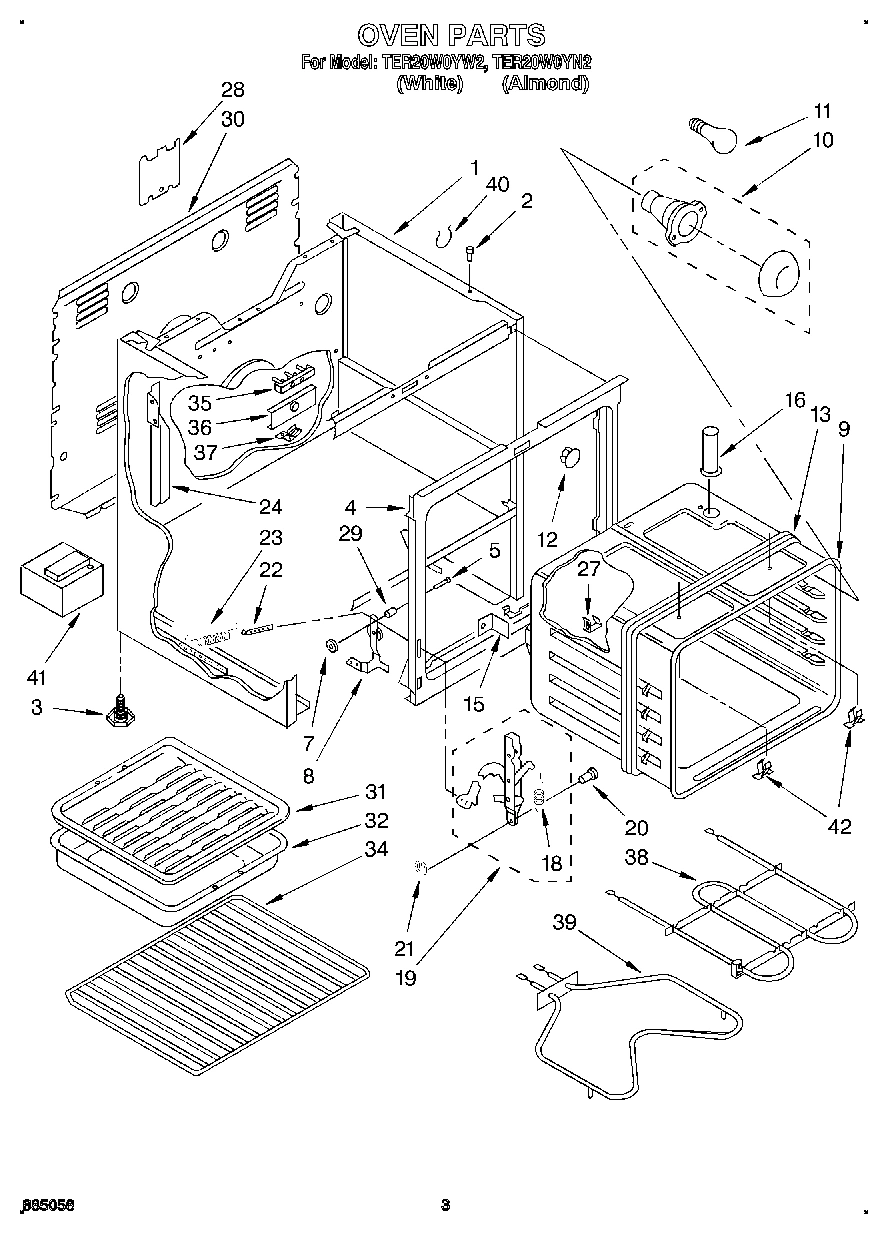

03 - OVEN

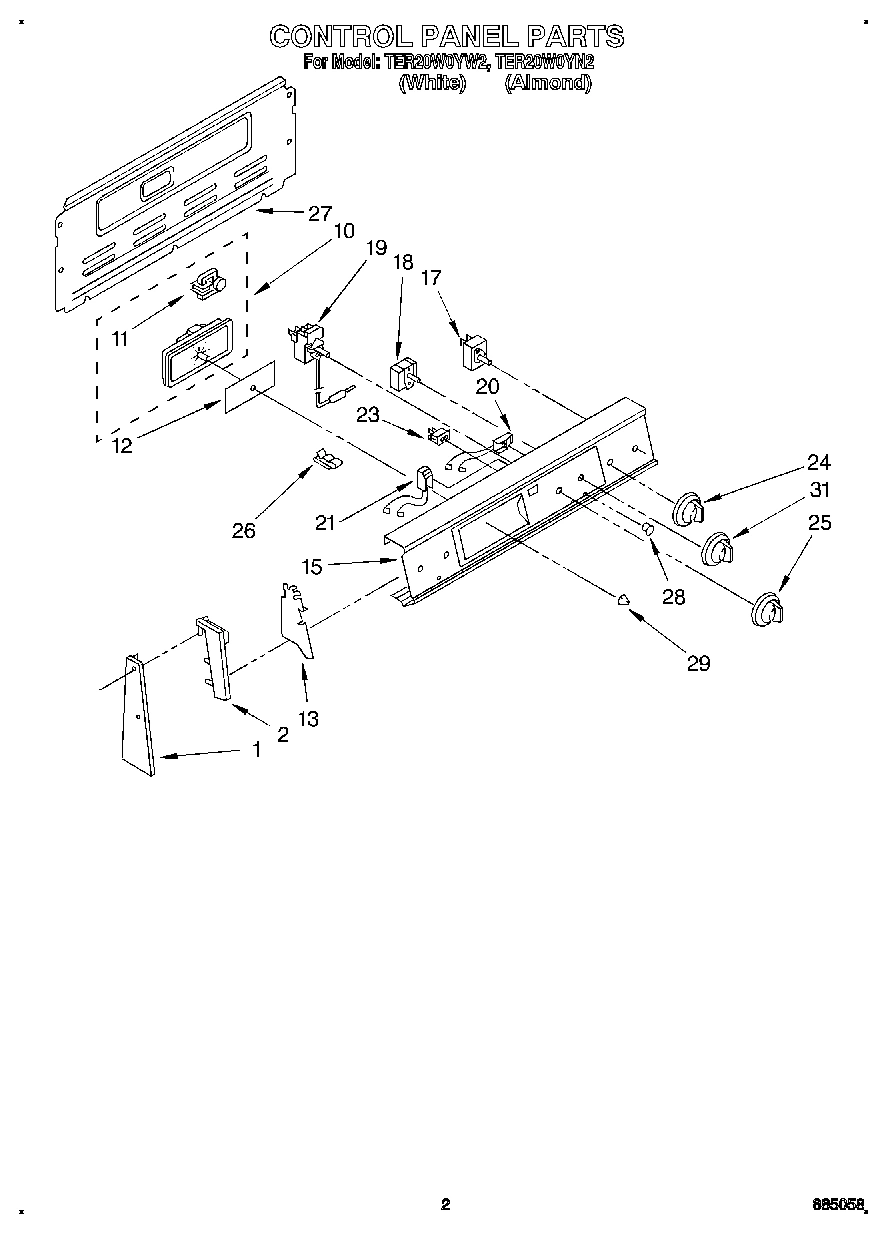

02 - CONTROL PANEL
04 - DOOR AND DRAWER

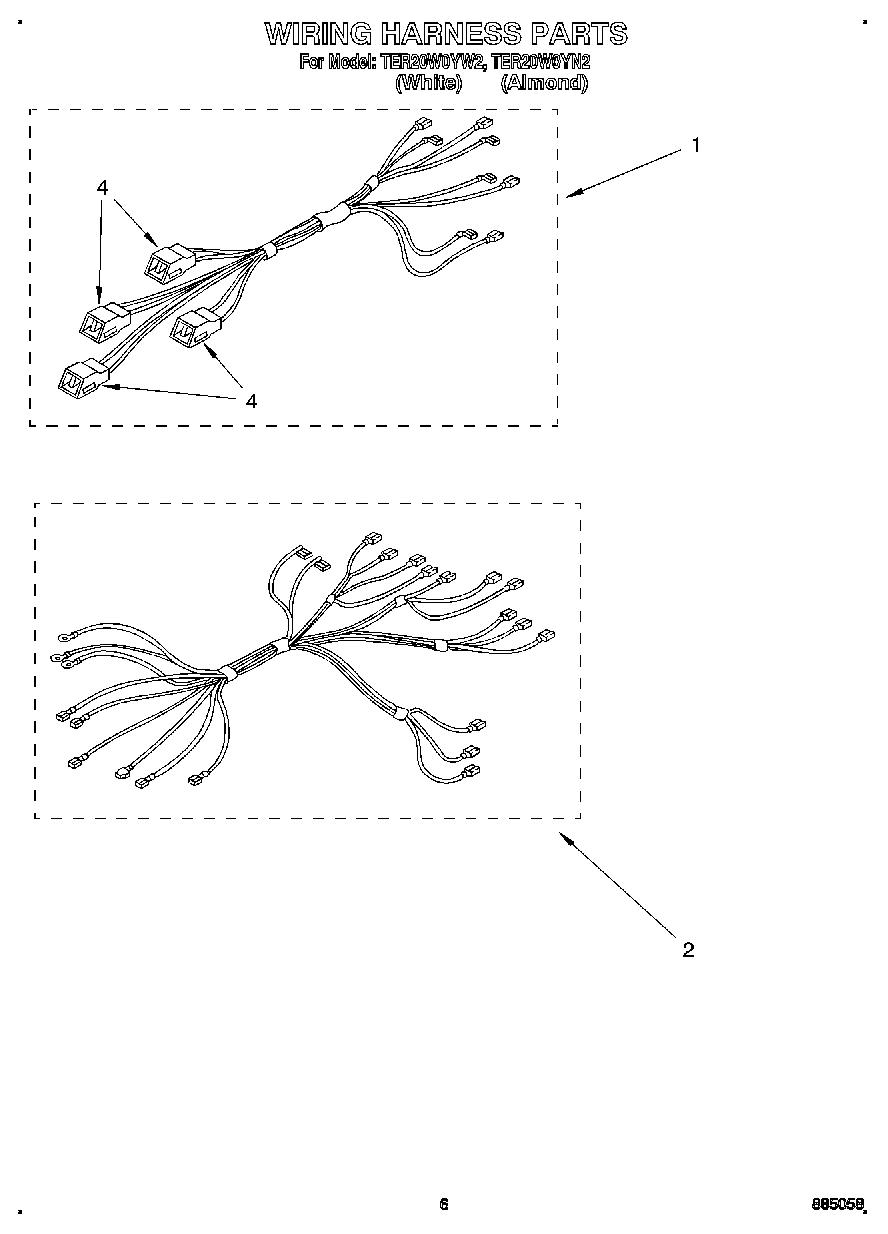

05 - WIRING HARNESS , LITERATURE AND OPTIONAL

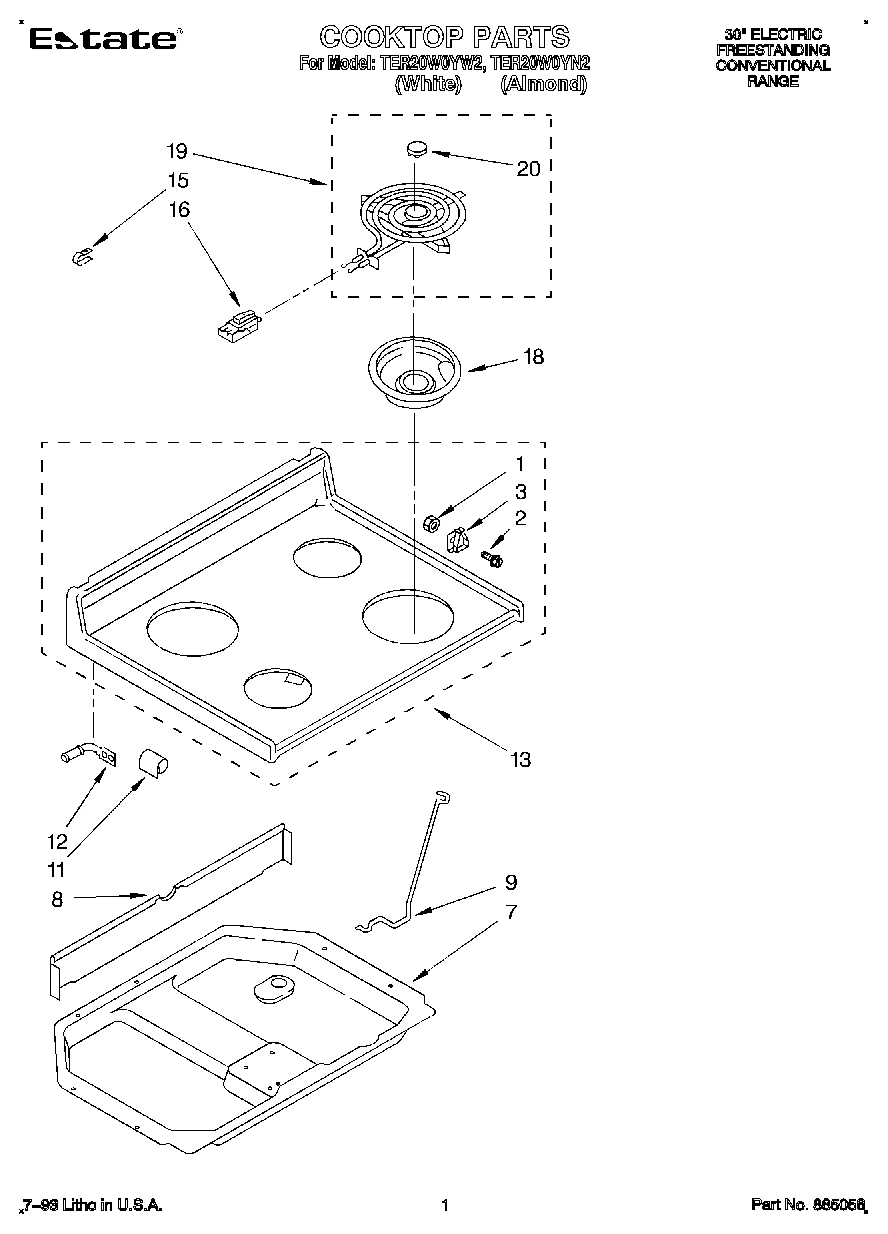

01 - COOKTOP
Common parts from model Whirlpool TER20W0YW2 ELECTRIC RANGE
WPL LIT3150400 WPL LIT3150400 Contact Us For Availability
WPL LIT3150656 WPL LIT3150656 Contact Us For Availability
WPL LIT3187321 WPL LIT3187321 Contact Us For Availability
WPL LIT3187492 WPL LIT3187492 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Screw (2) WPL 3149333 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169148 Contact Us For Availability
3
Outer Glass Panel (Black Glass) WPL 3148186 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Frame, Panel WPL 3148235 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
12 Ga. 150~c (Wire, Yellow 14 Ga. 200~c) WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
5
Top, Door (White-Almond) WPL 3148223 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Handle, Door (Black color) WPL 3148228 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
10
Timer, Clock WPL 3169298 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
12
Glass, Timer WPL 3148852 Contact Us For Availability
12
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Shield (2) WPL 313608 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
14
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
15
Panel, Control WPL 3169194 Contact Us For Availability
15
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
15
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
16
Bracket, Rail (2) WPL 307981 Contact Us For Availability
17
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
17
Rail, Slide (L.H. (Includes No. 18)) WPL 3149256 Contact Us For Availability
18
Switch, Selector WPL 3150430 Contact Us For Availability
18
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
18
Screw (2) WPL 307748 Contact Us For Availability
18
Glide, Front (2) WPL 3149257 Contact Us For Availability
19
Thermostat, Oven WPL 661150 Contact Us For Availability
20
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
25
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
26
Tube Clip WPL 313570 Contact Us For Availability
27
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
28
Lens, Amber (2) WPL 313101 Contact Us For Availability
31
Knob, Selector WPL 3149984 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
41
Block, Balance WPL 3149258 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
