  • Whirlpool TEDL200WW0

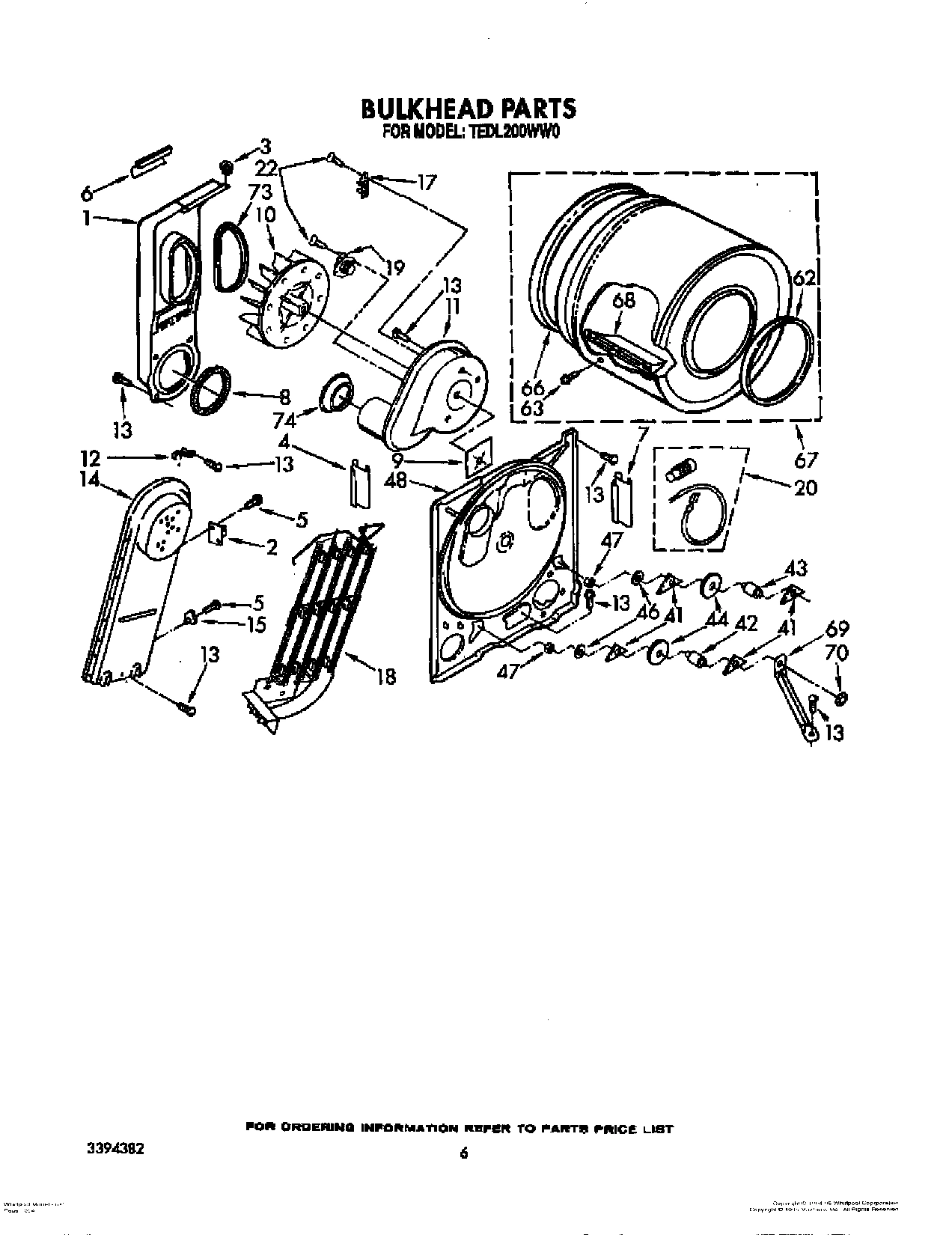

Model Whirlpool TEDL200WW0 ELECTRIC DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT3391370 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3393229 Contact Us For Availability
View on Model
List, Service Parts
List, Service Parts WPL LIT3394382 Contact Us For Availability
View on Model
Automatic Washer (Belt Drive)
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
View on Model
Dryer
Dryer WPL LIT677818 Contact Us For Availability
View on Model
Compactor
Compactor WPL LIT677821 Contact Us For Availability
View on Model
Dishwasher
Dishwasher WPL LIT677967 Contact Us For Availability
View on Model
Ice Maker (In Refrigerator)
Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability
View on Model
Guide, Dryer
Guide, Dryer WPL LIT693849 Contact Us For Availability
View on Model
1

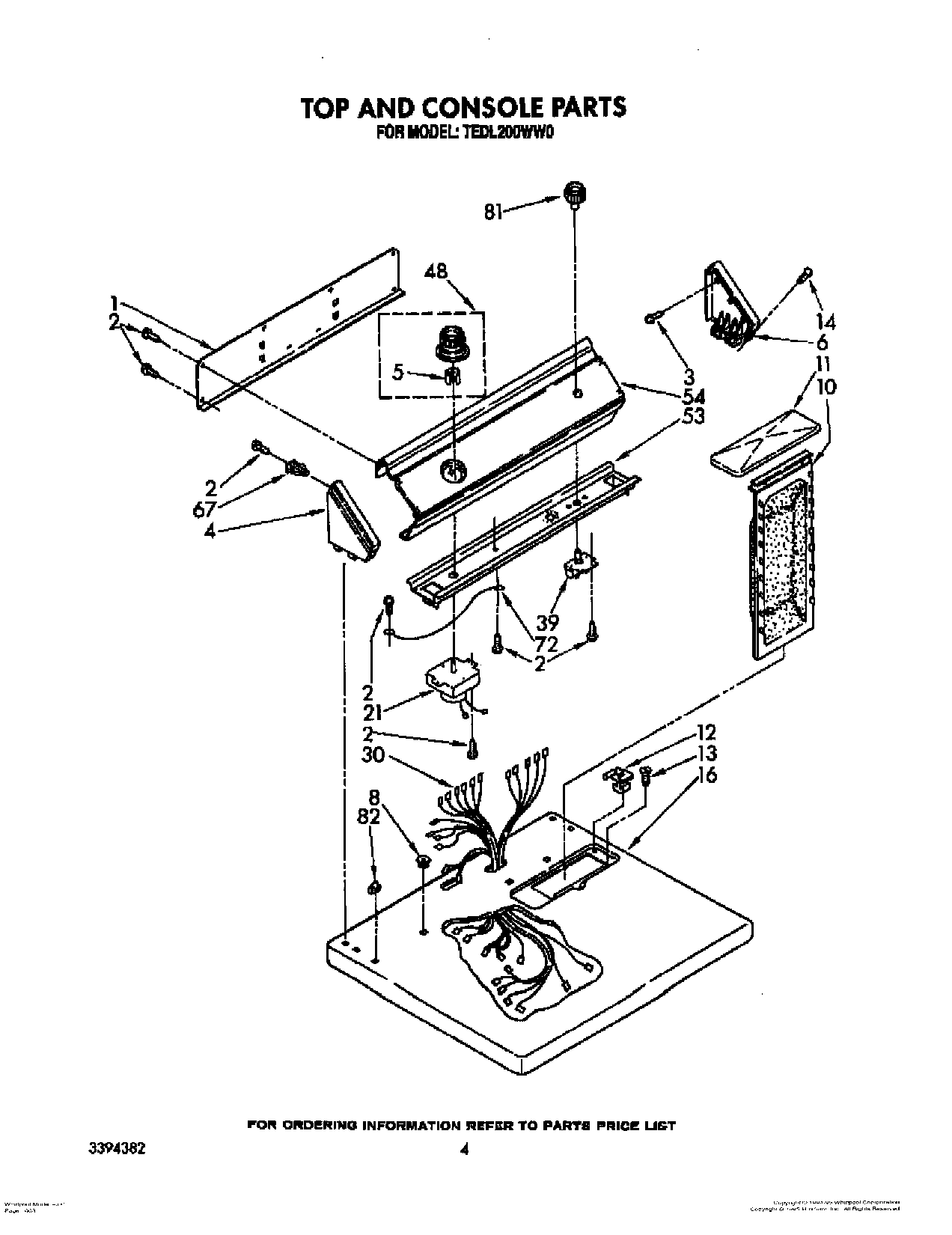

Panel, Rear Console
Panel, Rear Console WPL 386367 Contact Us For Availability
View on Model
3
Screw, 13-16 x 5/8
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 63790 Contact Us For Availability
View on Model
6
Cap, End (R.H.) (White)
Cap, End (R.H.) (White) WPL 63796 Contact Us For Availability
View on Model
8
Stop, Push-In (2)
Stop, Push-In (2) WPL 358472 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
14
Screw, 8-18 x 1
Screw, 8-18 x 1 WPL 64211 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3393385 Contact Us For Availability
View on Model

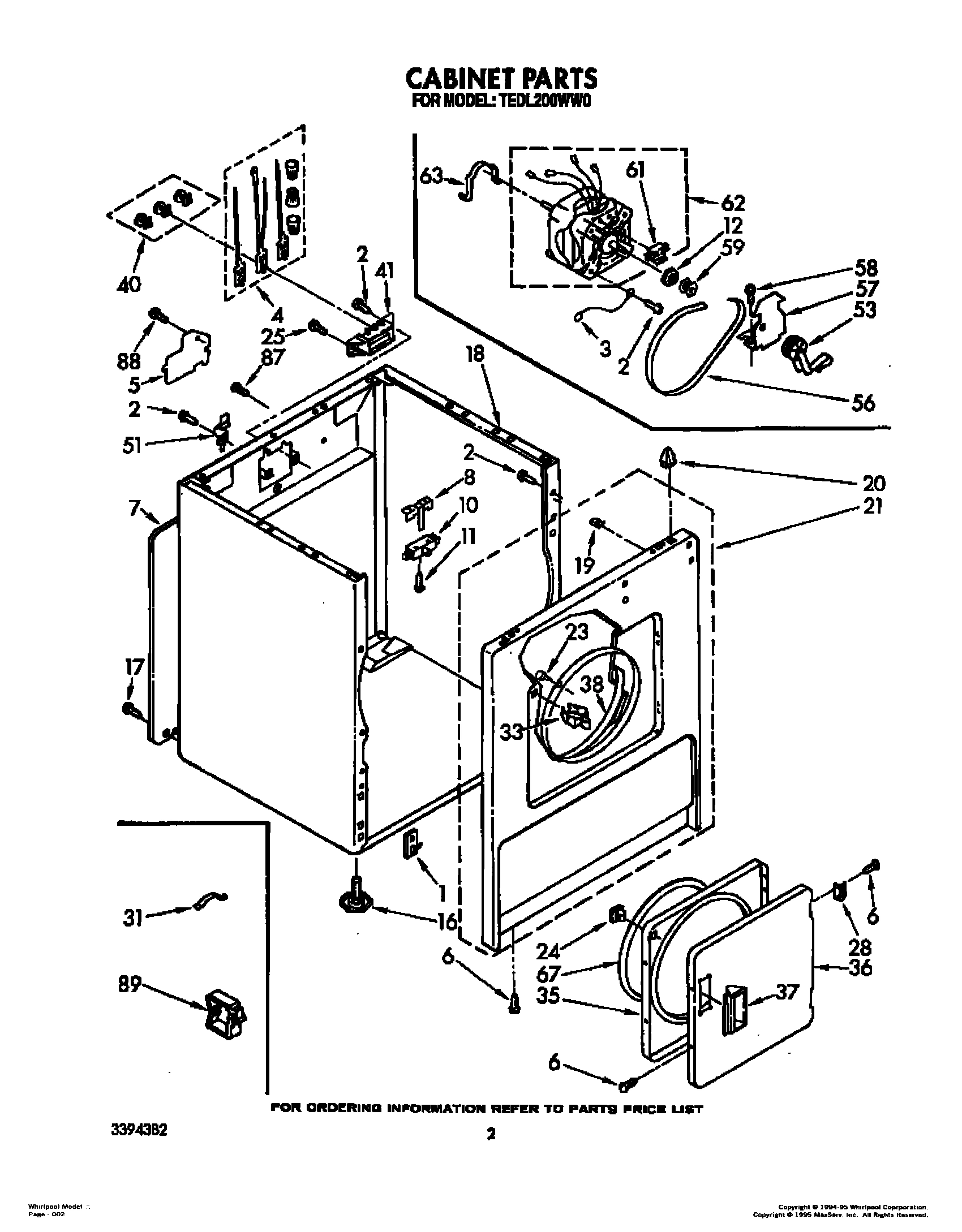

18
Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
21
Front Panel (White)
Front Panel (White) WPL 693197 Contact Us For Availability
View on Model
21
Timer Assembly, 60 Hz.
Timer Assembly, 60 Hz. WPL 687952 Contact Us For Availability
View on Model
30
Harness
Harness WPL 3388068 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 660936 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
View on Model
48
Timer Knob Assembly
Timer Knob Assembly WPL 695556 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 386627 Contact Us For Availability
View on Model
54
Panel, Control
Panel, Control WPL 3387696 Contact Us For Availability
View on Model
61
Switch (Use W/3391888 Motor)
Switch (Use W/3391888 Motor) WPL 3398235 Contact Us For Availability
View on Model
67
Clip, Push-On (4)
Clip, Push-On (4) WPL 689559 Contact Us For Availability
View on Model
72
Wire, Console Ground
Wire, Console Ground WPL 690853 Contact Us For Availability
View on Model
81
Knob, Push-To-Start
Knob, Push-To-Start WPL 696075 Contact Us For Availability
View on Model
82
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
89
Clip, Harness Retainer
Clip, Harness Retainer WPL 688412 Contact Us For Availability
View on Model
