Model GE TBX22PRYERAA Refrigerator – Common Parts & Diagrams
CABINET PARTS
COMPARTMENT SEPARATOR PARTS

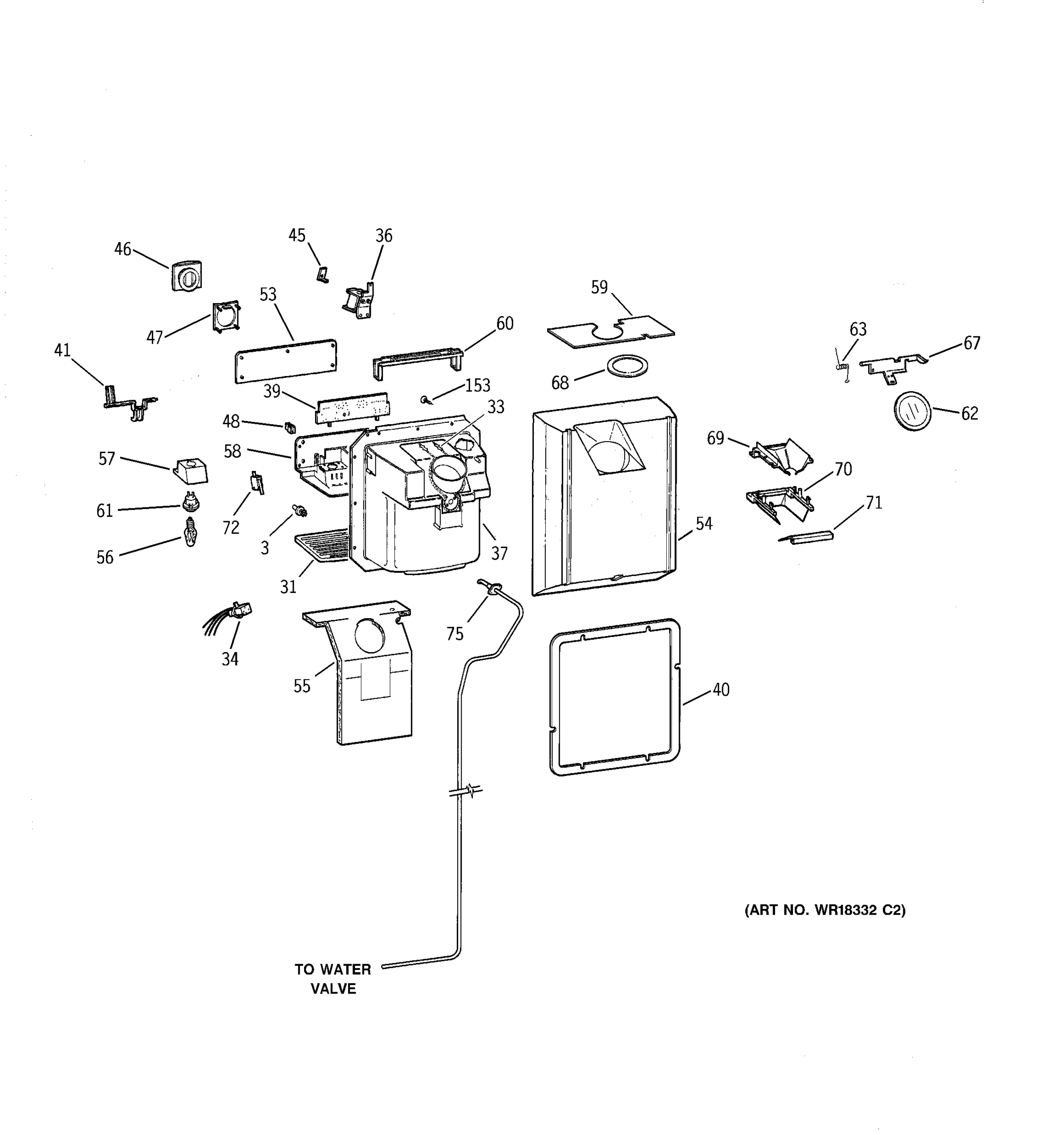

DISPENSER PARTS

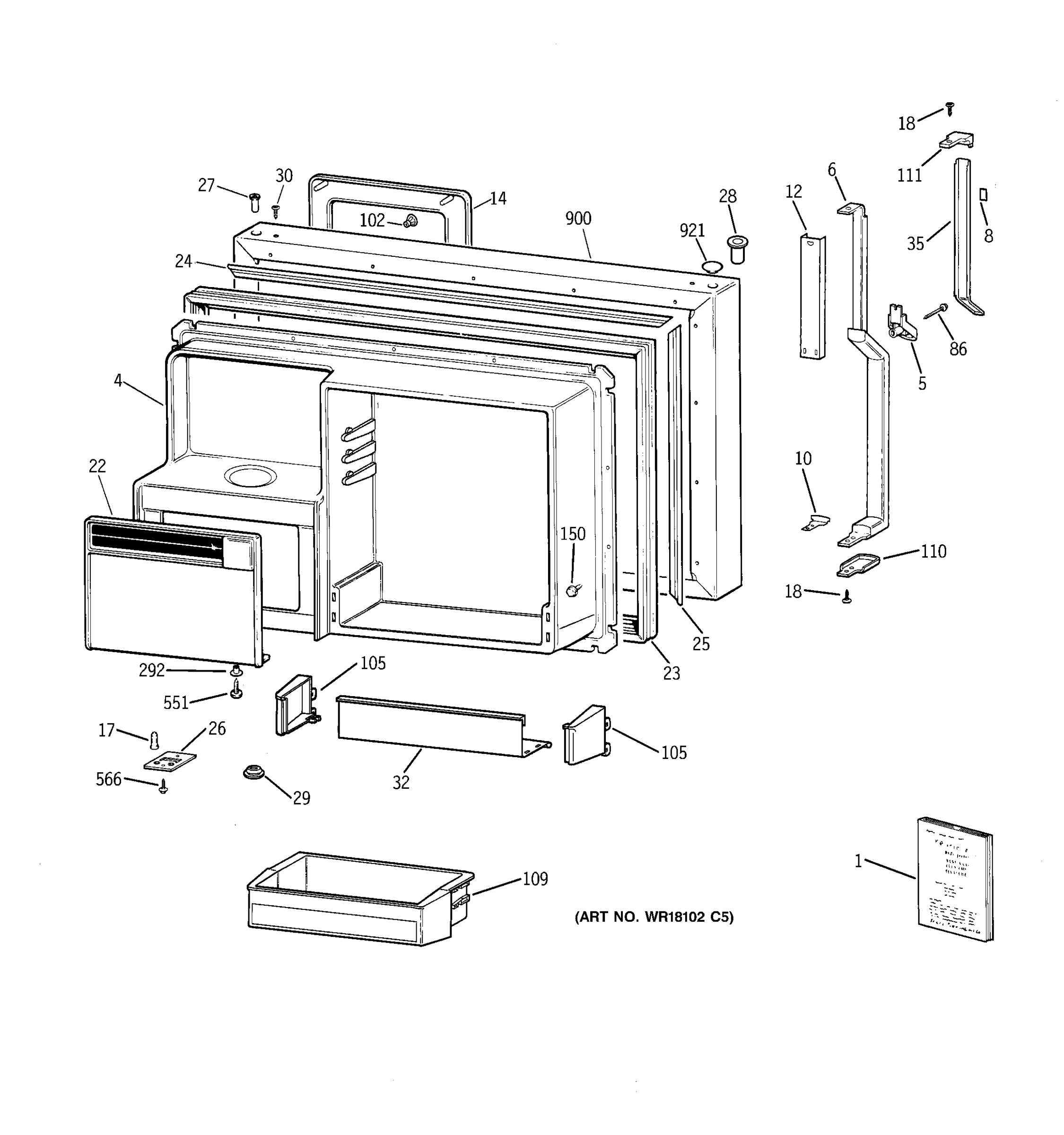

FREEZER DOOR

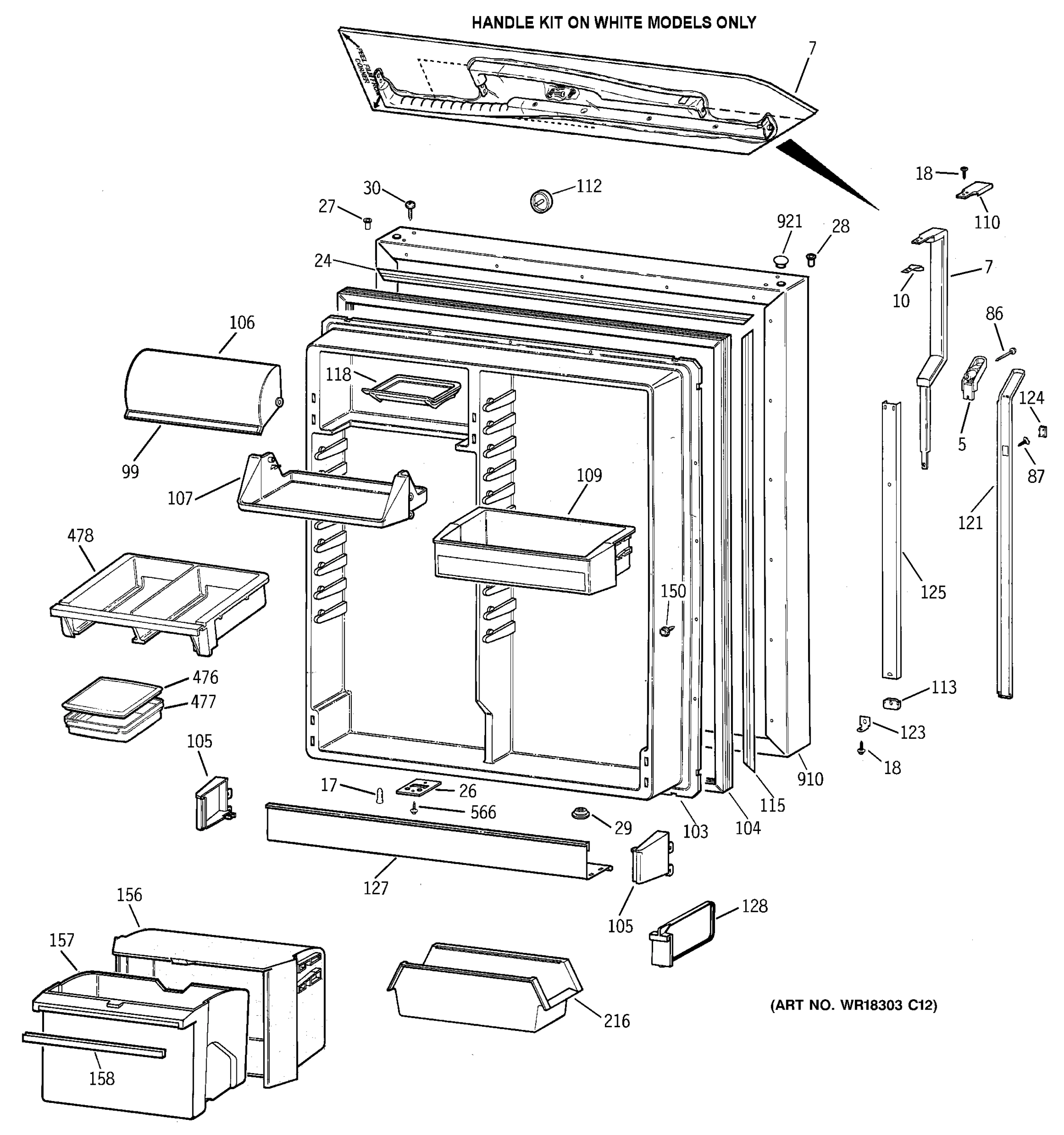

FRESH FOOD DOOR
ICE MAKER & DISPENSER
SHELF PARTS

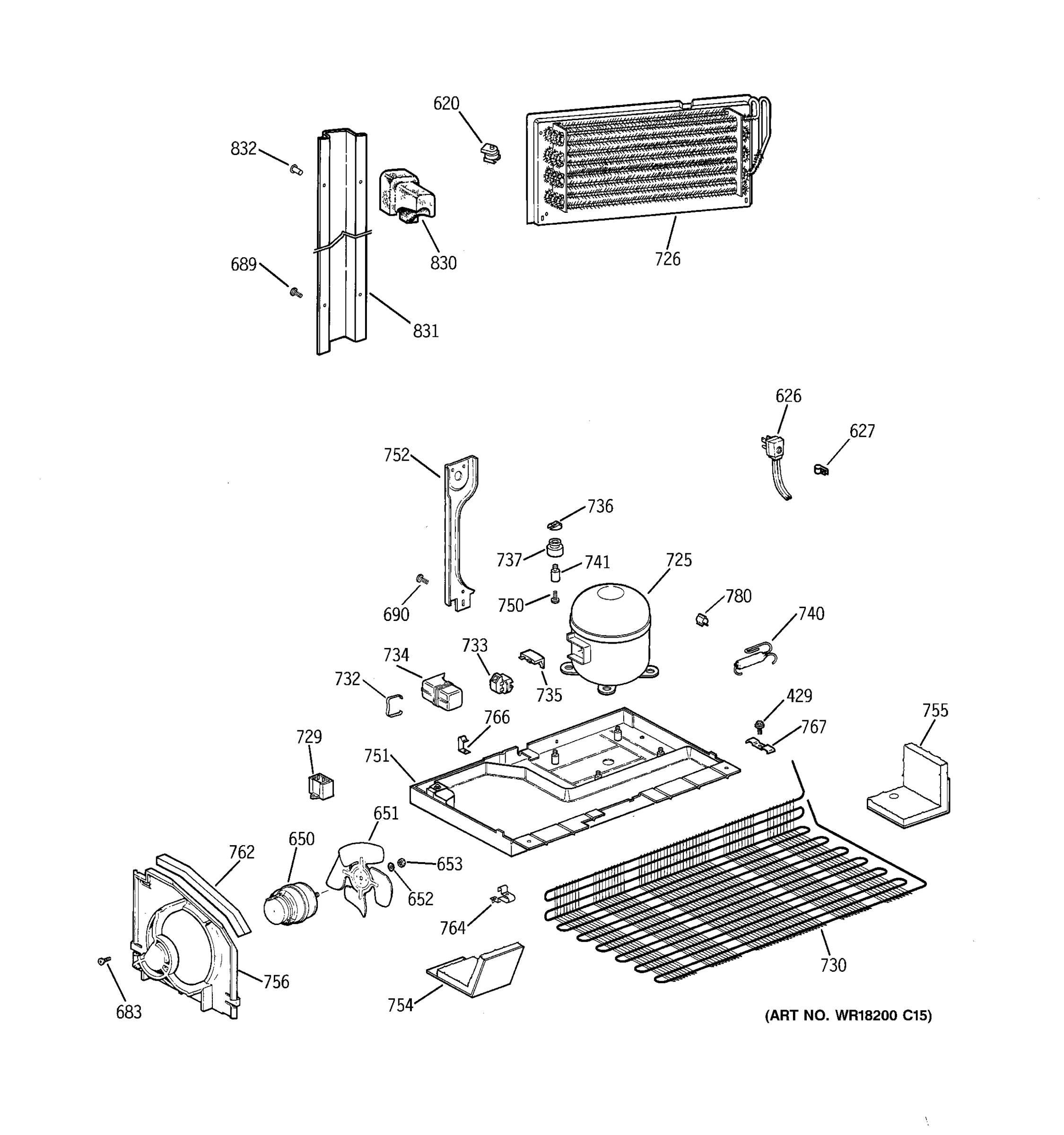

UNIT PARTS
Common parts from model GE TBX22PRYERAA Refrigerator
1
MINI MANUAL WIRING GEN 31-51101 Contact Us For Availability
1
GEN 49-6904 GEN 49-6904 Contact Us For Availability
3
GEN WR02X8669 GEN WR02X8669 Contact Us For Availability
4
GEN WR77X0684 GEN WR77X0684 Contact Us For Availability
5
GEN WR02X8714 GEN WR02X8714 Contact Us For Availability
6
GEN WR12X0887 GEN WR12X0887 Contact Us For Availability
7
GEN WR12X0889 GEN WR12X0889 Contact Us For Availability
8
GEN WR04X0213 GEN WR04X0213 Contact Us For Availability
10
GEN WR02X8002 GEN WR02X8002 Contact Us For Availability
12
GEN WR12X0917 GEN WR12X0917 Contact Us For Availability
14
GEN WR38X2261 GEN WR38X2261 Contact Us For Availability
17
GEN WR02X9475 GEN WR02X9475 Contact Us For Availability
17
GEN WR02X9476 GEN WR02X9476 Contact Us For Availability
22
GEN WR17X3687 GEN WR17X3687 Contact Us For Availability
24
GEN WR17X2237 GEN WR17X2237 Contact Us For Availability
25
GEN WR17X2239 GEN WR17X2239 Contact Us For Availability
26
GEN WR02X7681 GEN WR02X7681 Contact Us For Availability
27
GEN WR02X7781 GEN WR02X7781 Contact Us For Availability
28
THIMBLE WH GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8088 GEN WR02X8088 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
31
GEN WR17X4151 GEN WR17X4151 Contact Us For Availability
32
GEN WR71X2584 GEN WR71X2584 Contact Us For Availability
33
GEN WR51X0468 GEN WR51X0468 Contact Us For Availability
34
HARNESS LIGHT SW. GEN WR23X0456 Contact Us For Availability
35
GEN WR12X0904 GEN WR12X0904 Contact Us For Availability
37
GEN WR17X4257 GEN WR17X4257 Contact Us For Availability
39
GEN WR55X0129 GEN WR55X0129 Contact Us For Availability
40
GEN WR14X0483 GEN WR14X0483 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8726 GEN WR02X8726 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X4118 GEN WR17X4118 Contact Us For Availability
54
GEN WR17X4267 GEN WR17X4267 Contact Us For Availability
55
GEN WR82X0394 GEN WR82X0394 Contact Us For Availability
56
LAMP GEN STD372071 Contact Us For Availability
57
GEN WR02X8725 GEN WR02X8725 Contact Us For Availability
58
GEN WR17X3206 GEN WR17X3206 Contact Us For Availability
59
GEN WR14X0484 GEN WR14X0484 Contact Us For Availability
60
GEN WR02X8674 GEN WR02X8674 Contact Us For Availability
61
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
68
GEN WR14X0260 GEN WR14X0260 Contact Us For Availability
69
GEN WR17X4260 GEN WR17X4260 Contact Us For Availability
70
SUPPORT FUNNEL GD AD GEN WR02X9473 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GROMMET TUBE ASM RH GEN WR17X4282 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
99
GEN WR38X2253 GEN WR38X2253 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR77X0611 GEN WR77X0611 Contact Us For Availability
105
GEN WR02X8699 GEN WR02X8699 Contact Us For Availability
105
GEN WR02X8700 GEN WR02X8700 Contact Us For Availability
106
GEN WR22X0512 GEN WR22X0512 Contact Us For Availability
107
GEN WR22X0472 GEN WR22X0472 Contact Us For Availability
109
GEN WR71X2583 GEN WR71X2583 Contact Us For Availability
110
GEN WR02X8210 GEN WR02X8210 Contact Us For Availability
111
GEN WR02X7979 GEN WR02X7979 Contact Us For Availability
112
GEN WR02X8697 GEN WR02X8697 Contact Us For Availability
113
GEN WR02X7980 GEN WR02X7980 Contact Us For Availability
115
GEN WR17X2238 GEN WR17X2238 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X0901 GEN WR12X0901 Contact Us For Availability
123
GEN WR02X8009 GEN WR02X8009 Contact Us For Availability
124
GEN WR12X0722 GEN WR12X0722 Contact Us For Availability
125
GEN WR12X0916 GEN WR12X0916 Contact Us For Availability
127
SHELF FRONTS GEN WR71X2582 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
156
GEN WR32X1327 GEN WR32X1327 Contact Us For Availability
157
GEN WR32X1140 GEN WR32X1140 Contact Us For Availability
158
GEN WR38X2254 GEN WR38X2254 Contact Us For Availability
197
GEN WR02X8378 GEN WR02X8378 Contact Us For Availability
199
GEN WR02X7670 GEN WR02X7670 Contact Us For Availability
206
GEN WR71X1952 GEN WR71X1952 Contact Us For Availability
208
GEN WR38X2108 GEN WR38X2108 Contact Us For Availability
220
GEN WR17X2770 GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GEN WR14X0366 GEN WR14X0366 Contact Us For Availability
223
GEN WR17X2769 GEN WR17X2769 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X3161 GEN WR17X3161 Contact Us For Availability
236
GEN WR32X1022 GEN WR32X1022 Contact Us For Availability
237
GEN WR17X3288 GEN WR17X3288 Contact Us For Availability
238
GEN WR17X3905 GEN WR17X3905 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
240
GEN WR32X1579 GEN WR32X1579 Contact Us For Availability
241
GEN WR17X4182 GEN WR17X4182 Contact Us For Availability
242
GEN WR32X1480 GEN WR32X1480 Contact Us For Availability
244
GEN WR17X4181 GEN WR17X4181 Contact Us For Availability
245
GEN WR14X0358 GEN WR14X0358 Contact Us For Availability
246
GEN WR38X2106 GEN WR38X2106 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
250
GEN WR17X2843 GEN WR17X2843 Contact Us For Availability
253
GEN WR02X8446 GEN WR02X8446 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
263
GEN WR14X0398 GEN WR14X0398 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
273
GEN WR49X0323 GEN WR49X0323 Contact Us For Availability
275
HINGE TOP PIN ASM GEN WR13X0611 Contact Us For Availability
276
GEN WR13X0712 GEN WR13X0712 Contact Us For Availability
277
GEN WR17X3744 GEN WR17X3744 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0770 GEN WR13X0770 Contact Us For Availability
280
CAP CORNER O.C. AD GEN WR02X7657 Contact Us For Availability
282
HINGE BTM PIN AD GEN WR13X0768 Contact Us For Availability
283
COVER HINGE BTM AD GEN WR02X9478 Contact Us For Availability
285
GEN WR01X2166 GEN WR01X2166 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0268 GEN WR74X0268 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
292
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR72X0100 GEN WR72X0100 Contact Us For Availability
297
GEN WR72X0108 GEN WR72X0108 Contact Us For Availability
298
TRACK CANT SIDE FRZ GEN WR72X0105 Contact Us For Availability
299
GEN WR72X0131 GEN WR72X0131 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
305
GEN WR02X9303 GEN WR02X9303 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
307
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET DRAIN & TUBE GEN WR02X8504 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
327
GEN WR17X2246 GEN WR17X2246 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
GEN WR17X2215 GEN WR17X2215 Contact Us For Availability
329
GEN WR02X7784 GEN WR02X7784 Contact Us For Availability
330
GEN WR02X4759 GEN WR02X4759 Contact Us For Availability
331
GEN WR02X4758 GEN WR02X4758 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
340
GEN WR17X2216 GEN WR17X2216 Contact Us For Availability
345
GEN WR17X2214 GEN WR17X2214 Contact Us For Availability
348
GEN WR02X7783 GEN WR02X7783 Contact Us For Availability
350
GEN WR02X9481 GEN WR02X9481 Contact Us For Availability
352
GEN WR30X0264 GEN WR30X0264 Contact Us For Availability
354
BUCKET COVER ASM DISP GEN WR17X4259 Contact Us For Availability
356
GEN WR02X7778 GEN WR02X7778 Contact Us For Availability
357
GEN WR01X1750 GEN WR01X1750 Contact Us For Availability
358
GEN WR01X1749 GEN WR01X1749 Contact Us For Availability
359
GEN WR17X3629 GEN WR17X3629 Contact Us For Availability
360
GEN WR71X1788 GEN WR71X1788 Contact Us For Availability
361
COVER MOTOR SOLENOID GEN WR17X3628 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
367
GEN WR02X7169 GEN WR02X7169 Contact Us For Availability
370
SCREW GEN WR01X1858 Contact Us For Availability
371
HARNESS MOT SOL GEN WR23X0317 Contact Us For Availability
372
GEN WR02X7776 GEN WR02X7776 Contact Us For Availability
373
GEN WR23X0290 GEN WR23X0290 Contact Us For Availability
374
GEN WR02X7172 GEN WR02X7172 Contact Us For Availability
375
SWITCH INTERLOCK GEN WR23X0288 Contact Us For Availability
376
GEN WR02X7171 GEN WR02X7171 Contact Us For Availability
377
GEN WR02X7774 GEN WR02X7774 Contact Us For Availability
380
GEN WR17X2224 GEN WR17X2224 Contact Us For Availability
384
GEN WR17X2225 GEN WR17X2225 Contact Us For Availability
387
GEN WR17X3929 GEN WR17X3929 Contact Us For Availability
388
GEN WR02X7769 GEN WR02X7769 Contact Us For Availability
400
GEN WR32X1581 GEN WR32X1581 Contact Us For Availability
401
GEN WR32X1583 GEN WR32X1583 Contact Us For Availability
405
GEN WR14X0471 GEN WR14X0471 Contact Us For Availability
409
GEN WR02X9440 GEN WR02X9440 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
447
COVER HINGE AD GEN WR02X8024 Contact Us For Availability
472
GEN WR72X0273 GEN WR72X0273 Contact Us For Availability
473
GEN WR72X0275 GEN WR72X0275 Contact Us For Availability
476
GEN WR02X8537 GEN WR02X8537 Contact Us For Availability
477
GEN WR17X3328 GEN WR17X3328 Contact Us For Availability
478
GEN WR71X2329 GEN WR71X2329 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2234 GEN WR17X2234 Contact Us For Availability
604
GEN WR17X3495 GEN WR17X3495 Contact Us For Availability
606
GEN WR17X2401 GEN WR17X2401 Contact Us For Availability
608
GEN WR17X10029 GEN WR17X10029 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
614
GEN WR02X7780 GEN WR02X7780 Contact Us For Availability
615
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
623
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3910 GEN WR17X3910 Contact Us For Availability
640
GEN WR02X9017 GEN WR02X9017 Contact Us For Availability
641
GEN WR02X8816 GEN WR02X8816 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
653
NUT COND MOTOR GEN WR01X1715 Contact Us For Availability
679
SCR 8-18 B HXW 7/16 GEN WZ06X0133 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
691
GEN WR01X2139 GEN WR01X2139 Contact Us For Availability
692
SCR 8-18 HXW 3/4 GEN WZ04X0416 Contact Us For Availability
693
GEN WR01X2137 GEN WR01X2137 Contact Us For Availability
726
GEN WR85X0310 GEN WR85X0310 Contact Us For Availability
730
GEN WR84X0193 GEN WR84X0193 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
BRACE BUMPER ASM GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3770 GEN WR17X3770 Contact Us For Availability
755
GEN WR17X2227 GEN WR17X2227 Contact Us For Availability
756
COND FAN HSG LEGS GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
801
GEN WR02X9484 GEN WR02X9484 Contact Us For Availability
820
IM CRESCENT GEN WR30X0316 Contact Us For Availability
821
GEN WR29X0207 GEN WR29X0207 Contact Us For Availability
822
GEN WR01X2122 GEN WR01X2122 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
900
GEN WR78X8825 GEN WR78X8825 Contact Us For Availability
910
GEN WR78X8817 GEN WR78X8817 Contact Us For Availability
921
PLUG BUTTON AD GEN WR02X7625 Contact Us For Availability
× ![]()
