Model Whirlpool RUD5750DQ3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

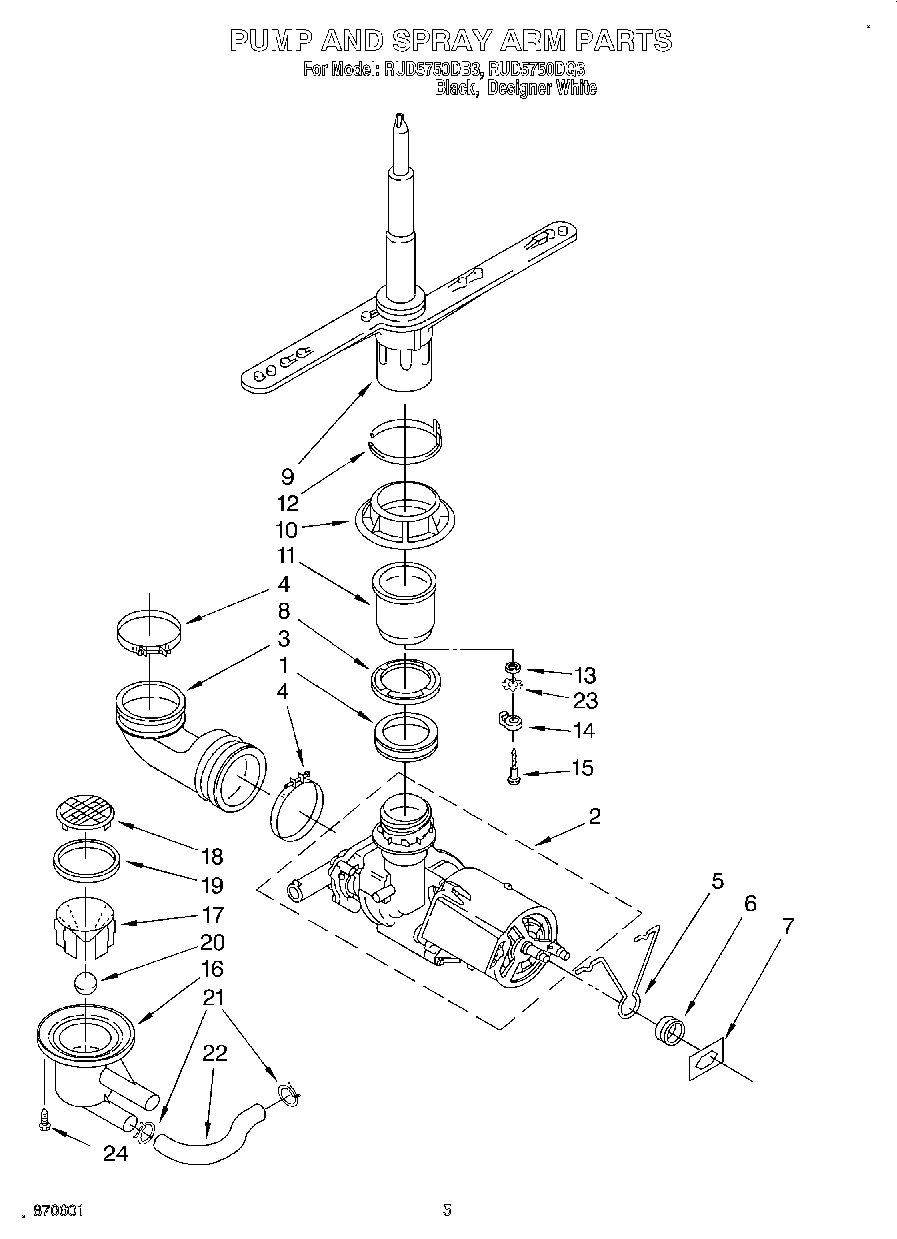

04 - PUMP AND SPRAYARM

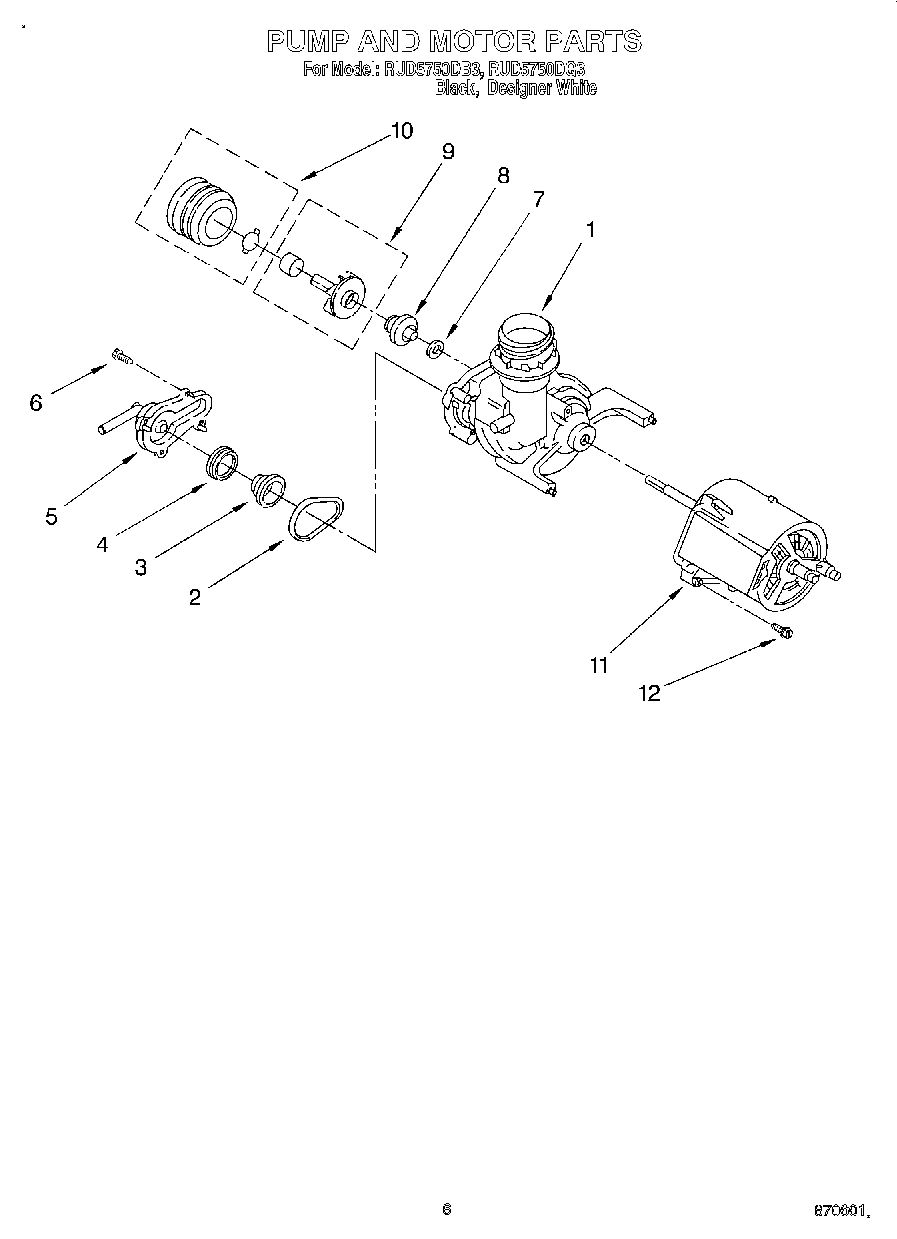

05 - PUMP AND MOTOR

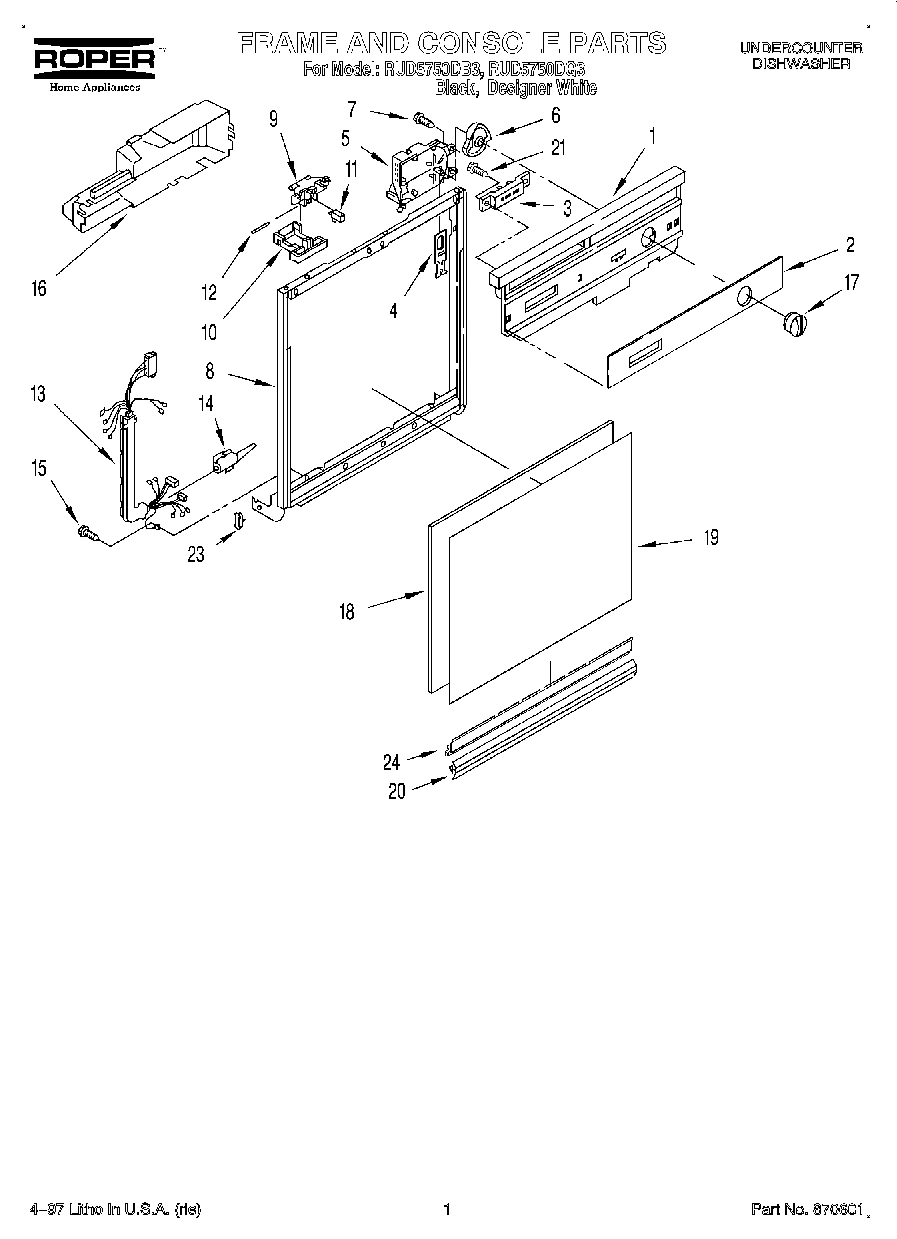

01 - FRAME AND CONSOLE

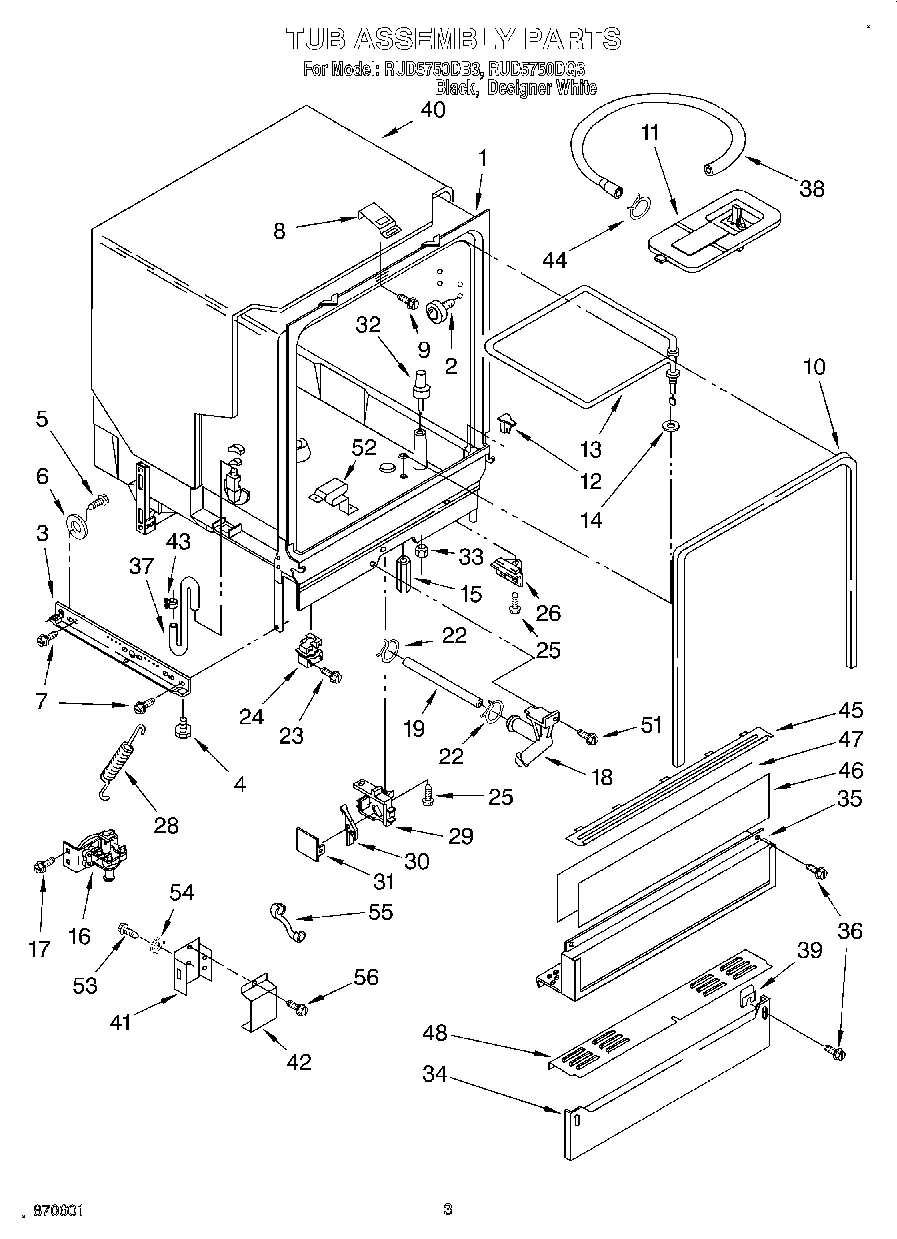

03 - TUB ASSEMBLY

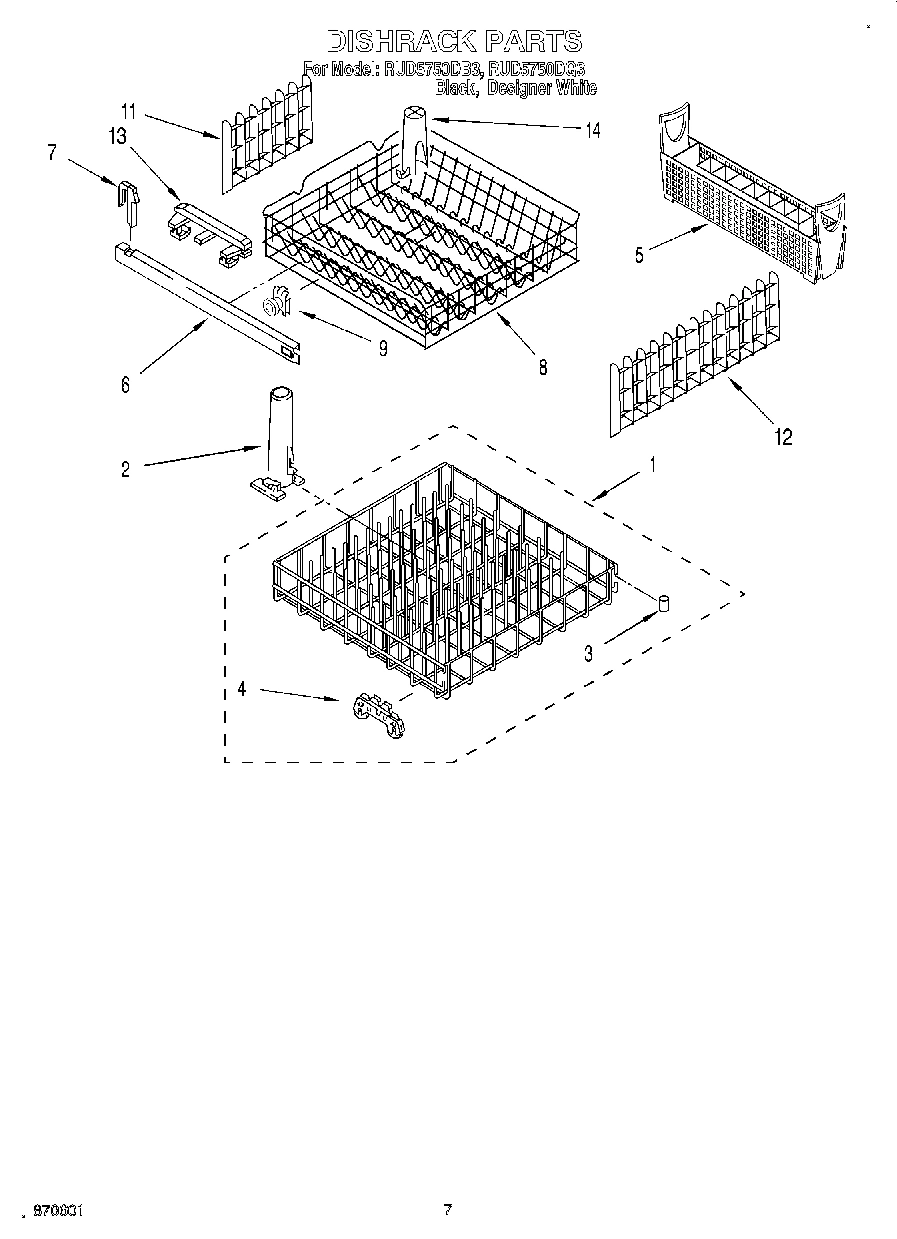

06 - DISHRACK

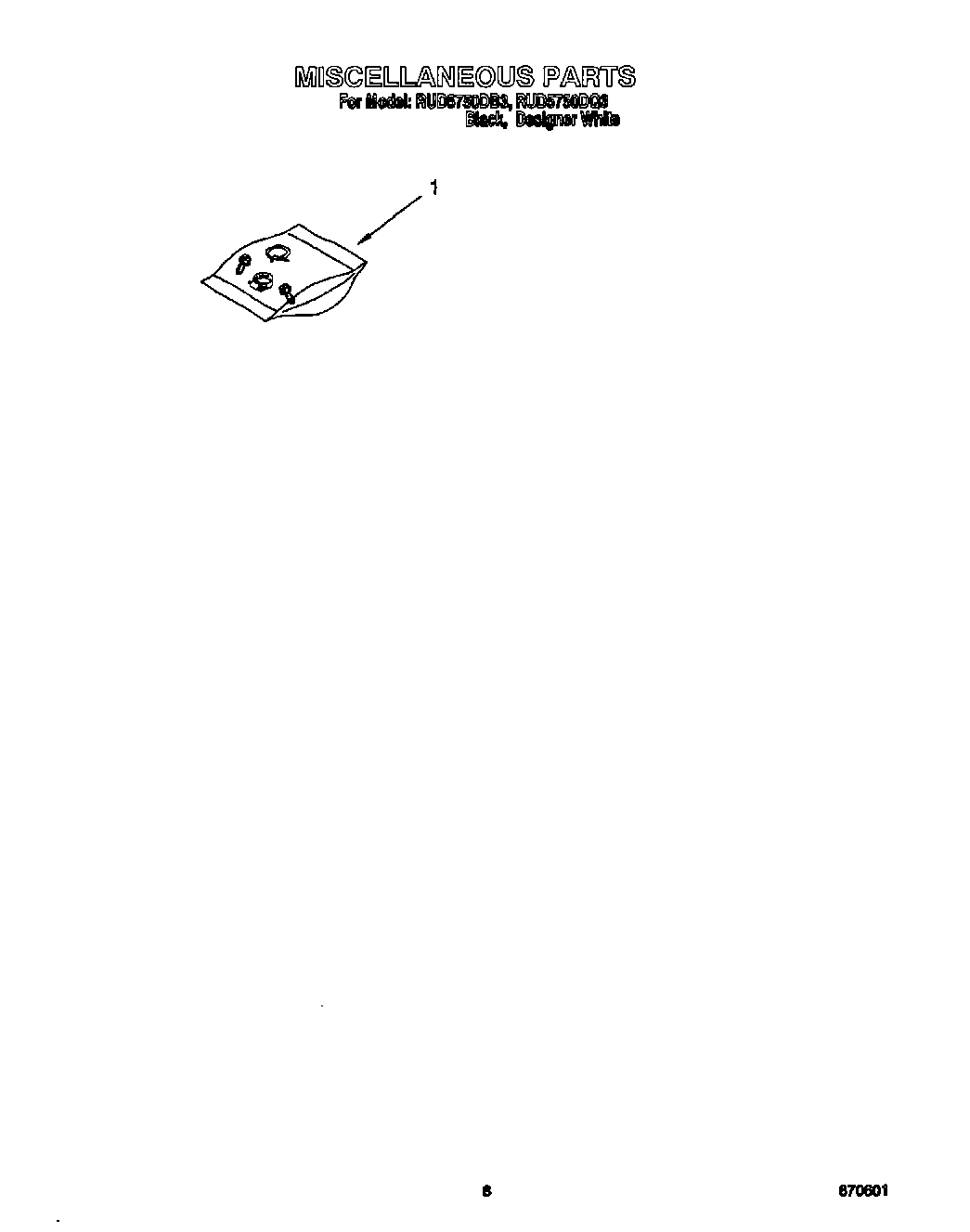

07 - MISCELLANEOUS, LIT/OPTIONAL

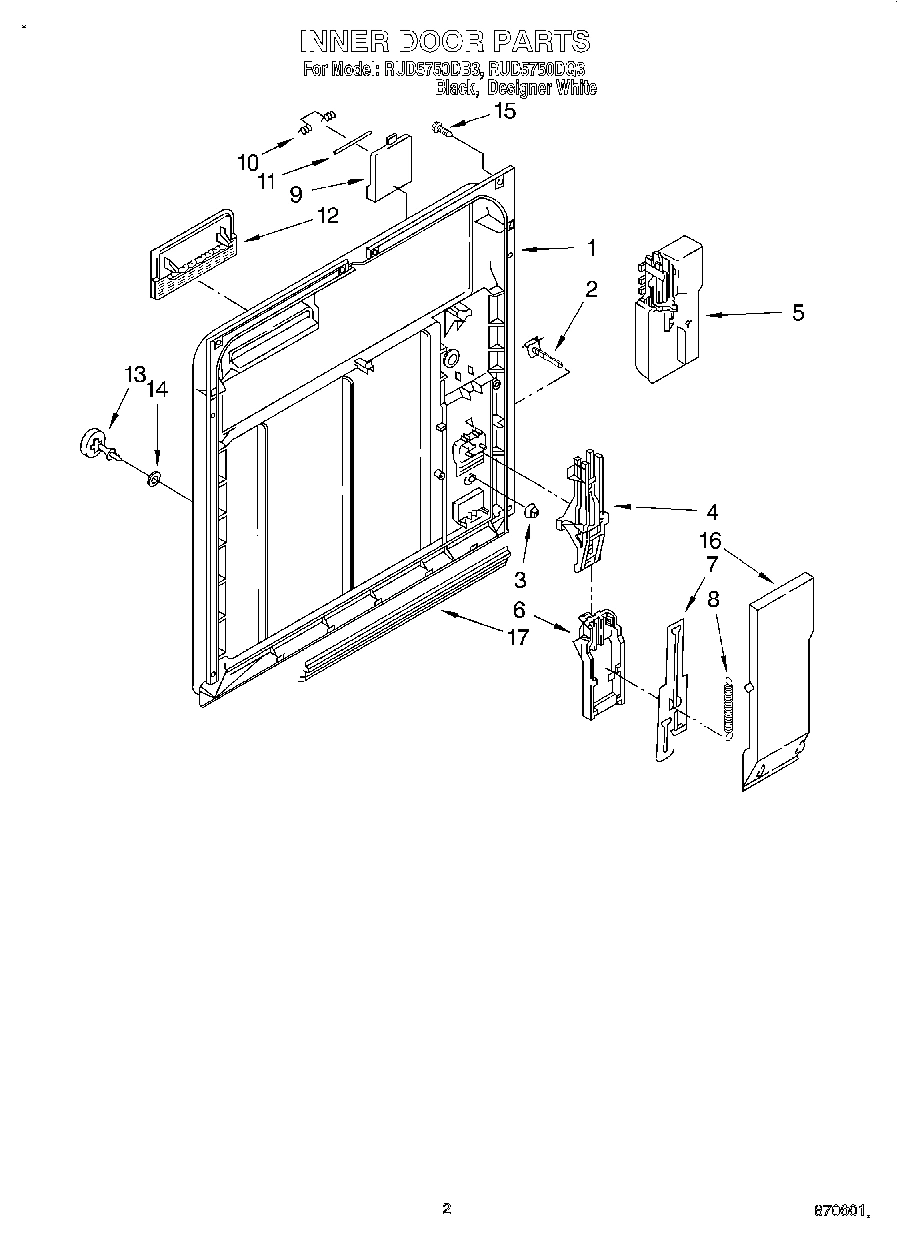

02 - INNER DOOR
Common parts from model Whirlpool RUD5750DQ3 UNDERCOUNTER DISHWASHER
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Guide, Use & Care WPL LIT3376827 Contact Us For Availability
Wiring Diagram WPL LIT3379034 Contact Us For Availability
Instructions, Installation WPL LIT3380268 Contact Us For Availability
Energy Guide WPL LIT3380667 Contact Us For Availability
1
Latch Door Kit WPL 676413 Contact Us For Availability
1
paint, spray 13 oz. (black) WPL 285006 Contact Us For Availability
1
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
1
Tine Tip Repair Kit (White - Enough For Two C WPL 675679 Contact Us For Availability
1
Tine Tip Repair Kit (Grey Enough For Two Comp WPL 676458 Contact Us For Availability
1
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Primer White WPL 350942 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability
1
Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability
1
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
1
Black (Uncut) WPL 799340 Contact Us For Availability
1
Almond (Uncut) WPL 978883 Contact Us For Availability
2
Seal, Drain Cover WPL 3369031 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Door Frame (Includes Item 24) (Black) WPL 3374711 Contact Us For Availability
9
Wheel & Axle Assembly (4) WPL 3379727 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Screw (3) WPL 3368922 Contact Us For Availability
12
Cupshelf, Large (2) WPL 3371265 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
14
Elbow, Harness WPL 3376405 Contact Us For Availability
14
Bearing WPL 3371746 Contact Us For Availability
14
Diffuser, Water WPL 3371908 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
17
Knob, Timer (Black) WPL 3368998 Contact Us For Availability
17
Spatter Shield WPL 3369479 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
20
Retainer, Panel (Black) WPL 3374010 Contact Us For Availability
20
Retainer, Panel (White) WPL 3374011 Contact Us For Availability
22
Clamp WPL 371499 Contact Us For Availability
23
Washer, Curved WPL 3371634 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access (White) WPL 3369614 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
47
Spacer, Corrugated WPL 3369526 Contact Us For Availability
48
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
52
Support, Heater WPL 3379740 Contact Us For Availability
55
Relief, Strain WPL 3370307 Contact Us For Availability
56
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
