Model Whirlpool RT18HDXDN00 REFRIGERATOR – Common Parts & Diagrams
06 - UNIT, LIT/OPTIONAL
02 - FREEZER DOOR
01 - CABINET

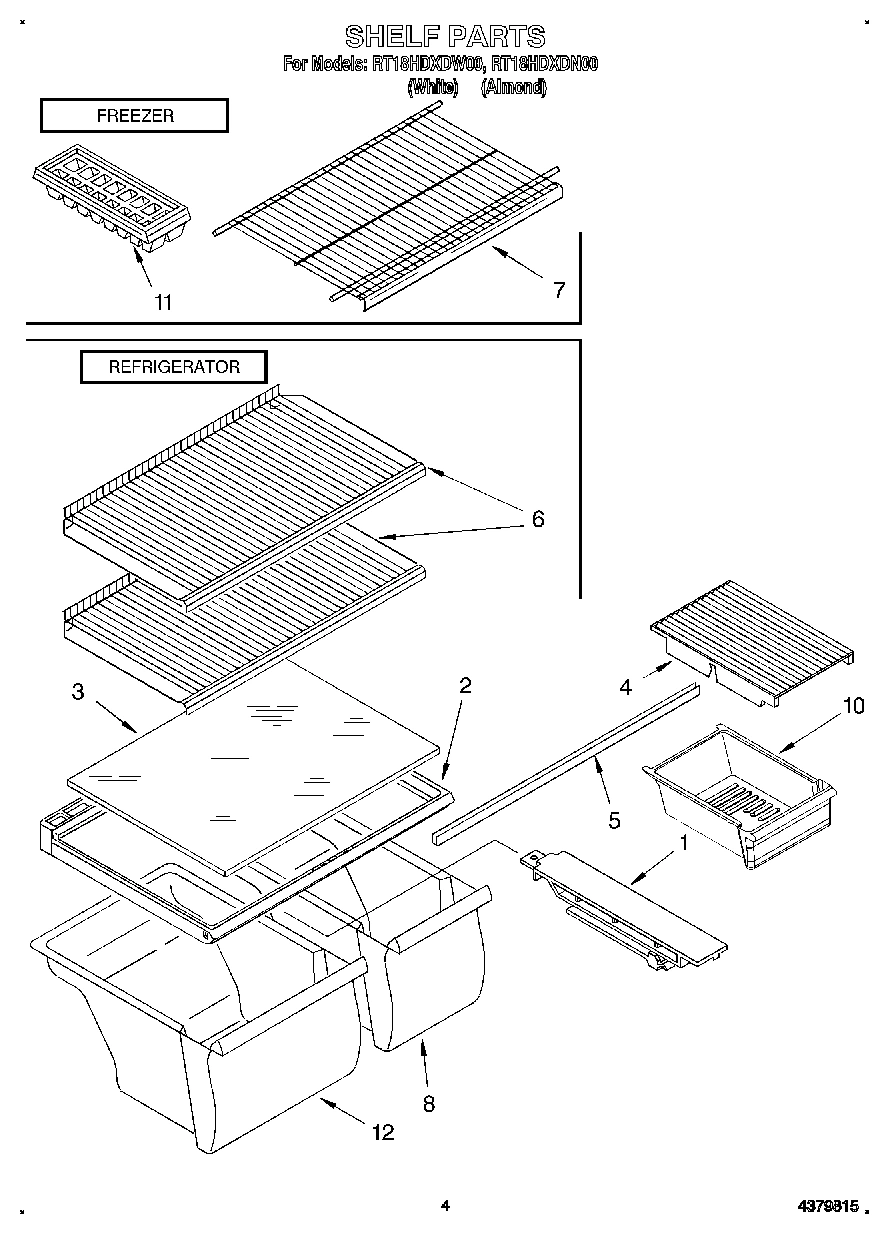

03 - SHELF

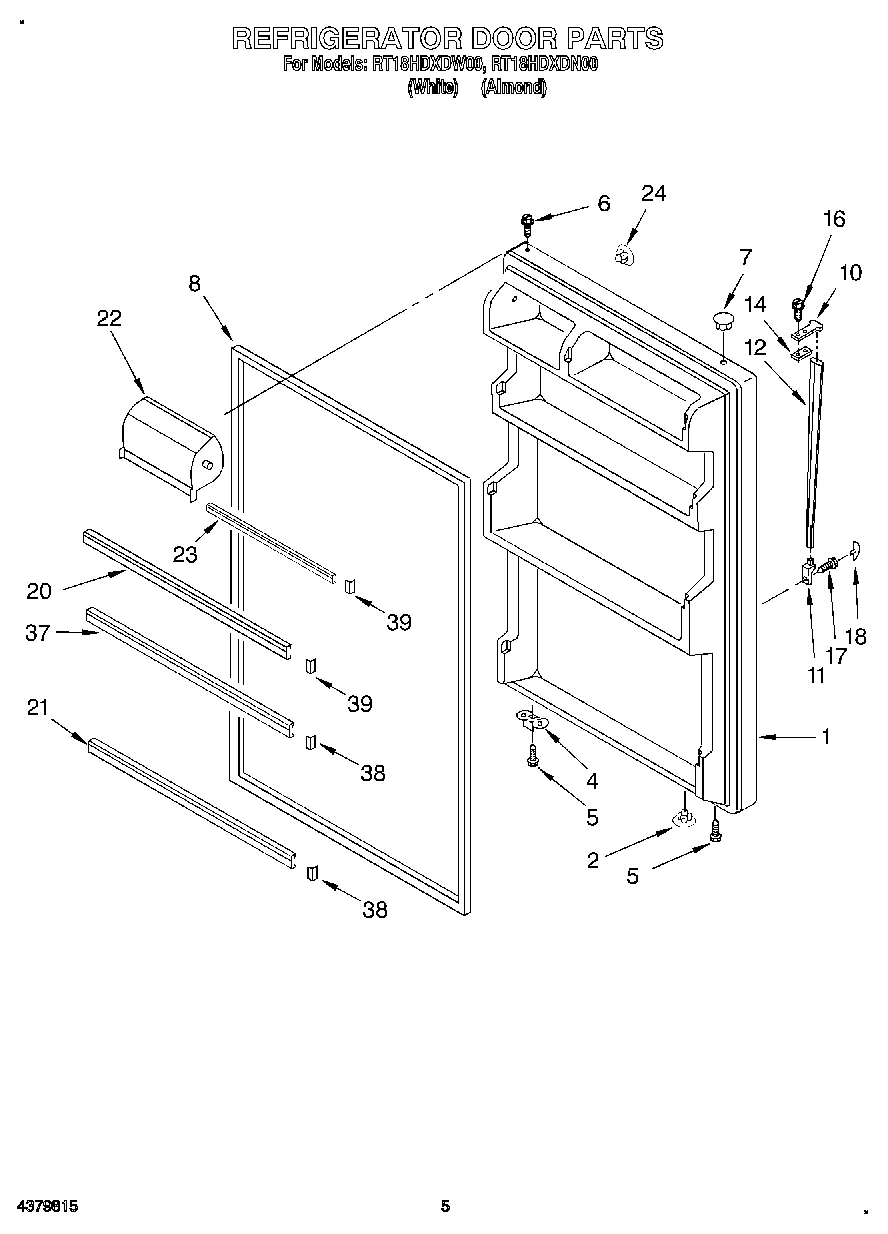

04 - REFRIGERATOR DOOR

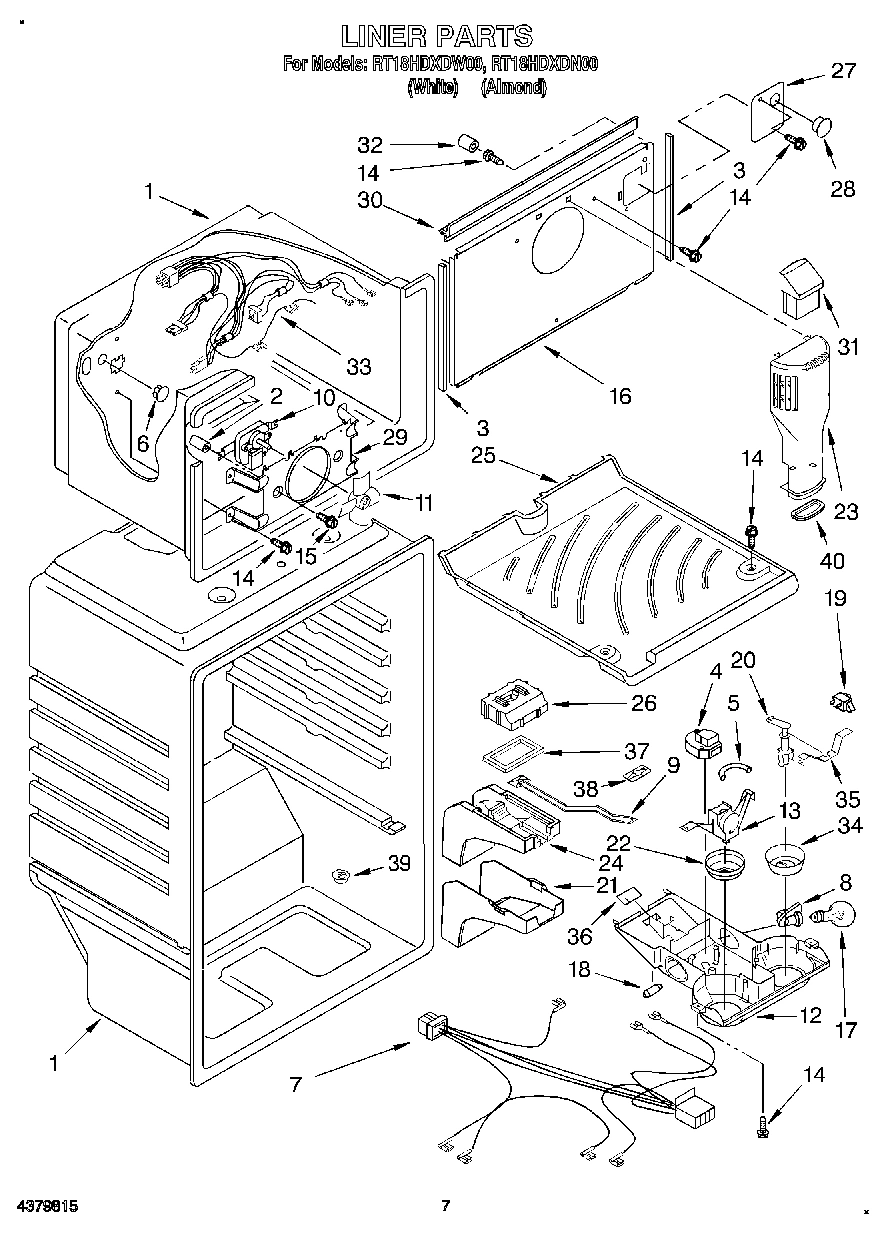

05 - LINER
Common parts from model Whirlpool RT18HDXDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI127318A Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171270 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI127320A Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Cover, Meat Pan WPL 2163848 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
6
Shelf, Wire (2) WPL 2166147 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
9
Shim WPL 943187 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Pan, Meat WPL 2173312 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
12
Handle, Center WPL 2173344 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Cord-Service WPL 2182355 Contact Us For Availability
14
Spacer, Handle Door Panel WPL 943188 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2179897 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Nameplate WPL 2163676 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Door Shelf WPL 2163683 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI127319A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Trim, Door Shelf WPL 2163682 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2179877 Contact Us For Availability
38
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Gasket, Air Tower WPL 2179839 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
