Model Whirlpool RT16VKXBL01 – Common Parts & Diagrams
03 - LINER
05 - SHELF, LIT/OPTIONAL

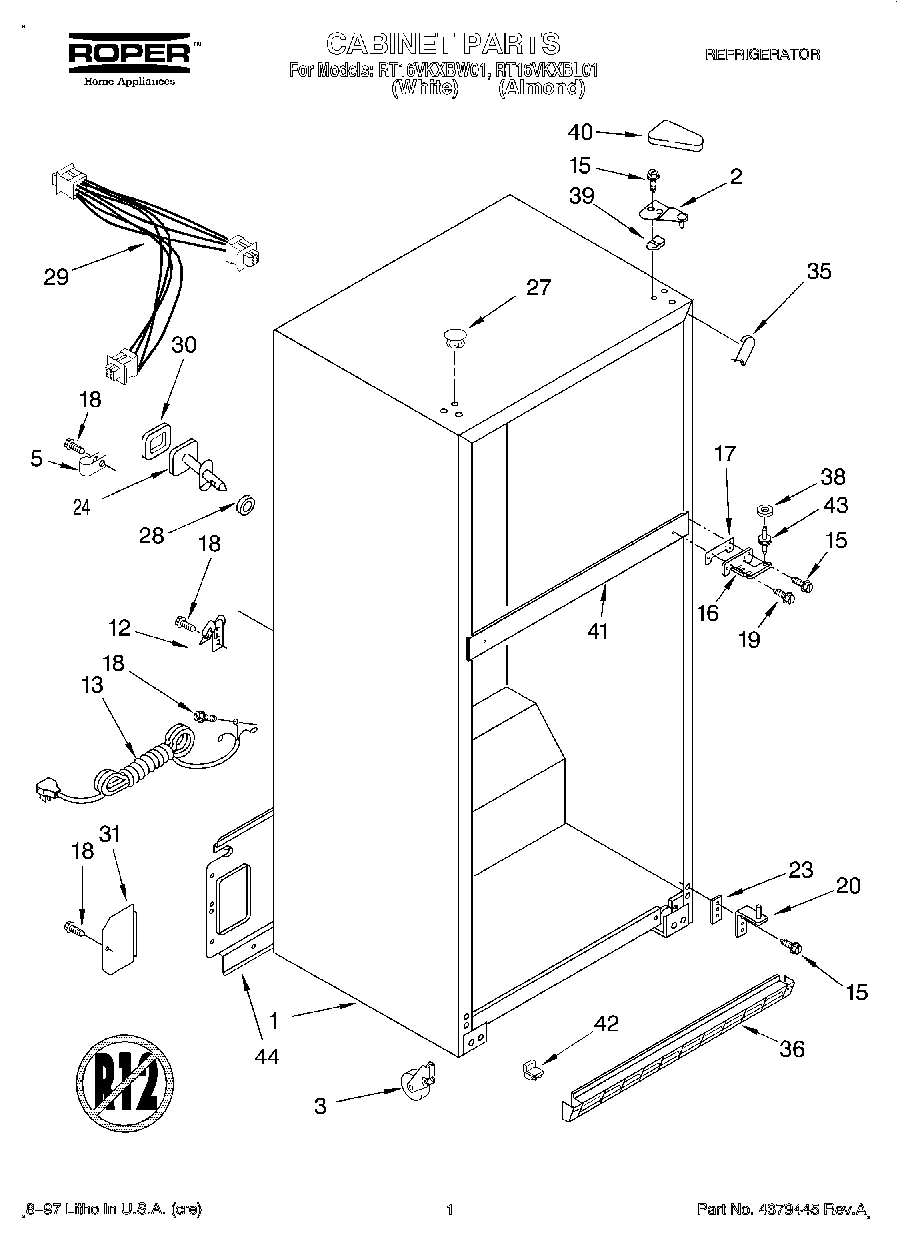

01 - CABINET

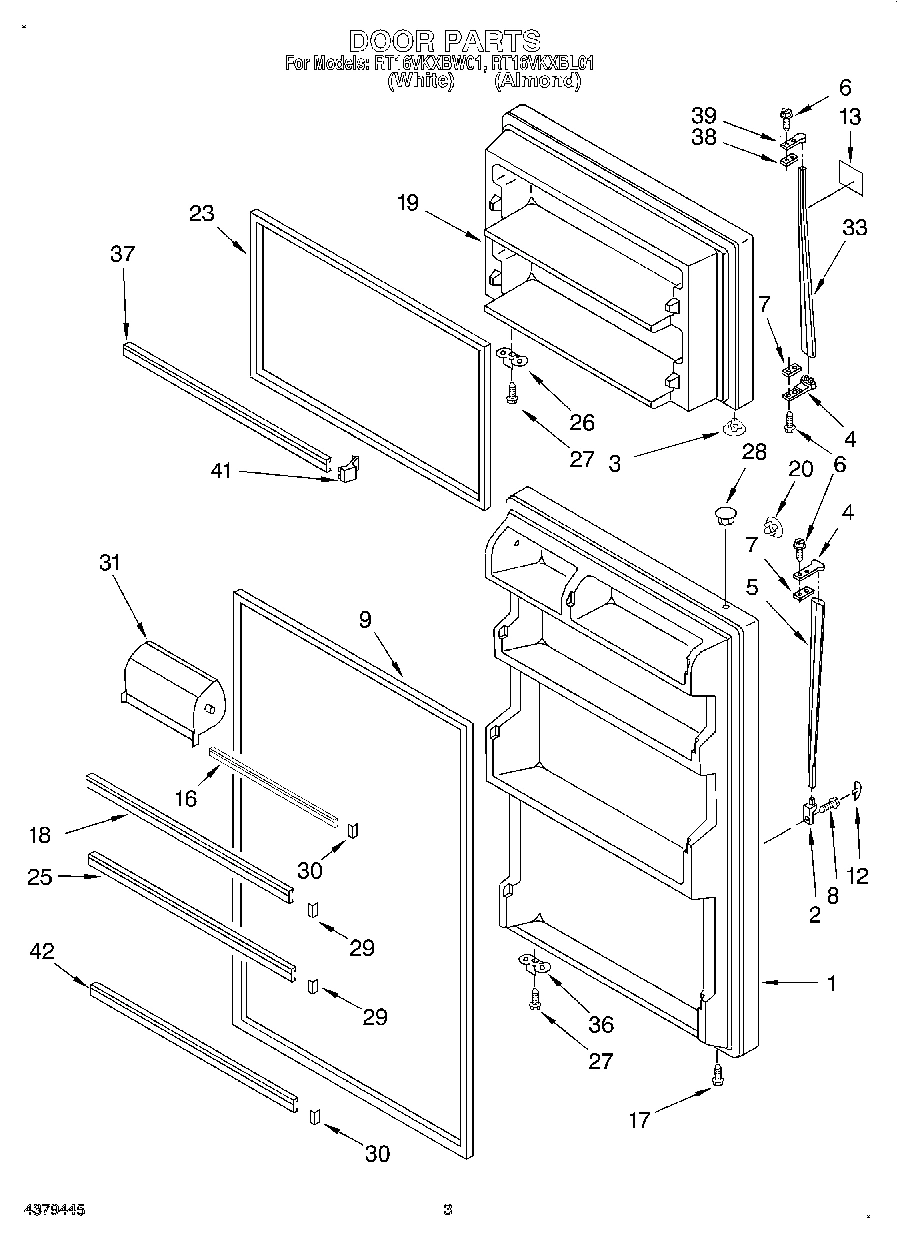

02 - DOOR

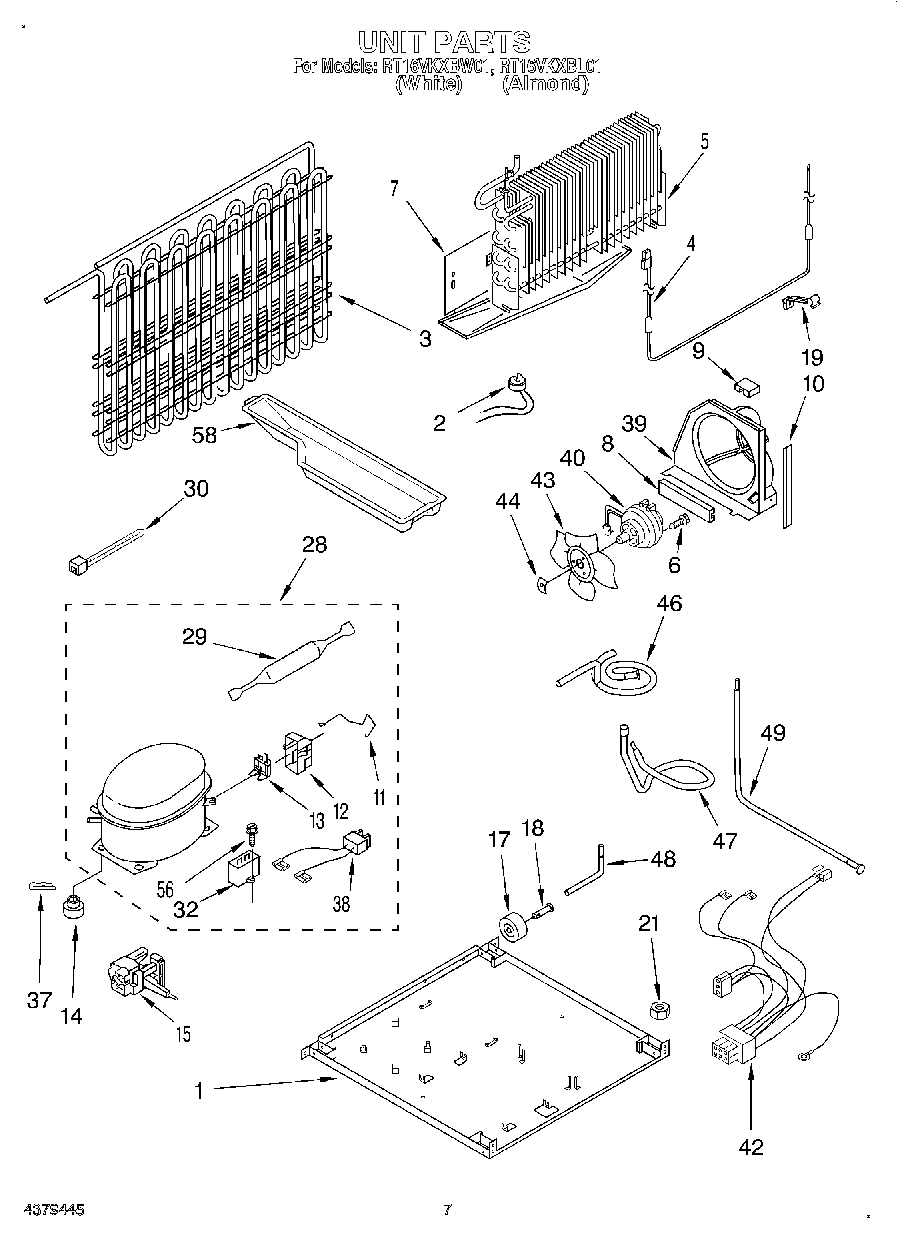

04 - UNIT
Common parts from model Whirlpool RT16VKXBL01
1
Cabinet (Not A Serviceable Part) WPL ARI126272A Contact Us For Availability
1
Refrigerator Door (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 2171270 Contact Us For Availability
1
Support Plate, Compressor WPL 2163778 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
5
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
5
Evaporator Assy. WPL 2172669 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172618 Contact Us For Availability
8
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
8
Support, Air Baffle (Bottom) WPL 2174612 Contact Us For Availability
9
Support, Air Baffle (Top) WPL 2174613 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
11
Torx Key WPL 1117510 Contact Us For Availability
11
Door Reversal Instructions WPL 2172516 Contact Us For Availability
11
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
11
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
11
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
11
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
11
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 938384 Contact Us For Availability
12
Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Trim, Door WPL 2163682 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
19
Freezer Door (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Almond) WPL 2159447 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI126278A Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Door Gasket, Magnetic (Service) WPL 2159056 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI126273A Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI126274A Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI126275A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service) WPL 2154565 Contact Us For Availability
32
Capacitor (Production) WPL 2169137 Contact Us For Availability
33
Handle, F.C. WPL 2159424 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Clip, Compressor WPL 2163787 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2172685 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI126276A Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
42
Trim, Door WPL 2163683 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
