Model Whirlpool RT16DKXDW01 – Common Parts & Diagrams
03 - LINER
01 - CABINET

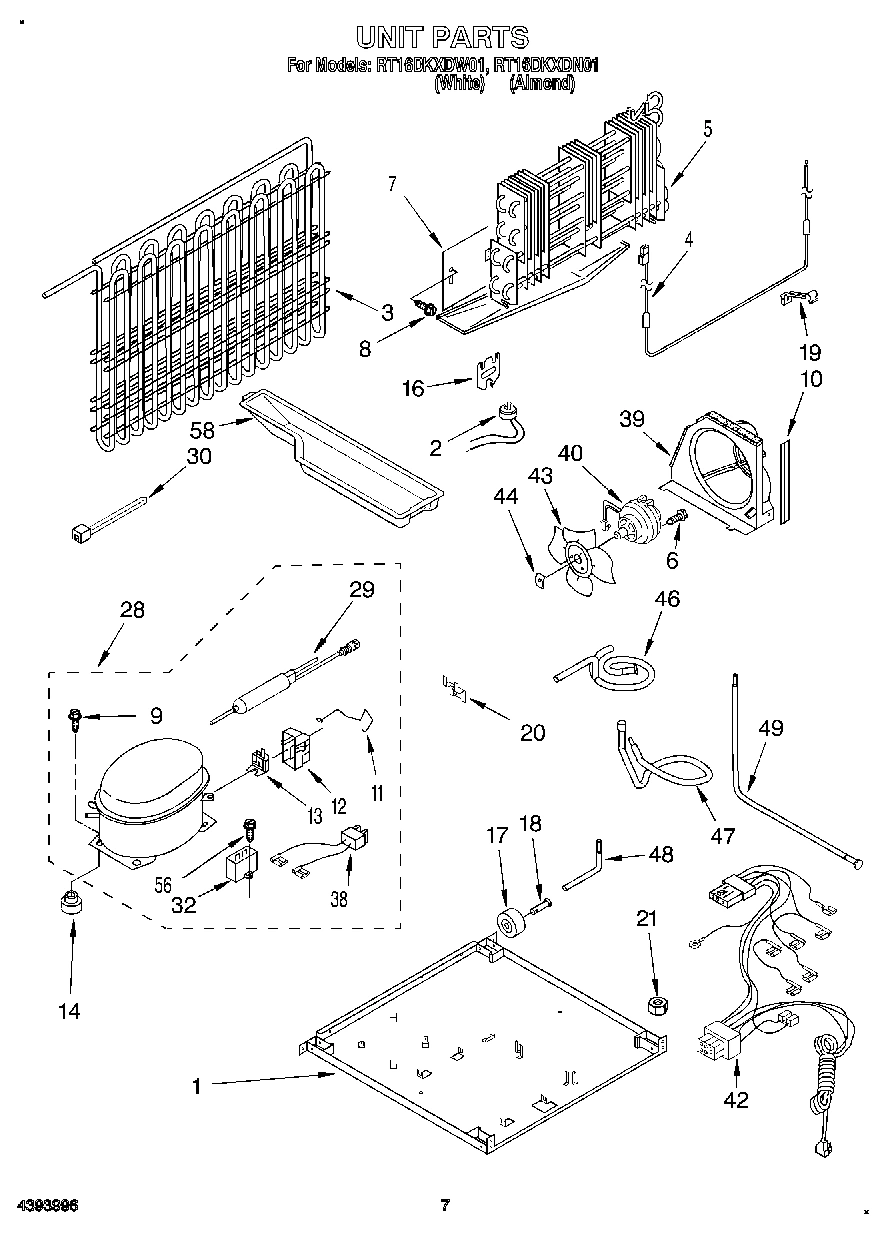

04 - UNIT

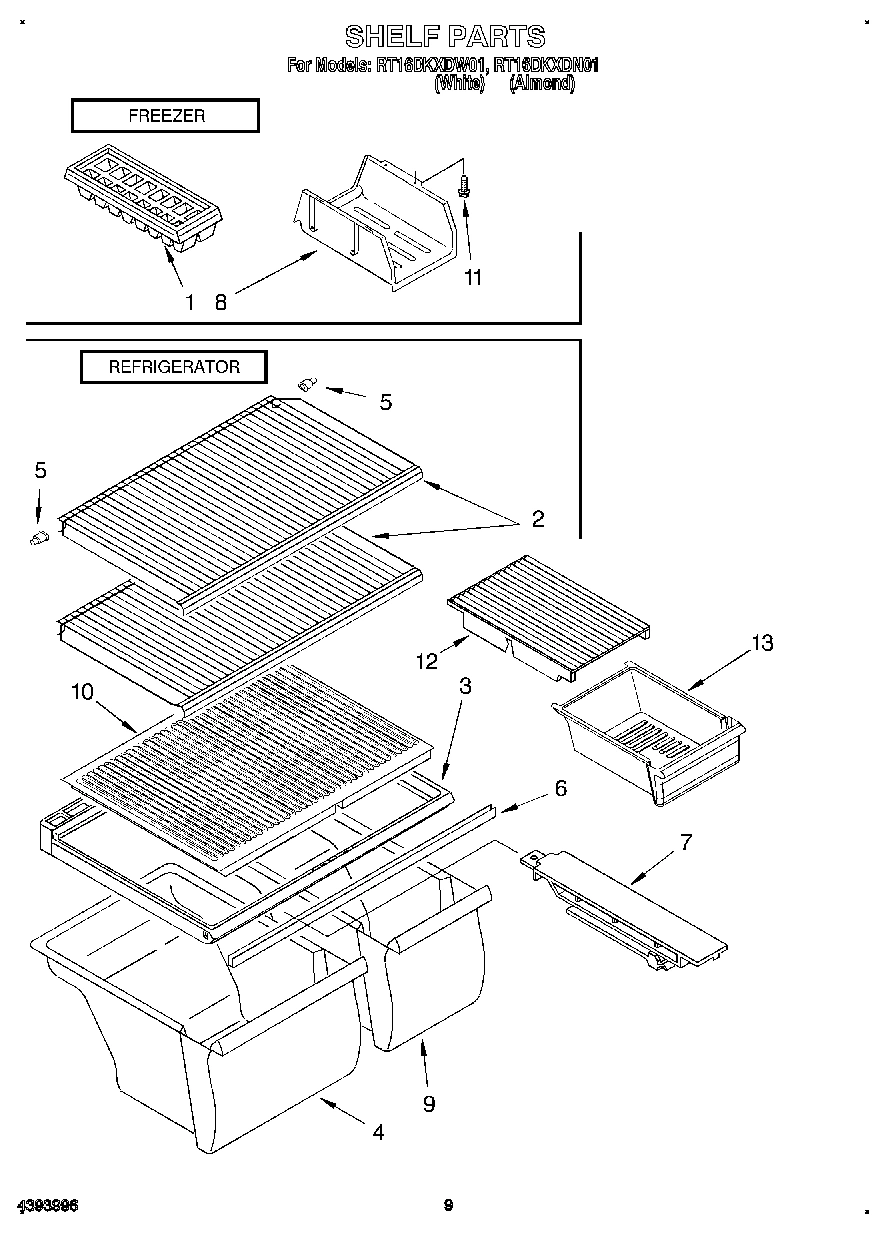

05 - SHELF, LIT/OPTIONAL

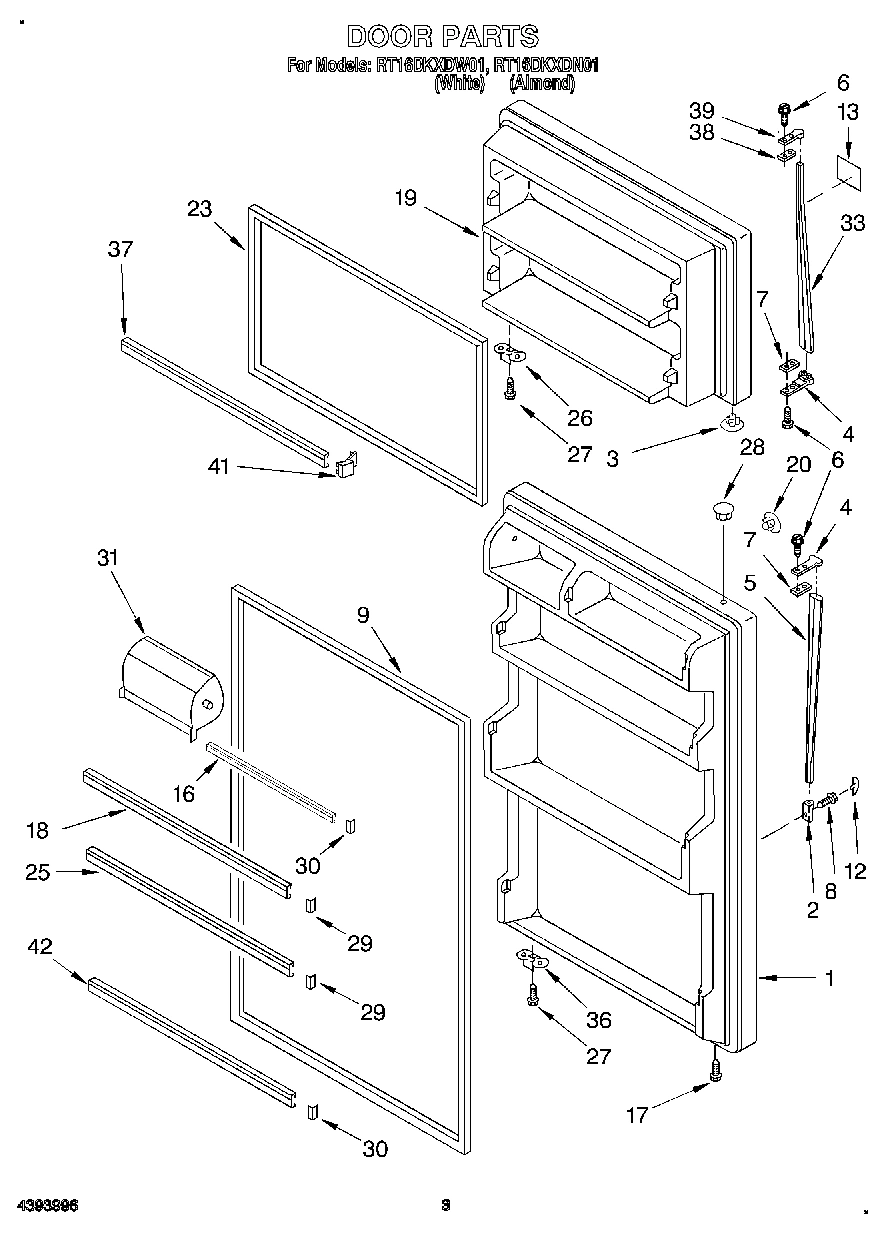

02 - DOOR
Common parts from model Whirlpool RT16DKXDW01
Serv WPL LIT2169460 Contact Us For Availability
WPL LIT2173304 WPL LIT2173304 Contact Us For Availability
WPL LIT2173485 WPL LIT2173485 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
1
Refrigerator Door (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 2171270 Contact Us For Availability
2
Shelf (2) WPL 2182443 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
5
Evaporator Assy. WPL 2166206 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172619 Contact Us For Availability
8
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
9
Screw WPL 489473 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
Pan, Meat WPL 2173312 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
16
Bracket, Heater WPL 2176301 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Trim, Door WPL 2163682 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Almond) WPL 2159447 Contact Us For Availability
20
Clip WPL 2166683 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI126072A Contact Us For Availability
23
Door Gasket, Magnetic (Service) WPL 2159056 Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
32
Capacitor (Service) WPL 2154565 Contact Us For Availability
32
Capacitor (Production) WPL 2169137 Contact Us For Availability
33
Handle, F.C. WPL 2159424 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI126070A Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
42
Wire Assy. Unit WPL 2182377 Contact Us For Availability
42
Trim, Door WPL 2163683 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
