Model Whirlpool RT14DMYAL01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

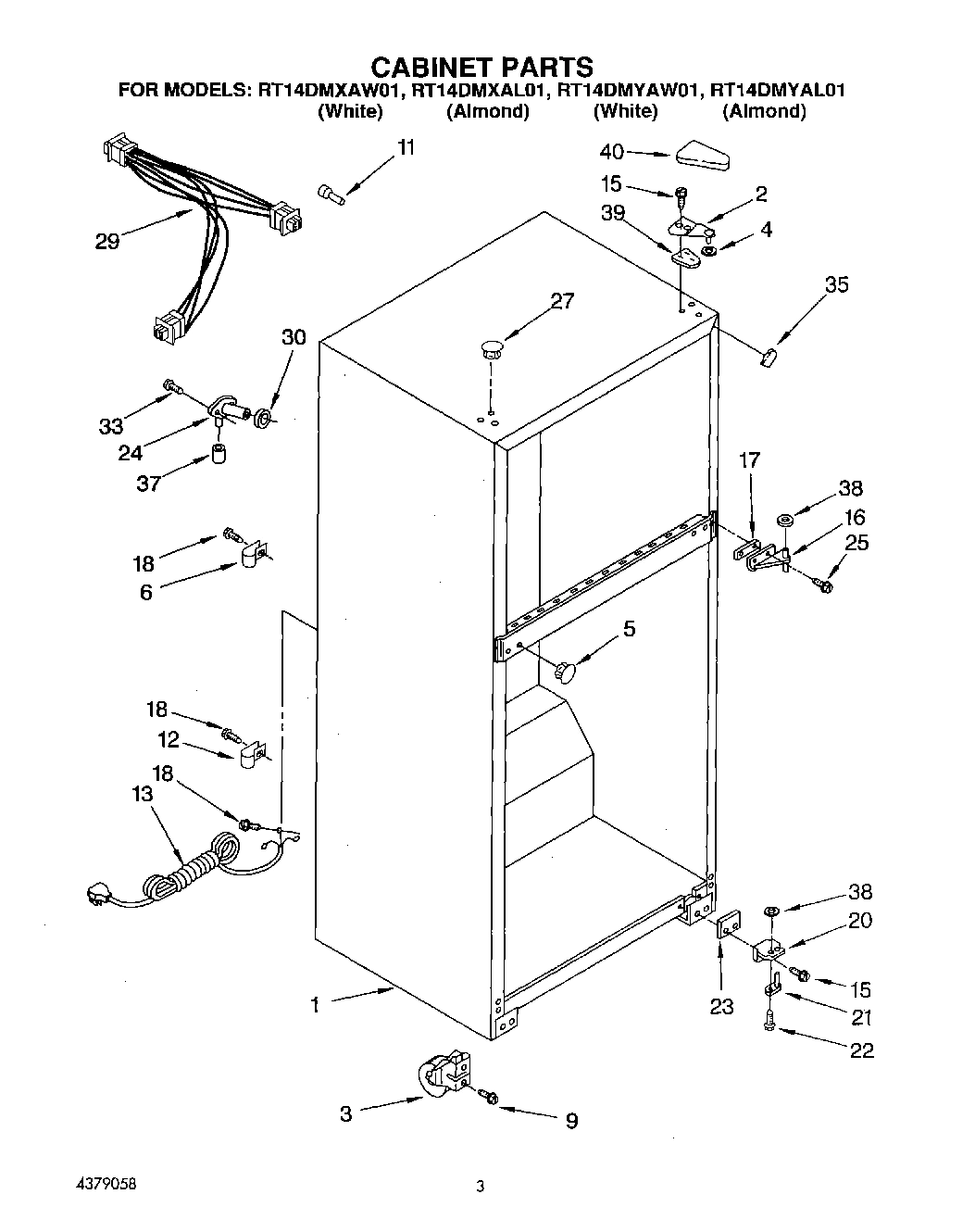

02 - CABINET

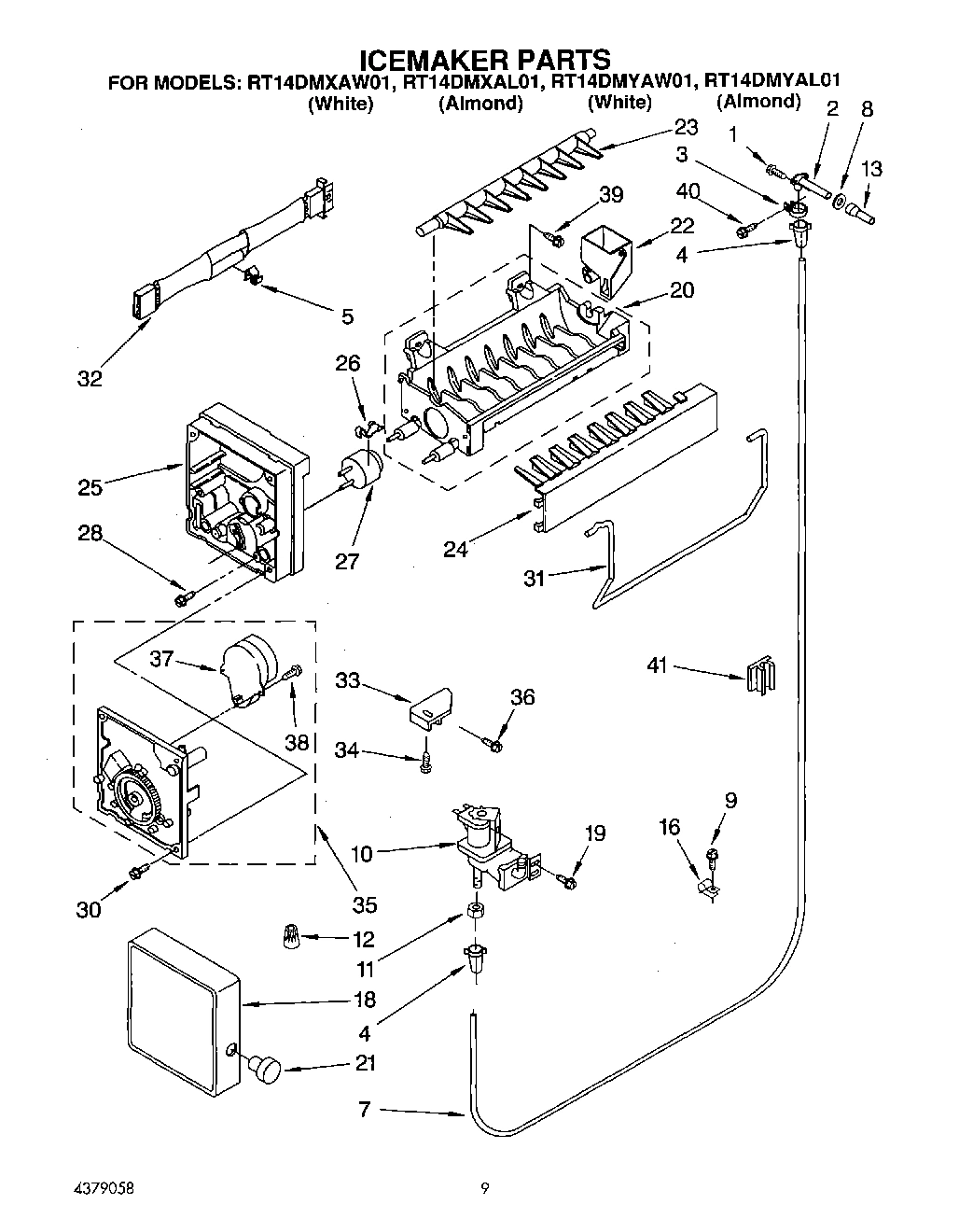

05 - ICEMAKER

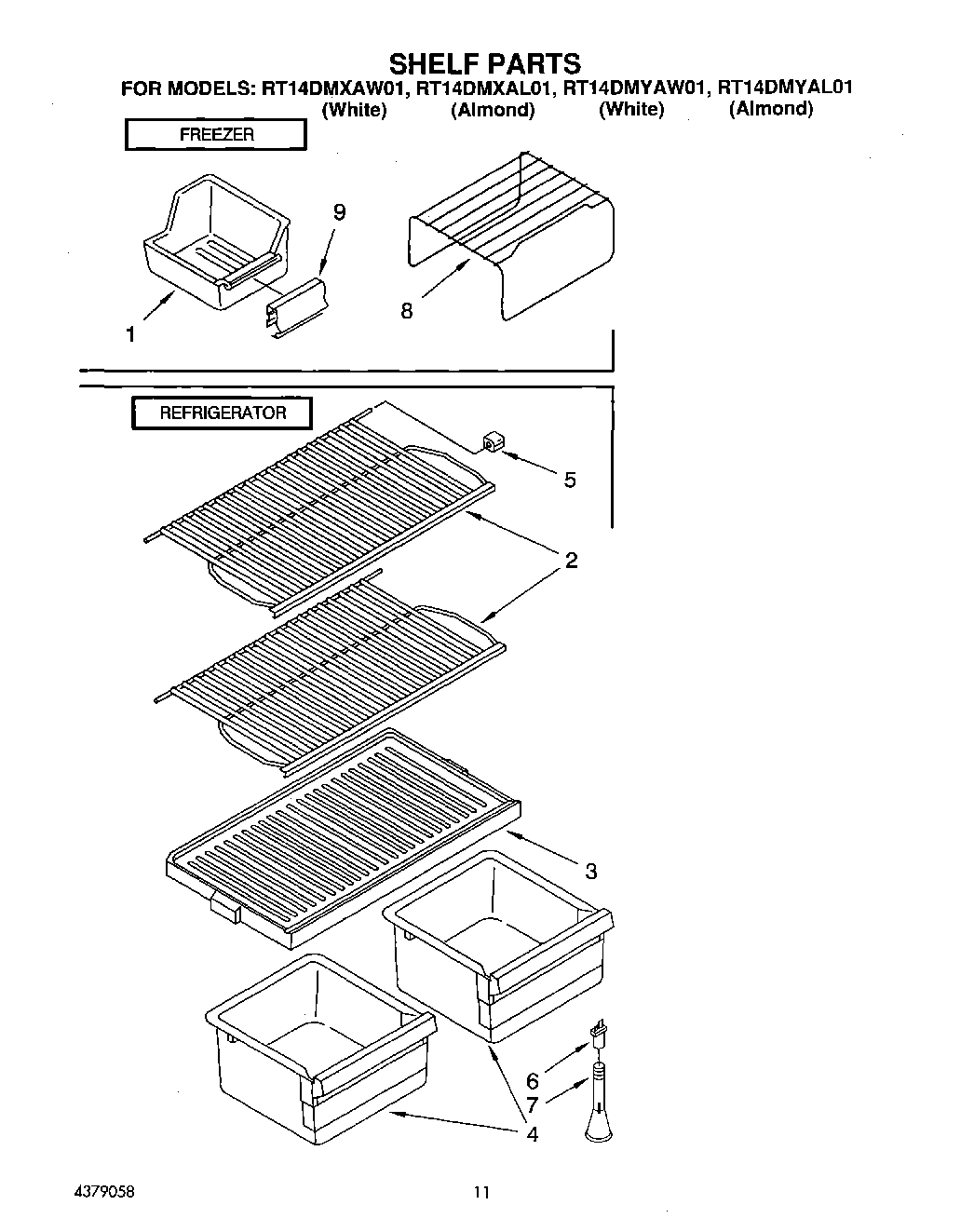

06 - SHELF

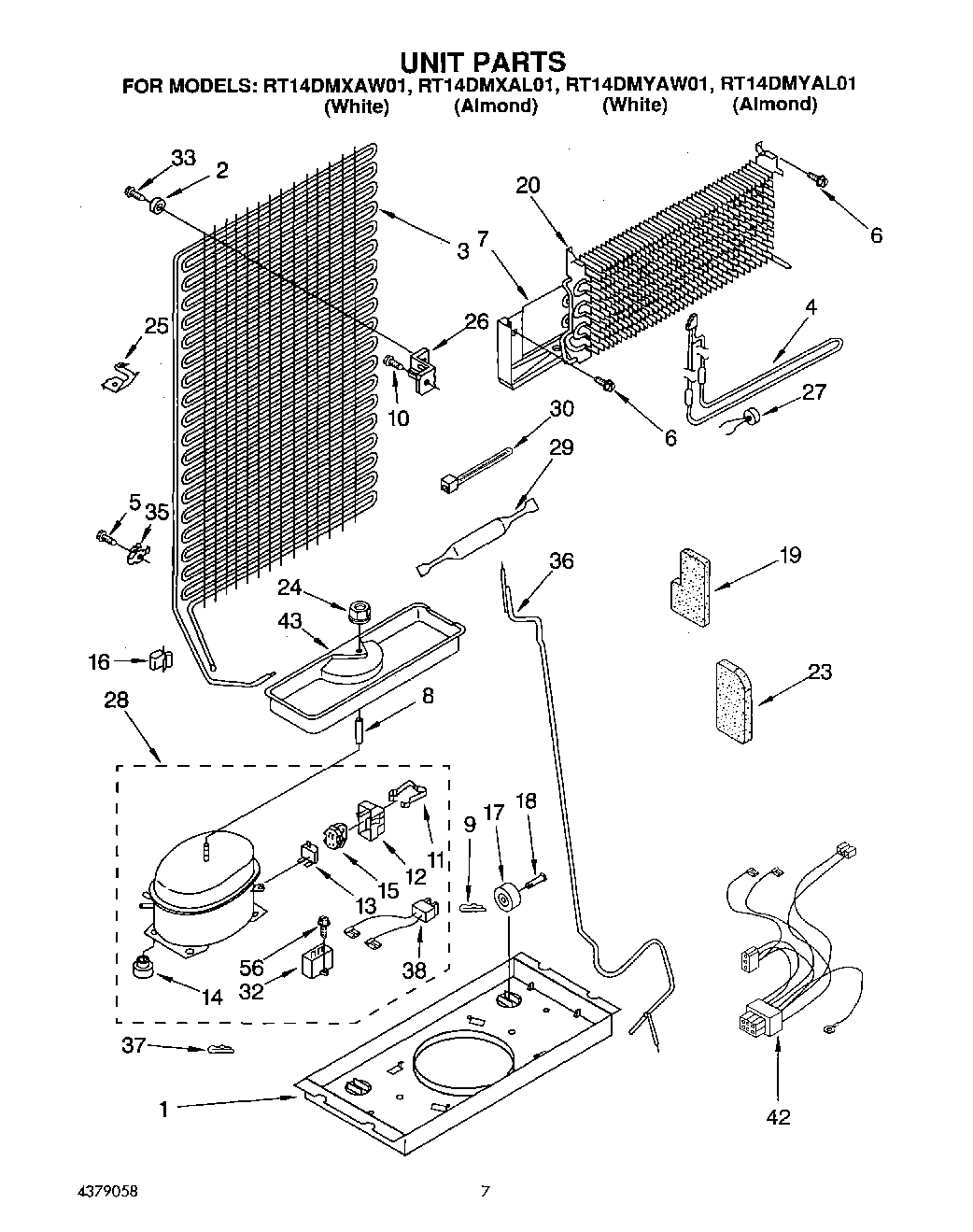

04 - UNIT

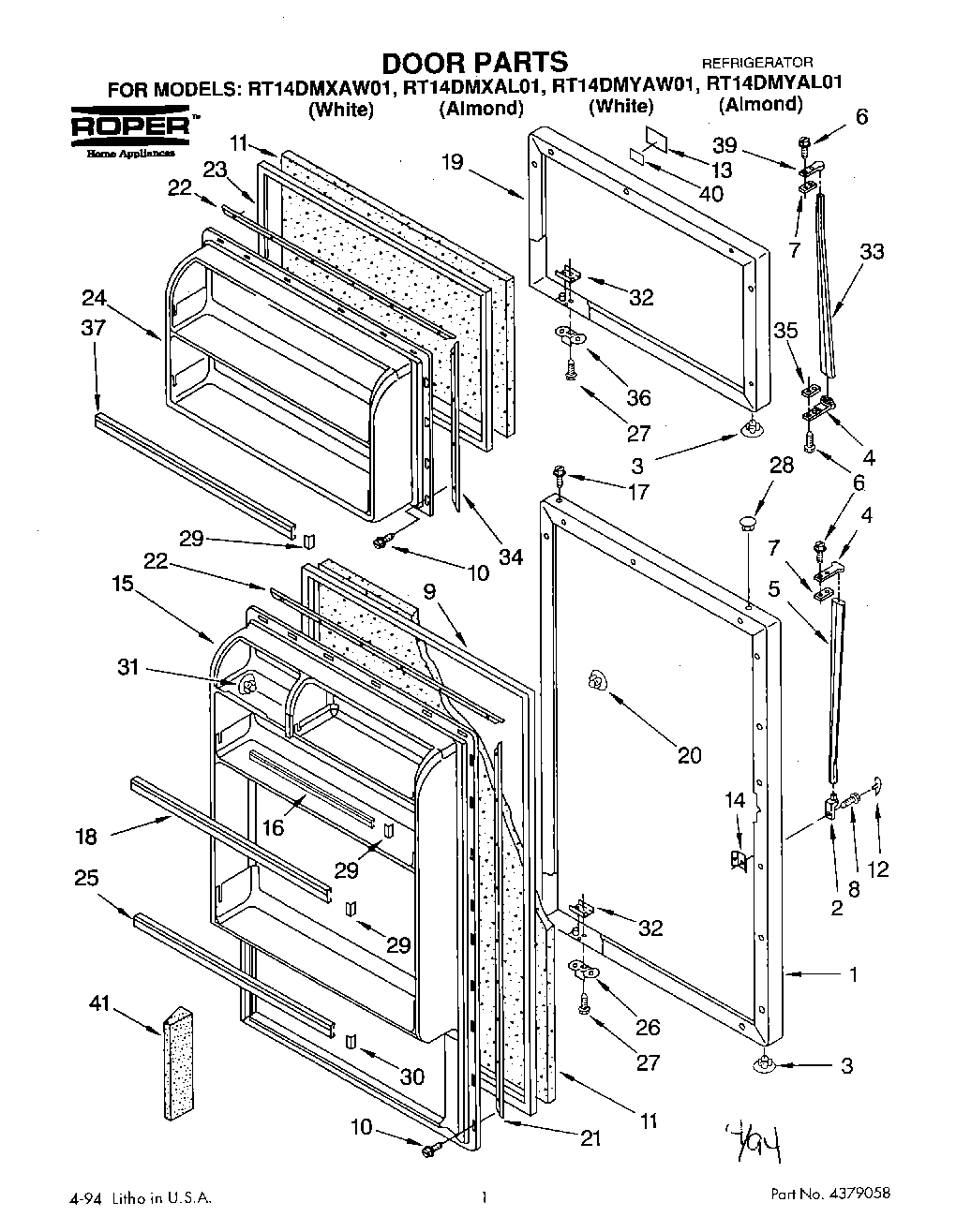

01 - DOOR

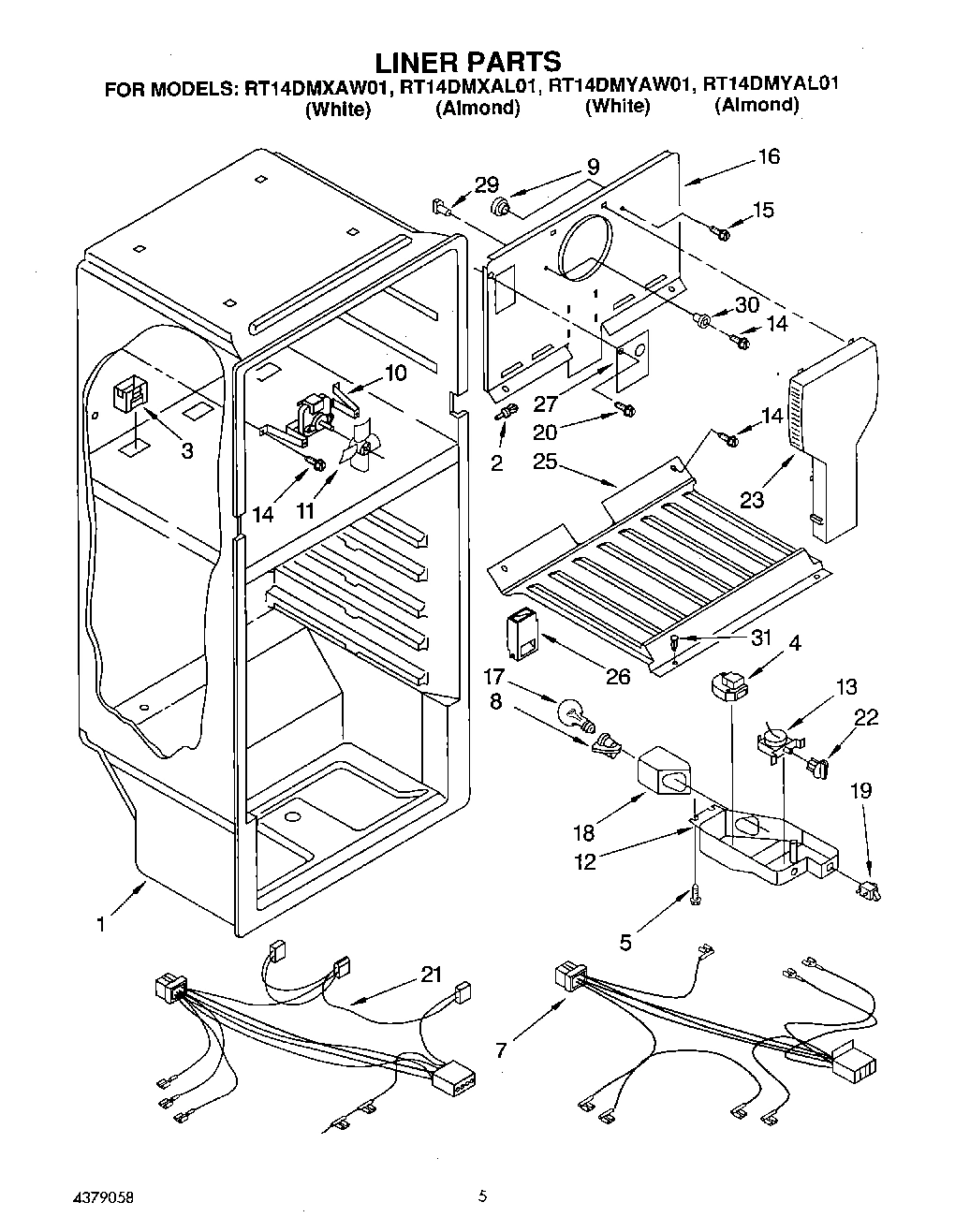

03 - LINER, LIT/OPTIONAL
Common parts from model Whirlpool RT14DMYAL01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2163325 WPL LIT2163325 Contact Us For Availability
WPL LIT2163498 WPL LIT2163498 Contact Us For Availability
WPL LIT4379058 WPL LIT4379058 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
WPL LIT9791409 WPL LIT9791409 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9790362 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9791629 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI125477A Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
3
Hole Plug (White) WPL 534927 Contact Us For Availability
3
Hole Plug (Almond) WPL 989197 Contact Us For Availability
3
Diffuser-Air WPL 9791377 Contact Us For Availability
5
Thimble WPL 9791835 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
6
Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
7
Heat Shield WPL 2166058 Contact Us For Availability
8
Spacer WPL 2154438 Contact Us For Availability
9
Trim, Ice Pan WPL 539567 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
9
Grommet WPL 531933 Contact Us For Availability
10
Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Fan Blade WPL 2160471 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Overload (Service) WPL 1108114 Contact Us For Availability
13
Overload (Production) WPL 2154758 Contact Us For Availability
13
Nameplate WPL 2160005 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
15
Screw WPL 488357 Contact Us For Availability
16
Cover-Evaporator WPL 9790382 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
21
Wiring-Freezer WPL 9791403 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
22
Retainer, Gasket WPL 1120614 Contact Us For Availability
23
Air Tower WPL 2166065 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Trim, Door Shelf WPL 2163381 Contact Us For Availability
25
Freezer Floor WPL 2166030 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
26
Stop-Door WPL 1115910 Contact Us For Availability
26
Air Diffuser WPL 9790402 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2154753 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Grommet WPL 2166046 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
30
Sleeve WPL 2166010 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK ( WPL 799344 Contact Us For Availability
31
Hole Plug WPL 2163372 Contact Us For Availability
31
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
33
Handle, F.C. WPL 1111547 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Spacer WPL 943188 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
36
Heat Exchanger (Not Serviced) WPL ARI125478A Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
40
Tape WPL 991259 Contact Us For Availability
41
Wedge-Foam Pnl. WPL 2166029 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
43
Evaporator Tray WPL 1101002 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
Start Kit WPL 482278 Contact Us For Availability
56
