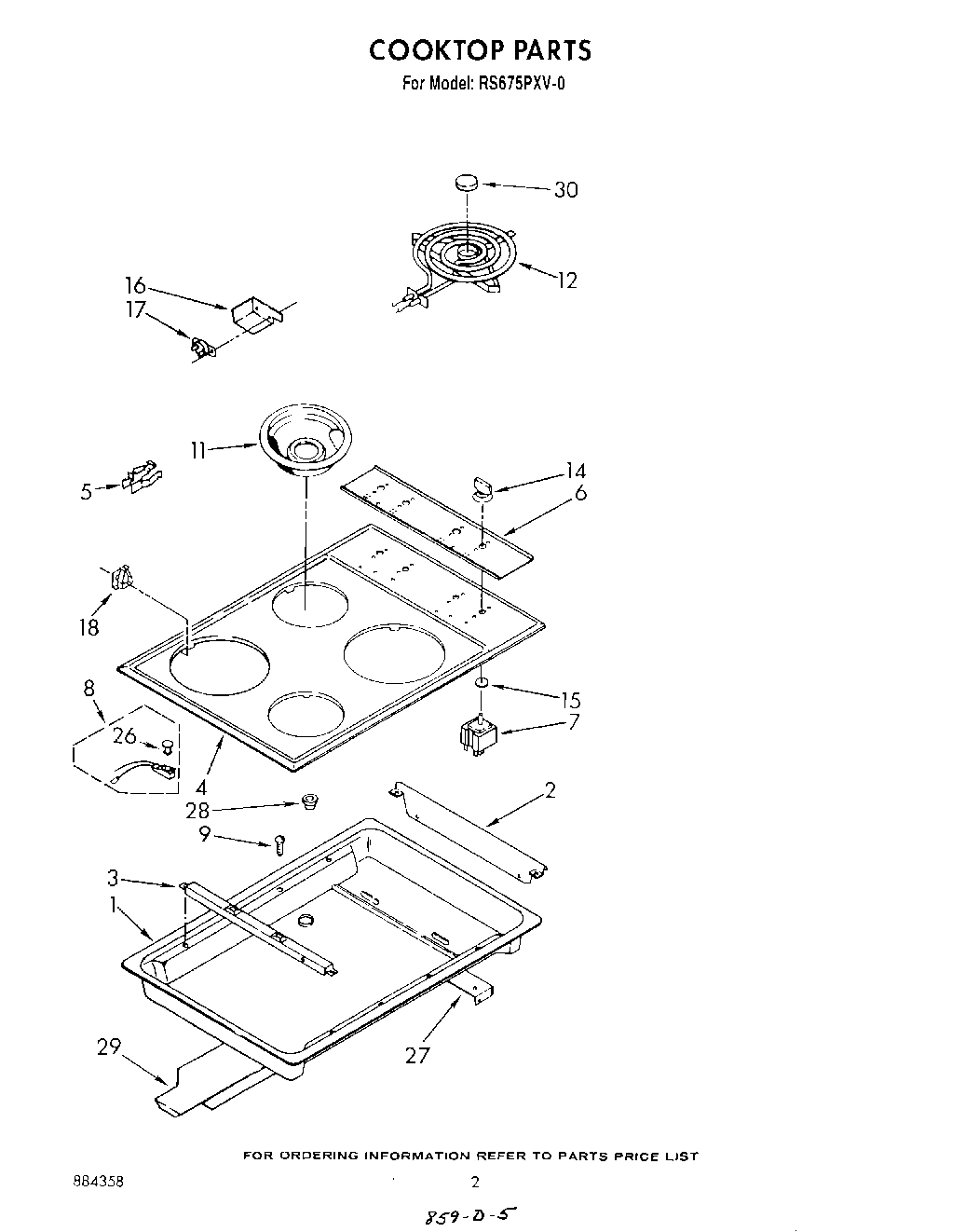

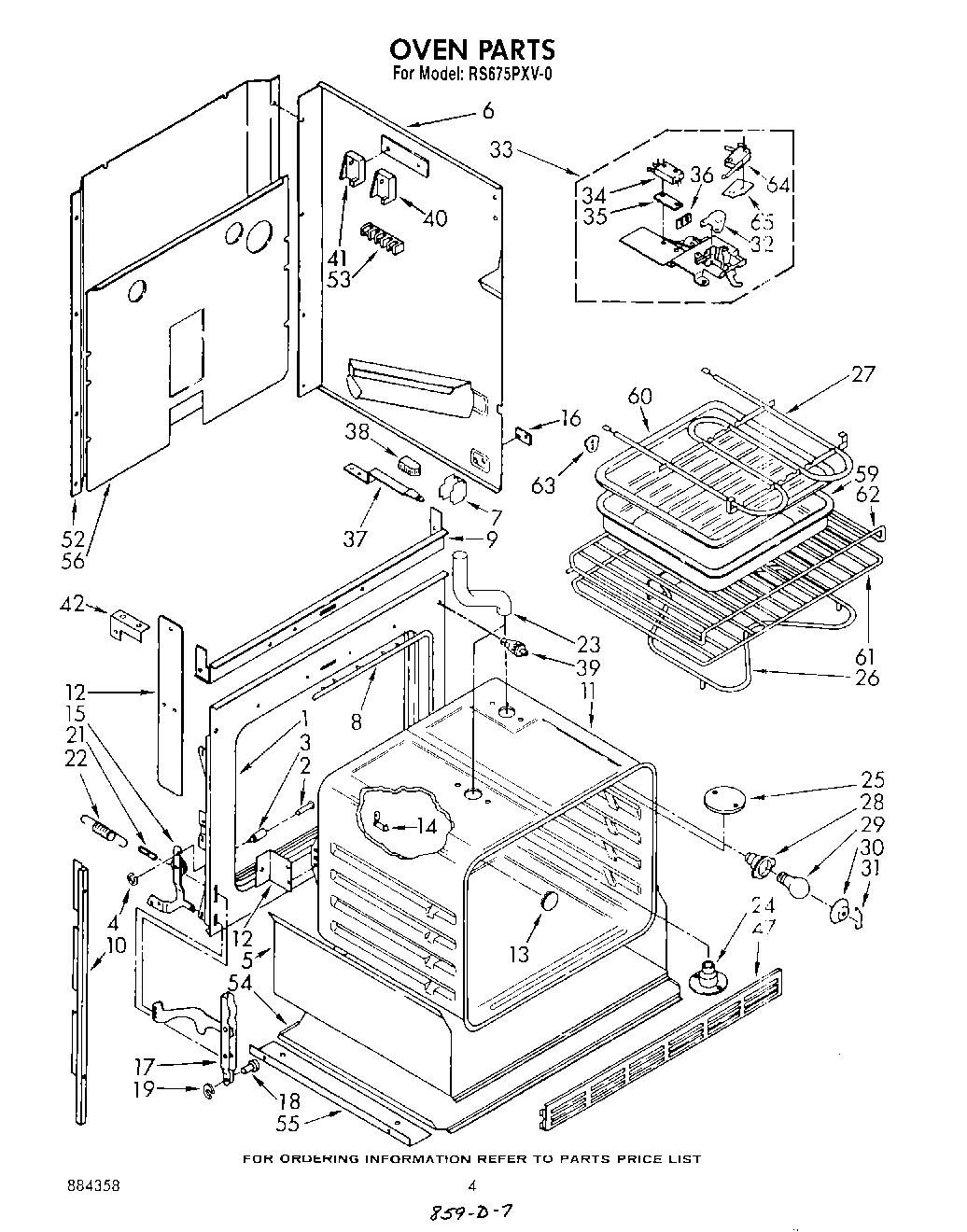

Model Whirlpool RS675PXV0 COOKTOP – Common Parts &amp; Diagrams

Book, Cooking Guide WPL LIT313358 Contact Us For Availability

Instructions, Installation WPL LIT3148556 Contact Us For Availability

Sheet, Tech WPL LIT3148601 Contact Us For Availability

Guide, Use & Care WPL LIT3149928 Contact Us For Availability

List, Repair Parts WPL LIT884358 Contact Us For Availability

1

Wiring Harness (Main) WPL 3148595 Contact Us For Availability

1

Burner Box WPL 311019 Contact Us For Availability

1

Frame, Front WPL 3170856 Contact Us For Availability

1

Screw, 10 x 1/2 (9) WPL 307748 Contact Us For Availability

1

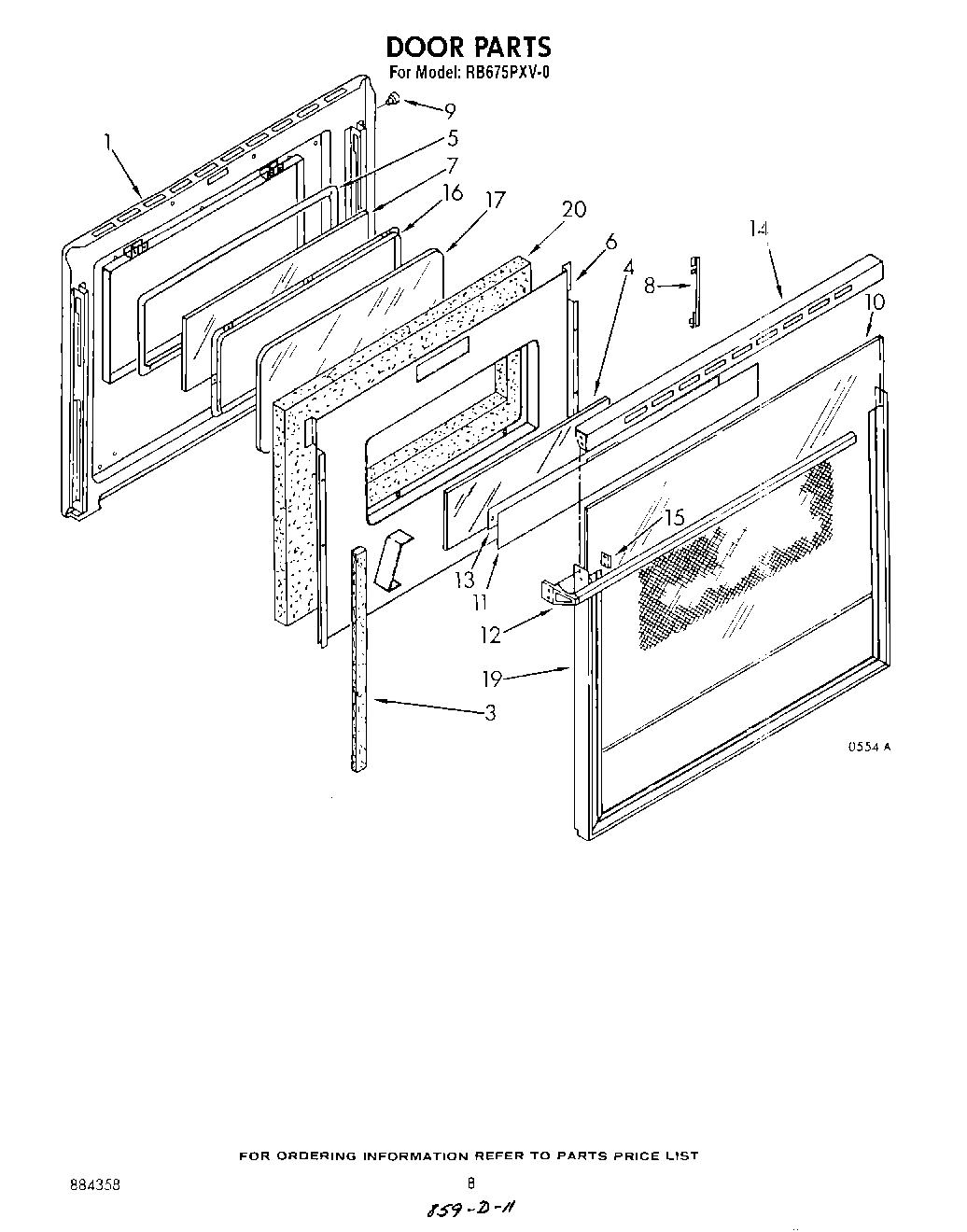

Liner, Door WPL 3170706 Contact Us For Availability

2

Harness, Wire (Surface Elements) WPL 3147828 Contact Us For Availability

2

Shield, Switch WPL 310716 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

3

Support, Cooktop WPL 310717 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

Cooktop WPL 3148039 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

5

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

6

Panel, Control WPL 3148704 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Screw (2) WPL 3148442 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $11.62

7

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

8

285006 Whirlpool Spray In Stock WPL 285006 $27.45

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

8

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

8

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

8

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

8

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

8

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

8

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

8

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

8

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

8

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

8

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

8

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

8

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

8

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

8

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

8

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

8

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

8

Grease WPL 261582 Contact Us For Availability

8

Coffee WPL 261886 Contact Us For Availability

8

Coffee (Uncut) WPL 261887 Contact Us For Availability

8

New Avocado WPL 261888 Contact Us For Availability

8

New Avocado (Uncut) WPL 261889 Contact Us For Availability

8

Harvest Gold WPL 261890 Contact Us For Availability

8

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

8

Toast WPL 285365 Contact Us For Availability

8

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

8

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

8

Platinum (Uncut) WPL 285368 Contact Us For Availability

8

Adaptor, Terminal WPL 3147832 Contact Us For Availability

8

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

8

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

8

WPL 799832 WPL 799832 Contact Us For Availability

8

WPL 978883 WPL 978883 Contact Us For Availability

8

Light, Indicator (Includes No. 26) WPL 313461 Contact Us For Availability

8

Gasket, Door WPL 3148284 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

9

Baffle, Top WPL 310693 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Side Trim L.H. WPL 310685 Contact Us For Availability

Side Trim (R.H.) WPL 310689 Contact Us For Availability

Glass, Panel WPL 3148185 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Oven (30`` Pyro) WPL 328756 Contact Us For Availability

Foil, Door WPL 3148184 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Bracket, Oven WPL 310713 Contact Us For Availability

Handle, Door WPL 3148228 Contact Us For Availability

13

screw (2) WPL 254225 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

13

Shield, Door WPL 3148680 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

Screw (5) WPL 3149333 Contact Us For Availability

Knob, Control WPL 3148161 Contact Us For Availability

Trim, Panel WPL 3148223 Contact Us For Availability

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Seal, Switch Shaft (4) WPL 309839 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

Bracket, Sensor WPL 3147830 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

screw (6) WPL 3148443 Contact Us For Availability

Frame, Glass WPL 3148234 Contact Us For Availability

17

Thermostat WPL 3147833 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

18

814103 Whirlpool Clip In Stock WPL 814103 $3.95

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

19

Frame, Glass Panel WPL 3148235 Contact Us For Availability

20

Insulation WPL 3147951 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

23

Escutcheon, Thermostat WPL 311066 Contact Us For Availability

23

Tube, Vent WPL 310835 Contact Us For Availability

24

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $26.48

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.05

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Screw (2) WPL 312318 Contact Us For Availability

26

Lens, Light WPL 313602 Contact Us For Availability

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

Bracket, Control (2) WPL 3148634 Contact Us For Availability

Support, Burner box WPL 310718 Contact Us For Availability

Screw (4) WPL 246127 Contact Us For Availability

28

Knob, Bit Generator WPL 313523 Contact Us For Availability

28

Bushing WPL 258109 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

29

Cover, Top Rear WPL 3147565 Contact Us For Availability

30

Medallion WPL 3147713 Contact Us For Availability

30

Cover, Light WPL 308039 Contact Us For Availability

31

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

31

Support, Top Rail WPL 312752 Contact Us For Availability

31

Retainer, Light WPL 308038 Contact Us For Availability

32

Trim, End Cap WPL 3149900 Contact Us For Availability

32

Latch, Lock WPL 3149270 Contact Us For Availability

33

Shaft, Bit Generator WPL 3149320 Contact Us For Availability

33

Screw (2) WPL 311056 Contact Us For Availability

33

Latch Assembly WPL 3171148 Contact Us For Availability

34

Safety Switch WPL 308185 Contact Us For Availability

34

Screw (2) WPL 98106 Contact Us For Availability

35

Insulator, Switch WPL 309245 Contact Us For Availability

36

Screw (2) WPL 309258 Contact Us For Availability

36

Terminal, Shield WPL 313035 Contact Us For Availability

37

Screw (4) WPL 308422 Contact Us For Availability

37

Latch, Handle WPL 310825 Contact Us For Availability

38

Screw WPL 246135 Contact Us For Availability

38

Knob, Latch WPL 311253 Contact Us For Availability

39

Switch, Door WPL 310345 Contact Us For Availability

40

Switch, Broil WPL 314209 Contact Us For Availability

41

screw WPL 314215 Contact Us For Availability

41

Switch, Bake WPL 314210 Contact Us For Availability

42

Screw WPL 98520 Contact Us For Availability

42

Shield, Insulated WPL 3149142 Contact Us For Availability

47

Screw (3) WPL 309029 Contact Us For Availability

47

Bottom Grill WPL 310668 Contact Us For Availability

52

C WPL 311012 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

53

WPL 308043 WPL 308043 Contact Us For Availability

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 3149542 WPL 3149542 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability

63

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

63

WPL 311982 WPL 311982 Contact Us For Availability

64

WPL 3148669 WPL 3148669 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 310434 WPL 310434 Contact Us For Availability

WPL 3147864 WPL 3147864 Contact Us For Availability

WPL 3149328 WPL 3149328 Contact Us For Availability
