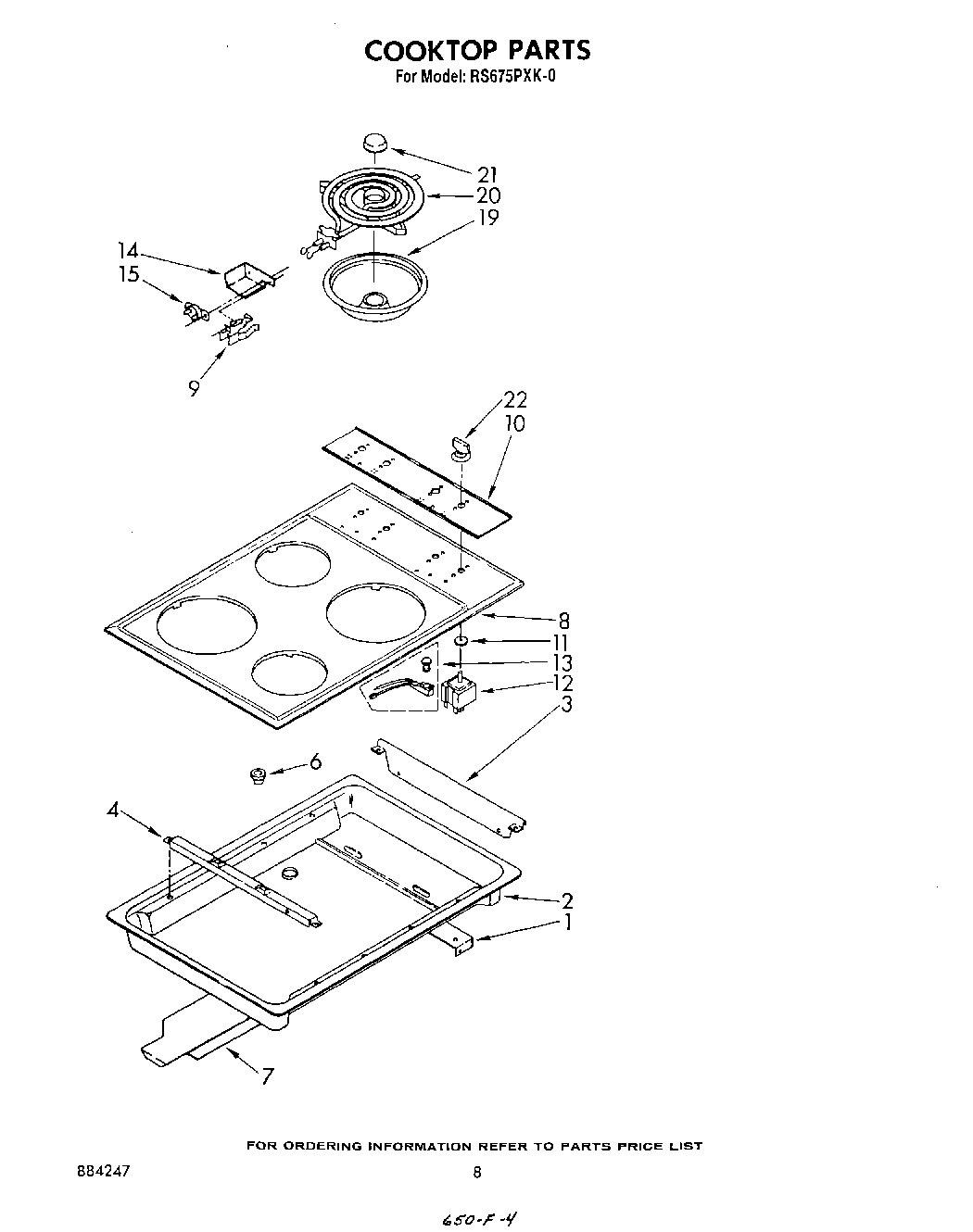

Model Whirlpool RS675PXK0 COOKTOP – Common Parts &amp; Diagrams

Instructions, Installation WPL LIT311433 Contact Us For Availability

Guide, Use & Care WPL LIT313300 Contact Us For Availability

Book, Cooking Guide WPL LIT313358 Contact Us For Availability

Tech Sheet WPL LIT3147842 Contact Us For Availability

List, Repair Parts WPL LIT884247 Contact Us For Availability

1

Screw (2) WPL 311056 Contact Us For Availability

1

Liner, Door WPL 329694 Contact Us For Availability

1

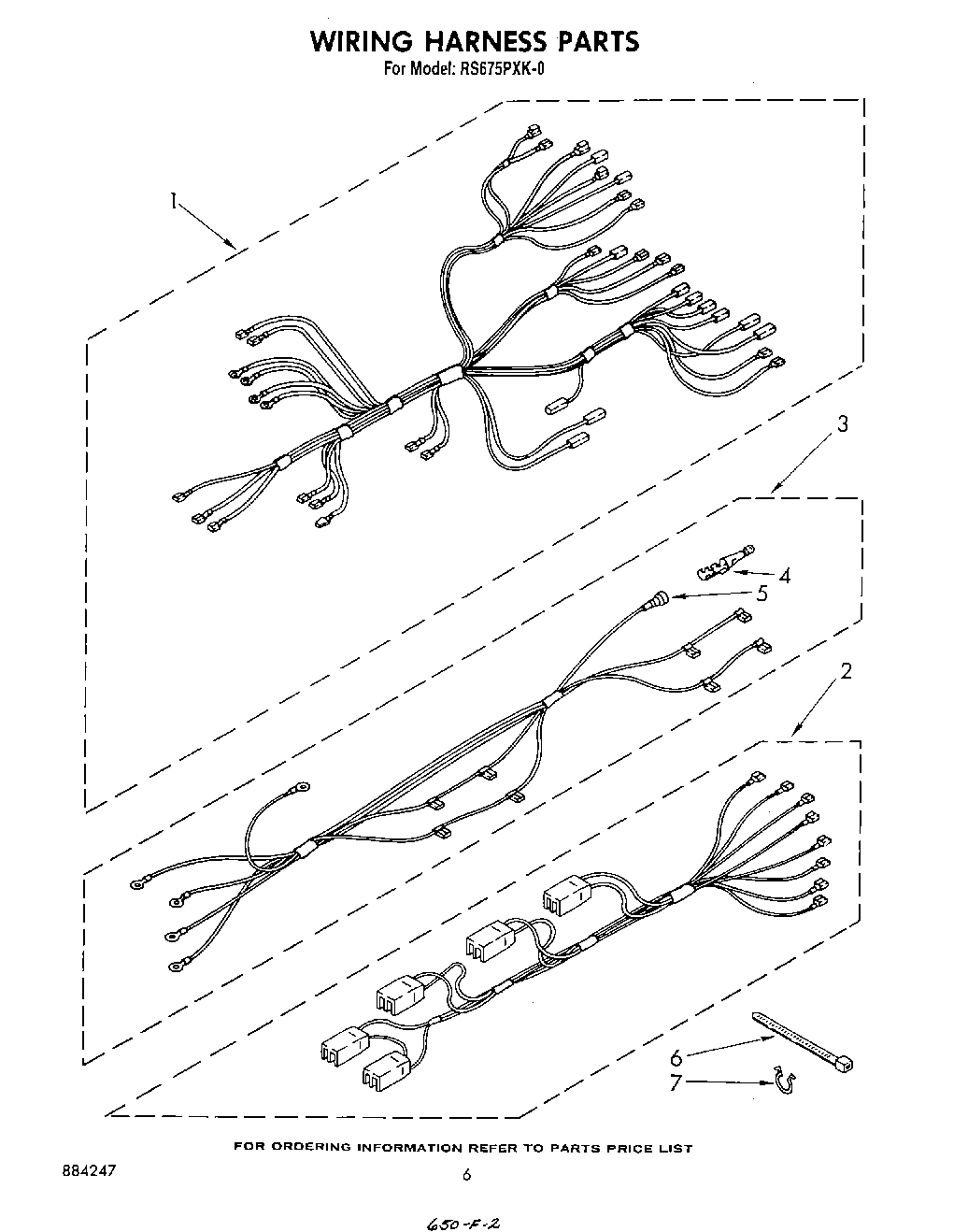

Harness, Wire (Main) WPL 313867 Contact Us For Availability

1

Screw (2) WPL 308504 Contact Us For Availability

1

End Cap (L.H.) WPL 310826 Contact Us For Availability

1

End Cap (R.H.) WPL 310827 Contact Us For Availability

1

Support, Burner Box (2) WPL 310718 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

2

Screw (2) WPL 311054 Contact Us For Availability

2

Harness, Wire (suface Unit) WPL 3147828 Contact Us For Availability

2

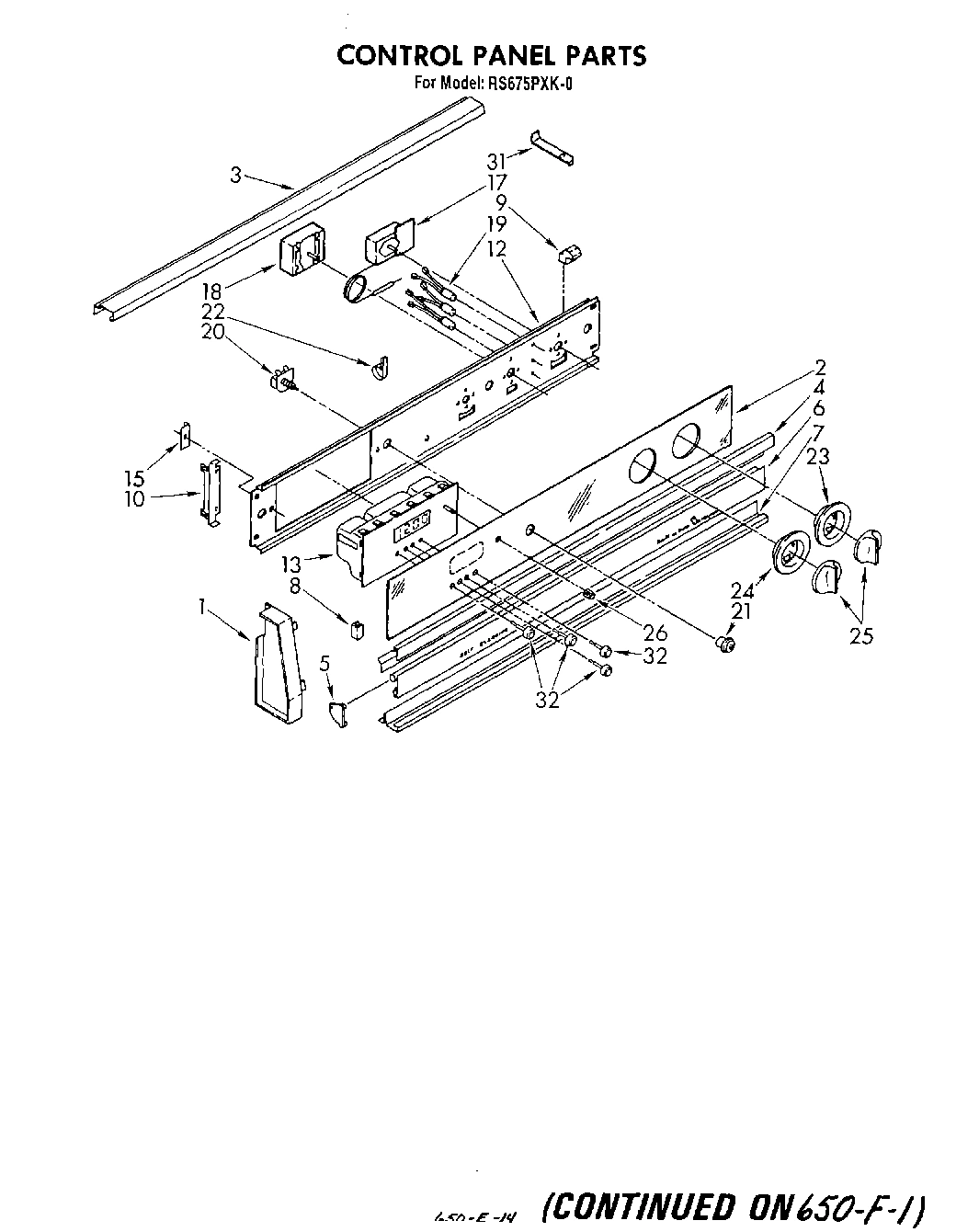

Control Panel, Glass WPL 313947 Contact Us For Availability

2

Burner Box WPL 311019 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

3

Rail, Top WPL 310819 Contact Us For Availability

3

Shield, Switch WPL 310716 Contact Us For Availability

4

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

4

Window Package WPL 330038 Contact Us For Availability

4

Trim, Center WPL 311189 Contact Us For Availability

4

Support, Cooktop WPL 310717 Contact Us For Availability

5

Retainer, Insulation WPL 308021 Contact Us For Availability

5

Block, Disconnect WPL 351297 Contact Us For Availability

5

End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability

5

End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

6

Door, Vent WPL 312447 Contact Us For Availability

6

Bushing WPL 258109 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $11.62

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

7

Screw (6) WPL 342043 Contact Us For Availability

7

Trim, Bottom WPL 311190 Contact Us For Availability

7

Cover, Top Rear WPL 3147565 Contact Us For Availability

8

Channel, Rubber (2) WPL 310842 Contact Us For Availability

8

Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability

8

Cooktop, Brushed Chrome WPL 307492 Contact Us For Availability

8

Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

9

Glass, Outer WPL 309069 Contact Us For Availability

9

Retainer, Glass (4) WPL 310823 Contact Us For Availability

10

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

10

Screw (4) WPL 98520 Contact Us For Availability

10

Panel, Control WPL 313132 Contact Us For Availability

11

Top, Door Frame WPL 310428 Contact Us For Availability

11

Seal, Switch WPL 309839 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

Handle, Oven Door WPL 312721 Contact Us For Availability

Bracket, Control WPL 313863 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Plug Button WPL 257314 Contact Us For Availability

Baffle, Heat WPL 309056 Contact Us For Availability

Timer, Orbitron (Included No.14) WPL 314128 Contact Us For Availability

Indicator Light (Lens, No.313602) WPL 313461 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

Screw (Black) 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Frame, Door WPL 310427 Contact Us For Availability

Bracket, Sensor WPL 3147830 Contact Us For Availability

Thermostat WPL 3147833 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Seal, Fiberglass WPL 311904 Contact Us For Availability

Bracket, Timer (2) WPL 313864 Contact Us For Availability

16

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

16

clip, glass (10) WPL 310706 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

17

Thermostat, Oven WPL 313856 Contact Us For Availability

17

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

18

Selector Switch WPL 310006 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability

20

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

20

Switch, Oven Light WPL 312581 Contact Us For Availability

20

Washer WPL 312796 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Bezel Switch WPL 313030 Contact Us For Availability

21

Medallion, Surface Unit WPL 309195 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

22

WP330190 Whirlpool Knob Backorder WPL WP330190 $14.62

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Escutcheon, Thermostat WPL 311066 Contact Us For Availability

Tube, Vent Extension WPL 310835 Contact Us For Availability

Panel, Inner WPL 327898 Contact Us For Availability

24

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $26.48

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

24

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.05

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Knob, Timer (1) WPL 313523 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

Cover, Light WPL 308039 Contact Us For Availability

30

Clip (2) WPL 311506 Contact Us For Availability

31

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

31

Retainer, Light WPL 308038 Contact Us For Availability

31

Support, Rail WPL 312752 Contact Us For Availability

32

Coverplate WPL 311982 Contact Us For Availability

32

Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability

32

Knob-Bit Generator (4) WPL 313958 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

L WPL 328585 Contact Us For Availability

Retainer, Glass (2) WPL 309843 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

touch-up self-clean (1/2 pt.) WPL 261810 Contact Us For Availability

console WPL 261825 Contact Us For Availability

Rotisserie Kit WPL 261881 Contact Us For Availability

34

WPL 308185 WPL 308185 Contact Us For Availability

34

WPL 98106 WPL 98106 Contact Us For Availability

35

WPL 309245 WPL 309245 Contact Us For Availability

36

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

36

WPL 309258 WPL 309258 Contact Us For Availability

36

WPL 313035 WPL 313035 Contact Us For Availability

37

WPL 308422 WPL 308422 Contact Us For Availability

37

WPL 310825 WPL 310825 Contact Us For Availability

38

WPL 246135 WPL 246135 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

WPL 314209 WPL 314209 Contact Us For Availability

41

WPL 314211 WPL 314211 Contact Us For Availability

41

WPL 314215 WPL 314215 Contact Us For Availability

43

WPL 312320 WPL 312320 Contact Us For Availability

46

WPL 310714 WPL 310714 Contact Us For Availability

46

WPL 310715 WPL 310715 Contact Us For Availability

47

WPL 309029 WPL 309029 Contact Us For Availability

47

WPL 310668 WPL 310668 Contact Us For Availability

52

WPL 310459 WPL 310459 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability
