Model Whirlpool RS6750XVW2 – Common Parts & Diagrams

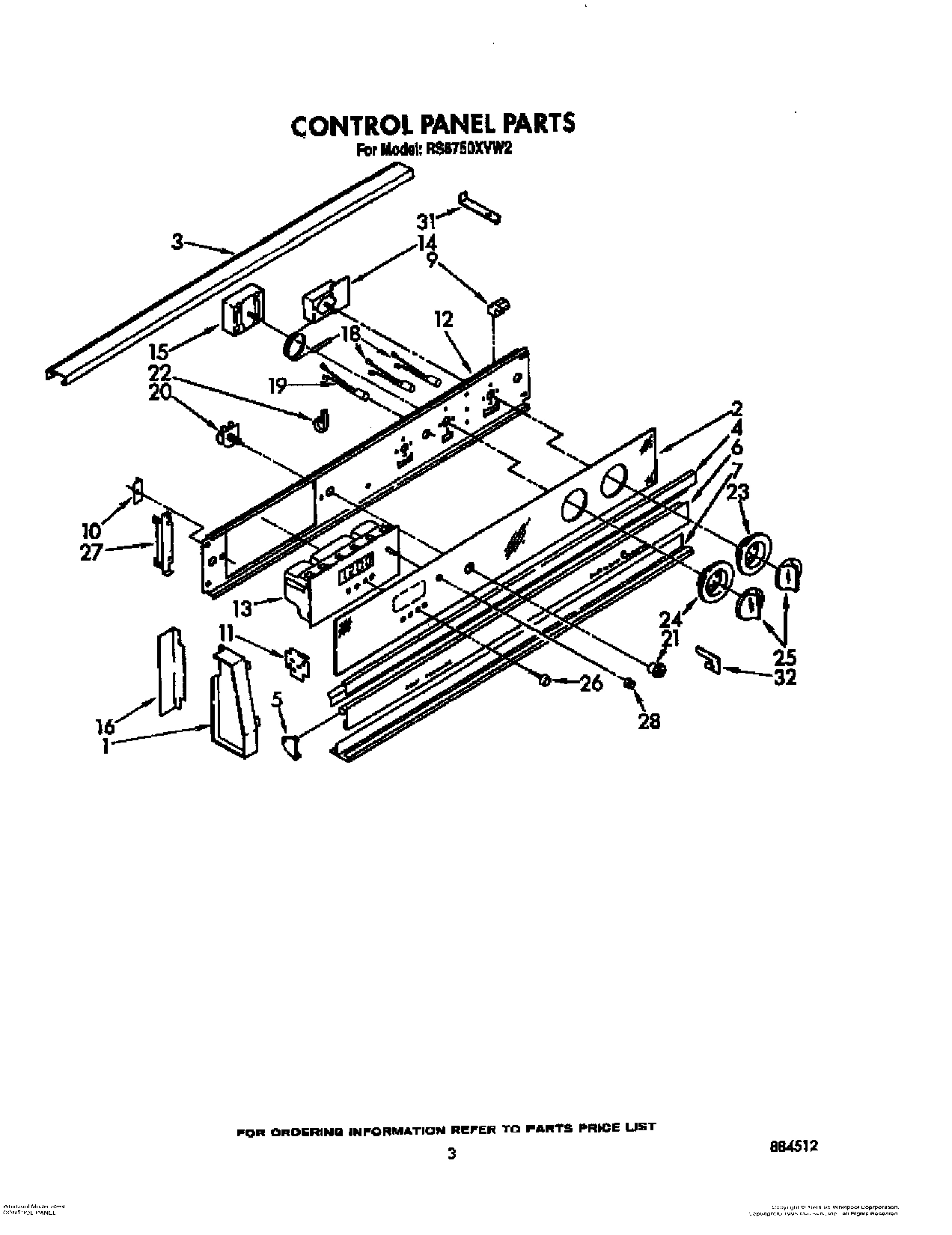

03 - CONTROL PANEL

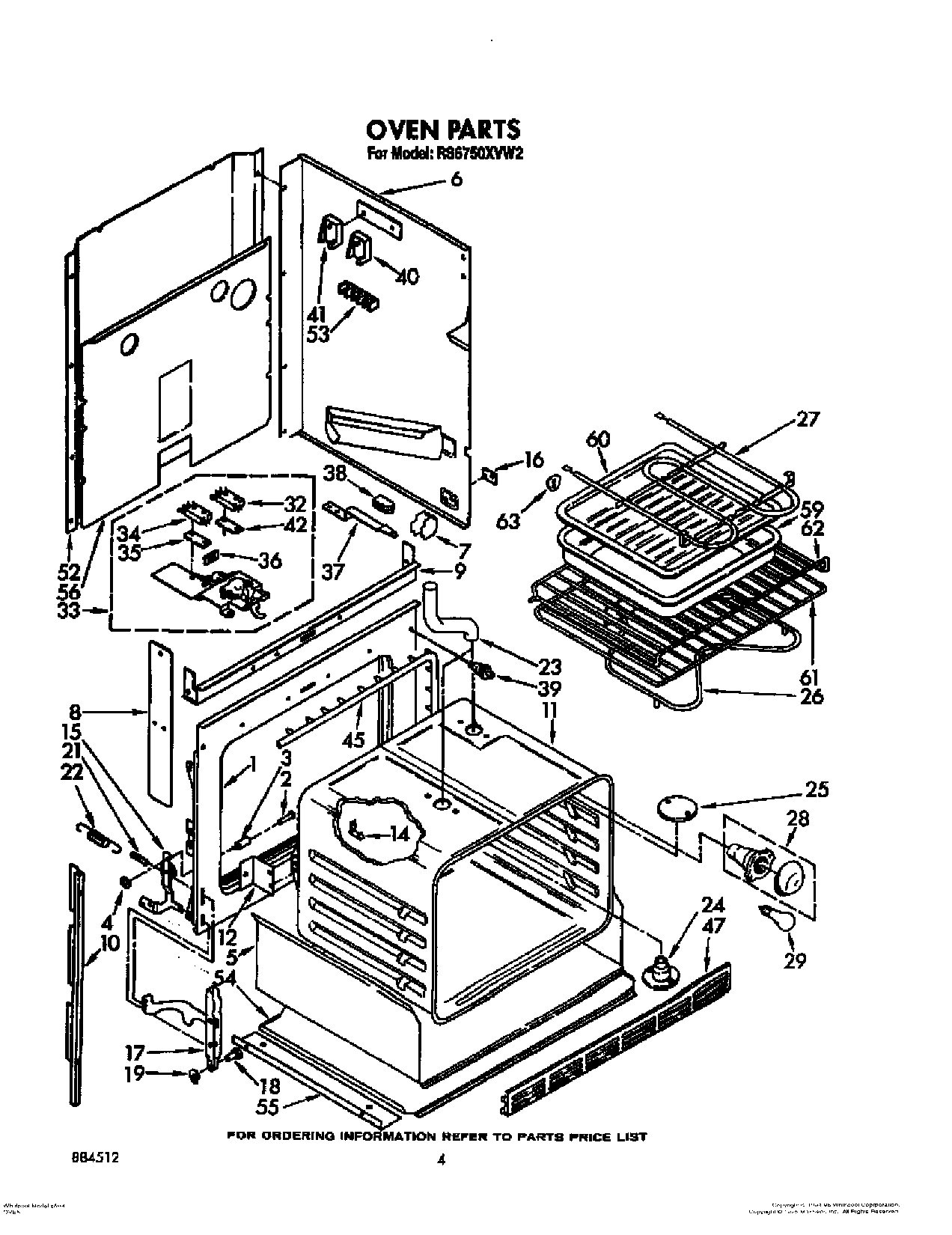

04 - OVEN, LIT/OPTIONAL

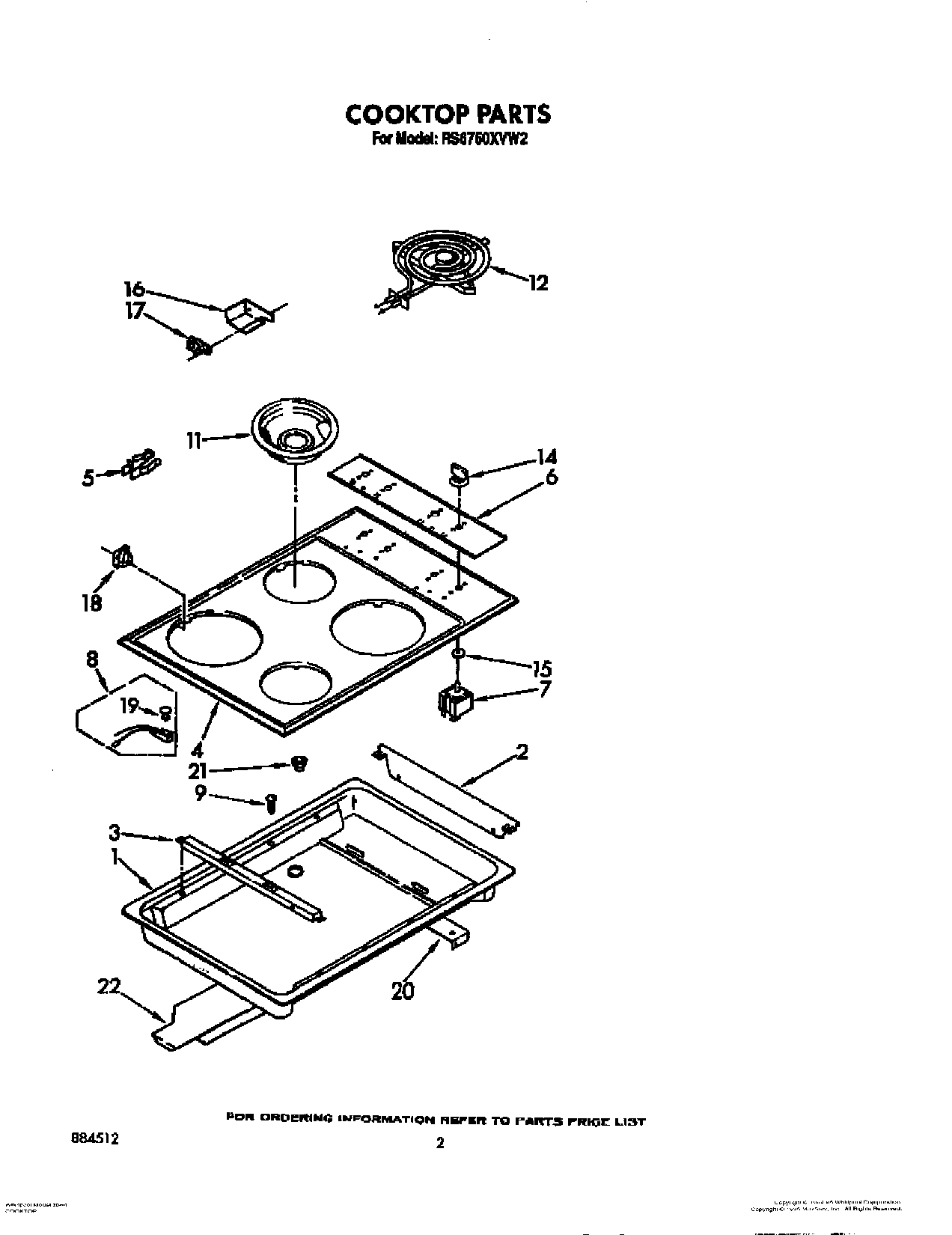

02 - COOKTOP

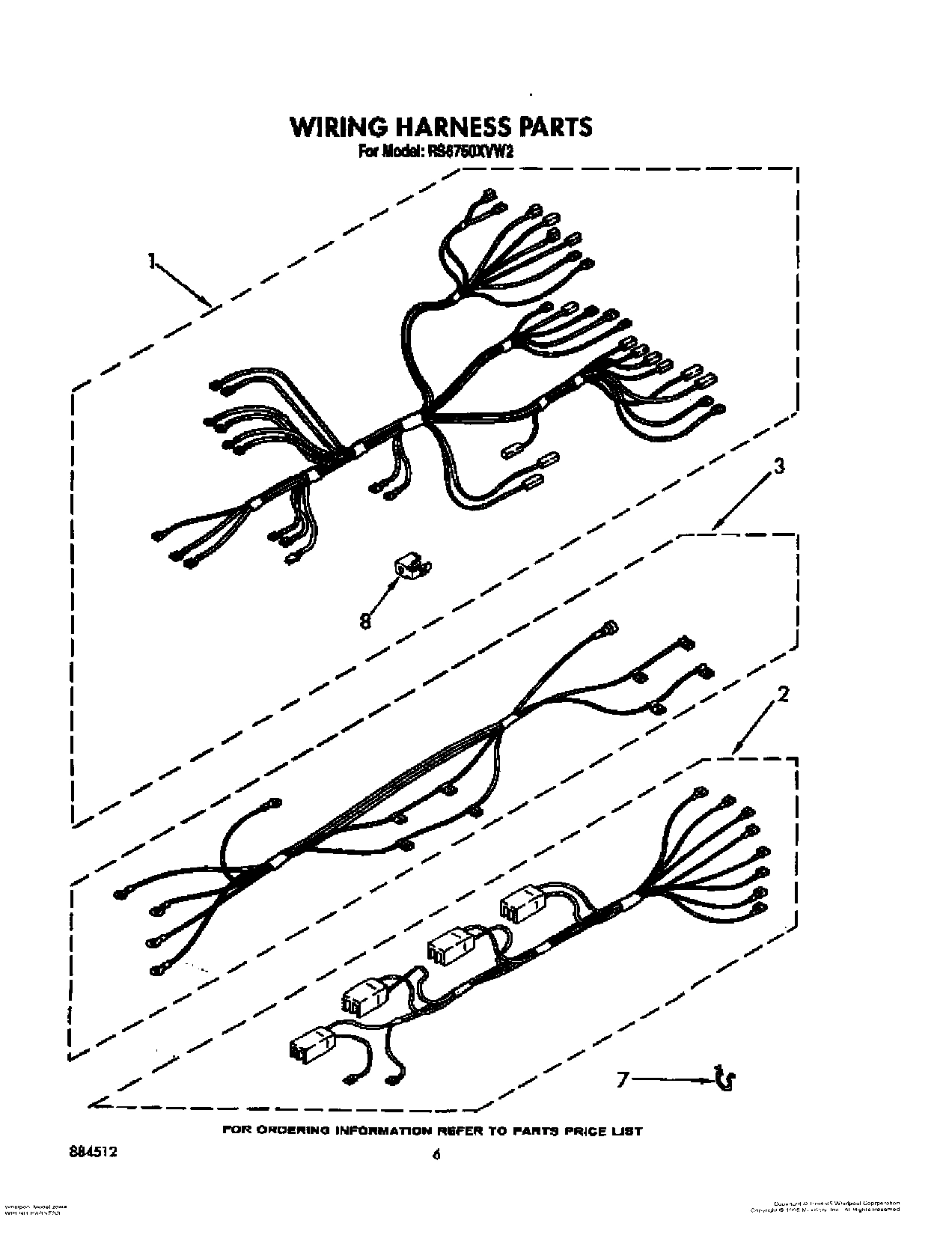

05 - WIRING HARNESS, OPTIONAL

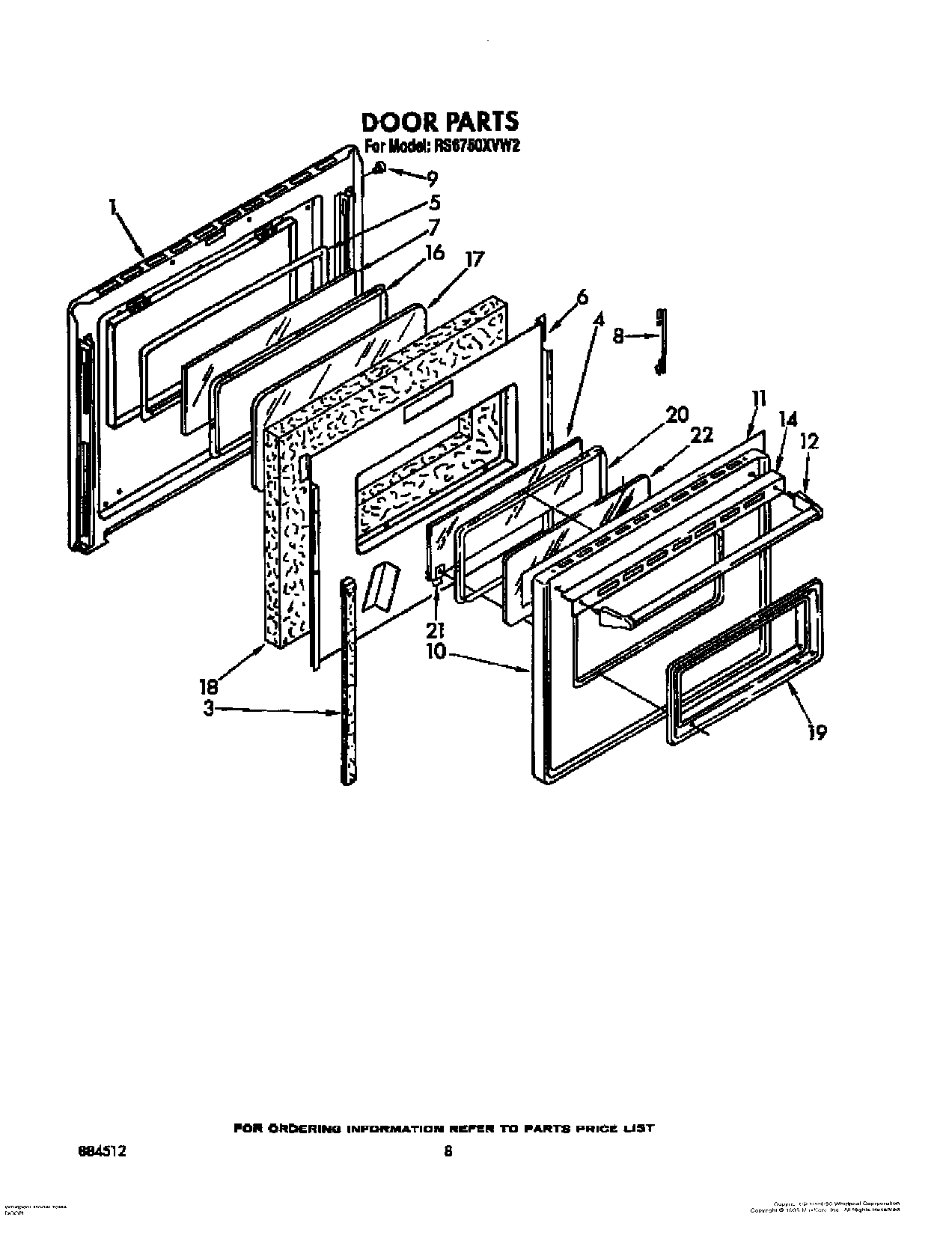

06 - DOOR
Common parts from model Whirlpool RS6750XVW2
WPL LIT31335 WPL LIT31335 Contact Us For Availability
WPL LIT314739 WPL LIT314739 Contact Us For Availability
WPL LIT314860 WPL LIT314860 Contact Us For Availability
WPL LIT314992 WPL LIT314992 Contact Us For Availability
WPL LIT88451 WPL LIT88451 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Burner Box WPL 311019 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
1
Screw, 10 x 1/2 (9) WPL 307748 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Shield, Switch WPL 310716 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147828 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Support, Cooktop WPL 310717 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Cooktop (White) WPL 3148747 Contact Us For Availability
4
Cooktop (Almond) WPL 3148748 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Panel, Control WPL 3148704 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Insulation Baffle WPL 311256 Contact Us For Availability
8
Light, Indicator (Includes No. 19) WPL 313461 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Ga. 80~c Rating WPL 18 Contact Us For Availability
8
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
16 Ga. 80~c Rating WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
14 Ga. 200~c Rating (Yellow) WPL 242832 Contact Us For Availability
8
Paint, Touch Up 1 Oz. (Oven Liner) (Blue Gray WPL 242860 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
Rotisserie Kit WPL 261881 Contact Us For Availability
8
Harvest Gold WPL 261890 Contact Us For Availability
8
Harvest Gold WPL 261891 Contact Us For Availability
8
14 Ga. 200~c Rating (Red) WPL 282831 Contact Us For Availability
8
Toast WPL 285365 Contact Us For Availability
8
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
8
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
8
Platinum WPL 285368 Contact Us For Availability
8
Adapter, Terminal WPL 3147832 Contact Us For Availability
8
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
8
Leveler (Primer) WPL 350941 Contact Us For Availability
8
WPL 591014 WPL 591014 Contact Us For Availability
8
WPL 72112 WPL 72112 Contact Us For Availability
8
WPL 786020 WPL 786020 Contact Us For Availability
8
WPL 786032 WPL 786032 Contact Us For Availability
8
WPL 799832 WPL 799832 Contact Us For Availability
8
WPL 832985 WPL 832985 Contact Us For Availability
8
WPL 978849 WPL 978849 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Baffle, Top WPL 310693 Contact Us For Availability
9
Screw WPL 166681 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Panel, Door (Fastener (2)) WPL 3148181 Contact Us For Availability
10
Panel, Door (White) WPL 3148201 Contact Us For Availability
10
Panel, Door (Almond) WPL 3148205 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3185062 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
14
Knob, Control WPL 3150373 Contact Us For Availability
14
Screw (3) WPL 3149333 Contact Us For Availability
14
Top, Door WPL 3148188 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Seal, Switch Shaft (4) WPL 309839 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Bracket, Sensor WPL 3147830 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Thermostat WPL 3147833 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Insulation WPL 3147951 Contact Us For Availability
19
Window, Frame WPL 3149277 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Lens, Light WPL 313602 Contact Us For Availability
19
Screw (2) WPL 309133 Contact Us For Availability
20
Retainer, Glass WPL 307792 Contact Us For Availability
20
Support, Burner box WPL 310718 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
21
Clip, Frame WPL 307731 Contact Us For Availability
22
Cover, Top Rear WPL 3147565 Contact Us For Availability
22
Glass, Outer WPL 307732 Contact Us For Availability
22
Screw (8) WPL 313045 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability
28
Knob, Timer (1) WPL 313523 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
32
Switch, Lock WPL 3148669 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
screw, 8 x 5/16 WPL 246135 Contact Us For Availability
38
Knob, Latch WPL 311253 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
40
Switch, Broil WPL 314209 Contact Us For Availability
41
screw WPL 314215 Contact Us For Availability
41
Switch, Bake WPL 314210 Contact Us For Availability
42
Scre WPL 313489 Contact Us For Availability
42
WPL 3147864 WPL 3147864 Contact Us For Availability
45
WPL 3148284 WPL 3148284 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3149542 WPL 3149542 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
