Model Whirlpool RS670PXK3 – Common Parts & Diagrams

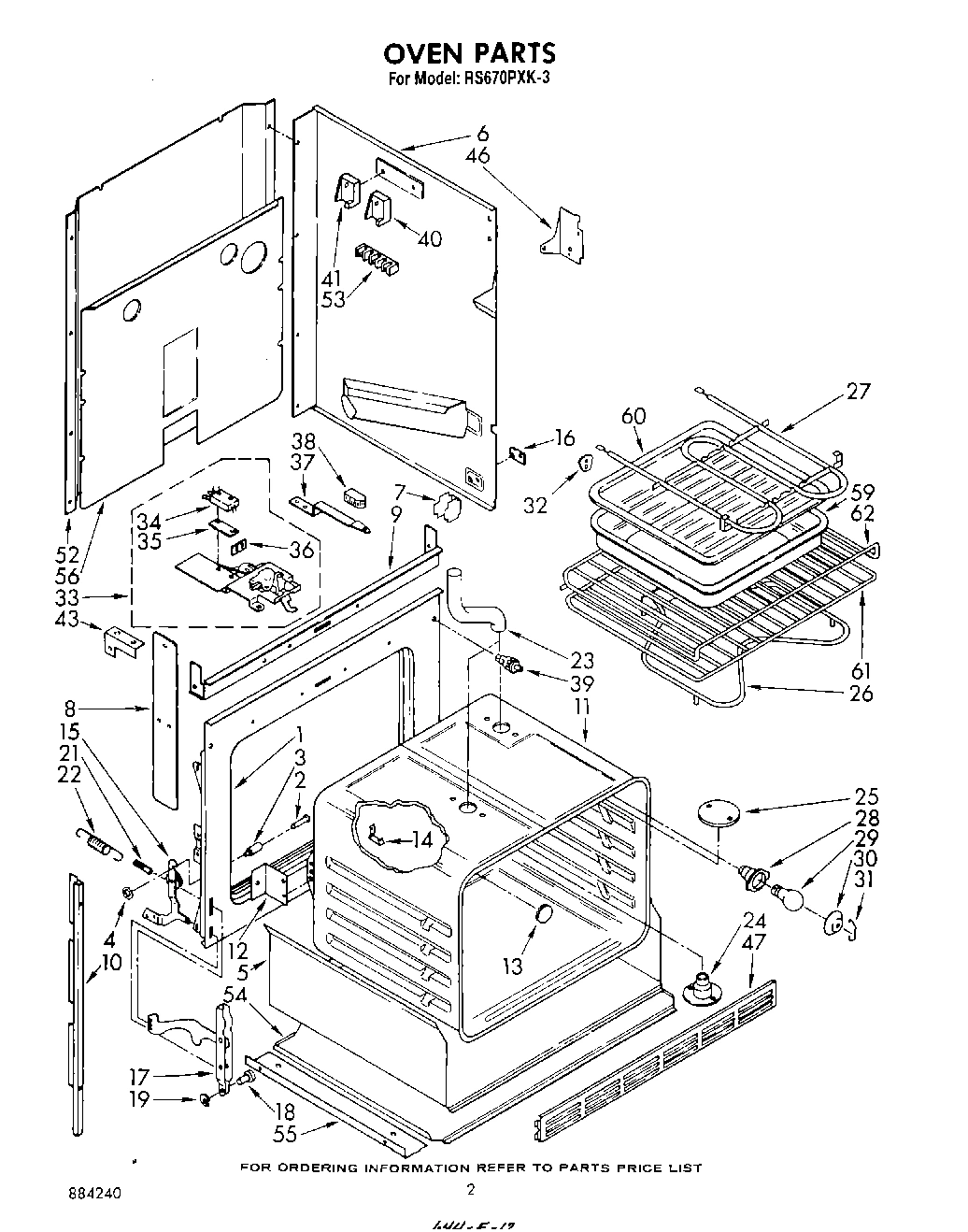

02 - OVEN

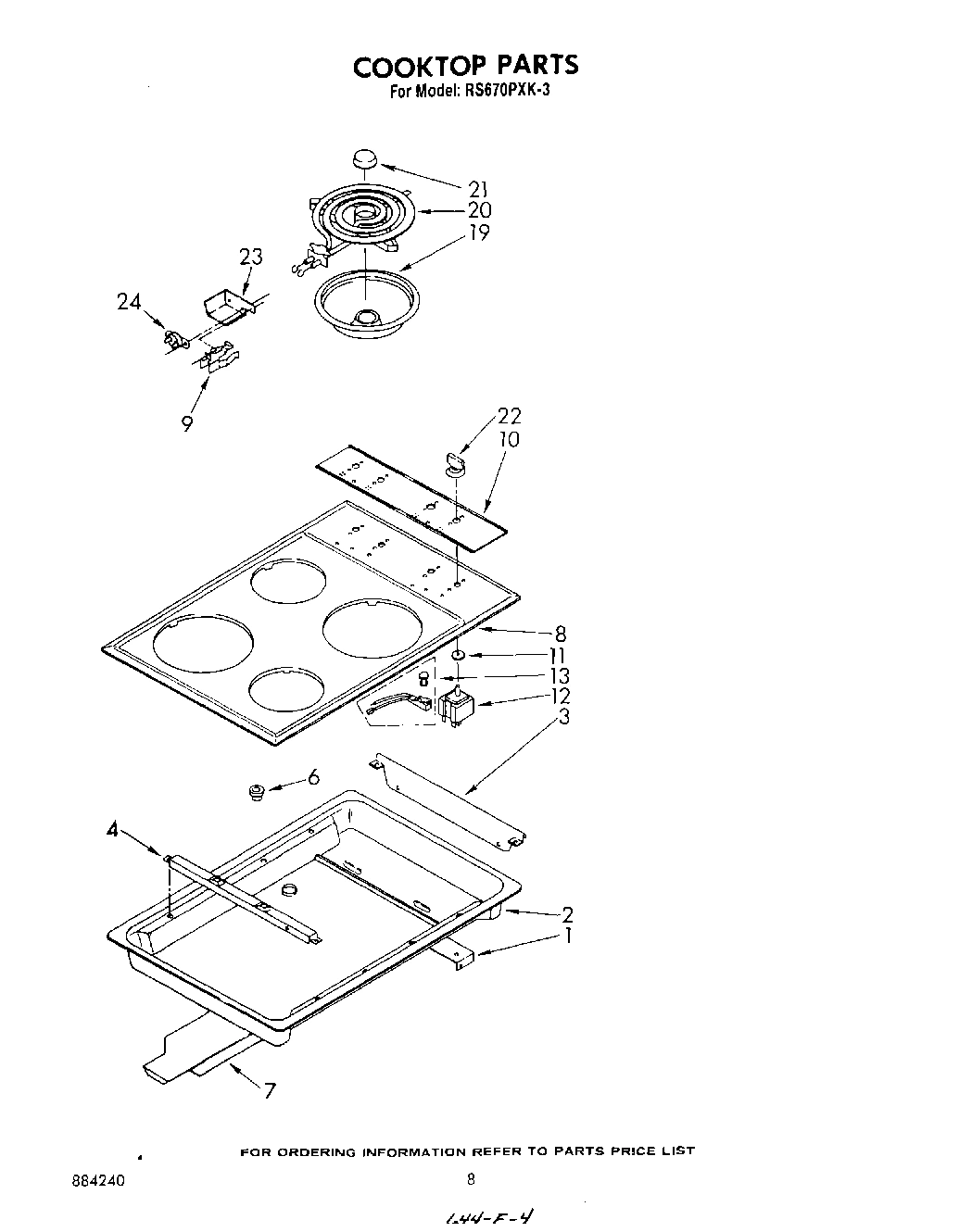

06 - COOKTOP
04 - DOOR
03 - CONTROL PANEL
05 - WIRING HARNESS , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RS670PXK3
Instructions, Installation WPL LIT311433 Contact Us For Availability
Guide, Use & Care WPL LIT312492 Contact Us For Availability
Book, Cooking Guide WPL LIT313358 Contact Us For Availability
Tech Sheet WPL LIT313873 Contact Us For Availability
List, Repair Parts WPL LIT884240 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Screw (2) WPL 308504 Contact Us For Availability
1
End Cap (L.H.) WPL 310826 Contact Us For Availability
1
End Cap (R.H.) WPL 310827 Contact Us For Availability
1
Harness, Wire (Main) WPL 312189 Contact Us For Availability
2
Burner Box 8-18 x 1/2 (4) WPL 311019 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Control Panel, Glass WPL 313884 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 311709 Contact Us For Availability
3
Shield, Switch 8-18 x 1/2 (2) WPL 310716 Contact Us For Availability
3
Rail, Top WPL 310819 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
Window Package WPL 330038 Contact Us For Availability
4
Trim, Center WPL 311189 Contact Us For Availability
5
Retainer, Insulation WPL 308021 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
5
Block, Disconnect WPL 351297 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Door, Vent WPL 312447 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
7
Screw (6) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
touch-up self-clean (1/2 pt.) WPL 261810 Contact Us For Availability
7
console WPL 261825 Contact Us For Availability
7
Rotisserie Kit WPL 261881 Contact Us For Availability
8
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
8
Cooktop, Brushed Chrome WPL 307492 Contact Us For Availability
8
Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability
8
Channel, Rubber (2) WPL 310842 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
10
Panel, Control WPL 313132 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw (4) WPL 98520 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Oven Door WPL 312721 Contact Us For Availability
12
Bracket, Control WPL 313314 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Indicator, Light (Includes Lens No.313602) WPL 313461 Contact Us For Availability
13
Baffle, Heat WPL 309056 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 313520 Contact Us For Availability
14
Screw (Black) 10A x 1/2 (2) WPL 307748 Contact Us For Availability
14
Frame, Door WPL 310427 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Seal, Fiberglass WPL 311904 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
clip, glass (10) WPL 310706 Contact Us For Availability
16
Seal WPL 313316 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Thermostat, Oven WPL 313856 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
23
Panel, Inner WPL 327898 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Spring WPL 313311 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
30
Clip (2) WPL 311506 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
31
Support, Rail WPL 312752 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
32
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
33
Latch Asse WPL 328585 Contact Us For Availability
33
Retainer, Glass (2) WPL 309843 Contact Us For Availability
34
WPL 308185 WPL 308185 Contact Us For Availability
34
WPL 98106 WPL 98106 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314211 WPL 314211 Contact Us For Availability
43
WPL 312320 WPL 312320 Contact Us For Availability
46
WPL 310714 WPL 310714 Contact Us For Availability
46
WPL 310715 WPL 310715 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
