Model Whirlpool RS670PXK0 – Common Parts & Diagrams
02 - OVEN
04 - DOOR

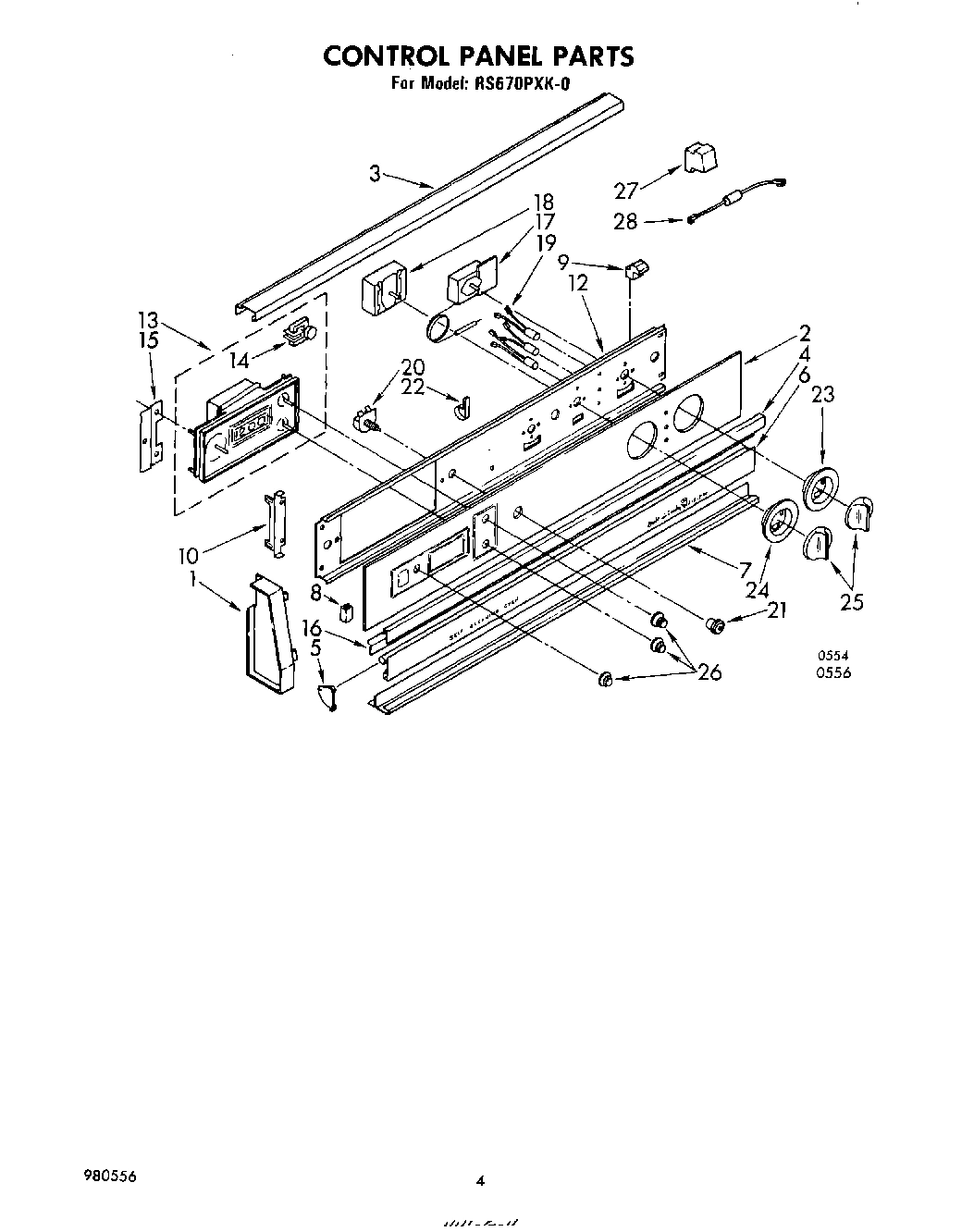

03 - CONTROL PANEL

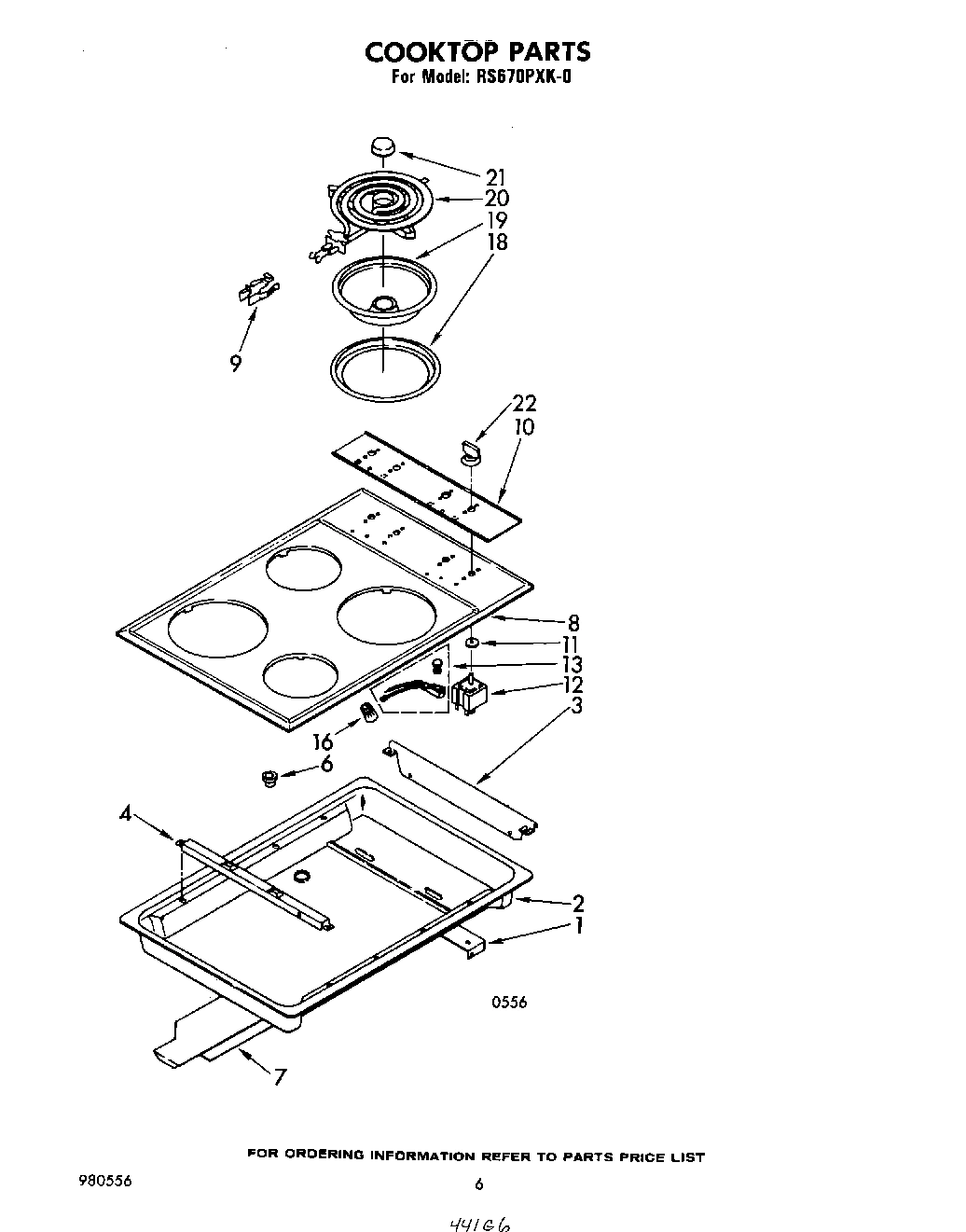

05 - COOKTOP , LITERATURE AND OPTIONAL
Common parts from model Whirlpool RS670PXK0
1
Screw (2) WPL 311056 Contact Us For Availability
1
Screw, 10A 3/8 (3) WPL 254217 Contact Us For Availability
1
Liner, Door WPL 327869 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
1
Screw (2) WPL 308504 Contact Us For Availability
1
End Cap (L.H.) WPL 310826 Contact Us For Availability
1
End Cap (R.H.) WPL 310827 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Control Panel, Glass WPL 310822 Contact Us For Availability
2
Burner Box WPL 311015 Contact Us For Availability
3
Rail, Top WPL 310819 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
4
Window Package WPL 309844 Contact Us For Availability
4
Trim, Center WPL 311189 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
5
Retainer, Insulation WPL 308021 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
6
Door, Vent WPL 311191 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Trim, Bottom WPL 311190 Contact Us For Availability
7
Cover, Top Rear WPL 310627 Contact Us For Availability
8
Screw (4) WPL 342043 Contact Us For Availability
8
Channel, Rubber (2) WPL 310842 Contact Us For Availability
8
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
8
Cooktop, Brushed Chrome WPL 307492 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Screw WPL 98520 Contact Us For Availability
10
Panel, Control WPL 310837 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Oven Door WPL 311573 Contact Us For Availability
12
Bracket, Control WPL 310727 Contact Us For Availability
12
Switch, Infinite (Screw, 8-32 x 5/16 (8)) WPL 246406 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Baffle, Heat WPL 309056 Contact Us For Availability
13
palnut, timer 10-32 WPL 308846 Contact Us For Availability
13
Timer, Digital (Included No.14) WPL 310325 Contact Us For Availability
13
Indicator Light (2) (Includes Lens) WPL 311523 Contact Us For Availability
14
Screw (Black) 10A x 1/2 (2) WPL 307748 Contact Us For Availability
14
Frame, Door WPL 310427 Contact Us For Availability
14
Motor, Timer WPL 308594 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Seal, Fiberglass WPL 311904 Contact Us For Availability
15
Bracket, Timer (2) WPL 310721 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
clip, glass (10) WPL 310706 Contact Us For Availability
16
Seal WPL 255893 Contact Us For Availability
16
Connector, Wire WPL 255673 Contact Us For Availability
17
Channel Arm (2) WPL 328803 Contact Us For Availability
17
Thermostat, Oven WPL 310017 Contact Us For Availability
17
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
20
Nut, Hex 3/8 WPL 255912 Contact Us For Availability
20
Switch, Oven Light WPL 308829 Contact Us For Availability
21
Bezel, Switch WPL 308784 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
Strain, Relief WPL 308609 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Y WPL 242827 Contact Us For Availability
22
WPL 242828 WPL 242828 Contact Us For Availability
22
WPL 242829 WPL 242829 Contact Us For Availability
22
WPL 242830 WPL 242830 Contact Us For Availability
22
WPL 242832 WPL 242832 Contact Us For Availability
22
WPL 261582 WPL 261582 Contact Us For Availability
22
WPL 261810 WPL 261810 Contact Us For Availability
22
WPL 261825 WPL 261825 Contact Us For Availability
22
WPL 261881 WPL 261881 Contact Us For Availability
22
WPL 308500 WPL 308500 Contact Us For Availability
22
WPL 311412 WPL 311412 Contact Us For Availability
22
WPL 311433 WPL 311433 Contact Us For Availability
22
WPL 311951 WPL 311951 Contact Us For Availability
22
WPL 980556 WPL 980556 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
23
Panel, Inner WPL 327898 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (3) WPL 309553 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
27
Trim Support WPL 311450 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
28
Resistor & Terminal Assembly WPL 328891 Contact Us For Availability
28
Terminal WPL 98655 Contact Us For Availability
30
Cover, L WPL 308039 Contact Us For Availability
30
Clip (2) WPL 311506 Contact Us For Availability
31
WPL 308038 WPL 308038 Contact Us For Availability
32
WPL 311982 WPL 311982 Contact Us For Availability
32
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
33
WPL 328585 WPL 328585 Contact Us For Availability
33
Retainer, Glass (2) WPL 309843 Contact Us For Availability
34
WPL 308185 WPL 308185 Contact Us For Availability
34
WPL 98106 WPL 98106 Contact Us For Availability
34
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
35
WPL 309245 WPL 309245 Contact Us For Availability
36
WPL 310100 WPL 310100 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 310643 WPL 310643 Contact Us For Availability
41
WPL 311585 WPL 311585 Contact Us For Availability
46
WPL 310714 WPL 310714 Contact Us For Availability
46
WPL 310715 WPL 310715 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 310459 WPL 310459 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
59
WPL 310973 WPL 310973 Contact Us For Availability
60
WPL 308674 WPL 308674 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
× ![]()
