Model Whirlpool RS6700XVN0 – Common Parts & Diagrams
03 - CONTROL PANEL
04 - DOOR

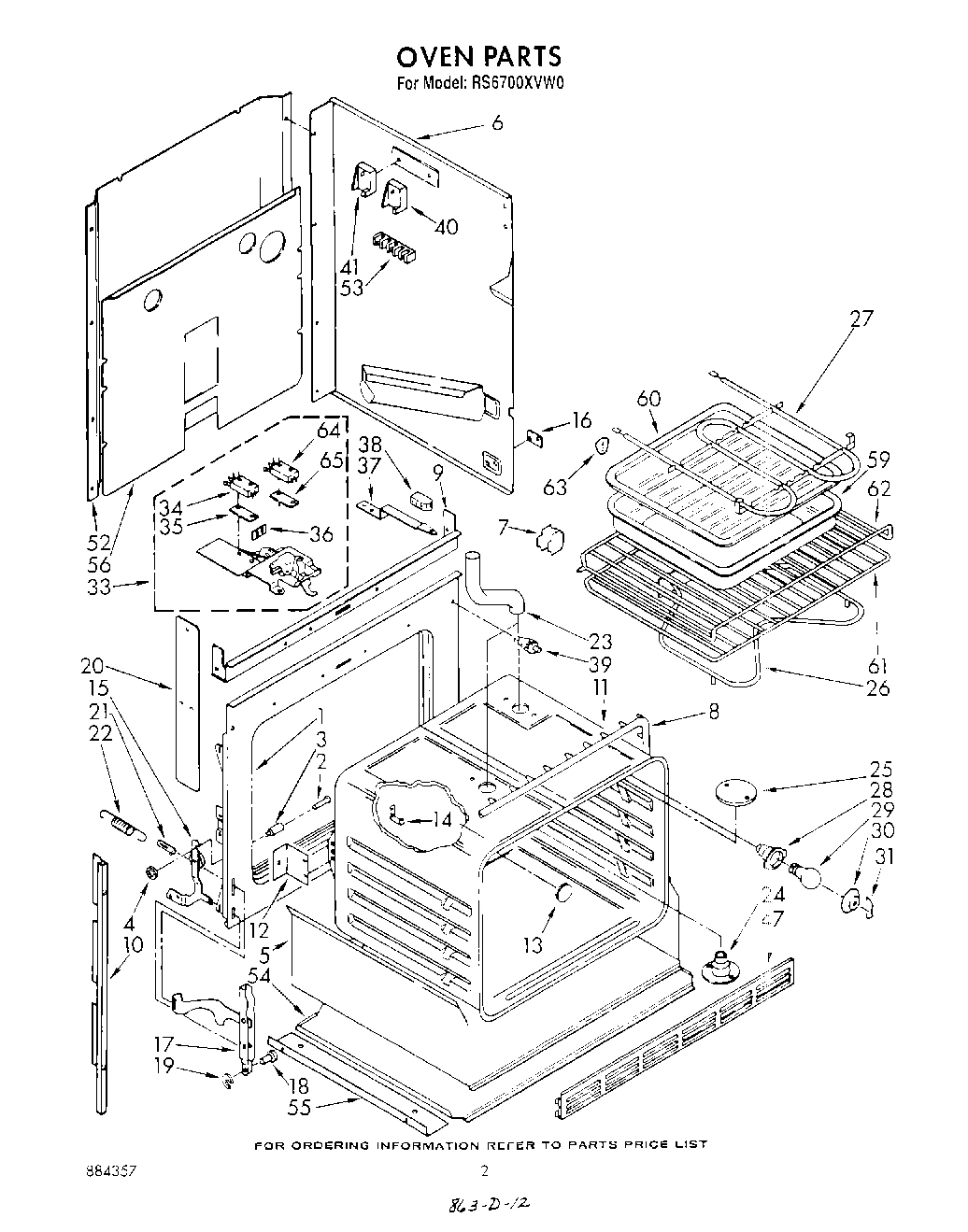

02 - OVEN

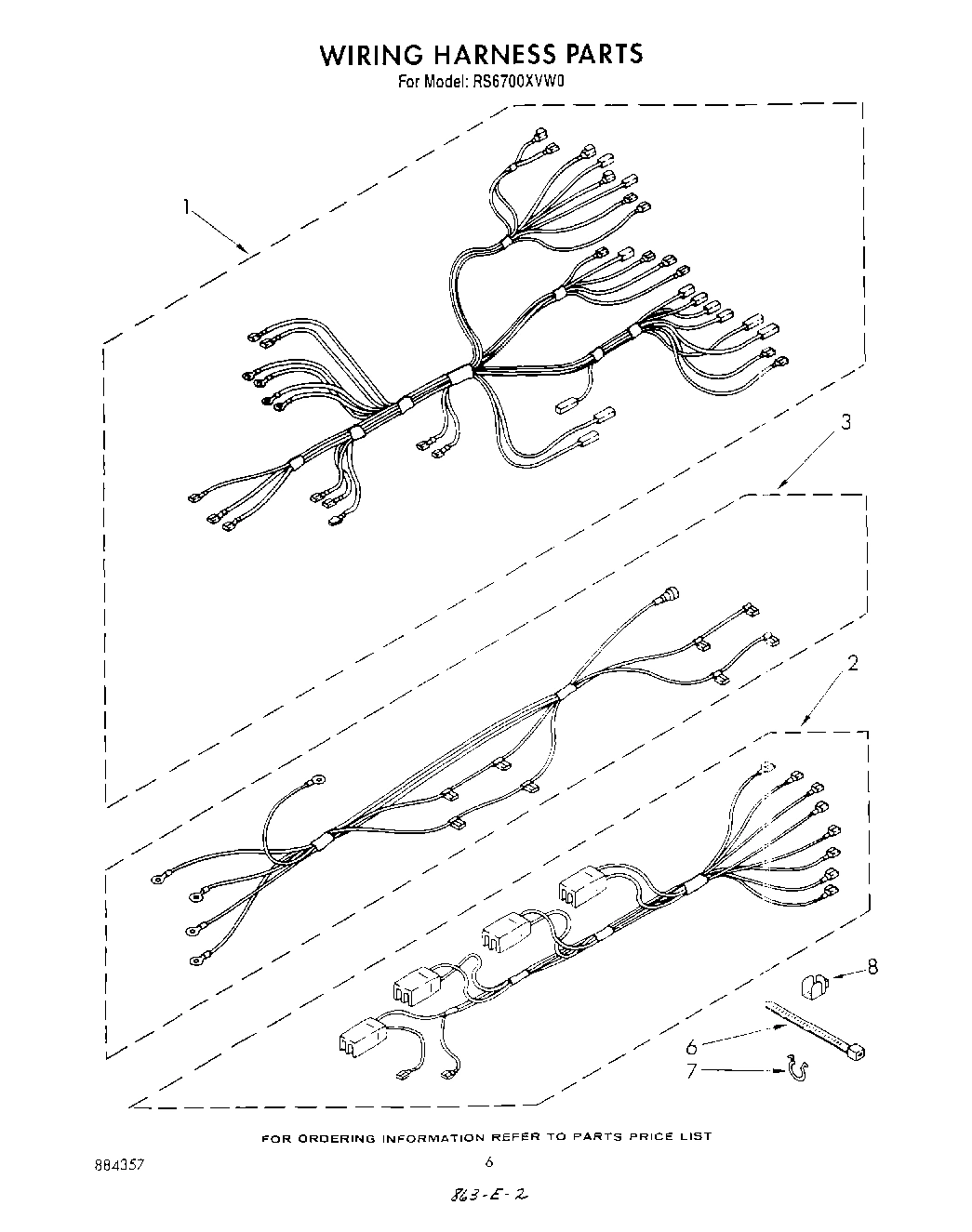

05 - WIRING HARNESS , LITERATURE AND OPTIONAL
06 - COOKTOP
Common parts from model Whirlpool RS6700XVN0
Cookbook WPL LIT313358 Contact Us For Availability
Use & Care Guide WPL LIT3148325 Contact Us For Availability
Instructions, Installation WPL LIT3148556 Contact Us For Availability
Tech Sheet WPL LIT3148600 Contact Us For Availability
Repair Parts List WPL LIT884357 Contact Us For Availability
1
Screw (3) WPL 3149333 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
1
Frame, Front WPL 3170856 Contact Us For Availability
1
Harness, Wire (Main) WPL 3148594 Contact Us For Availability
2
Clip (2) WPL 307731 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Screw WPL 166681 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147828 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Medallion (4) WPL 309195 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Bracket, Sensor WPL 3147830 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Cooktop WPL 3148747 Contact Us For Availability
5
Almond WPL 3148748 Contact Us For Availability
6
Thermostat WPL 3147833 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
8
Retainer, Glass (2) WPL 307792 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
Gasket, Door WPL 3148284 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
Rotisserie Kit WPL 261881 Contact Us For Availability
8
Terminal, Adapter WPL 3147832 Contact Us For Availability
8
Box, Burner WPL 311019 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Support, Burner WPL 310718 Contact Us For Availability
10
White WPL 3148201 Contact Us For Availability
10
Almond WPL 3148205 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Seal, Shaft (4) WPL 309839 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Screw (2) WPL 246127 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Panel, Control WPL 3148704 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Support, Cooktop WPL 310717 Contact Us For Availability
14
Trim, Panel WPL 3148188 Contact Us For Availability
14
Bushing (4) WPL 258109 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Shield, Switch WPL 310716 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Screw, WPL 312318 Contact Us For Availability
16
Cover, Rear WPL 3147565 Contact Us For Availability
17
Thermostat, Oven WPL 3148934 Contact Us For Availability
17
Screw (2) WPL 487384 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Light, Indicator (4) Includeds: WPL 313461 Contact Us For Availability
17
Lens WPL 313662 Contact Us For Availability
18
Frame, Window WPL 3149277 Contact Us For Availability
18
Selector Switch WPL 310006 Contact Us For Availability
18
Knob, Control (4) WPL 3148161 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
19
Insulation WPL 3147951 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
20
Fastner, Pushnut WPL 3148181 Contact Us For Availability
20
Baffle, Insulation WPL 311256 Contact Us For Availability
20
Screw (2) WPL 3148442 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
21
Retainer, Glass WPL 3148187 Contact Us For Availability
21
Cover, Side (L.H.) WPL 3149027 Contact Us For Availability
21
Cover, Side (R.H.) WPL 3149028 Contact Us For Availability
22
Glass, Outer WPL 307732 Contact Us For Availability
22
Screw (2) WPL 309133 Contact Us For Availability
22
Screw (8) WPL 313045 Contact Us For Availability
22
Lens, Indicator WPL 313602 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent WPL 310835 Contact Us For Availability
24
screw (2) WPL 254225 Contact Us For Availability
24
Screw WPL 98520 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Clip, Trim WPL 313381 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Support, Top Rail WPL 312752 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Spring (3) WPL 313311 Contact Us For Availability
32
Latch, Lock Oven Light WPL 3149270 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Seal, Backguard WPL 313316 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw (2) WPL 311056 Contact Us For Availability
36
Screw WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw WPL 246135 Contact Us For Availability
38
Knob, Latch Handle WPL 311253 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
40
Switch, Percentage Broil WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
Switch, Perce WPL 314210 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 247326 WPL 247326 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
52
WPL 609989 WPL 609989 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 310459 WPL 310459 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
64
WPL 3148669 WPL 3148669 Contact Us For Availability
65
WPL 310433 WPL 310433 Contact Us For Availability
65
WPL 310434 WPL 310434 Contact Us For Availability
65
WPL 3147864 WPL 3147864 Contact Us For Availability
65
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
