Model Whirlpool RS630PXV2 – Common Parts & Diagrams

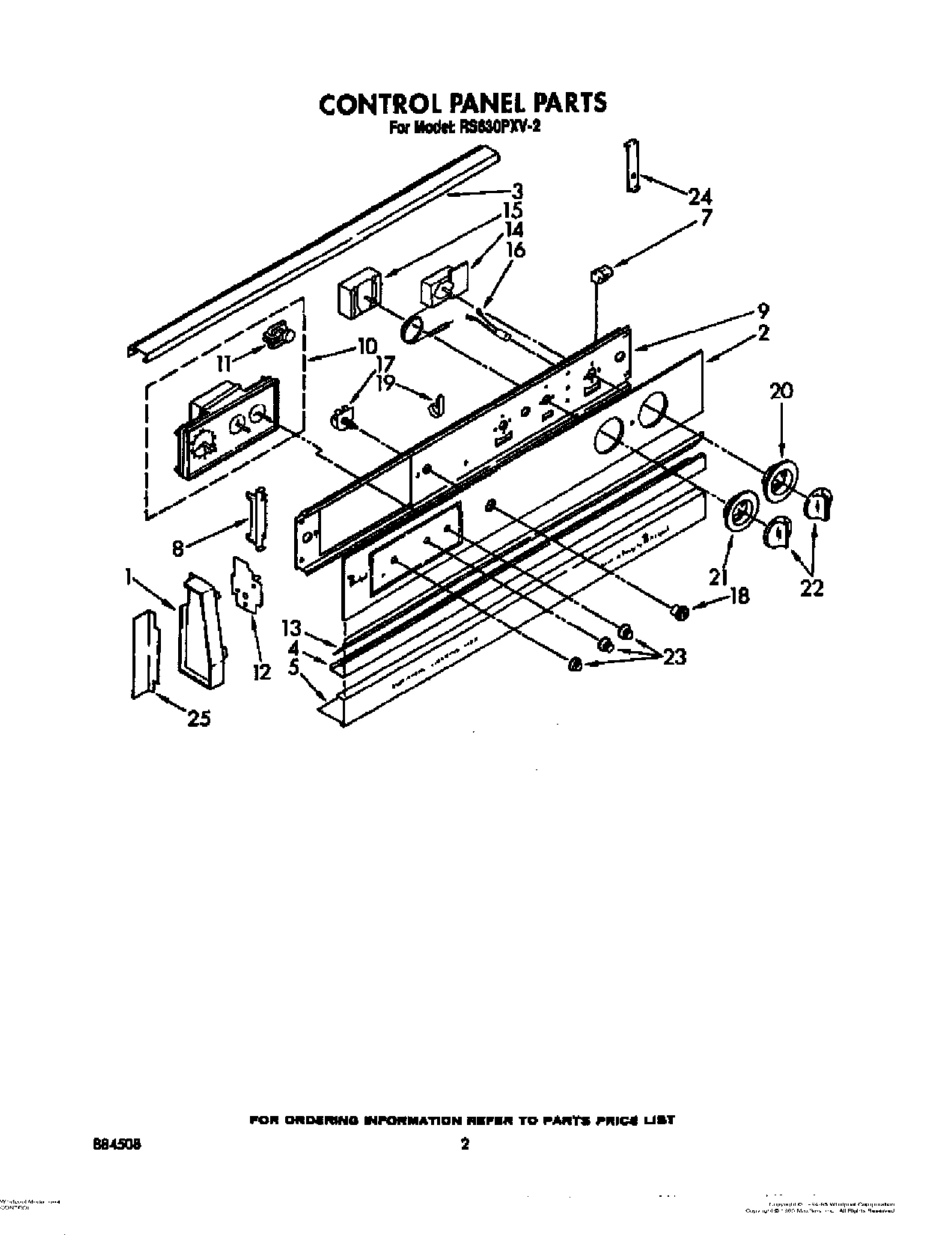

02 - CONTROL

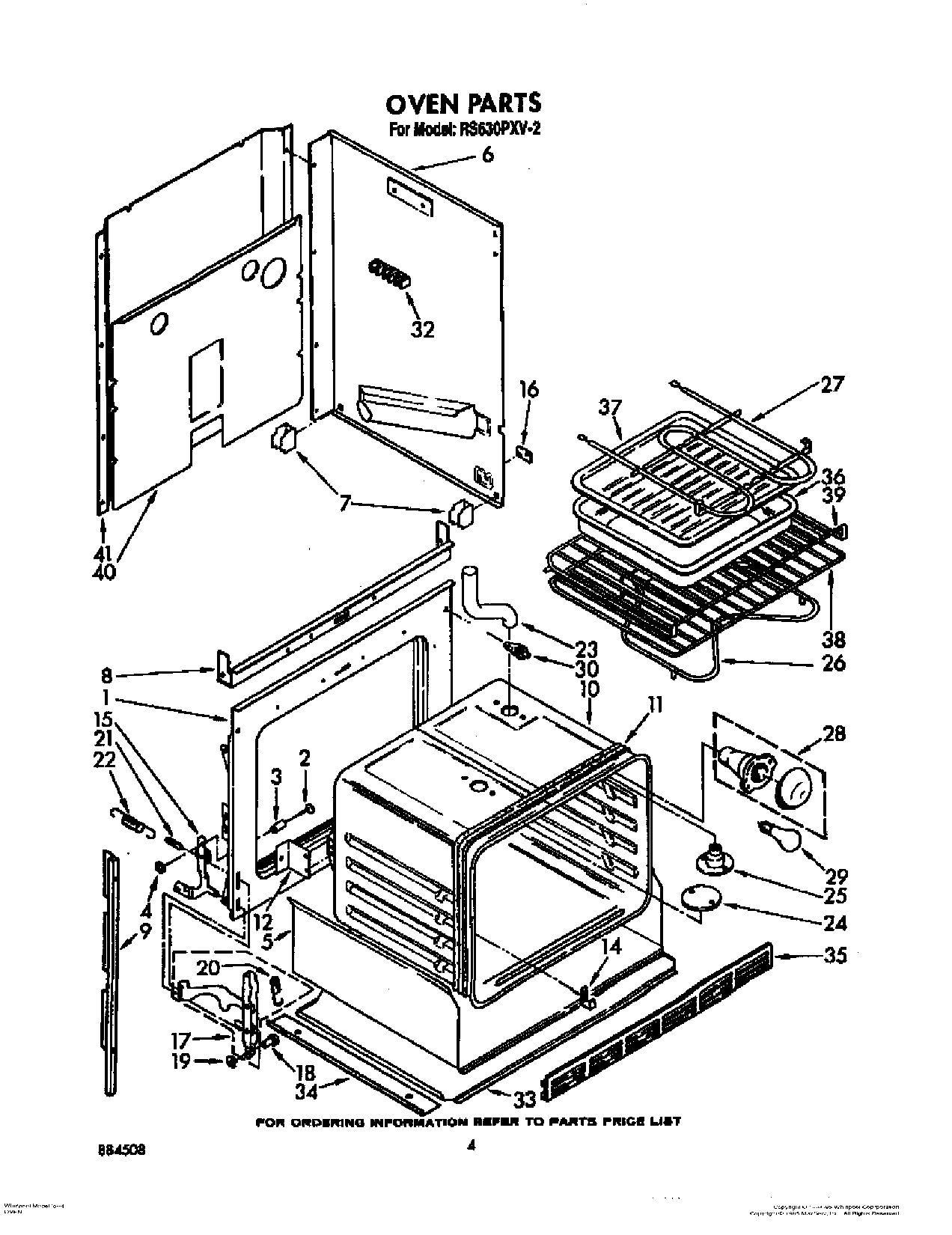

04 - OVEN

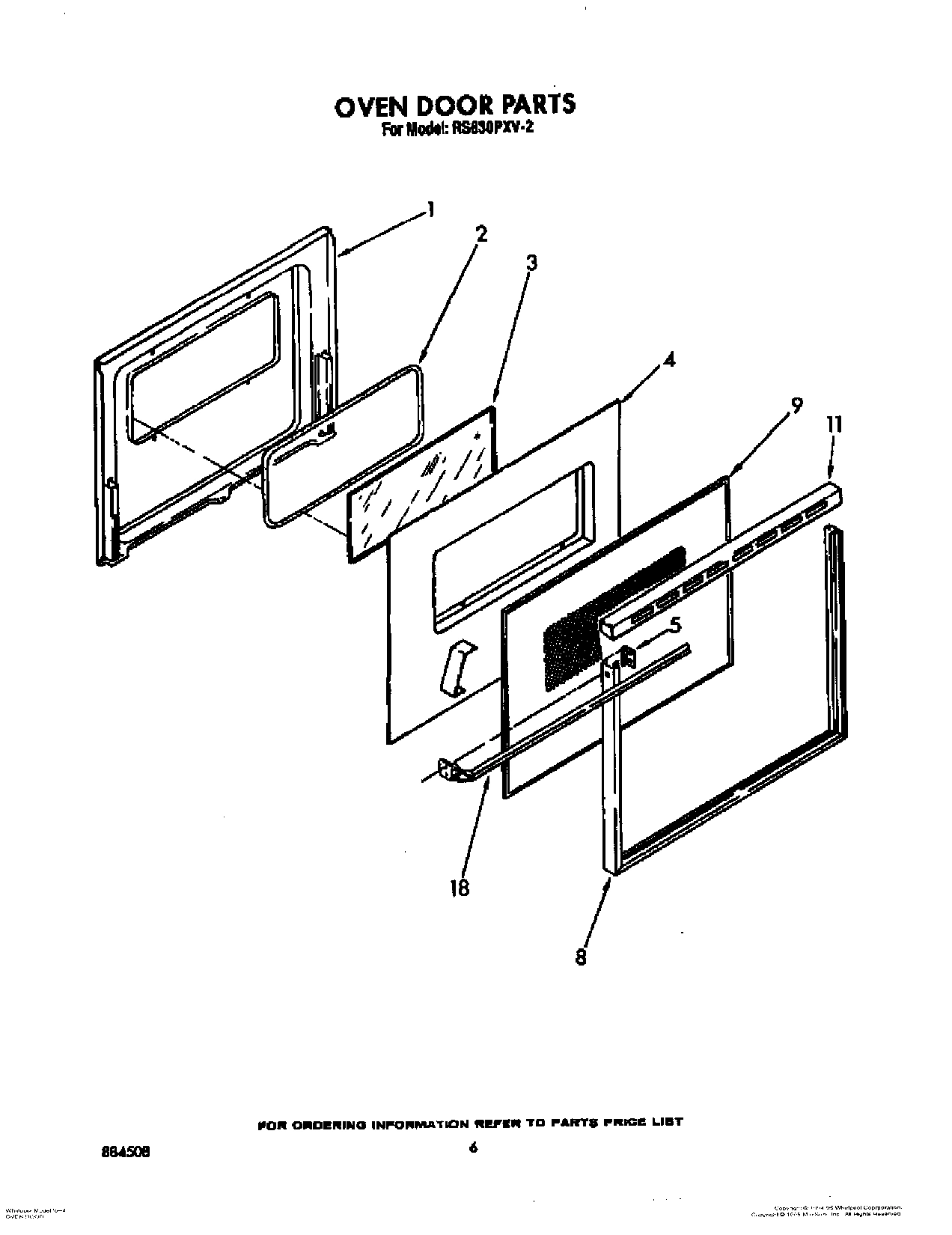

05 - OVEN DOOR, OPTIONAL

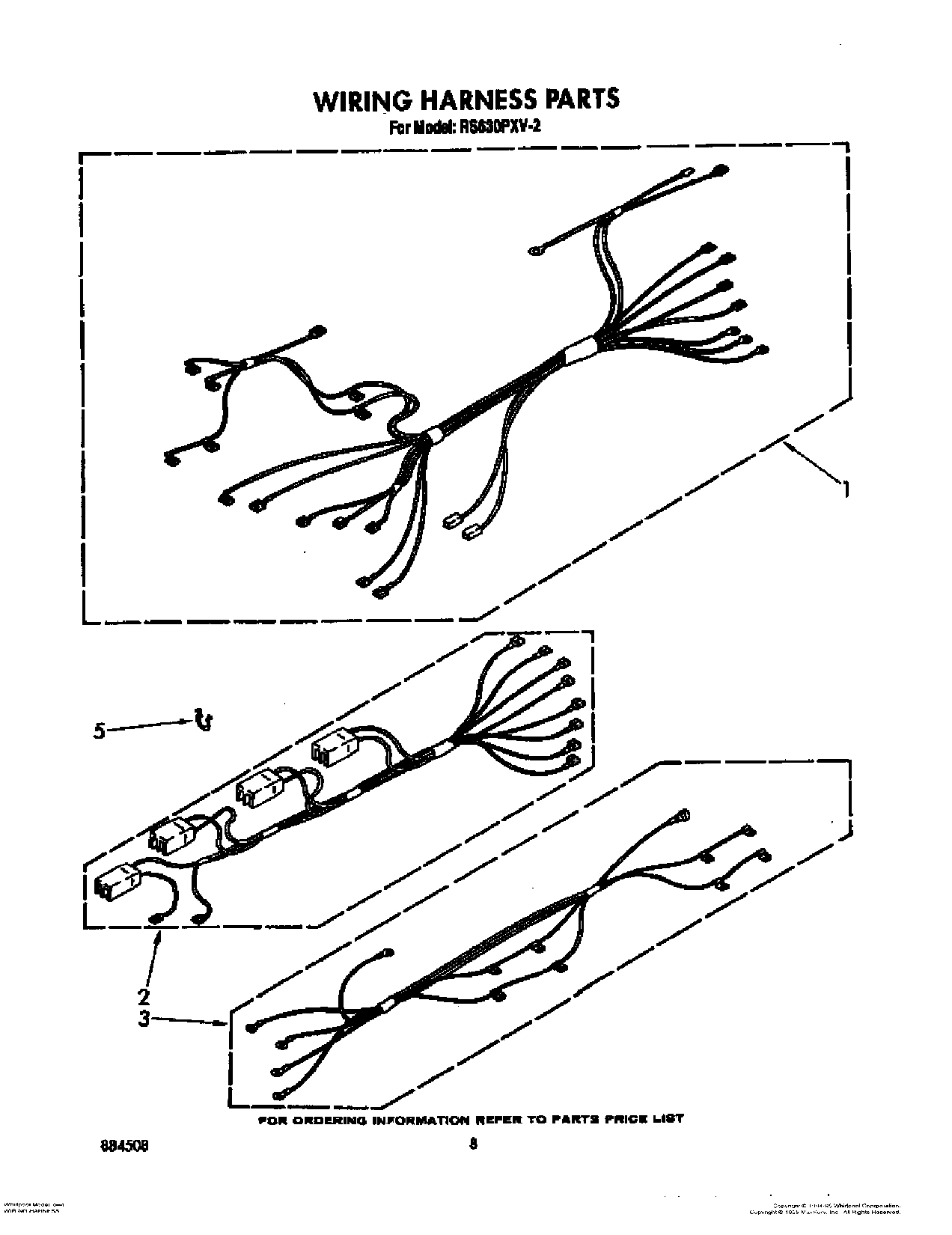

06 - WIRING HARNESS

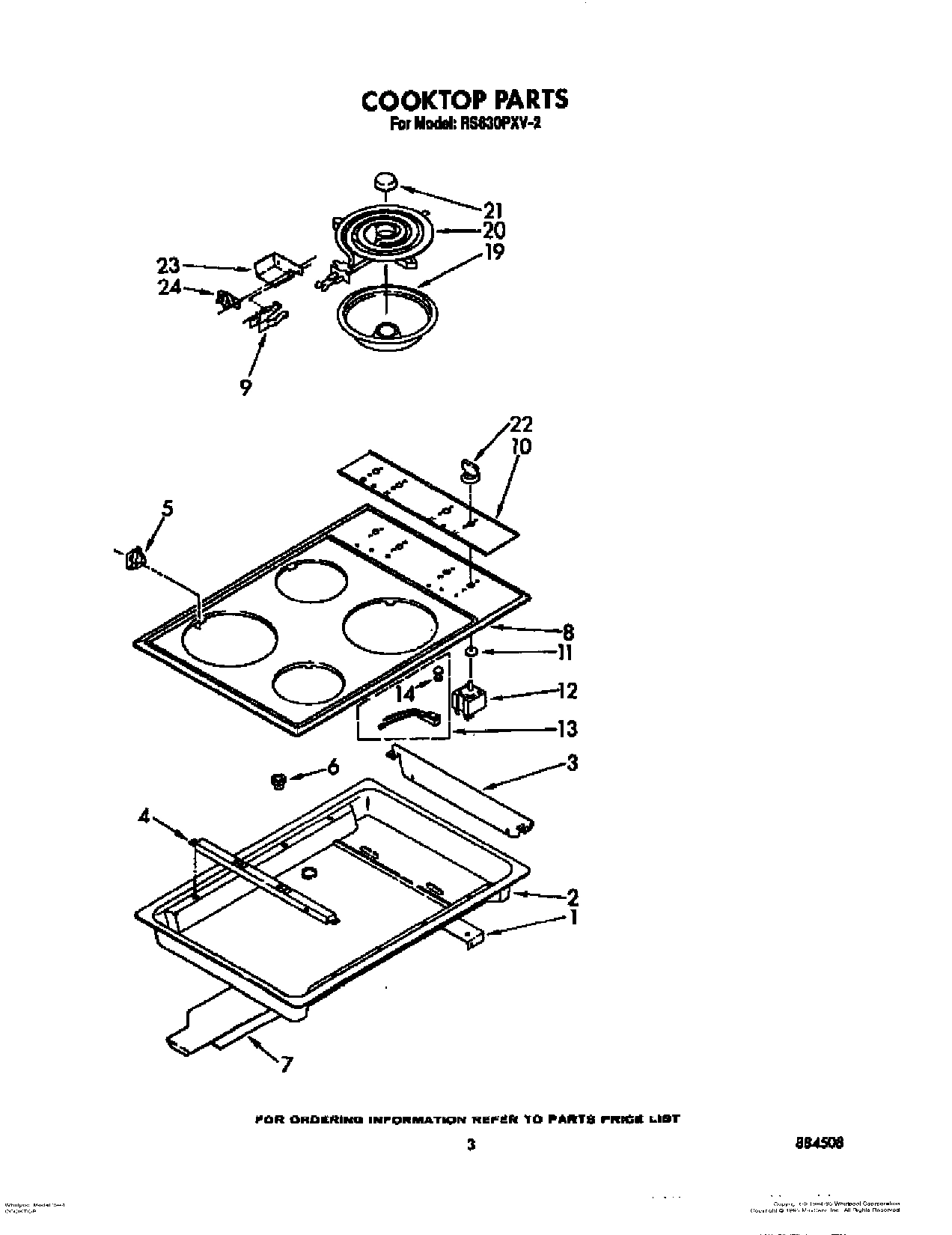

03 - COOKTOP
Common parts from model Whirlpool RS630PXV2
WPL 3150532 WPL 3150532 Contact Us For Availability
WPL ARI124547A WPL ARI124547A Contact Us For Availability
WPL ARI124548A WPL ARI124548A Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147390 WPL LIT3147390 Contact Us For Availability
WPL LIT3148323 WPL LIT3148323 Contact Us For Availability
WPL LIT884508 WPL LIT884508 Contact Us For Availability
1
Frame, Front WPL 3172204 Contact Us For Availability
1
Screw, 8-18 x 1/2 (3) WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
Harness, Wire (Oven) WPL 310909 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Baffle, Insulation WPL 3148287 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
8
screw (3) WPL 307748 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Cooktop, Chrome WPL 3148039 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
9
Glass, Outer Pano WPL 3148185 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven (30`` Continuous Clean) WPL 3185064 Contact Us For Availability
10
Panel, Control WPL 3148704 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
12
Switch, Infinite (Use W/8`` Surface Unit (2)) WPL 3148947 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Indicator, Light (Includes No. 14) WPL 313461 Contact Us For Availability
14
Lens, Indicator WPL 313602 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Bezel Switch WPL 313030 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability
18
rotisserie kit WPL 261880 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Coffee (Uncut) WPL 261887 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
New Avocado (Uncut) WPL 261889 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
18
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3150373 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Spring WPL 313311 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
24
Support, WPL 312752 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Screw (4) WPL 3185059 Contact Us For Availability
25
Trim, End Cap Top Rail WPL 3149900 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
33
Cover, Bottom WPL 310458 Contact Us For Availability
34
Angle, Support (2) WPL 311592 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
39
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
40
Panel, Back WPL 3149542 Contact Us For Availability
41
Cove WPL 311012 Contact Us For Availability
NI
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
× ![]()
