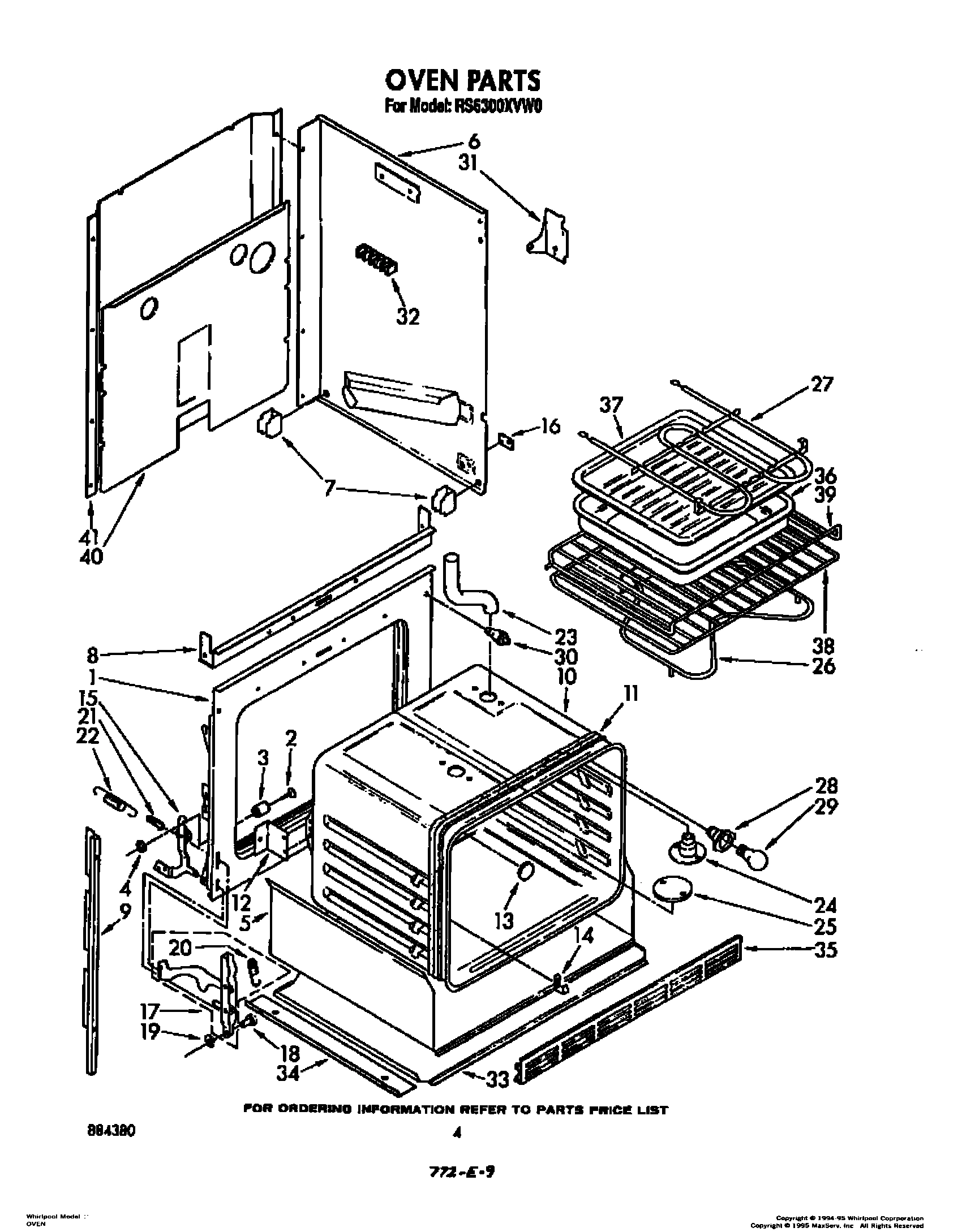

Model Whirlpool RS6300XVW0 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WPL 246127 WPL 246127 Contact Us For Availability

WPL 308043 WPL 308043 Contact Us For Availability

1

Harness, Wire (Oven) WPL 310909 Contact Us For Availability

1

Frame, Front WPL 328747 Contact Us For Availability

1

Support, Burner Box (2) WPL 310718 Contact Us For Availability

1

End Cap (Screw (2)) WPL 308504 Contact Us For Availability

1

End Cap (R.H.) WPL 3148444 Contact Us For Availability

1

End Cap (L.H.) WPL 3148445 Contact Us For Availability

2

Seal, Pano Glass WPL 3148183 Contact Us For Availability

2

Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Burner Box WPL 311019 Contact Us For Availability

2

Panel, Control WPL 3148633 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Shield, Switch WPL 310716 Contact Us For Availability

3

Rail, Top WPL 3148616 Contact Us For Availability

4

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Support, Cooktop WPL 310717 Contact Us For Availability

4

Trim, Center WPL 3148626 Contact Us For Availability

5

16515 Whirlpool Clip Backorder WPL 16515 $11.62

5

Insulation Tray WPL 310770 Contact Us For Availability

5

Screw (4) WPL 342043 Contact Us For Availability

5

Rail, Bottom WPL 3148629 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Bushing WPL 258109 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Screw, 10-32 x 1/2 WPL 312318 Contact Us For Availability

7

Cover, Top Rear WPL 3147565 Contact Us For Availability

7

Retainer, Glass (4) WPL 310823 Contact Us For Availability

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

8

Baffle, Top Insulation WPL 310693 Contact Us For Availability

8

Cooktop (White) WPL 3148747 Contact Us For Availability

8

Cooktop (Almond) WPL 3148748 Contact Us For Availability

8

Bracket, Control Panel (2) WPL 3148634 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

9

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

9

Side Trim R.S. WPL 310685 Contact Us For Availability

9

Side Trim L.S. WPL 310689 Contact Us For Availability

9

Bracket, Control WPL 313314 Contact Us For Availability

9

Clip WPL 313381 Contact Us For Availability

Screw (3) WPL 311056 Contact Us For Availability

Oven, 30`` Conventional WPL 328758 Contact Us For Availability

Panel, Control WPL 3148705 Contact Us For Availability

Screw, 8A x 5/16 (2) WPL 98520 Contact Us For Availability

Timer WPL 3148053 Contact Us For Availability

11

Heat Seal WPL 309107 Contact Us For Availability

11

Seal, Switch (4) WPL 309839 Contact Us For Availability

11

Motor, Timer WPL 309822 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

Handle, Door WPL 311563 Contact Us For Availability

Switch, Infinite (Use W/8`` Surface Unit (2)) WPL 3148947 Contact Us For Availability

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

13

Indicator Light (2) (Includes Light Lens No.3 WPL 313462 Contact Us For Availability

13

Seal, Backguard WPL 313316 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

Thermostat, Oven WPL 660564 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Switch, Selector (4 Position) WPL 310866 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Glass Retainer 30`` WPL 307792 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Light, Indicator (250 V) WPL 311802 Contact Us For Availability

17

Channel Arm (2) WPL 329714 Contact Us For Availability

17

Switch, Oven Light WPL 312581 Contact Us For Availability

17

Lockwasher WPL 312796 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit WPL 242985 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability

console WPL 261825 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 307732 WPL 307732 Contact Us For Availability

WPL 313045 WPL 313045 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Bezel Switch WPL 313030 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

Retainer Ring (2) WPL 307594 Contact Us For Availability

Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability

20

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

20

Escutcheon, Thermostat WPL 311065 Contact Us For Availability

20

Spring, Door Stop (2) WPL 311092 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WP311069 Whirlpool Oven Dial Backorder WPL WP311069 $26.48

Medallion, Surface Unit WPL 309195 Contact Us For Availability

Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability

22

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.05

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Knob, Control (4) WPL 3148161 Contact Us For Availability

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

Extension, Vent WPL 310835 Contact Us For Availability

Bracket, Sensor WPL 3147830 Contact Us For Availability

Spring WPL 313311 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Thermostat WPL 3147833 Contact Us For Availability

Eliminator, Smoke WPL 310840 Contact Us For Availability

Top, Support (2) WPL 312752 Contact Us For Availability

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

Switch, Door WPL 310345 Contact Us For Availability

31

Cover, Side (Left Side) WPL 310714 Contact Us For Availability

31

Cover, Side (Right Side) WPL 310715 Contact Us For Availability

32

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

32

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

33

WPL 310458 WPL 310458 Contact Us For Availability

34

WPL 311592 WPL 311592 Contact Us For Availability

35

WPL 309029 WPL 309029 Contact Us For Availability

35

WPL 310668 WPL 310668 Contact Us For Availability

37

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

38

WPL 308173 WPL 308173 Contact Us For Availability

39

WPL 308172 WPL 308172 Contact Us For Availability

40

WPL 310459 WPL 310459 Contact Us For Availability

41

WPL 311012 WPL 311012 Contact Us For Availability
