Model Whirlpool RS6300XKW0 – Common Parts & Diagrams
04 - DOOR , LITERATURE AND OPTIONAL
03 - OVEN

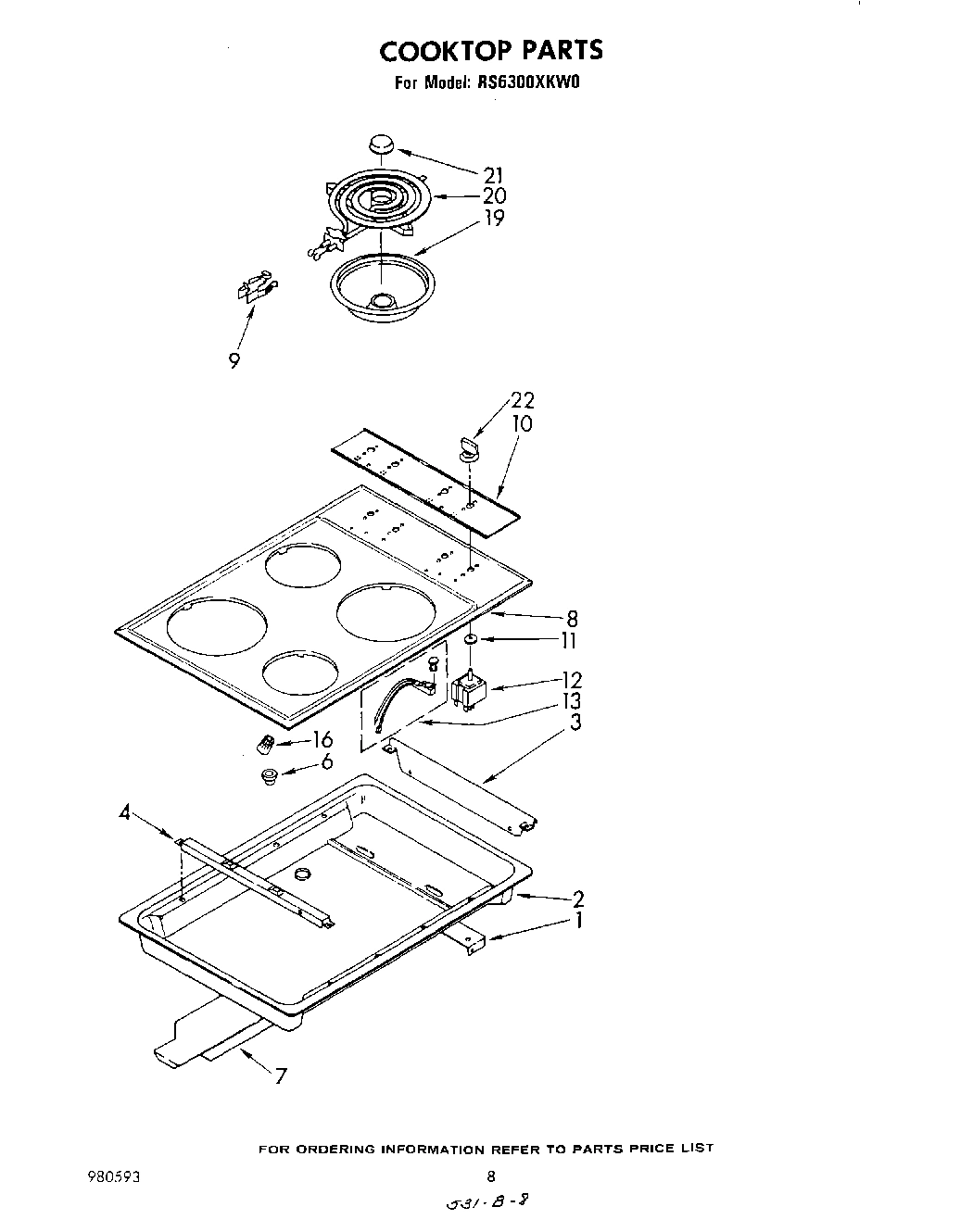

05 - COOKTOP

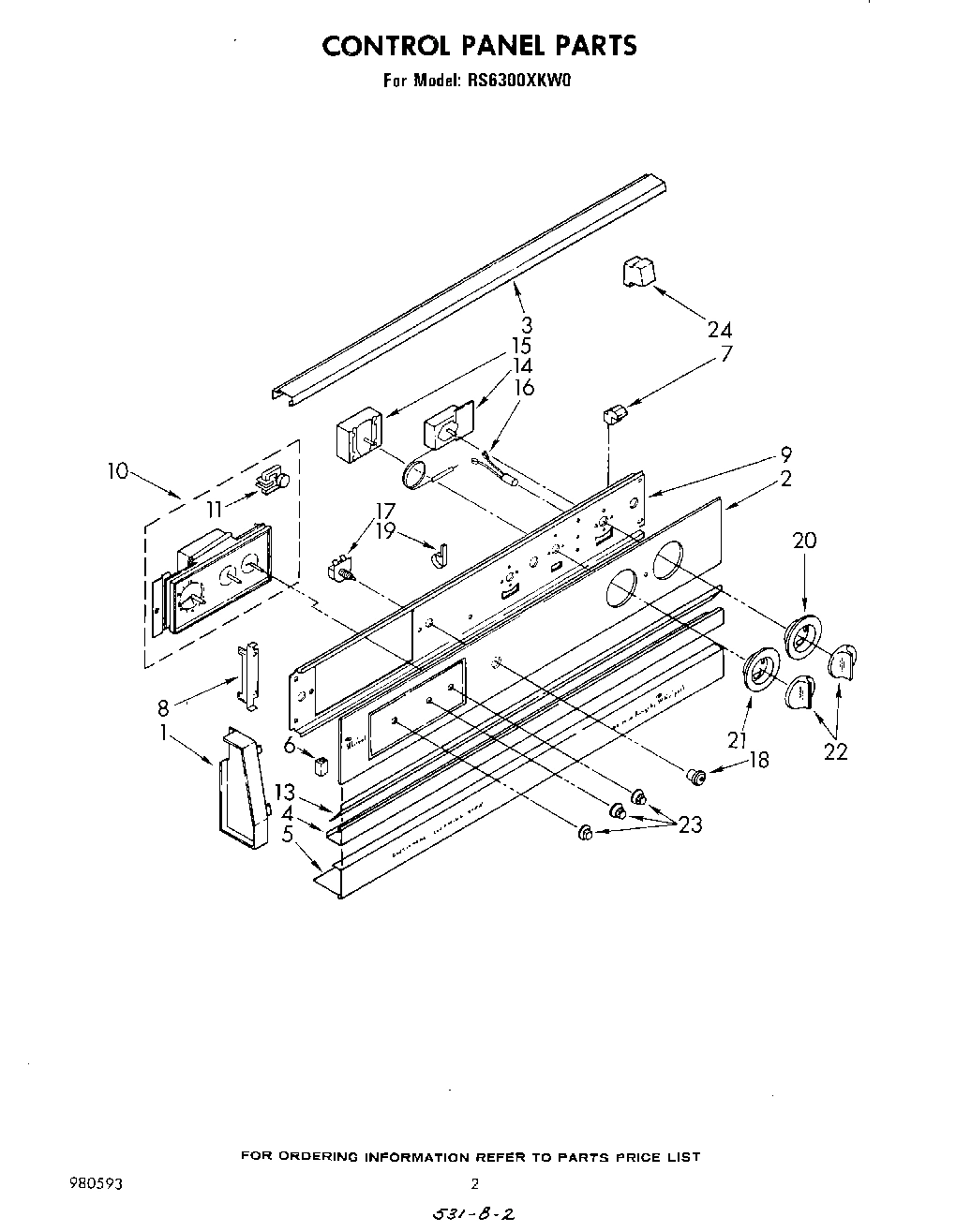

02 - CONTROL PANEL
Common parts from model Whirlpool RS6300XKW0
1
Frame, Front WPL 328747 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (L.H.) WPL 310826 Contact Us For Availability
1
End Cap (R.H.) WPL 310827 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
2
Control Panel, Glass WPL 312525 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Rail, Top WPL 310819 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
Trim, Center WPL 311195 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Screw (4) WPL 342043 Contact Us For Availability
5
Rail, Bottom WPL 312531 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Channel, Rubber (2) WPL 310842 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Cover, Top Rear WPL 310627 Contact Us For Availability
7
Retainer, Glass (4) WPL 310823 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
8
Cooktop (White) WPL 307493 Contact Us For Availability
8
Cooktop (New Avocado) WPL 308943 Contact Us For Availability
8
Cooktop (Harvest Gold) WPL 308944 Contact Us For Availability
8
Cooktop (Coffee) WPL 308945 Contact Us For Availability
8
Cooktop (Almond) WPL 308946 Contact Us For Availability
8
Cooktop (Toast) WPL 308947 Contact Us For Availability
8
Cooktop (Platinum) WPL 308948 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
8
Screw (4) WPL 98520 Contact Us For Availability
9
SIDE TRIM R.S. (Side Trim L.S.) WPL 310685 Contact Us For Availability
9
Bracket, Control WPL 310727 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
10
Panel, Control WPL 312520 Contact Us For Availability
10
Timer, Automatic WPL 312803 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Panel, Oven Door (Screw, 8A x 5/8 (2)) WPL 309133 Contact Us For Availability
11
Panel, Oven Door (Toast) WPL 313175 Contact Us For Availability
11
Panel, Oven Door (Platinum) WPL 313176 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
12
Handle, Oven Door WPL 311564 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Switch, Infinite (Screw, 8-32 x 5/16 (8)) WPL 246406 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Indicator Light (2) (Includes Lens) WPL 312859 Contact Us For Availability
13
Seal, Backguard WPL 255893 Contact Us For Availability
14
Window, Frame 30`` Small WPL 309173 Contact Us For Availability
14
Thermostat, Oven (Alternate) WPL 310861 Contact Us For Availability
14
Thermostat, Oven (Alternate) WPL 311495 Contact Us For Availability
14
Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability
15
Glass Retainer WPL 307792 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 310866 Contact Us For Availability
16
Clip, Frame WPL 307731 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Connector, Wire WPL 255673 Contact Us For Availability
16
Light, Indicator (250 V) WPL 308753 Contact Us For Availability
17
Glass, Outer WPL 307732 Contact Us For Availability
17
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Nut, 3/8 x 27 Hex WPL 255912 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
18
Bezel Switch WPL 313030 Contact Us For Availability
19
Pin, Wedge WPL 312223 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
19
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
19
Strain, Relief WPL 308609 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. WPL 242832 Contact Us For Availability
20
WPL 242985 WPL 242985 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261810 WPL 261810 Contact Us For Availability
20
WPL 308500 WPL 308500 Contact Us For Availability
20
WPL 311410 WPL 311410 Contact Us For Availability
20
WPL 311433 WPL 311433 Contact Us For Availability
20
WPL 311896 WPL 311896 Contact Us For Availability
20
WPL 980593 WPL 980593 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
21
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Knob, Timer (3) WPL 312808 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Top, Support (2) WPL 312752 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Unit, Broil (Screw, 10-32 x 5/8) WPL 246127 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Co WPL 310714 Contact Us For Availability
31
WPL 310715 WPL 310715 Contact Us For Availability
32
WPL 308043 WPL 308043 Contact Us For Availability
33
WPL 310458 WPL 310458 Contact Us For Availability
34
WPL 311592 WPL 311592 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
WPL 310459 WPL 310459 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
× ![]()
