Model Whirlpool RS610PXV1 – Common Parts & Diagrams
04 - OVEN
05 - OVEN DOOR , LIT/OPTIONAL

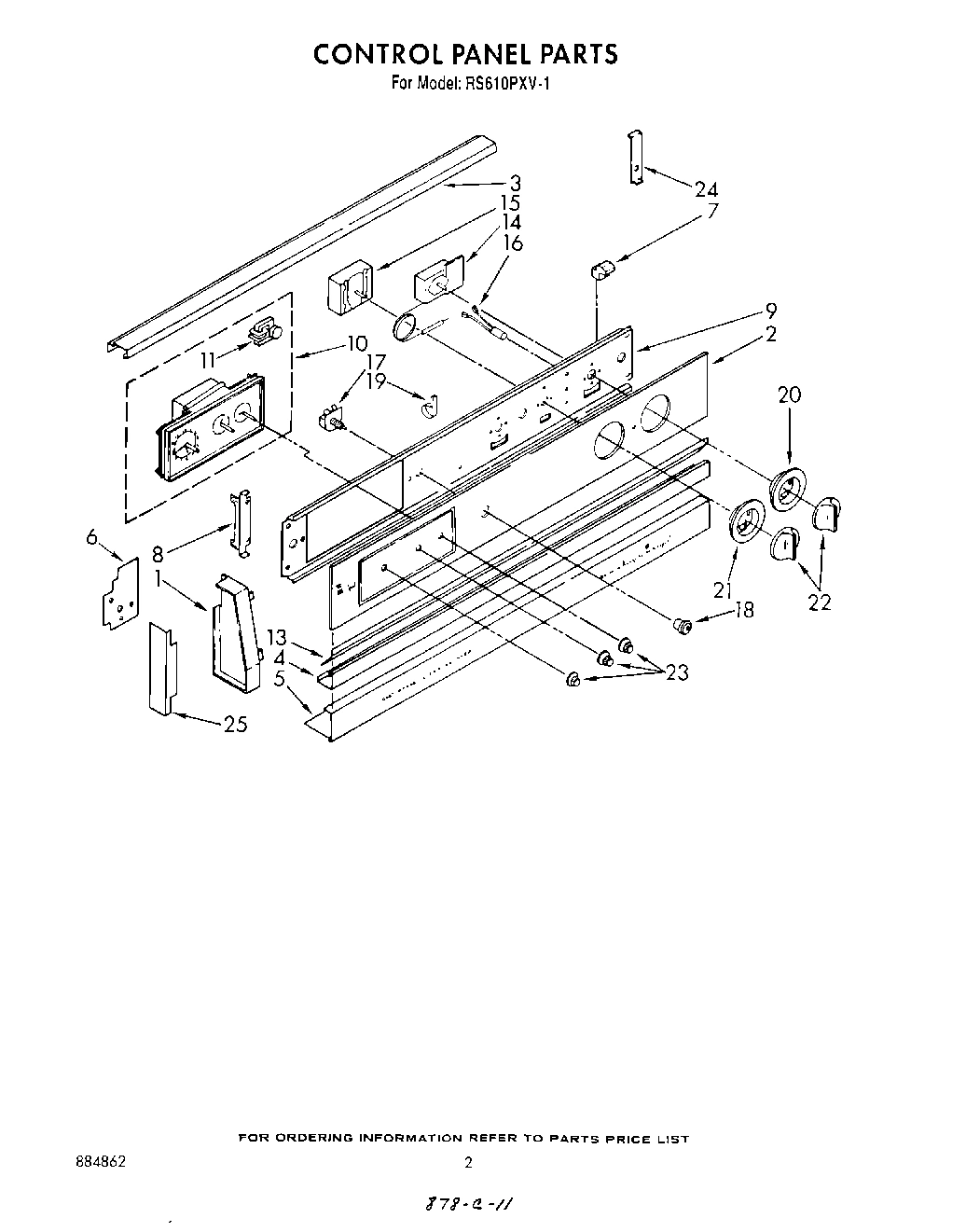

02 - CONTROL PANEL
06 - WIRING HARNESS

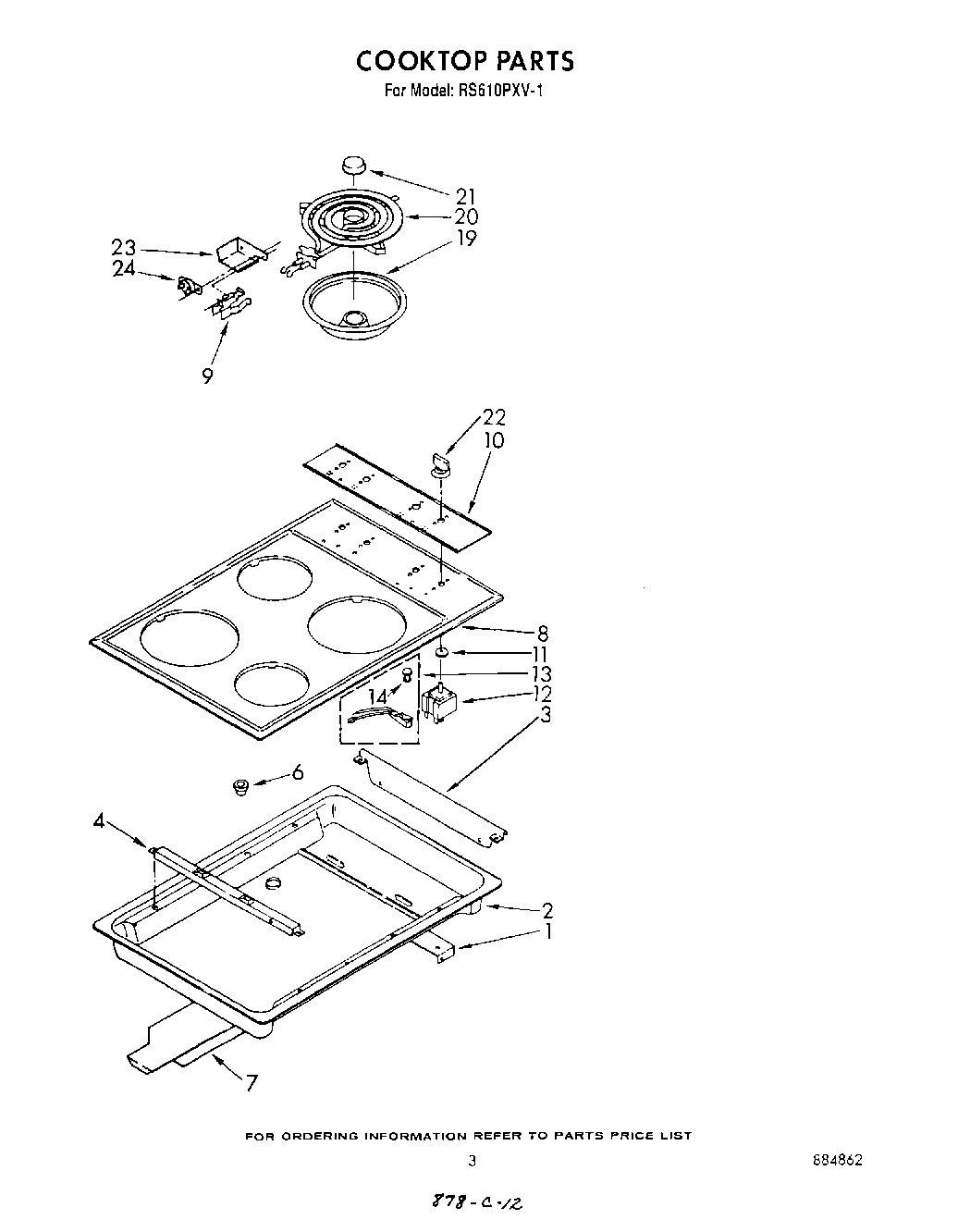

03 - COOKTOP
Common parts from model Whirlpool RS610PXV1
1
screw (6) WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Harness, Wire (Oven) WPL 310909 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Control Panel, Glass WPL 3148633 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
4
Baffle, Insulation WPL 3148287 Contact Us For Availability
4
Trim, Center WPL 3148626 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Rail, Bottom WPL 3148629 Contact Us For Availability
6
Cover, Side (Right Hand) WPL 3149027 Contact Us For Availability
6
Cover, Side (Left Hand) WPL 3149028 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 3148634 Contact Us For Availability
8
Cooktop, Chrome WPL 3148039 Contact Us For Availability
9
Glass, Outer Pano WPL 3148185 Contact Us For Availability
9
Bracket, Control WPL 313314 Contact Us For Availability
9
Clip (2) WPL 313381 Contact Us For Availability
10
Timer WPL 3148053 Contact Us For Availability
10
Panel, Control WPL 3148705 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148947 Contact Us For Availability
13
Seal, Backguard WPL 313316 Contact Us For Availability
13
Indicator Light (2) (Includes Lens No. 313602 WPL 313462 Contact Us For Availability
14
Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability
14
Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability
14
Thermostat, Oven WPL 660564 Contact Us For Availability
14
Lens, Light WPL 313602 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 310866 Contact Us For Availability
16
Light, Indicator (250 V) WPL 311802 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
17
Lockwasher WPL 312796 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Screw (5) WPL 3149333 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability
18
rotisserie kit WPL 261880 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Coffee (Uncut) WPL 261887 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
New Avocado (Uncut) WPL 261889 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
18
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
Bezel Switch WPL 313030 Contact Us For Availability
19
Screw WPL 98520 Contact Us For Availability
19
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
21
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Control (4) WPL 3148161 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
23
Spring WPL 313311 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Support, Top Rail WPL 312752 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Trim, End Cap WPL 3149900 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
33
Cover, Bottom & Top WPL 310458 Contact Us For Availability
34
Angle, Support (2) WPL 311592 Contact Us For Availability
35
Screw, Bla WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
WPL 3149542 WPL 3149542 Contact Us For Availability
41
WPL 309961 WPL 309961 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
41
WPL 311458 WPL 311458 Contact Us For Availability
NI
WPL 308043 WPL 308043 Contact Us For Availability
NI
WPL 312318 WPL 312318 Contact Us For Availability
NI
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
× ![]()
