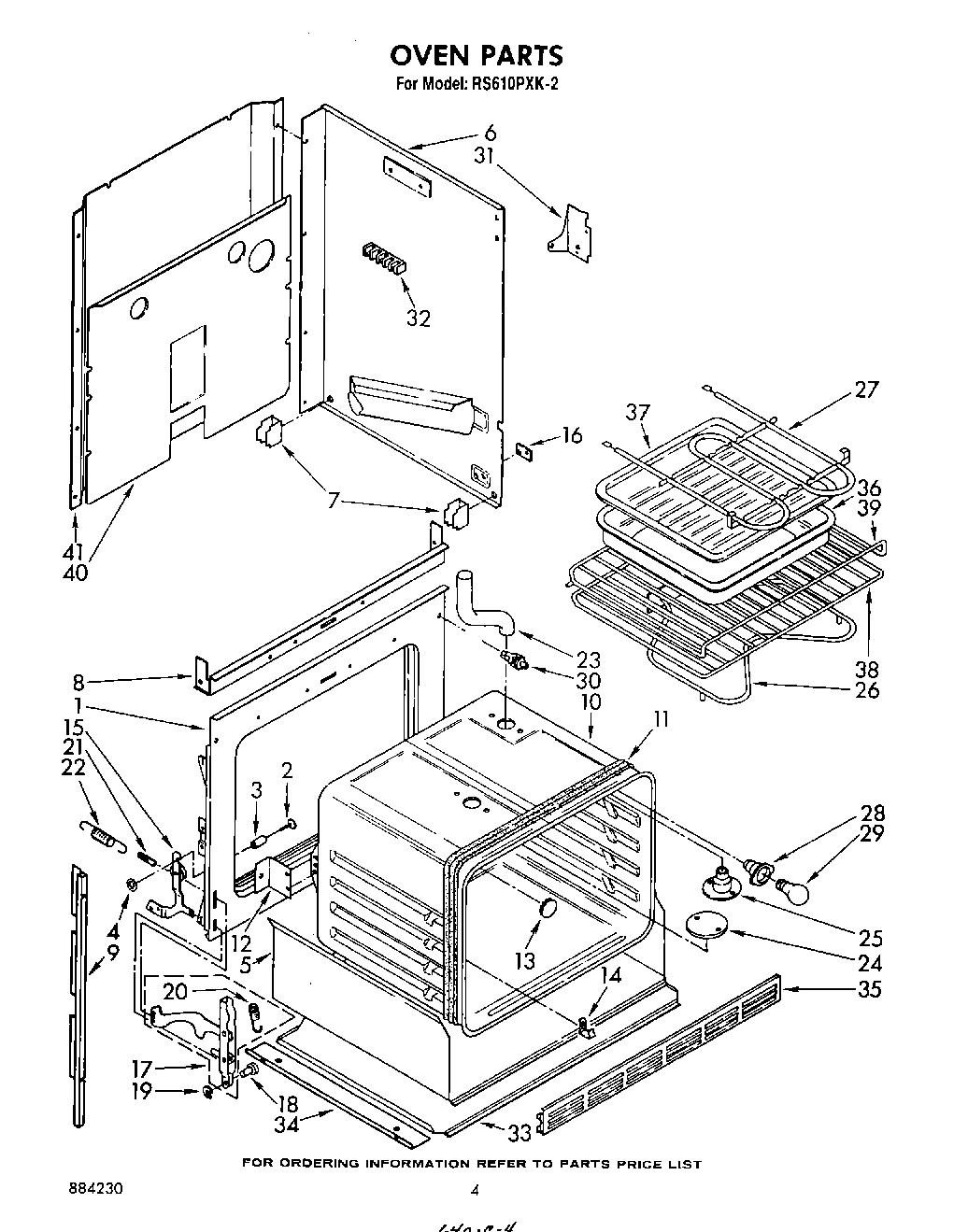

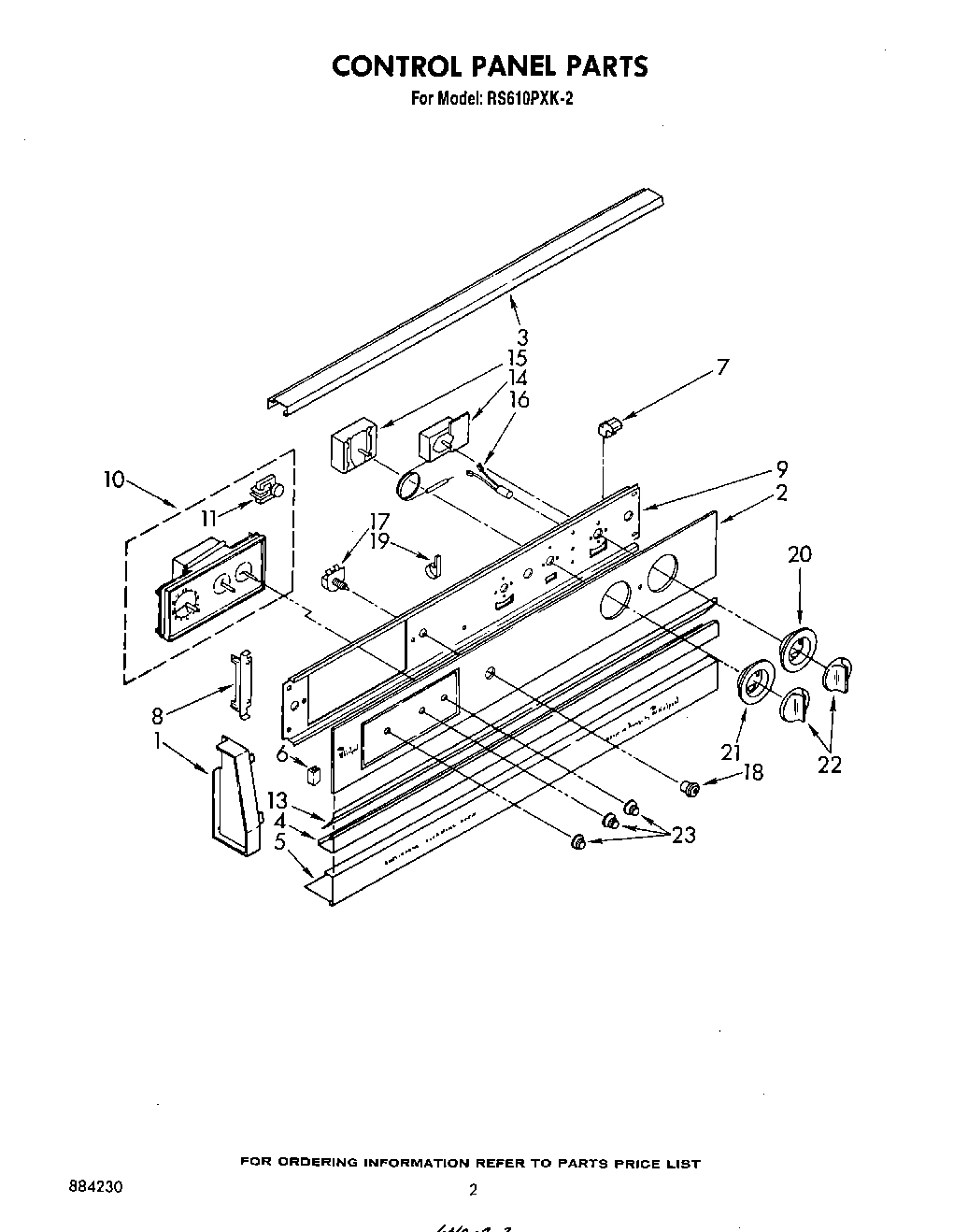

Model Whirlpool RS610PXK2 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $16.67

WPL 246127 WPL 246127 Contact Us For Availability

WPL 308043 WPL 308043 Contact Us For Availability

WPL LIT311409 WPL LIT311409 Contact Us For Availability

WPL LIT311433 WPL LIT311433 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT884230 WPL LIT884230 Contact Us For Availability

1

Frame, Front WPL 328747 Contact Us For Availability

1

screw, (4) WPL 311056 Contact Us For Availability

1

Support, Burner Box (2) WPL 310718 Contact Us For Availability

1

pushnut (2) WPL 311896 Contact Us For Availability

1

pin, wedge (2) WPL 312223 Contact Us For Availability

1

Liner, Door WPL 329687 Contact Us For Availability

1

Harness, Wire (Oven) WPL 310909 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Burner Box WPL 311019 Contact Us For Availability

2

seal, pano glass WPL 258711 Contact Us For Availability

2

Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Shield, Switch WPL 310716 Contact Us For Availability

3

glass, inner 30`` WPL 258988 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

4

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

screw (2) WPL 342043 Contact Us For Availability

4

Support, Cooktop WPL 310717 Contact Us For Availability

4

baffle, insulation WPL 307924 Contact Us For Availability

5

16515 Whirlpool Clip Backorder WPL 16515 $11.62

5

Insulation Tray WPL 310770 Contact Us For Availability

6

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Bushing WPL 258109 Contact Us For Availability

6

Spacer, Baffle (2) WPL 258990 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Cover, Top Rear WPL 3147565 Contact Us For Availability

7

Channel, Rubber WPL 312783 Contact Us For Availability

7

Block, Disconnect WPL 351297 Contact Us For Availability

8

Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability

8

Baffle, Top Insulation WPL 310693 Contact Us For Availability

8

Cooktop, Chrome WPL 307492 Contact Us For Availability

8

Screw, 10-32 x 1/2 WPL 312318 Contact Us For Availability

8

frame, door 30`` WPL 310427 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.66

9

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

9

Side Trim R.S. WPL 310685 Contact Us For Availability

9

Side Trim L.S. WPL 310689 Contact Us For Availability

9

Glass, Outer Pano WPL 309069 Contact Us For Availability

10

Panel, Control WPL 313133 Contact Us For Availability

10

Oven, 30`` Conventional WPL 328758 Contact Us For Availability

10

hold down, glass (2) WPL 310705 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Heat Seal WPL 309107 Contact Us For Availability

Seal, Switch WPL 309839 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Top, Door Frame WPL 310428 Contact Us For Availability

12

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $30.23

12

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

12

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

13

Indicator Light (2) (Includes Lens No. 313602 WPL 313462 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

clip, glass (10) WPL 310706 Contact Us For Availability

Clip (2) WPL 311506 Contact Us For Availability

16

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

17

Lockwasher WPL 312796 Contact Us For Availability

17

Channel Arm (2) WPL 329714 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Bezel Switch WPL 313030 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability

rotisserie kit WPL 261880 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

WPL 312721 WPL 312721 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.20

Retainer Ring (2) WPL 307594 Contact Us For Availability

20

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.75

20

Escutcheon, Thermostat WPL 311065 Contact Us For Availability

20

Spring, Door Stop (2) WPL 311092 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WP311069 Whirlpool Oven Dial Backorder WPL WP311069 $27.80

Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability

Medallion, Surface Unit WPL 309195 Contact Us For Availability

22

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.54

22

WP330190 Whirlpool Knob In Stock WPL WP330190 $14.62

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

Spring WPL 313311 Contact Us For Availability

Extension, Vent WPL 310835 Contact Us For Availability

Bracket, Sensor WPL 3147830 Contact Us For Availability

24

Thermostat WPL 3147833 Contact Us For Availability

24

Eliminator, Smoke WPL 310840 Contact Us For Availability

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

30

Switch, Door WPL 310345 Contact Us For Availability

31

Cover, Side (Left Side) WPL 310714 Contact Us For Availability

31

Cover, Side (Right Side) WPL 310715 Contact Us For Availability

32

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

32

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

33

Cover, Bottom WPL 310458 Contact Us For Availability

34

Angle, Support (2) WPL 311592 Contact Us For Availability

35

WPL 309029 WPL 309029 Contact Us For Availability

35

WPL 310668 WPL 310668 Contact Us For Availability

37

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

38

WPL 308173 WPL 308173 Contact Us For Availability

39

WPL 308172 WPL 308172 Contact Us For Availability

40

WPL 310459 WPL 310459 Contact Us For Availability

41

WPL 311012 WPL 311012 Contact Us For Availability
