Model Whirlpool RS6100XVN1 – Common Parts & Diagrams
02 - CONTROL PANEL
05 - DOOR, OPTIONAL

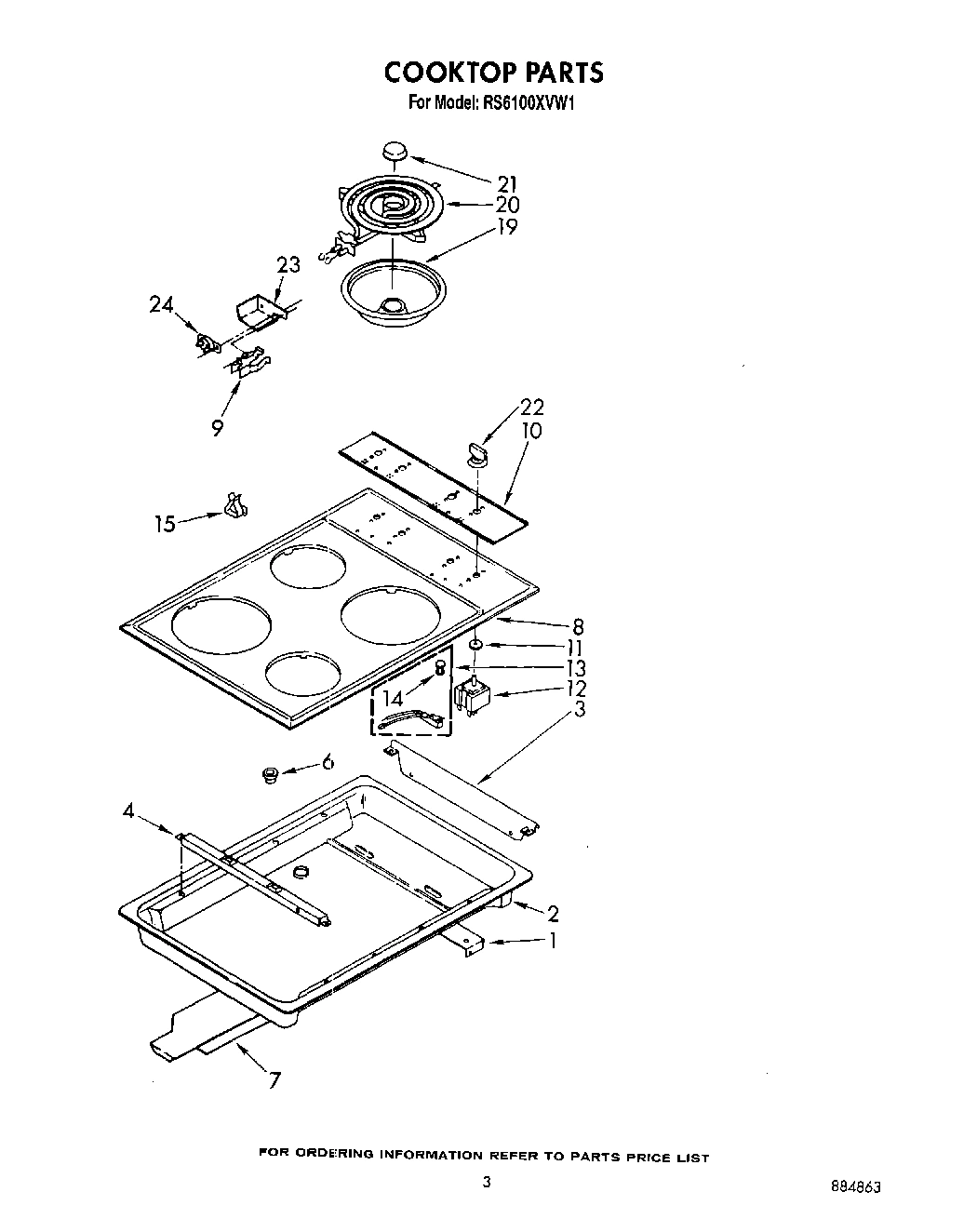

03 - COOKTOP

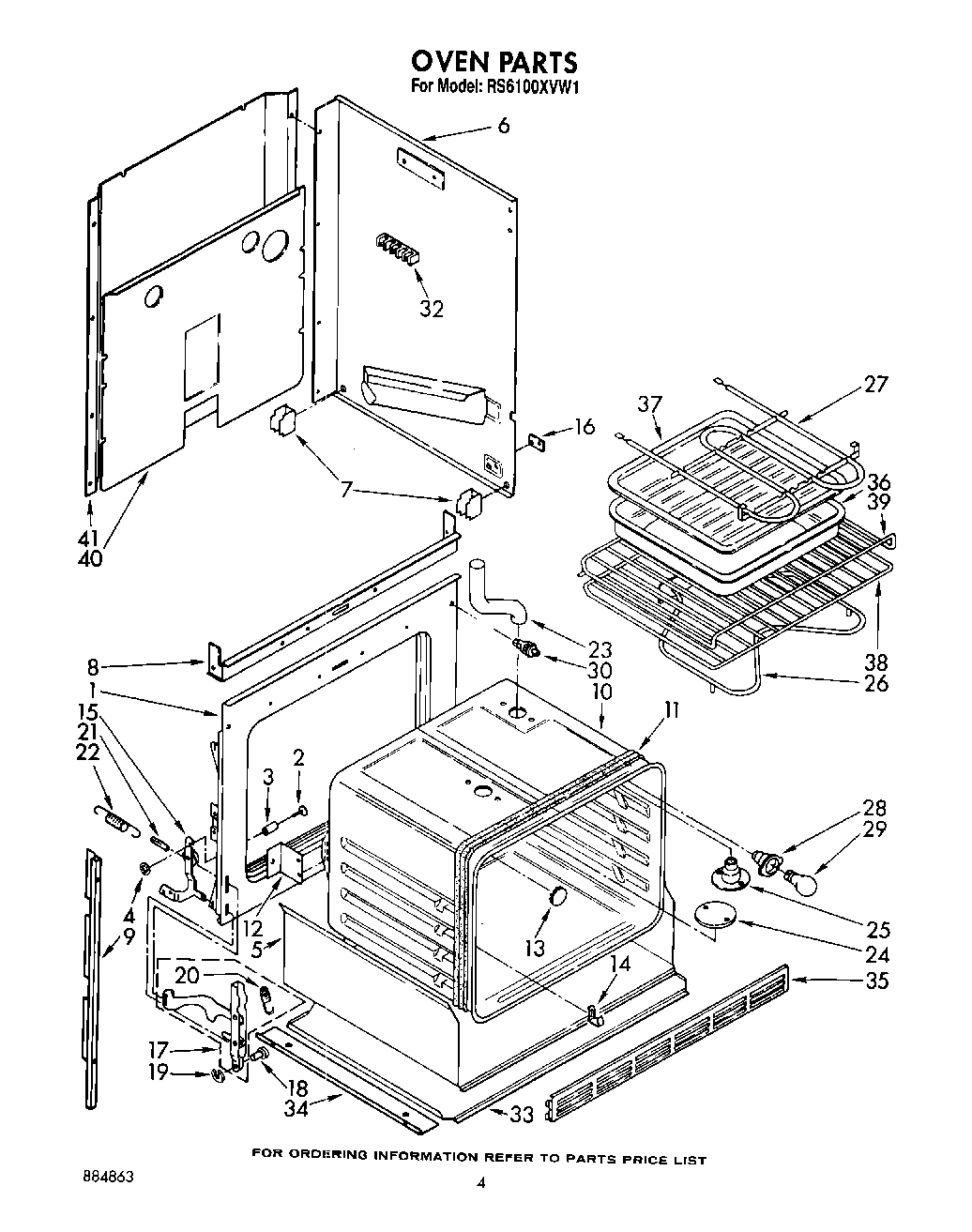

04 - OVEN, LIT/OPTIONAL

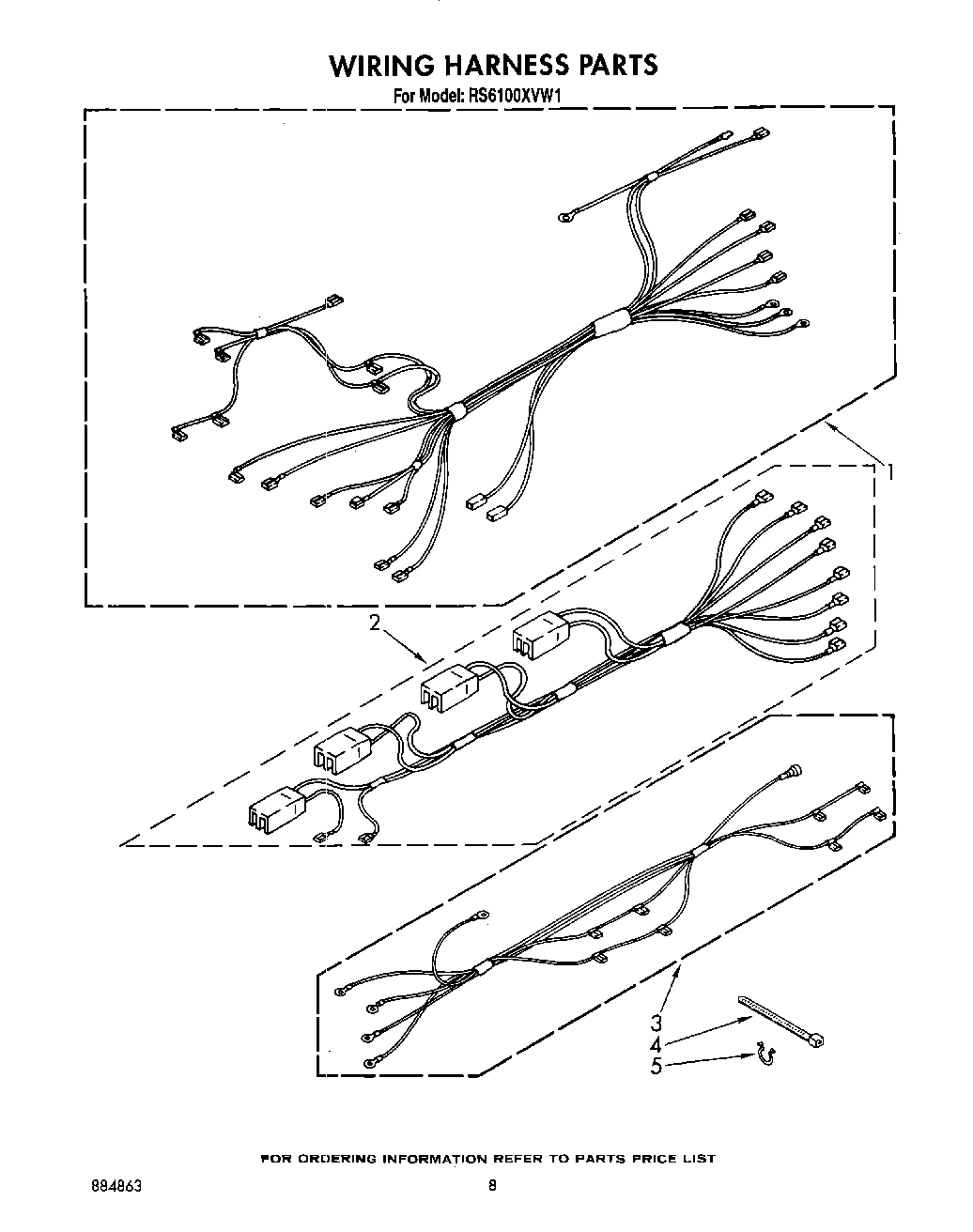

06 - WIRING HARNESS
Common parts from model Whirlpool RS6100XVN1
WPL 3171507 WPL 3171507 Contact Us For Availability
WPL 814128 WPL 814128 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148322 WPL LIT3148322 Contact Us For Availability
WPL LIT3148556 WPL LIT3148556 Contact Us For Availability
WPL LIT884863 WPL LIT884863 Contact Us For Availability
1
Screw, 10A x 3/8 (3) WPL 307748 Contact Us For Availability
1
Screw (2) WPL 309133 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
Frame, Front WPL 3172204 Contact Us For Availability
1
Harness, Wire (Oven) WPL 310909 Contact Us For Availability
2
Seal, Pano Glass WPL 3148183 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability
3
Glass, Inner 30`` WPL 3148179 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Retainer, Insulation WPL 3148287 Contact Us For Availability
5
screw (6) WPL 3148443 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
Screw, 10-32 x 1/2 WPL 312318 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Cooktop (White) WPL 3148747 Contact Us For Availability
8
Cooktop (Almond) WPL 3148748 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
10
Panel, Control WPL 3148705 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven (30`` Conventional) WPL 3172451 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Panel, Door (White) WPL 307888 Contact Us For Availability
11
Panel, Door (Almond) WPL 307896 Contact Us For Availability
11
Seal, Switch (4) WPL 309839 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148947 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Indicator Light (2) (Includes Light Lens No.3 WPL 313462 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
Screw (3) WPL 3149333 Contact Us For Availability
14
Lens, Light WPL 313602 Contact Us For Availability
15
Window Frame 30`` WPL 3149277 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Glass Retainer 30`` WPL 307792 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Clip, Frame WPL 307731 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Rotisserie Kit WPL 242985 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability
18
console WPL 261825 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Coffee (Uncut) WPL 261887 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
New Avocado (Uncut) WPL 261889 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
18
Platinum (Uncut) WPL 285368 Contact Us For Availability
18
Glass, Outer 30`` WPL 307732 Contact Us For Availability
18
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3150373 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Trim, End Cap WPL 3149900 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw (4) WPL 3150532 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
32
Screw (2) WPL 308043 Contact Us For Availability
33
Cover, Bottom & Top WPL 310458 Contact Us For Availability
34
Angle, Support (2) WPL 311592 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven WPL 308173 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
WPL 3149542 WPL 3149542 Contact Us For Availability
41
WPL 309961 WPL 309961 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
41
WPL 311458 WPL 311458 Contact Us For Availability
× ![]()
