Model Whirlpool RS6100XKW1 – Common Parts & Diagrams

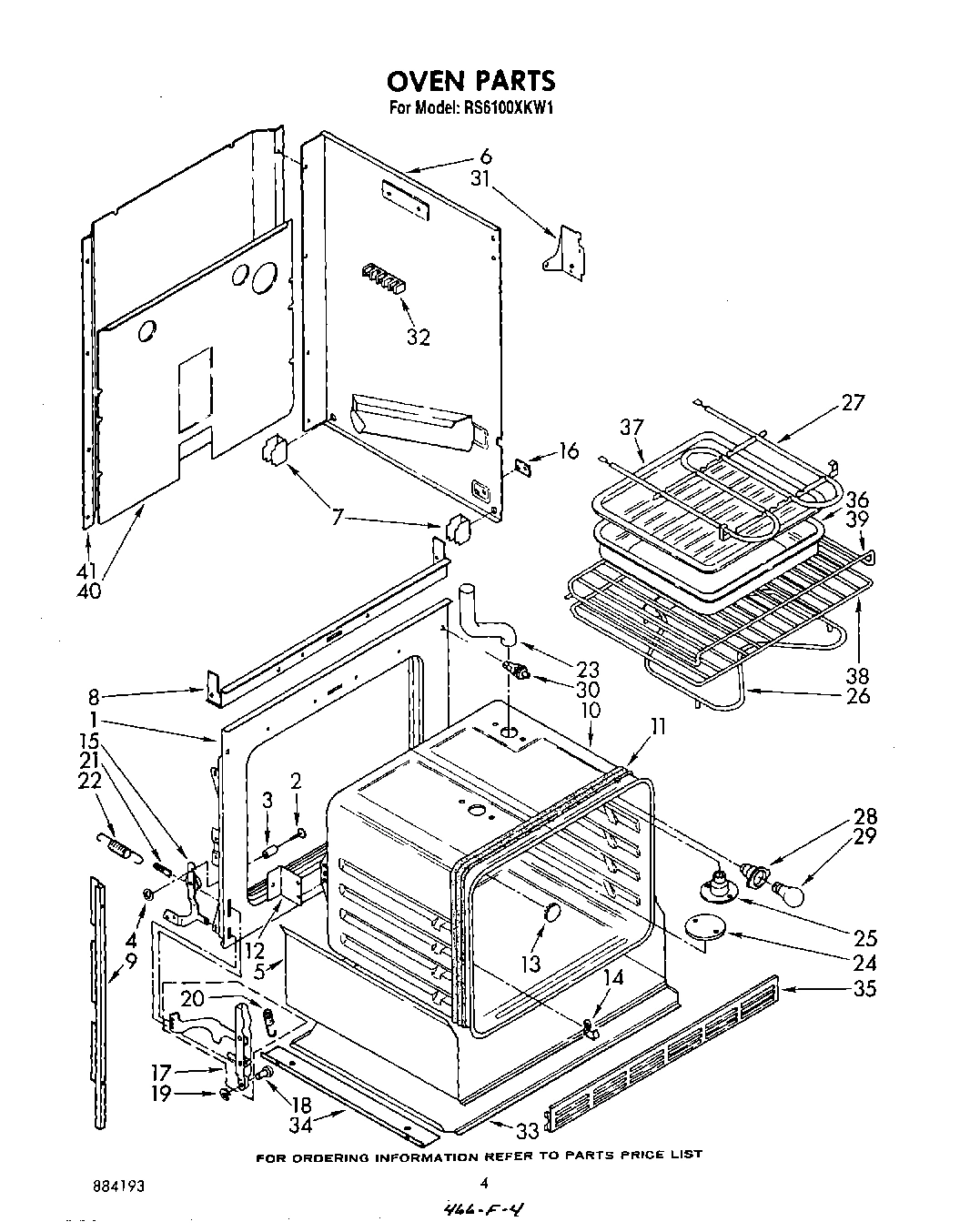

03 - OVEN

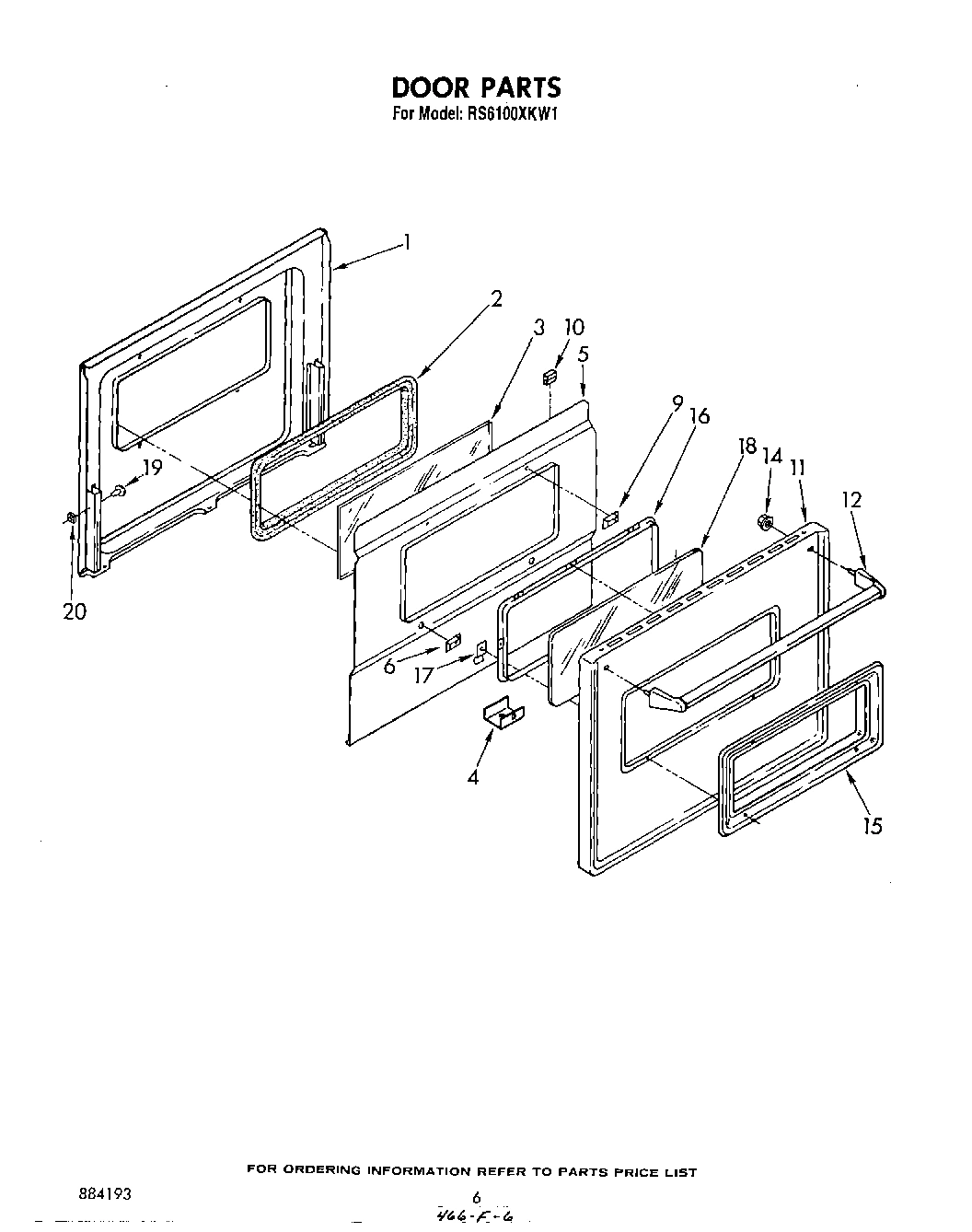

04 - DOOR
02 - CONTROL PANEL
05 - COOKTOP
06 - WIRING HARNESS , LIT/OPTIONAL
Common parts from model Whirlpool RS6100XKW1
WPL LIT311409 WPL LIT311409 Contact Us For Availability
WPL LIT311433 WPL LIT311433 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT884193 WPL LIT884193 Contact Us For Availability
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 329687 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (L.H.) WPL 310826 Contact Us For Availability
1
End Cap (R.H.) WPL 310827 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
Harness, Wire (Oven) WPL 310909 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
Control Panel, Glass WPL 313882 Contact Us For Availability
2
Screw (4) WPL 342043 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 311709 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Rail, Top WPL 310819 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Spacer, Door (2) WPL 309137 Contact Us For Availability
4
Trim, Center WPL 311195 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
5
Baffle WPL 307924 Contact Us For Availability
5
Rail, Bottom WPL 312530 Contact Us For Availability
6
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
6
Channel, Rubber (2) WPL 310842 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Retainer, Glass (4) WPL 310823 Contact Us For Availability
7
Cover, Top Rear WPL 310627 Contact Us For Availability
7
Screw, 10-32 x 1/2 WPL 312318 Contact Us For Availability
8
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
8
Screw (4) WPL 98520 Contact Us For Availability
8
Cooktop (Screw, 10-32 x 5/16 (2)) WPL 166681 Contact Us For Availability
8
Cooktop (White) WPL 307493 Contact Us For Availability
8
Cooktop (Harvest Gold) WPL 308944 Contact Us For Availability
8
Cooktop (Almond) WPL 308946 Contact Us For Availability
8
Cooktop (Toast) WPL 308947 Contact Us For Availability
8
Cooktop (Platinum) WPL 308948 Contact Us For Availability
9
Spacer, Baffle (2) WPL 258990 Contact Us For Availability
9
Bracket, Control WPL 313314 Contact Us For Availability
9
Clip WPL 313381 Contact Us For Availability
10
Panel, Control WPL 313133 Contact Us For Availability
10
Bumper, Rubber WPL 312783 Contact Us For Availability
10
Timer WPL 312803 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Panel (White) WPL 307888 Contact Us For Availability
11
Panel (Harvest Gold) WPL 307894 Contact Us For Availability
11
Panel (Almond) WPL 307896 Contact Us For Availability
11
Panel (Screw, 8A x 5/8) WPL 309133 Contact Us For Availability
11
Panel (Toast) WPL 313175 Contact Us For Availability
11
Panel (Platinum) WPL 313176 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
12
Handle, Door WPL 311564 Contact Us For Availability
13
Seal, Backguard WPL 313316 Contact Us For Availability
13
Indicator Light (2) (Includes Light Lens No.3 WPL 313462 Contact Us For Availability
14
Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability
14
Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability
14
Thermostat, Oven WPL 660564 Contact Us For Availability
15
Window Frame 30`` WPL 309173 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 310866 Contact Us For Availability
16
Glass Retainer 30`` WPL 307792 Contact Us For Availability
16
Light, Indicator (250 V) WPL 308753 Contact Us For Availability
17
Clip, Frame WPL 307731 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
17
Lockwasher WPL 312796 Contact Us For Availability
18
Glass, Outer 30`` WPL 307732 Contact Us For Availability
18
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
18
Bezel Switch WPL 313030 Contact Us For Availability
19
Pin, Wedge WPL 312223 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Rotisserie Kit WPL 242985 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Touch-Up, Oven (1/2 WPL 261810 Contact Us For Availability
20
WPL 261825 WPL 261825 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261887 WPL 261887 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261889 WPL 261889 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 285367 WPL 285367 Contact Us For Availability
20
WPL 285368 WPL 285368 Contact Us For Availability
20
WPL 311896 WPL 311896 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
21
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Spring WPL 313311 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Top, Support (2) WPL 312752 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Cover, Side (Left Side) WPL 310714 Contact Us For Availability
31
Cover, Side (Right Side) WPL 310715 Contact Us For Availability
33
WPL 310458 WPL 310458 Contact Us For Availability
34
WPL 311592 WPL 311592 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
WPL 310459 WPL 310459 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
× ![]()
