Model Whirlpool RS385PCBN0 – Common Parts & Diagrams

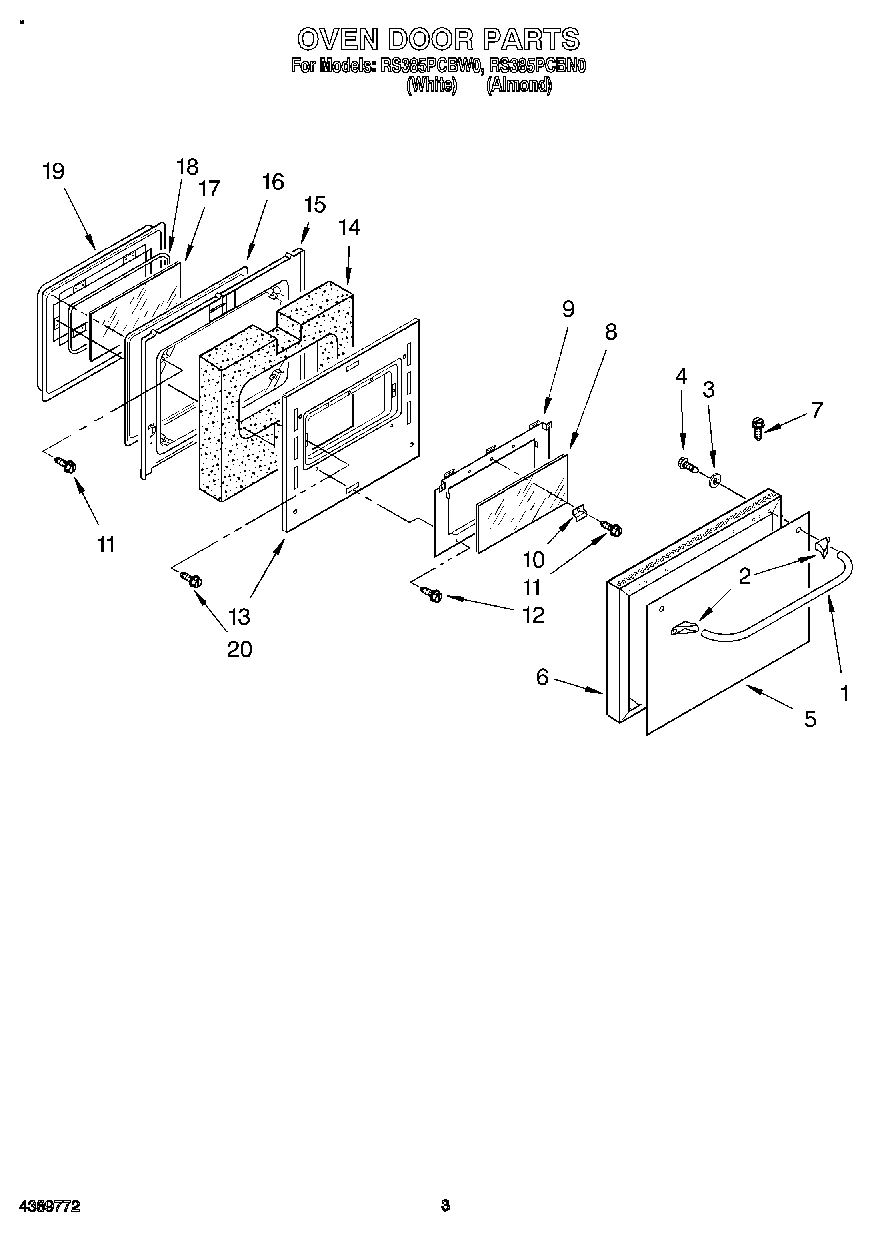

02 - OVEN DOOR

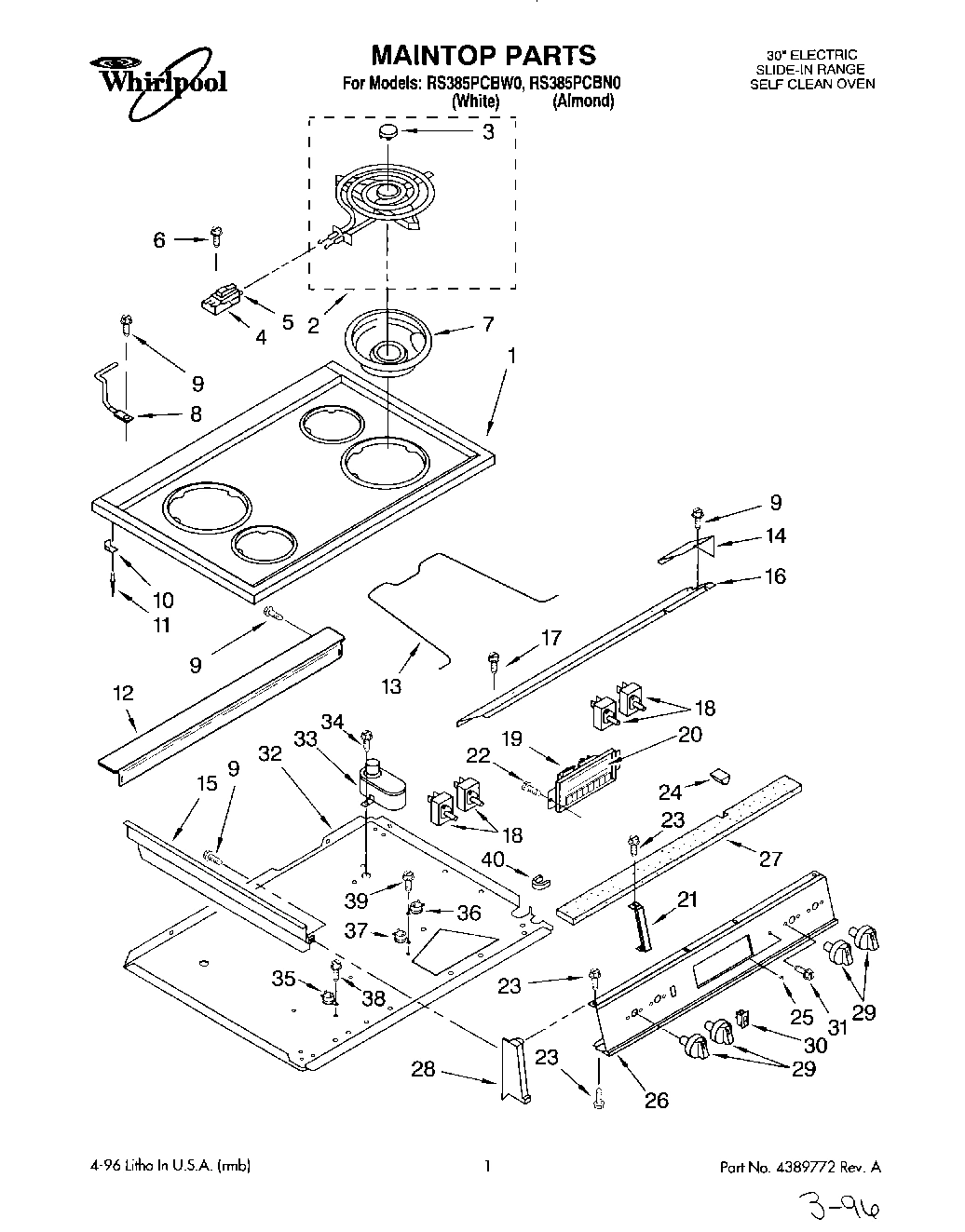

01 - MAINTOP

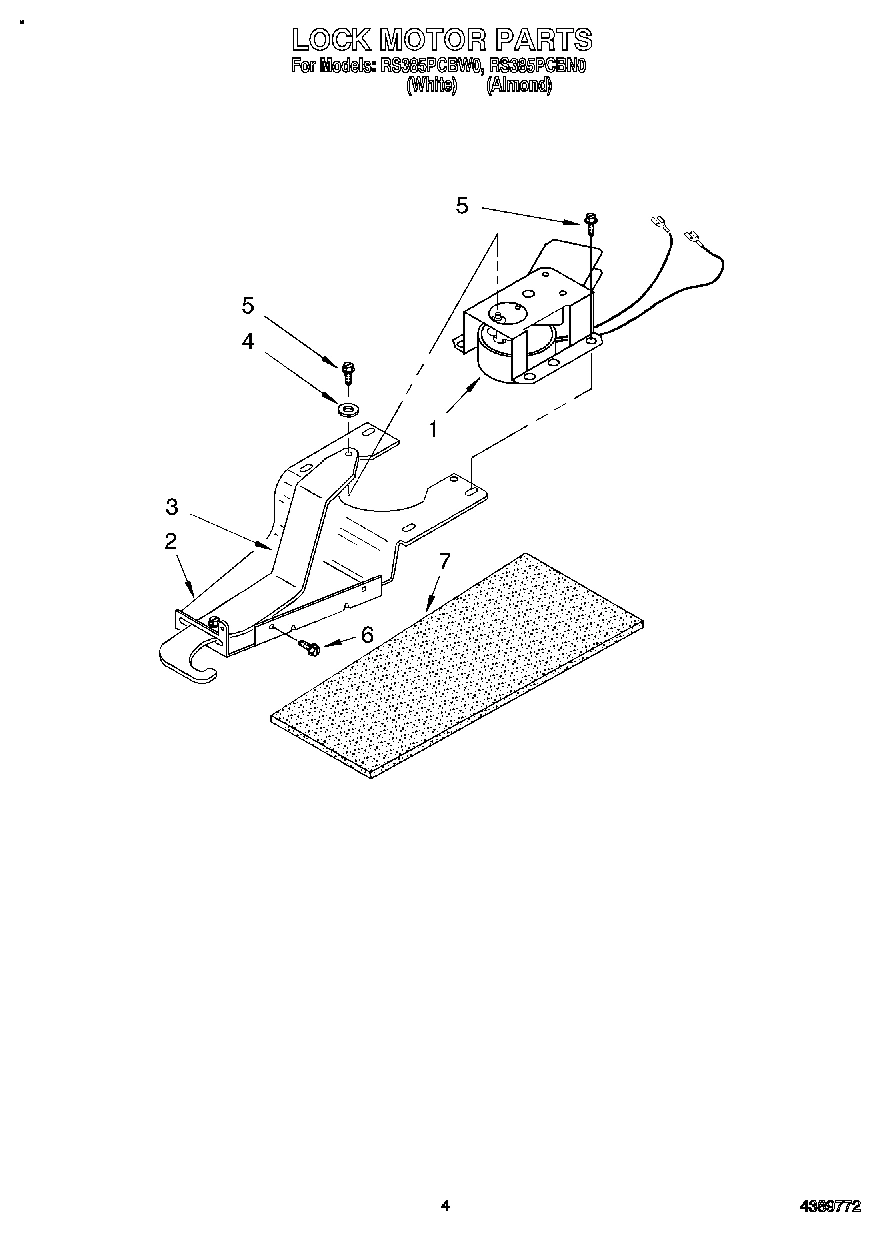

03 - LOCK MOTOR

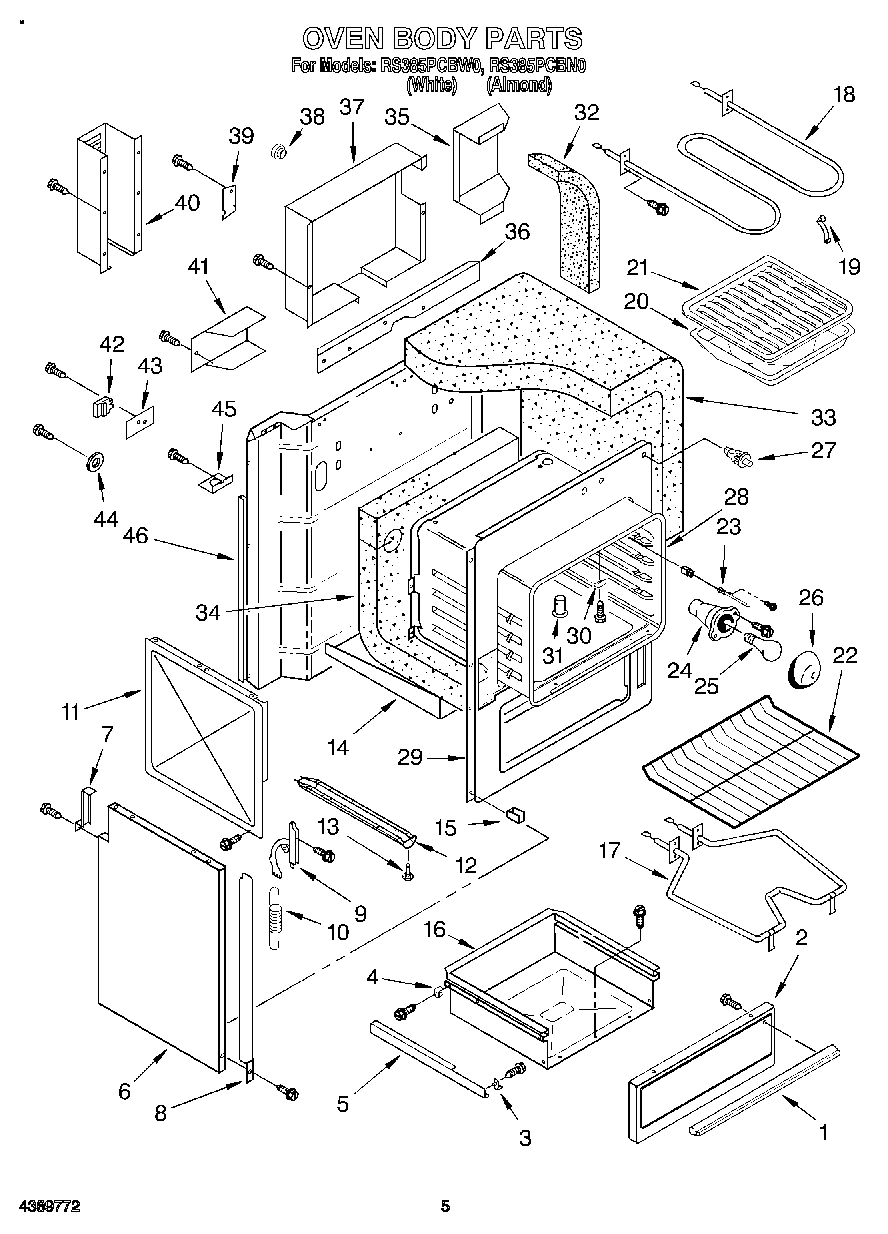

04 - OVEN BODY

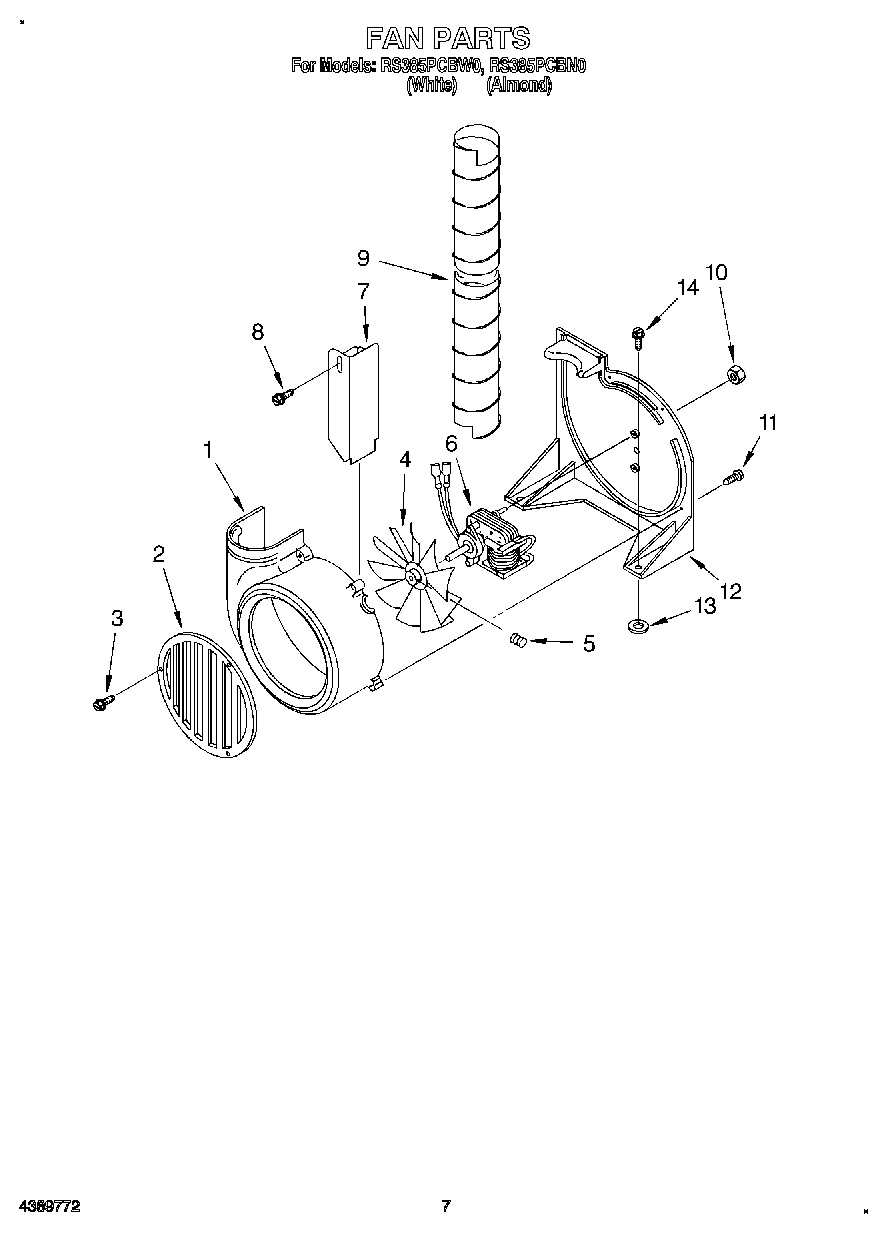

05 - FAN, LITERATURE
Common parts from model Whirlpool RS385PCBN0
Use & Care Guide WPL LIT4389351 Contact Us For Availability
Instructions, Installation WPL LIT4389354 Contact Us For Availability
Tech Sheet WPL LIT4389357 Contact Us For Availability
1
Handle, Oven Door (Almond) WPL 4389855 Contact Us For Availability
1
Cooktop (White) WPL 4389584 Contact Us For Availability
1
Cooktop (Almond) WPL 4389753 Contact Us For Availability
1
Motor, Lock WPL 4389419 Contact Us For Availability
1
Handle, Drawer WPL 4389621 Contact Us For Availability
1
Screw (2) WPL 4389648 Contact Us For Availability
1
Housing, Fan WPL 4389643 Contact Us For Availability
2
Endcap, Handle (White) WPL 4389522 Contact Us For Availability
2
Endcap, Handle (Almond) WPL 4389858 Contact Us For Availability
2
Plate, Door Lock WPL 4389607 Contact Us For Availability
2
Panel, Drawer (White) WPL 4389620 Contact Us For Availability
2
Panel, Drawer (Almond) WPL 4389771 Contact Us For Availability
2
Grill, Fan WPL 4389645 Contact Us For Availability
3
Spacer, Handle (2) (White) WPL 4389416 Contact Us For Availability
3
Spacer, Handle (2) (Almond) WPL 4389857 Contact Us For Availability
3
Medallion (4) WPL 4389586 Contact Us For Availability
3
Lever, Lock WPL 4389608 Contact Us For Availability
3
Stop, Glide (2) WPL 4389477 Contact Us For Availability
3
Screw (2) WPL 4389541 Contact Us For Availability
4
Screw, Handle (2) WPL 4389657 Contact Us For Availability
4
Washer WPL 4389659 Contact Us For Availability
4
Stop, Glide (2) WPL 4389476 Contact Us For Availability
4
Screw (2) WPL 4389537 Contact Us For Availability
4
Blade, Fan WPL 4389642 Contact Us For Availability
5
Glass, Outer Door (White) WPL 4389575 Contact Us For Availability
5
Glass, Outer Door (Almond) WPL 4389854 Contact Us For Availability
5
Support, Drawer (2) WPL 4389470 Contact Us For Availability
5
Set Screw WPL 4389656 Contact Us For Availability
6
Frame, Oven Door (White) WPL 4389667 Contact Us For Availability
6
Frame, Oven Door (Almond) WPL 4389856 Contact Us For Availability
6
Screw, Term Block WPL 4389652 Contact Us For Availability
6
Panel, Bodyside (Left Side) WPL 4389617 Contact Us For Availability
6
Panel, Bodyside (Right Side) WPL 4389618 Contact Us For Availability
6
Motor, Fan WPL 4389641 Contact Us For Availability
7
Screw, Frame (6) WPL 4389552 Contact Us For Availability
7
Bowl, Burner (6`` Black (2)) WPL 4389589 Contact Us For Availability
7
Bowl, Burner (8`` Black (2)) WPL 4389590 Contact Us For Availability
7
Insulation, Motor WPL 4389606 Contact Us For Availability
7
Filler, Rear (2) WPL 4389638 Contact Us For Availability
7
Raceway, Wire WPL 4389670 Contact Us For Availability
8
Glass, Middle WPL 4389402 Contact Us For Availability
8
Screw WPL 4389540 Contact Us For Availability
8
Hinge, Maintop (Right) WPL 4389389 Contact Us For Availability
8
Hinge, Maintop (Left) WPL 4389390 Contact Us For Availability
8
Trim, Side (L.H.) WPL 4389465 Contact Us For Availability
8
Trim, Side (R.H.) WPL 4389466 Contact Us For Availability
9
Plate, Glass Mtg. WPL 4389399 Contact Us For Availability
9
Hinge, Oven Door (Right) WPL 4389472 Contact Us For Availability
9
Hinge, Oven Door (Left) WPL 4389473 Contact Us For Availability
9
Hinge, Oven Door (Screw (6)) WPL 4389538 Contact Us For Availability
9
Hose, Flexible WPL 4389640 Contact Us For Availability
10
Retainer, Glass WPL 4389398 Contact Us For Availability
10
Bracket, Hinge (2) WPL 4389392 Contact Us For Availability
10
Spring, Door (2) WPL 4389474 Contact Us For Availability
10
Nut, Hex WPL 4389661 Contact Us For Availability
11
Screw, Hinge Brkt. WPL 4389653 Contact Us For Availability
11
Retainer, Side (2) WPL 4389613 Contact Us For Availability
11
Screw WPL 4389655 Contact Us For Availability
12
Screw, Retainer WPL 4389534 Contact Us For Availability
12
Filler, Backsplash WPL 4389376 Contact Us For Availability
12
Rail, Base (2) (Includes No. 13) WPL 4389632 Contact Us For Availability
12
Plate, Fan WPL 4389644 Contact Us For Availability
13
Retainer, Insulation WPL 4389397 Contact Us For Availability
13
Rod, Top Support WPL 4389598 Contact Us For Availability
13
Leg, Leveler (4) WPL 4389478 Contact Us For Availability
13
Washer, Felt (4) WPL 4389601 Contact Us For Availability
14
Insulation, Door WPL 4389394 Contact Us For Availability
14
Cover, Wire WPL 4389582 Contact Us For Availability
14
Screw WPL 4389646 Contact Us For Availability
14
Retainer, Lower WPL 4389614 Contact Us For Availability
15
Lining, Door WPL 4389396 Contact Us For Availability
15
Extension, Side (2) WPL 4389364 Contact Us For Availability
15
Spacer, Body (4) WPL 4389558 Contact Us For Availability
16
Gasket, Oven Door WPL 4389600 Contact Us For Availability
16
Cover, Wire WPL 4389599 Contact Us For Availability
16
Drawer, Storage WPL 4389612 Contact Us For Availability
17
Glass, Inner WPL 4389403 Contact Us For Availability
18
Seal, Inner Glass WPL 4389408 Contact Us For Availability
19
Plug, Oven Door WPL 4389395 Contact Us For Availability
19
ERC WPL 4389570 Contact Us For Availability
19
Support, Broil (3) WPL 4389639 Contact Us For Availability
20
Plate, Clock WPL 4389366 Contact Us For Availability
21
Bracket, Clock (2) WPL 4389372 Contact Us For Availability
22
Rack, Oven (2) WPL 4389455 Contact Us For Availability
23
Screw (2) WPL 4389527 Contact Us For Availability
23
Sensor, Oven WPL 4389626 Contact Us For Availability
24
Light, Oven Ind. WPL 4389577 Contact Us For Availability
24
Screw (2) WPL 4389536 Contact Us For Availability
24
Housing, Lite WPL 4389628 Contact Us For Availability
26
Panel, Control WPL 4389568 Contact Us For Availability
26
Lens, Oven Lite WPL 4389629 Contact Us For Availability
27
Insulation, Panel WPL 4389594 Contact Us For Availability
27
Switch, Door Lite WPL 4389630 Contact Us For Availability
28
Endcap (R.H.) WPL 4389360 Contact Us For Availability
28
Endcap (L.H.) WPL 4389411 Contact Us For Availability
28
Body, Oven WPL 4389609 Contact Us For Availability
29
Knob, Control (4) WPL 4389573 Contact Us For Availability
29
Frame, Front WPL 4389610 Contact Us For Availability
30
Cover, Front WPL 4389475 Contact Us For Availability
31
Screw, Mtg. (8) WPL 4389649 Contact Us For Availability
31
Tube, Vent WPL 4389637 Contact Us For Availability
32
Bottom, Burner Box WPL 4389593 Contact Us For Availability
32
Insulation, Top & Side (2) WPL 4389624 Contact Us For Availability
33
Vent Tube Assy. WPL 4389595 Contact Us For Availability
33
Insulation, Wrap WPL 4389622 Contact Us For Availability
34
Insulation, Back & Bottom WPL 4389623 Contact Us For Availability
35
Switch, WPL 4389603 Contact Us For Availability
35
Shield, Wire WPL 4389442 Contact Us For Availability
36
Switch WPL 4389604 Contact Us For Availability
36
Shield, Wire WPL 4389631 Contact Us For Availability
37
Switch, WPL 4389605 Contact Us For Availability
37
Shield, Upper WPL 4389615 Contact Us For Availability
38
Bushing, Snap WPL 4389660 Contact Us For Availability
39
Screw (4) WPL 4389650 Contact Us For Availability
39
Plate, Flue Cover WPL 4389634 Contact Us For Availability
40
Grommet (Top) WPL 4389580 Contact Us For Availability
40
Grommet (Hose (2)) WPL 4389581 Contact Us For Availability
40
Cover, Upper Wire WPL 4389616 Contact Us For Availability
41
Cover, Lite Wire WPL 4389635 Contact Us For Availability
42
Block, Terminal (Pigtail) WPL 4389627 Contact Us For Availability
43
Shield, Disconnect WPL 4389579 Contact Us For Availability
43
Screw (2) WPL 4389651 Contact Us For Availability
44
Washer, Ground WPL 4389658 Contact Us For Availability
45
WPL 4389633 WPL 4389633 Contact Us For Availability
46
WPL 4389471 WPL 4389471 Contact Us For Availability
46
WPL 4389611 WPL 4389611 Contact Us For Availability
46
WPL 4389662 WPL 4389662 Contact Us For Availability
46
WPL 4389663 WPL 4389663 Contact Us For Availability
46
WPL 4389664 WPL 4389664 Contact Us For Availability
× ![]()
