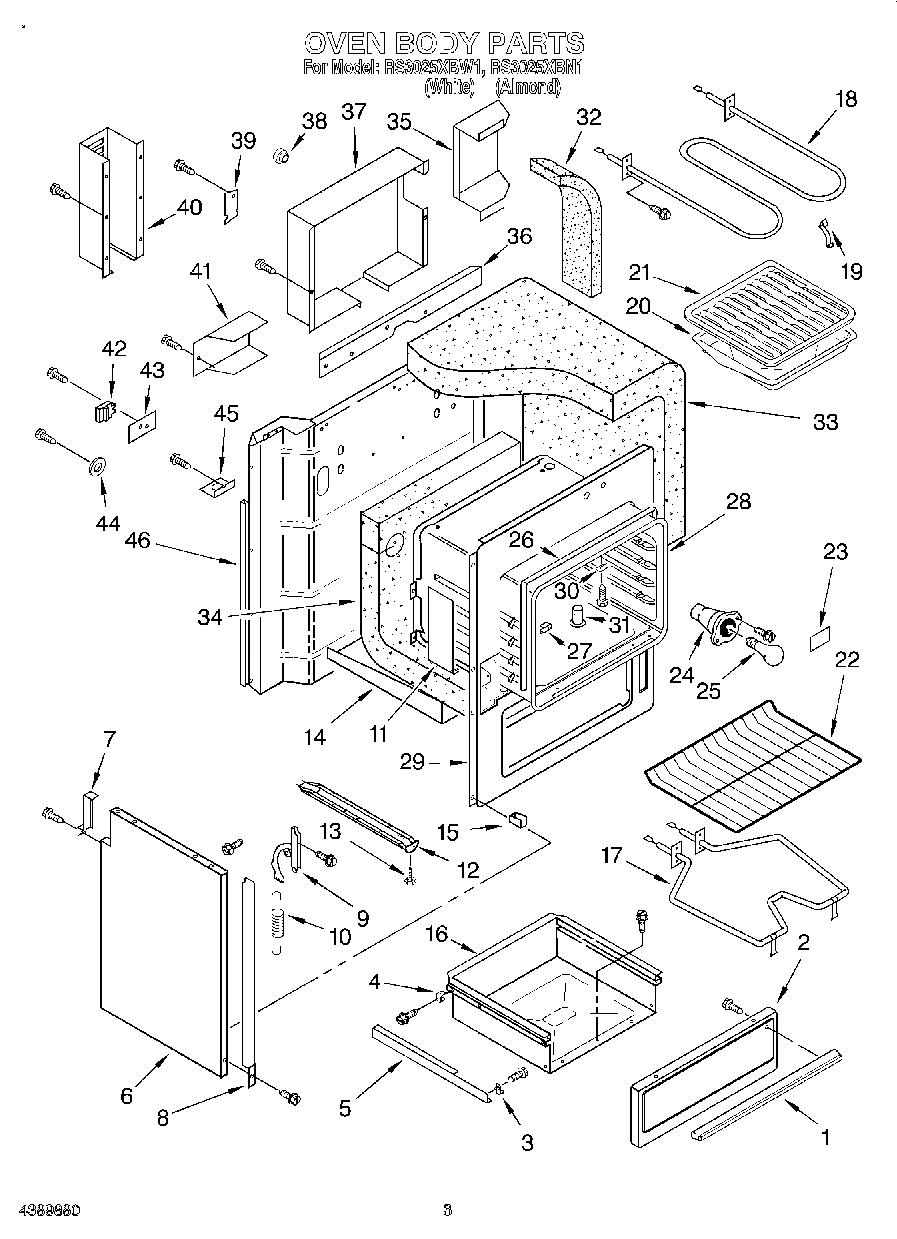

Model Whirlpool RS3025XBW1 – Common Parts & Diagrams
02 - SECTION
03 - SECTION
01 - SECTION
Common parts from model Whirlpool RS3025XBW1
WPL LIT4389354 WPL LIT4389354 Contact Us For Availability
1
Screw (2) WPL 4389648 Contact Us For Availability
1
Handle, Oven Door WPL 4389751 Contact Us For Availability
1
Cooktop (White) WPL 4389756 Contact Us For Availability
1
Cooktop (Almond) WPL 4389757 Contact Us For Availability
2
Panel, Drawer (White) WPL 4389766 Contact Us For Availability
2
Panel, Drawer (Almond) WPL 4389767 Contact Us For Availability
3
Stop, Glide (2) WPL 4389477 Contact Us For Availability
3
Spacer, Handle (2) WPL 4389416 Contact Us For Availability
3
Medallion (4) WPL 4389586 Contact Us For Availability
4
Stop, Glide (2) WPL 4389476 Contact Us For Availability
4
Screw (2) WPL 4389537 Contact Us For Availability
4
Screw, Handle (2) WPL 4389534 Contact Us For Availability
5
Support, Drawer (2) WPL 4389470 Contact Us For Availability
6
Panel, Bodyside (Left Side) WPL 4389617 Contact Us For Availability
6
Panel, Bodyside (Right Side) WPL 4389618 Contact Us For Availability
6
Panel, Oven Door (White) WPL 4389758 Contact Us For Availability
6
Panel, Oven Door (Almond) WPL 4389759 Contact Us For Availability
6
Screw, Term Block WPL 4389652 Contact Us For Availability
7
Filler, Rear (2) WPL 4389638 Contact Us For Availability
7
Bowl, Burner (6`` Chrome (3)) WPL 4389591 Contact Us For Availability
7
Bowl, Burner (8`` Chrome) WPL 4389592 Contact Us For Availability
8
Trim, Side (L.H.) WPL 4389768 Contact Us For Availability
8
Trim, Side (R.H.) WPL 4389769 Contact Us For Availability
8
Glass, Outer WPL 4389762 Contact Us For Availability
8
Hinge, Maintop (Right) WPL 4389389 Contact Us For Availability
8
Hinge, Maintop (Left) WPL 4389390 Contact Us For Availability
9
Hinge, Oven Door (Right) WPL 4389472 Contact Us For Availability
9
Hinge, Oven Door (Left) WPL 4389473 Contact Us For Availability
9
Hinge, Oven Door (Screw (6)) WPL 4389538 Contact Us For Availability
9
Washer, Spacer WPL 4389764 Contact Us For Availability
10
Spring, Door (2) WPL 4389745 Contact Us For Availability
10
Retainer, Glass WPL 4389761 Contact Us For Availability
10
Bracket, Hinge (2) WPL 4389392 Contact Us For Availability
11
Retainer, Side (2) WPL 4389741 Contact Us For Availability
11
Screw, Hinge Brkt. WPL 4389653 Contact Us For Availability
12
Screw, Retainer WPL 4389541 Contact Us For Availability
12
Rail, Base (2) (Includes No. 13) WPL 4389632 Contact Us For Availability
12
Filler, Backsplash WPL 4389376 Contact Us For Availability
13
Leg, Leveler (4) WPL 4389478 Contact Us For Availability
13
Retainer, Insul. WPL 4389760 Contact Us For Availability
13
Rod, Top Support WPL 4389598 Contact Us For Availability
14
Retainer, Lower WPL 4389614 Contact Us For Availability
14
Insulation, Door WPL 4389394 Contact Us For Availability
14
Cover, Wire WPL 4389582 Contact Us For Availability
15
Spacer, Body (4) WPL 4389558 Contact Us For Availability
15
Spacer WPL 4389763 Contact Us For Availability
15
Extension, Side (2) WPL 4389364 Contact Us For Availability
16
Drawer, Storage WPL 4389612 Contact Us For Availability
16
Gasket, Oven Door WPL 4389600 Contact Us For Availability
16
Cover, Wire WPL 4389736 Contact Us For Availability
17
Glass, Inner WPL 4389739 Contact Us For Availability
18
Seal, Inner Glass WPL 4389408 Contact Us For Availability
19
Support, Broil (3) WPL 4389639 Contact Us For Availability
19
Liner, Oven Door WPL 4389738 Contact Us For Availability
19
Clock WPL 4389892 Contact Us For Availability
20
Screw, Retainer WPL 4389765 Contact Us For Availability
20
Thermostat WPL 4389726 Contact Us For Availability
21
Bracket, Clock (2) WPL 4389372 Contact Us For Availability
22
Rack, Oven (2) WPL 4389455 Contact Us For Availability
22
Screw, Bracket (4) WPL 4389650 Contact Us For Availability
23
Screw (2) WPL 4389527 Contact Us For Availability
23
Plug, Button WPL 4389742 Contact Us For Availability
24
Screw (2) WPL 4389536 Contact Us For Availability
24
Housing, Lite WPL 4389628 Contact Us For Availability
24
Light, Indicator (Oven) WPL 4389577 Contact Us For Availability
24
Light, Indicator (Surface) WPL 4389728 Contact Us For Availability
26
Seal, Oven Door WPL 4389893 Contact Us For Availability
26
Panel, Control WPL 4389725 Contact Us For Availability
27
Clip, Bulb WPL 4389748 Contact Us For Availability
27
Insulation, Panel WPL 4389594 Contact Us For Availability
28
Body, Oven WPL 4389609 Contact Us For Availability
28
Endcap (R.H.) WPL 4389360 Contact Us For Availability
28
Endcap (L.H.) WPL 4389411 Contact Us For Availability
29
Frame, Front WPL 4389740 Contact Us For Availability
29
Knob, Control (4) WPL 4389573 Contact Us For Availability
30
Washer WPL 4389555 Contact Us For Availability
30
Switch, Oven Lite WPL ARI124485A Contact Us For Availability
31
Tube, Vent WPL 4389744 Contact Us For Availability
31
Screw, Mtg. (8) WPL 4389649 Contact Us For Availability
32
Insulation, Top & Side (2) WPL 4389624 Contact Us For Availability
32
Bottom, Burner Box WPL 4389733 Contact Us For Availability
33
Insulation, Wrap WPL 4389622 Contact Us For Availability
33
Vent Tube Assy. WPL 4389595 Contact Us For Availability
34
Insulation, Back & Bottom WPL 4389623 Contact Us For Availability
34
Screw, Mtg. WPL 4389646 Contact Us For Availability
35
Shield, Wire WPL 4389442 Contact Us For Availability
35
Switch, Selector WPL 4389729 Contact Us For Availability
36
Shield, Wire WPL 4389631 Contact Us For Availability
36
Knob, Selector WPL 4389730 Contact Us For Availability
37
Shield, Upper WPL 4389615 Contact Us For Availability
37
Brkt, Support Rod WPL 4389734 Contact Us For Availability
38
Bushing, Snap WPL 4389660 Contact Us For Availability
38
Knob, Thermostat WPL 4389735 Contact Us For Availability
39
Plate, Flue Cover WPL 4389634 Contact Us For Availability
39
Resistor WPL 4389746 Contact Us For Availability
40
Cover, Upper Wire WPL 4389616 Contact Us For Availability
40
Grommet (Top) WPL 4389580 Contact Us For Availability
40
Grommet (Hose (2)) WPL 4389581 Contact Us For Availability
41
Cover, Lite Wire WPL 4389635 Contact Us For Availability
42
Bracket, Cord WPL 4389627 Contact Us For Availability
43
Shield, Disconnect WPL 4389579 Contact Us For Availability
43
Screw (2) WPL 4389651 Contact Us For Availability
44
Screw WPL 4389540 Contact Us For Availability
44
Washer, Ground WPL 4389658 Contact Us For Availability
45
Plate, Cord Mtg. WPL 4389633 Contact Us For Availability
46
An WPL 4389471 Contact Us For Availability
46
WPL 4389611 WPL 4389611 Contact Us For Availability
46
WPL 4389662 WPL 4389662 Contact Us For Availability
46
WPL 4389749 WPL 4389749 Contact Us For Availability
× ![]()
