Model Whirlpool RS22AWXAL01 – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
02 - REFRIGERATOR LINER

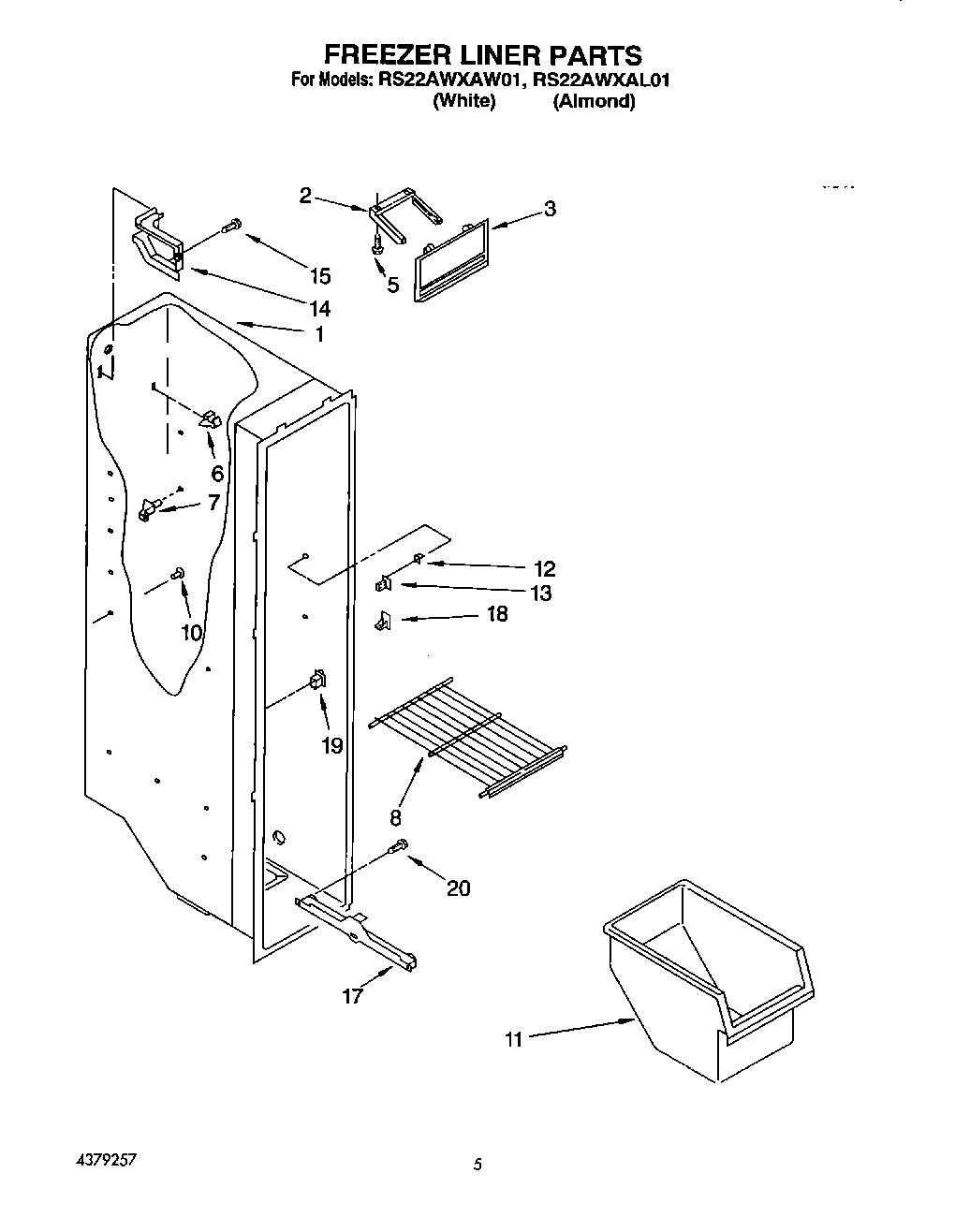

04 - FREEZER LINER

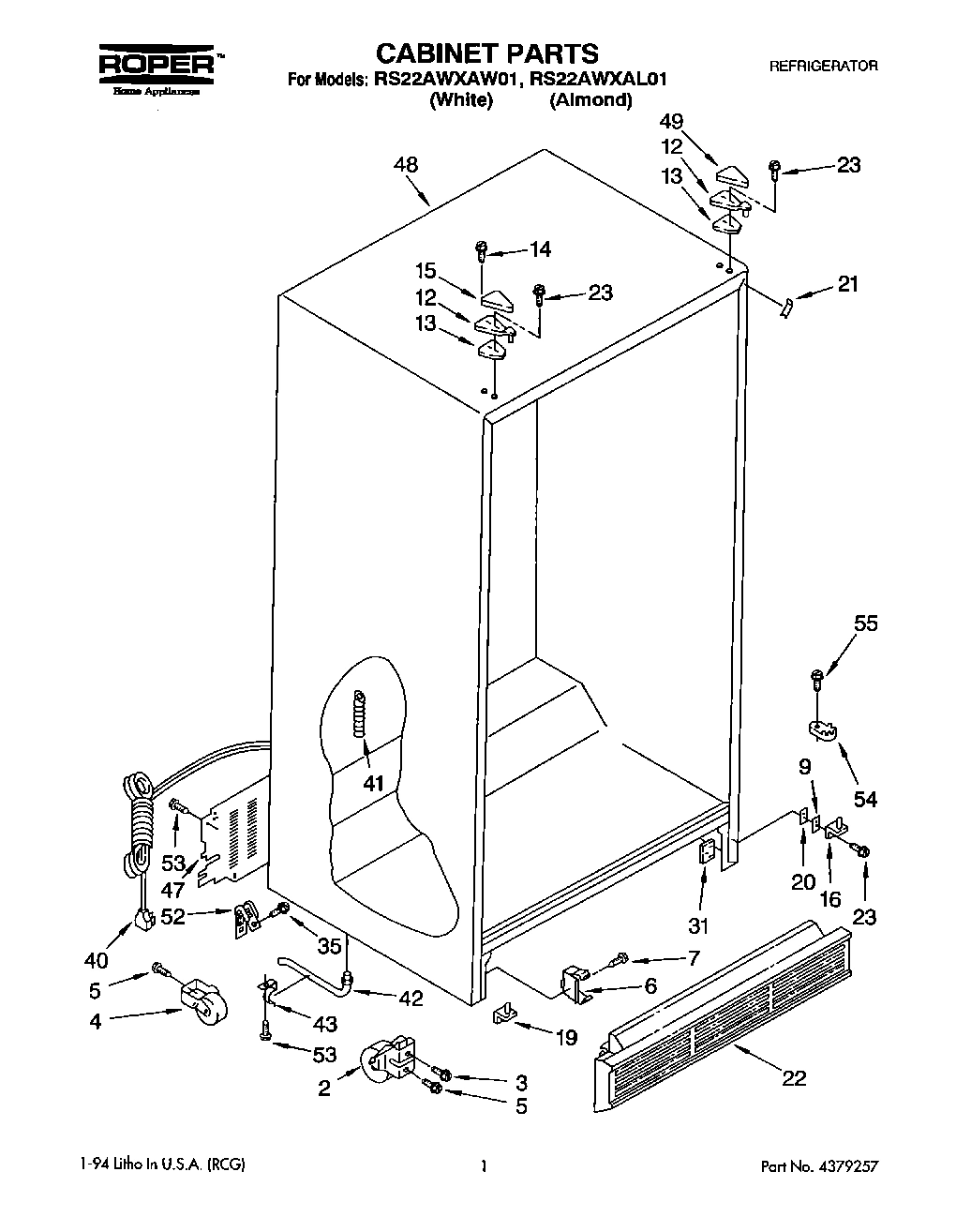

01 - CABINET

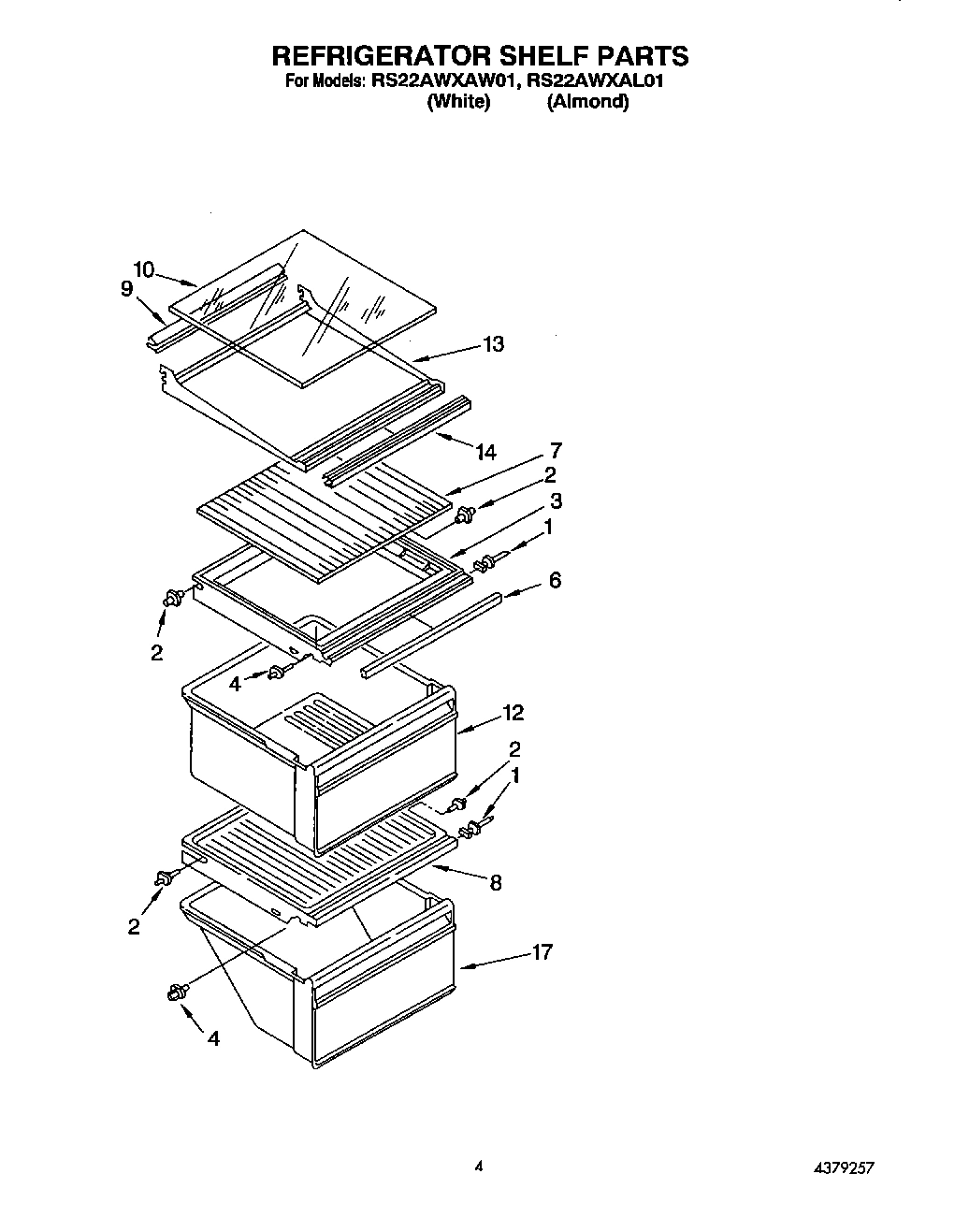

03 - REFRIGERATOR SHELF

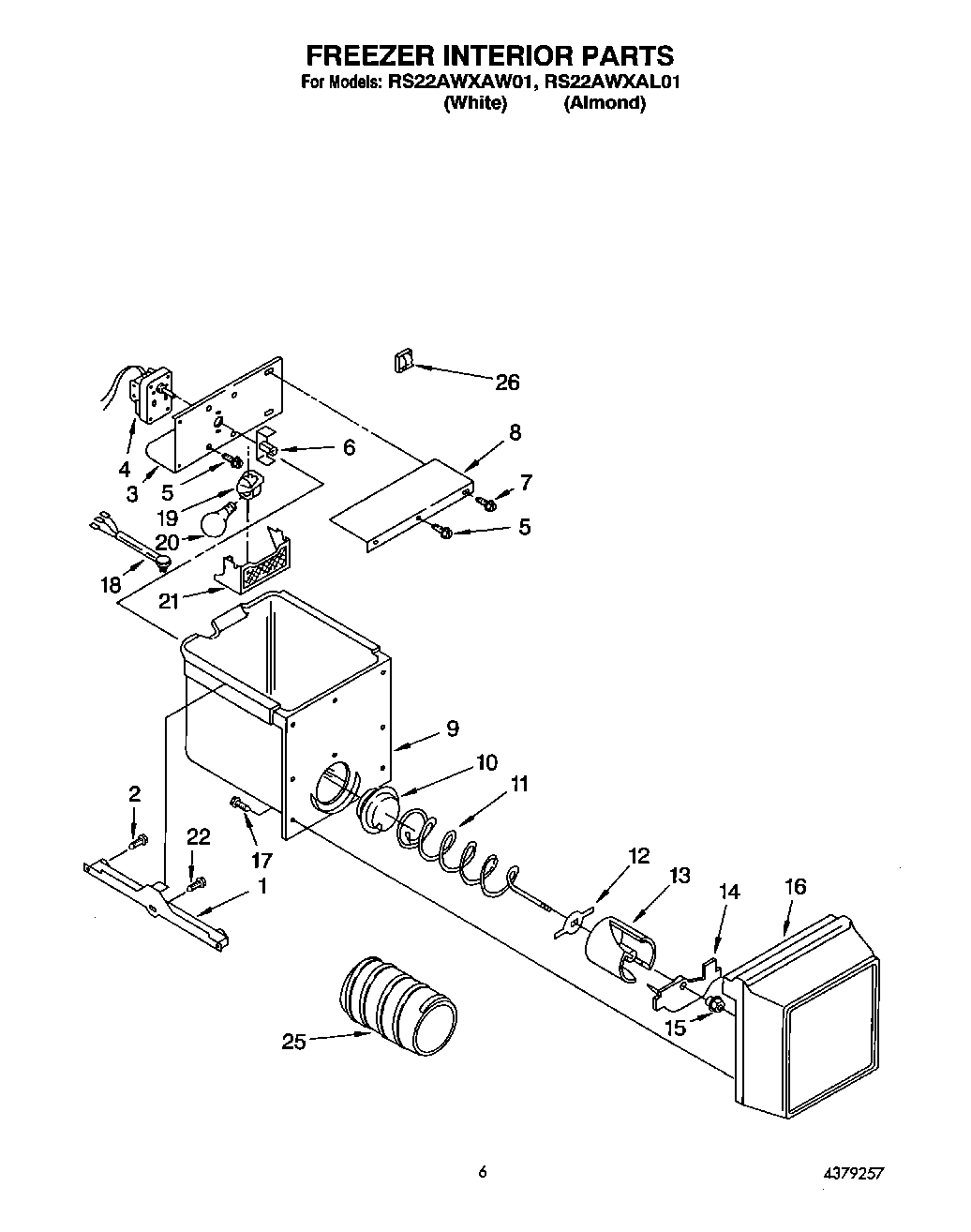

05 - FREEZER INTERIOR

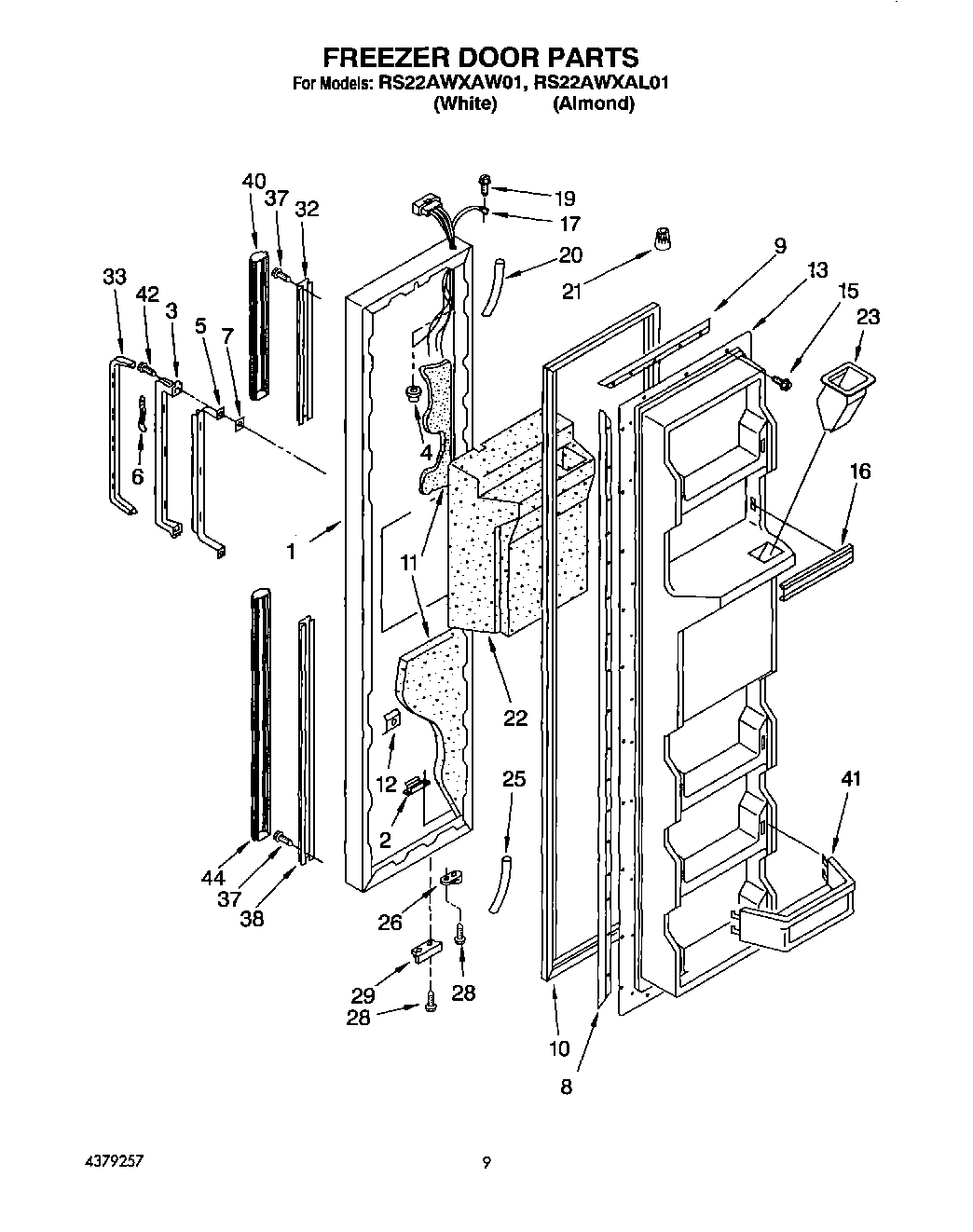

07 - FREEZER DOOR

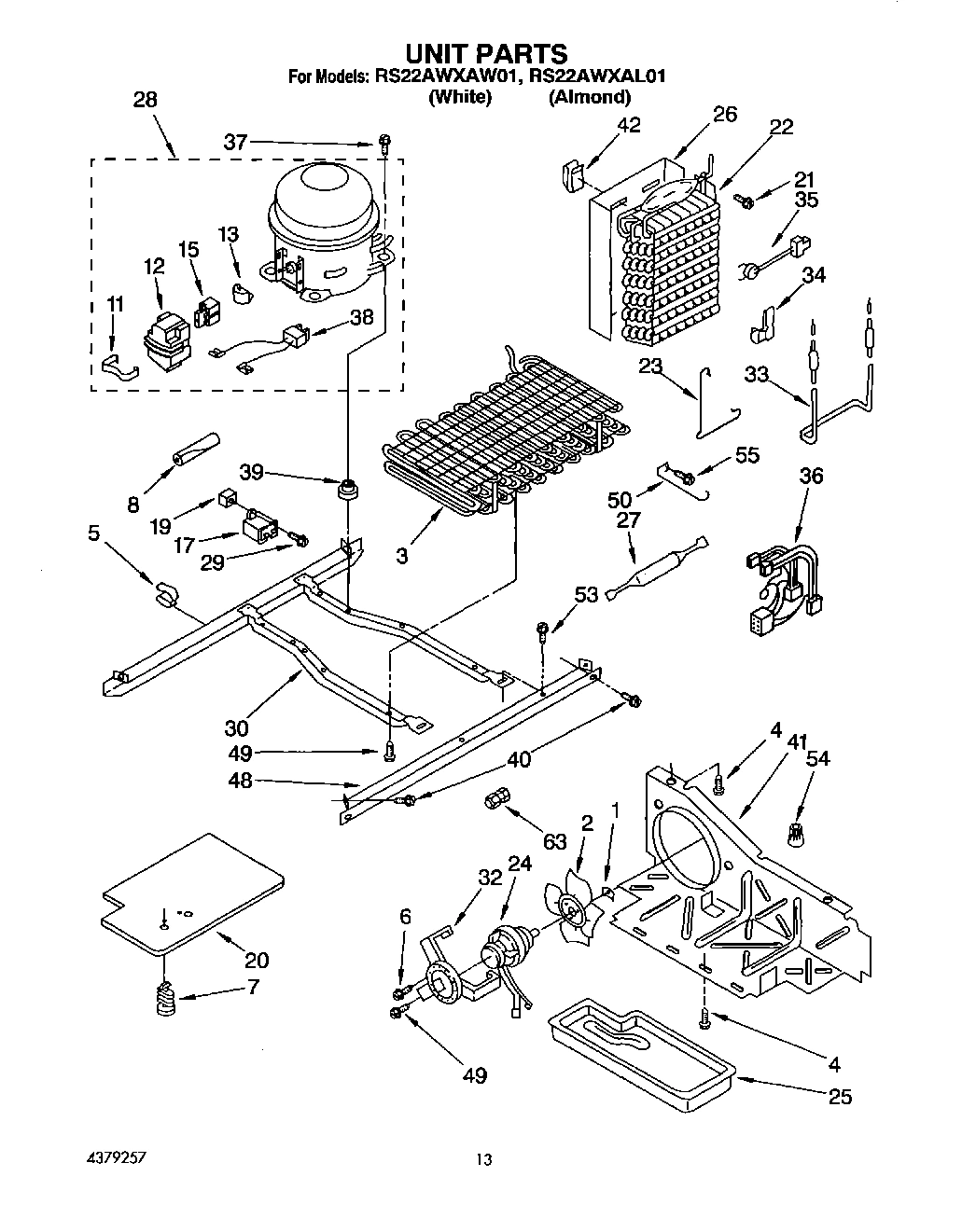

09 - UNIT

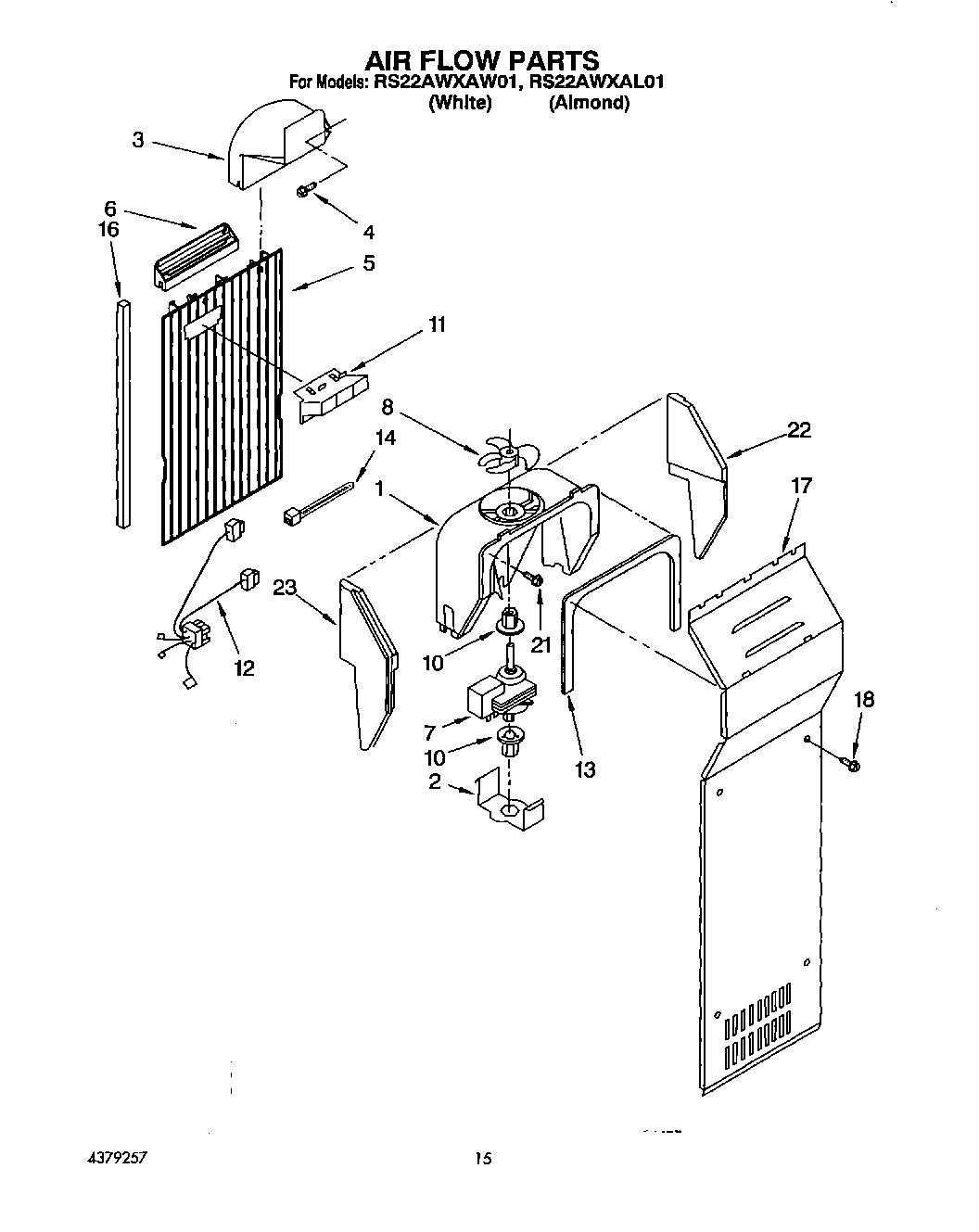

10 - AIR FLOW

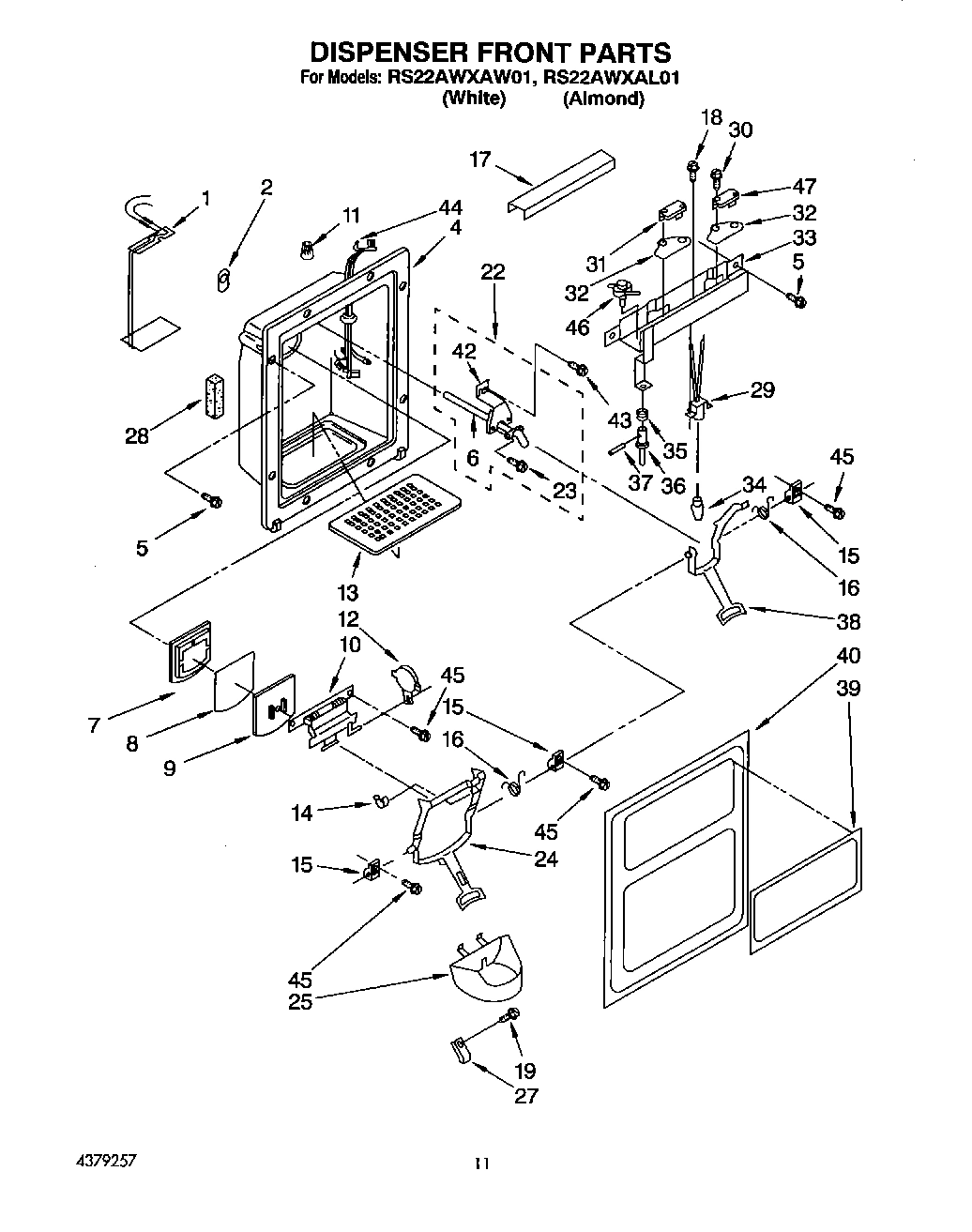

08 - DISPENSER FRONT

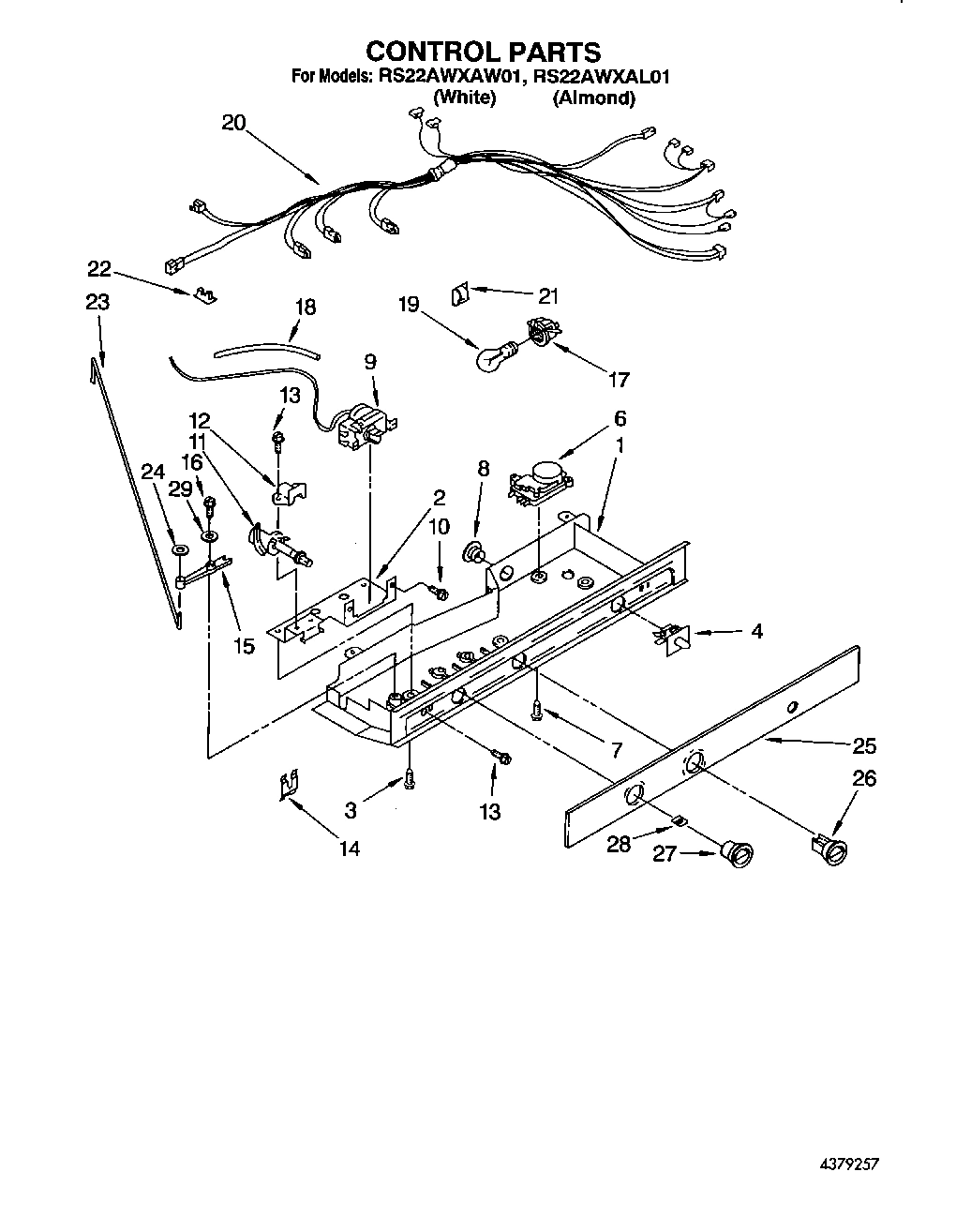

11 - CONTROL

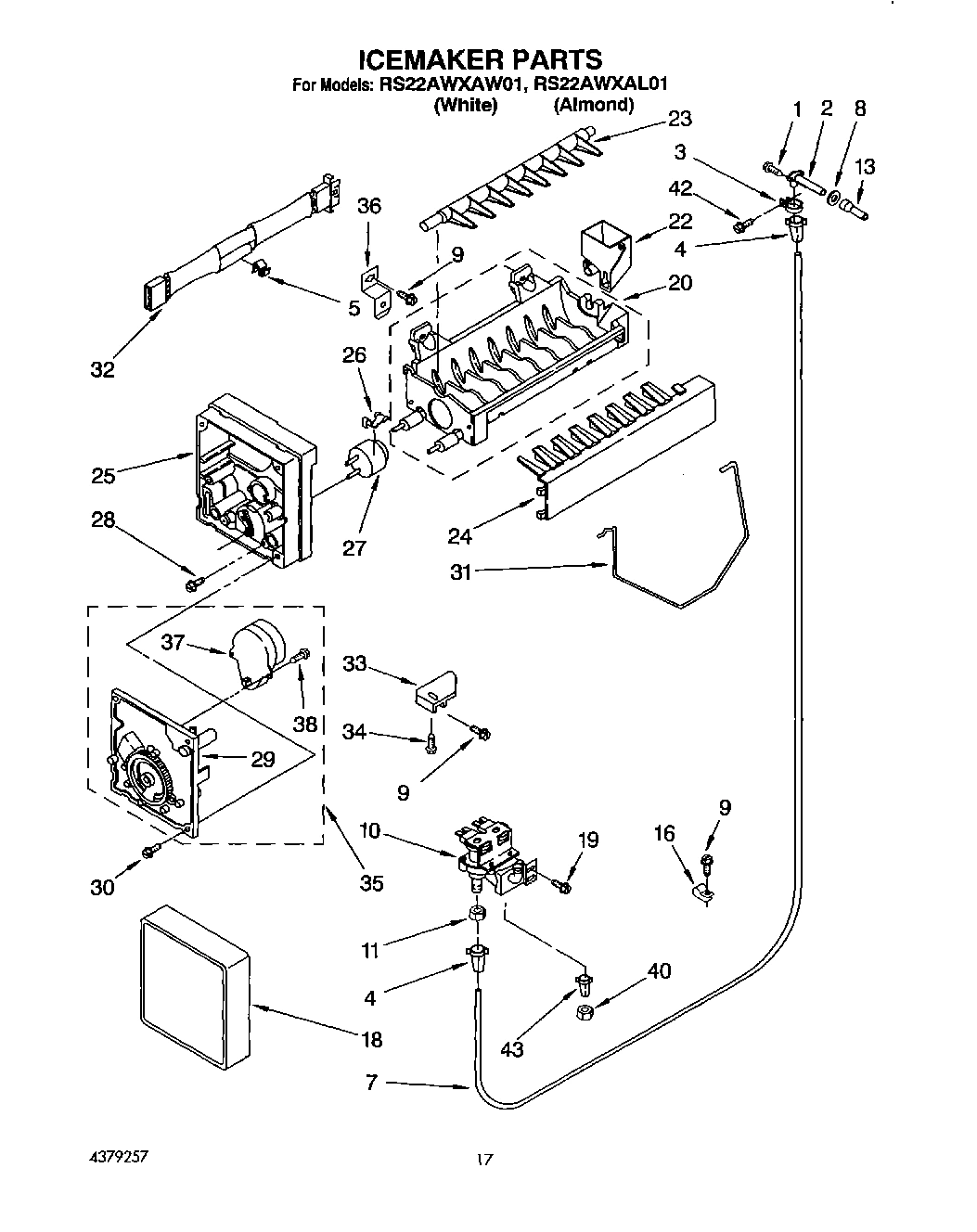

12 - ICEMAKER, LITERATURE/OPTIONAL
Common parts from model Whirlpool RS22AWXAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2162084 WPL LIT2162084 Contact Us For Availability
WPL LIT2163524 WPL LIT2163524 Contact Us For Availability
WPL LIT2163526 WPL LIT2163526 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Handle, Center WPL 1127464 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
6
Clip, Handle WPL 849445 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI124035A Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
7
Shim WPL 2147097 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Retainer, Glass WPL 1125594 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
10
Glass WPL 1124532 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
11
Foam Insullation (Required When Replacing Ext WPL 876029 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 1118413 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Trim, Shelf WPL 2163521 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Relay (See Overload) WPL ARI124036A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2163519 Contact Us For Availability
16
Trim, Door Shelf WPL 2152357 Contact Us For Availability
17
Pan, Meat WPL 2152636 Contact Us For Availability
17
Harness, Door WPL 1116960 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Screw WPL 489197 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Conduit, Water Tube WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Glass Stop WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 2155334 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Retainer, Top WPL 2147898 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Insert, Handle WPL 2147581 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Unit, Harness WPL 2149199 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
39
Plaque, Front Cover WPL 2163514 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Extension, Top WPL 2147445 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2163517 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Door, Shelf WPL 2152686 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Insert, Tube WPL 1129177 Contact Us For Availability
44
Extension (Bottom) WPL 1127473 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
46
Light Switch WPL 851386 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI124032A Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
100
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
100
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
WPL 515393 WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 72112 WPL 72112 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
