Model Whirlpool RS20AWXEW00 – Common Parts & Diagrams
05 - REFRIGERATOR
01 - CABINET

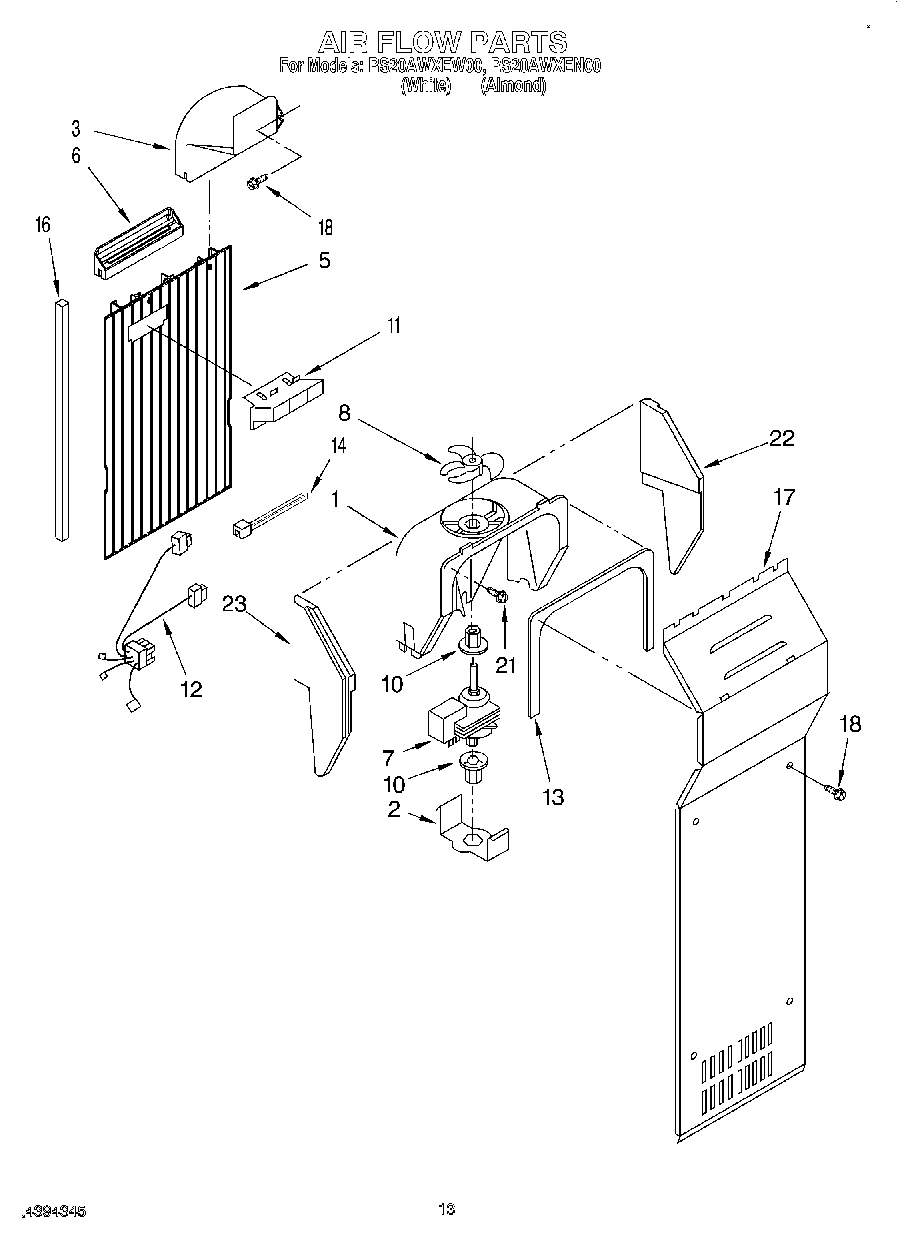

08 - AIR FLOW

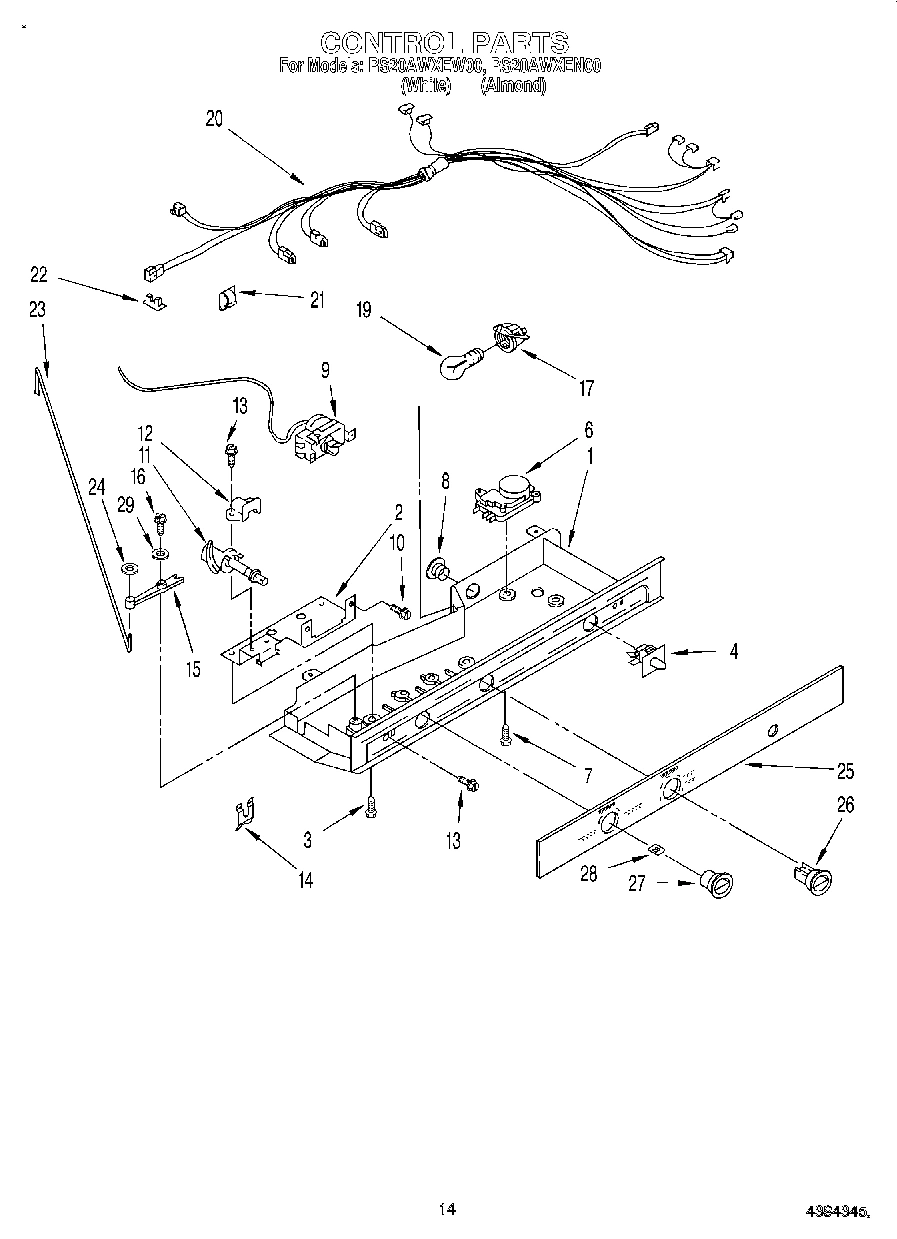

09 - CONTROL

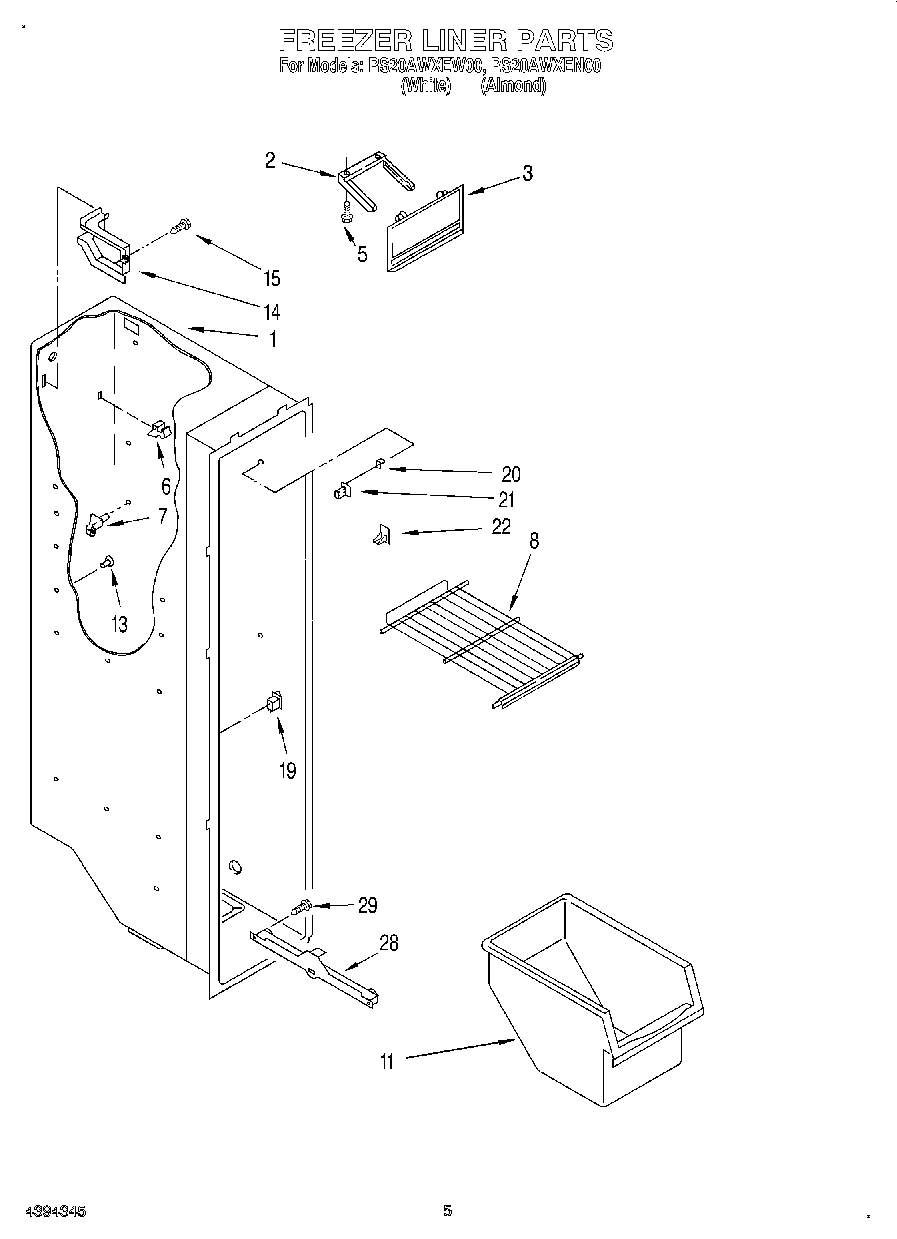

03 - FREEZER LINER

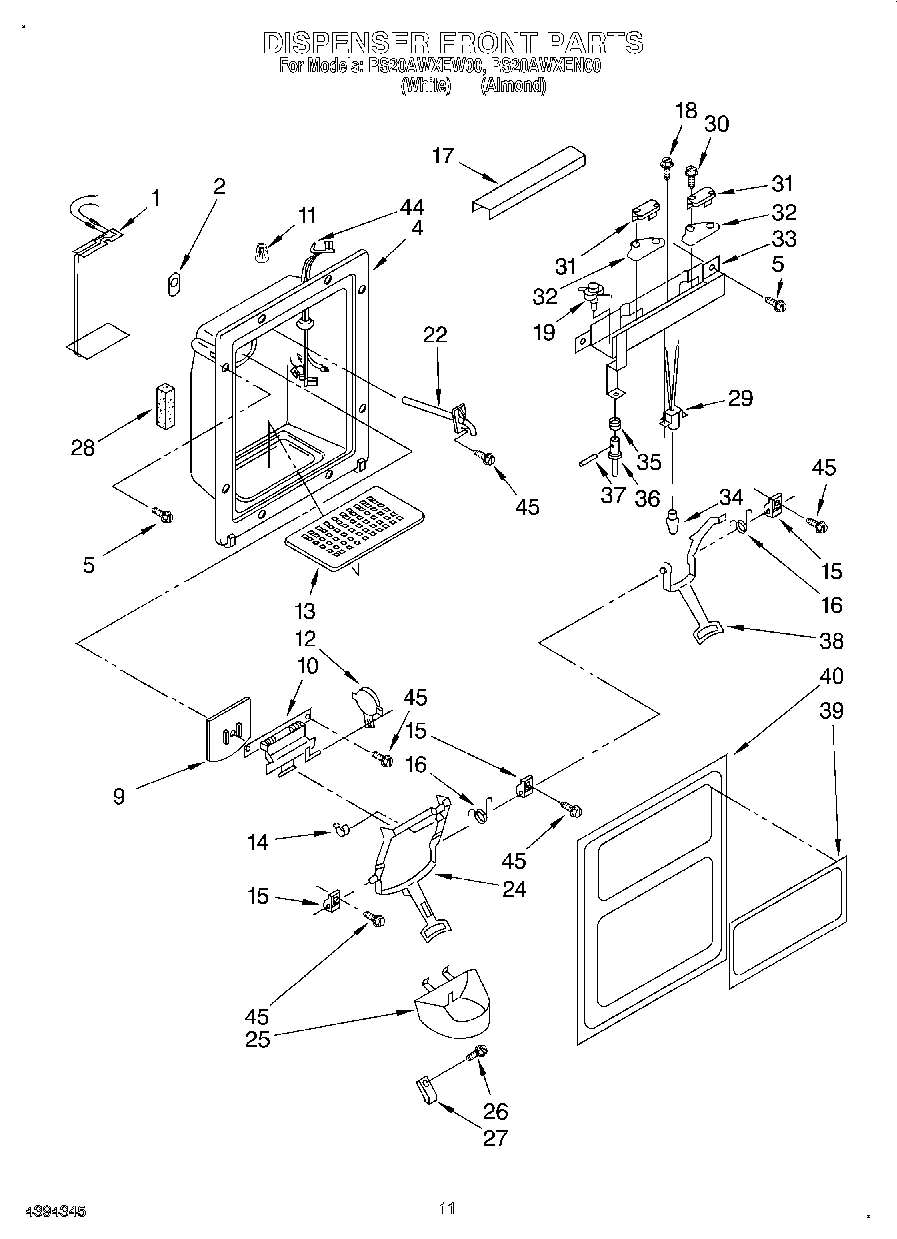

07 - DISPENSER FRONT

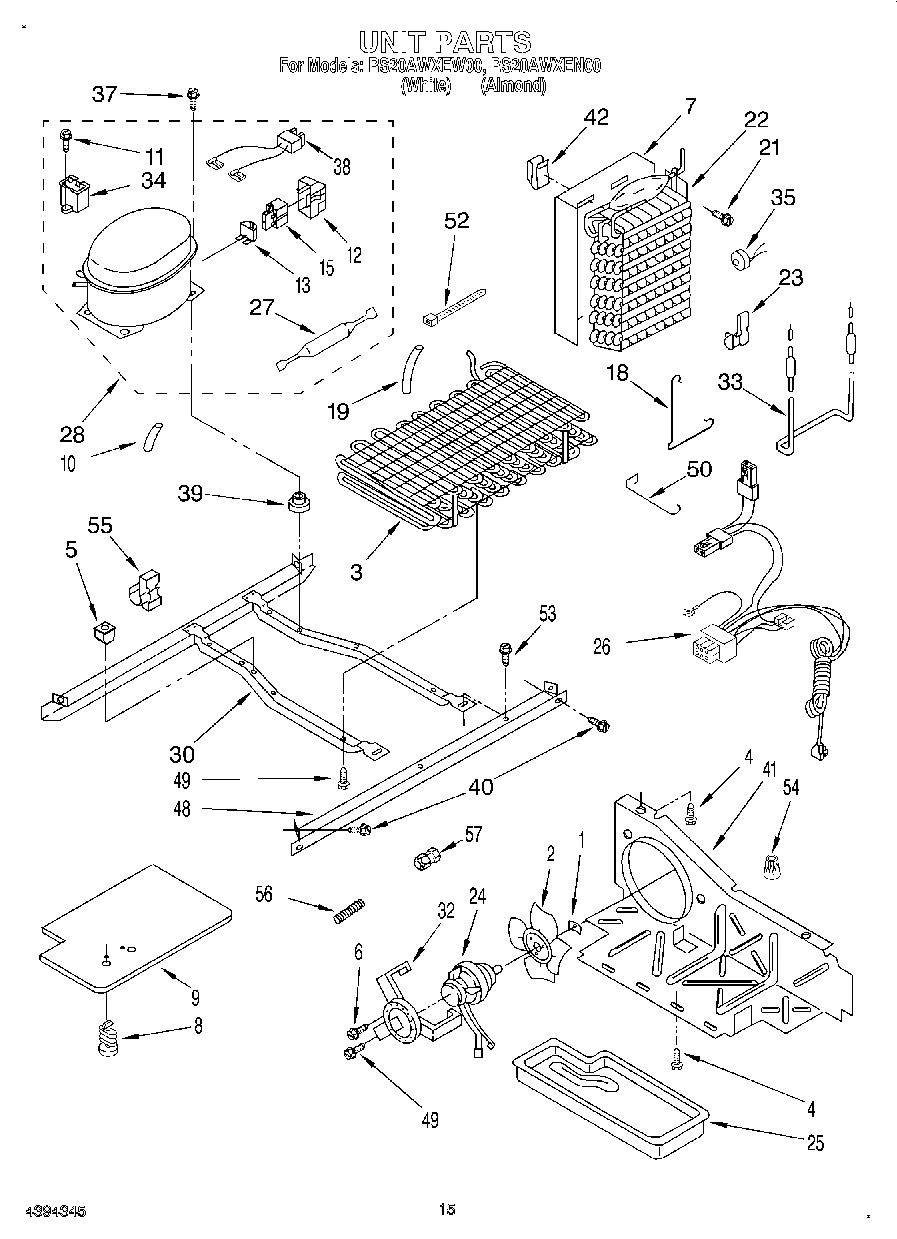

10 - UNIT

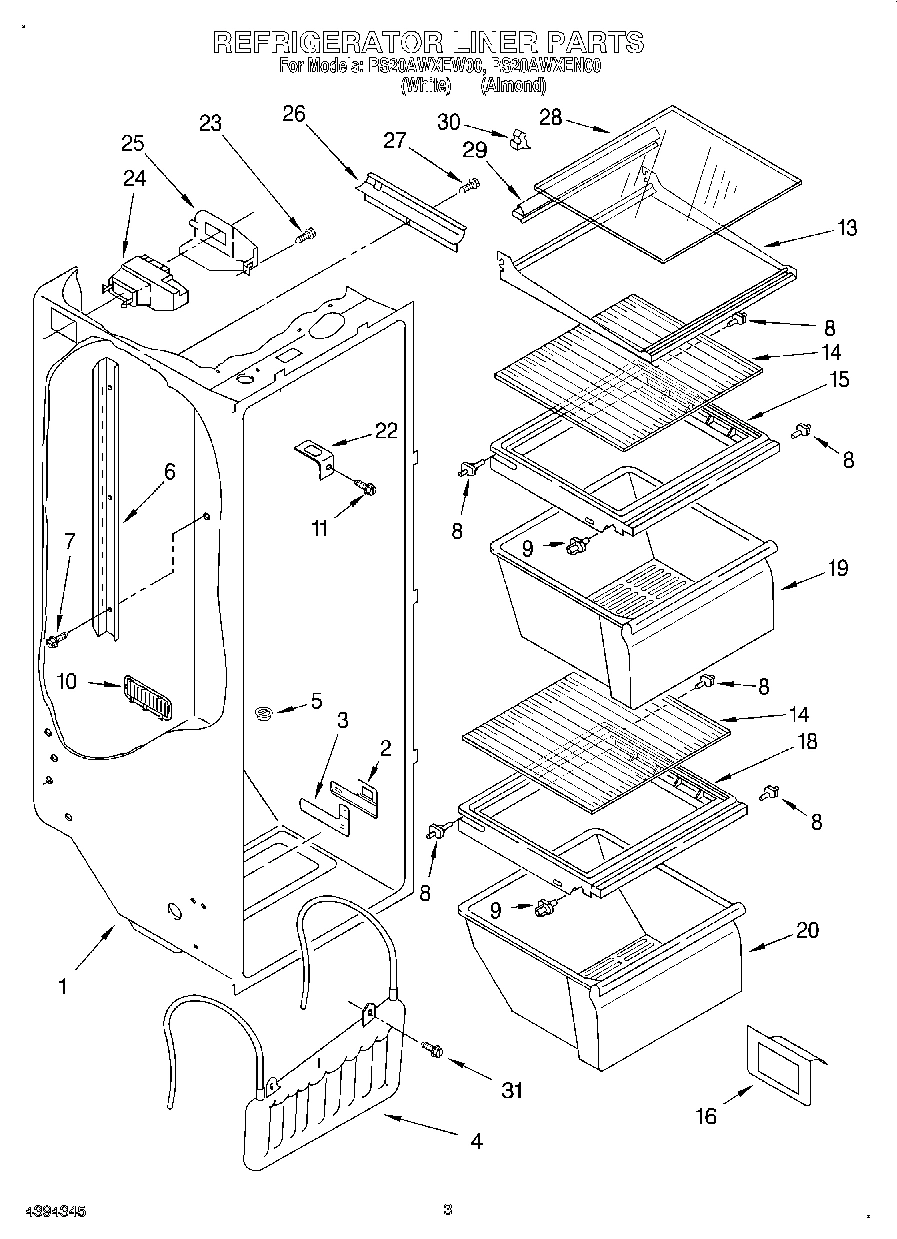

02 - REFRIGERATOR LINER

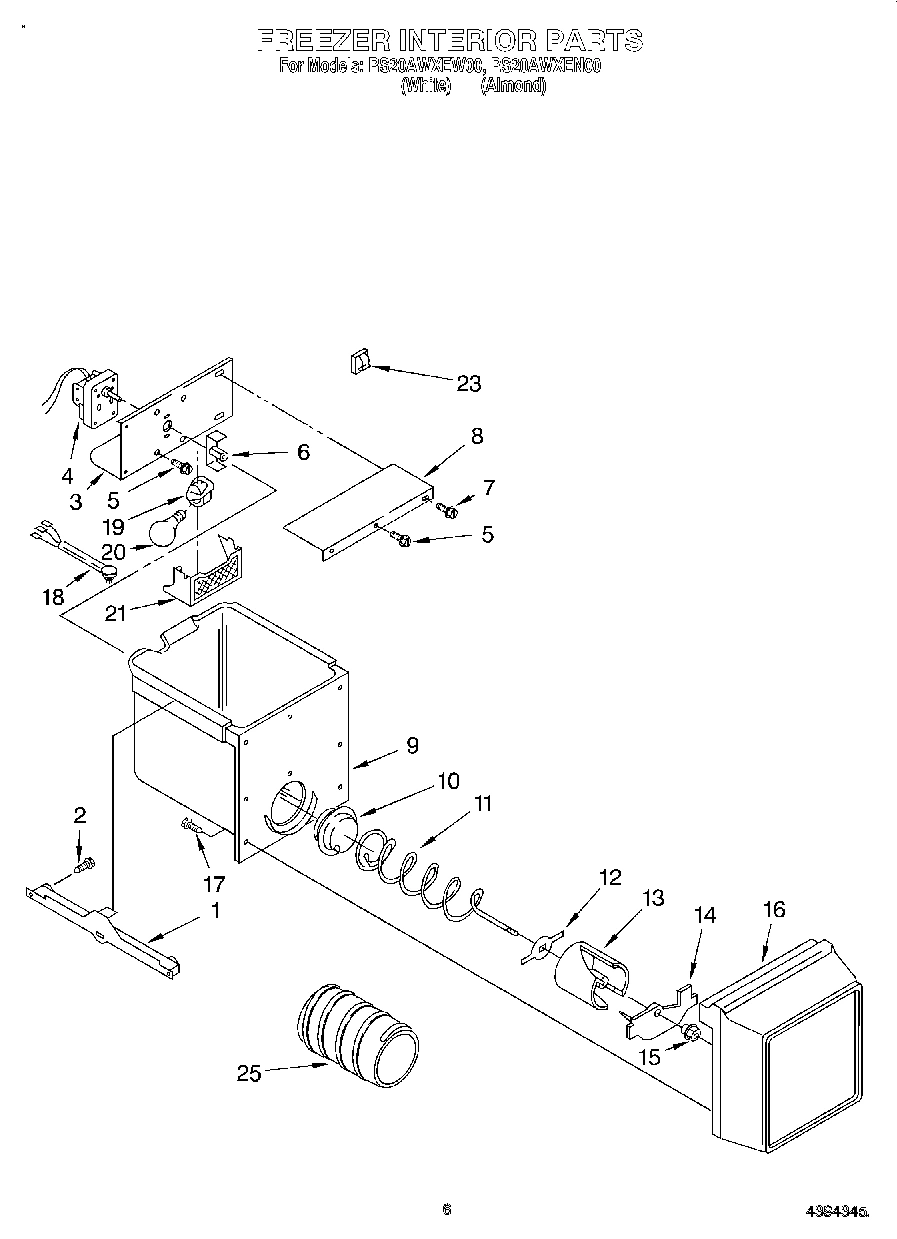

04 - FREEZER INTERIOR

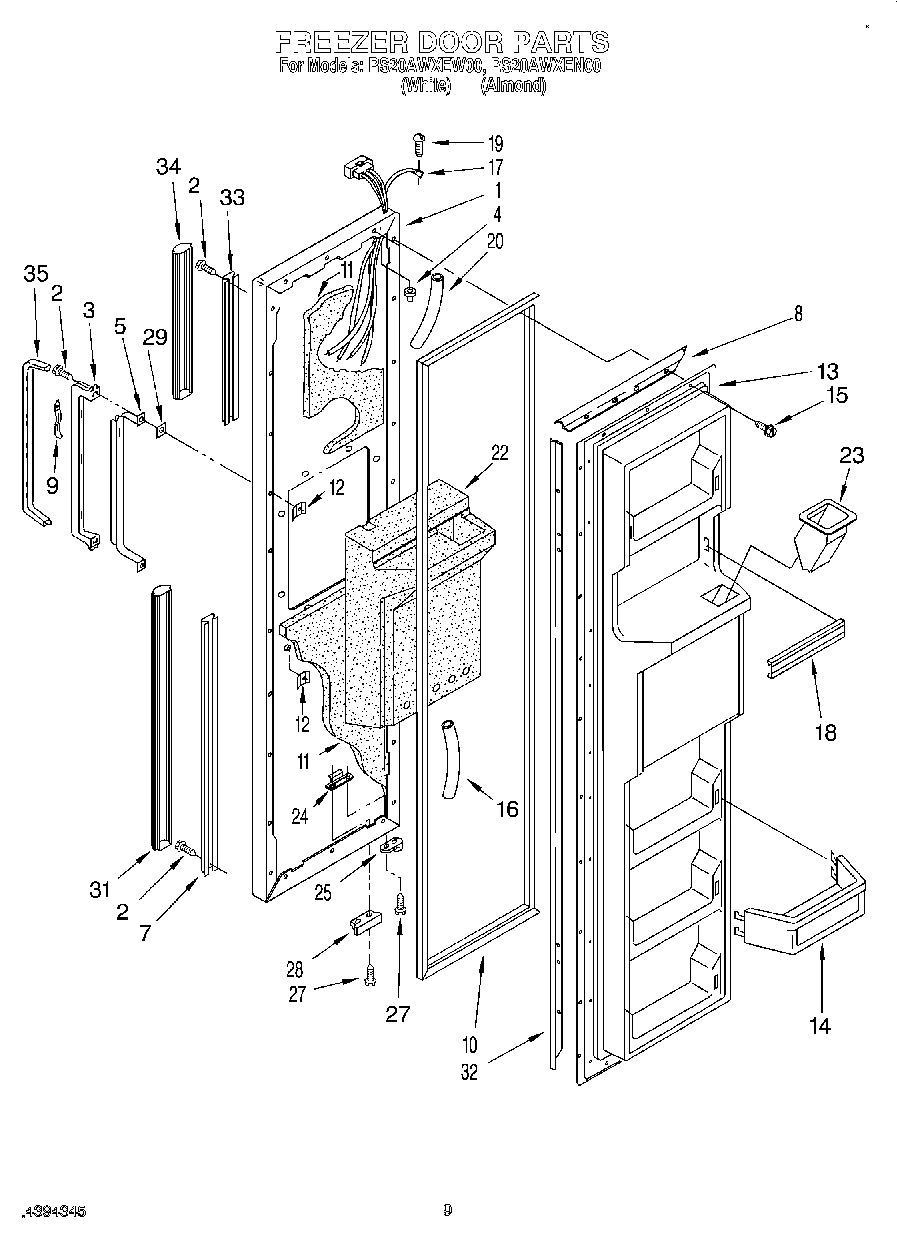

06 - FREEZER DOOR

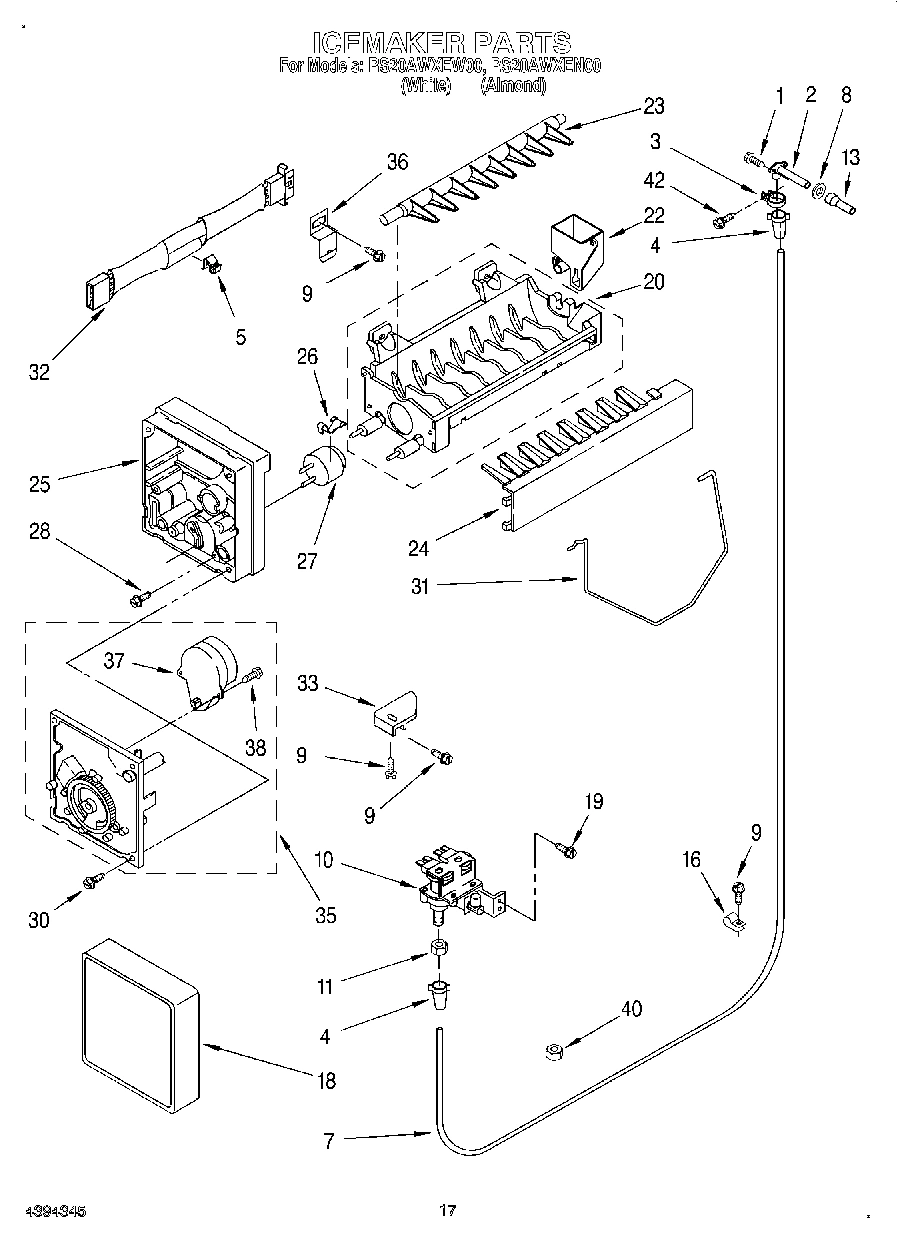

11 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool RS20AWXEW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2179910 WPL LIT2179910 Contact Us For Availability
WPL LIT2189761 WPL LIT2189761 Contact Us For Availability
WPL LIT2194150 WPL LIT2194150 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123761A Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123760A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Handle (White) WPL 2147470 Contact Us For Availability
3
Handle (Almond) WPL 2170066 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Insert Retainer (Bottom) WPL 2147896 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Screw WPL 849445 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
Louver WPL 1127161 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Conveyor WPL 2181954 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2169749 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI123762A Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Harness, Door WPL 2179915 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Harness, Intermediate WPL 2181709 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Glass, Shelf WPL 2173179 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Reflector WPL 1125594 Contact Us For Availability
29
Shim WPL 2147097 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
31
Insert, Bottom (White) WPL 2147471 Contact Us For Availability
31
Insert, Bottom (Almond) WPL 2170068 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Insert Retainer (Top) WPL 2147898 Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
34
Insert, Top (White) WPL 2147472 Contact Us For Availability
34
Insert, Top (Almond) WPL 2170067 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
Insert, Handle WPL 2147581 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174326 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2174333 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173408 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2174304 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
Clip, Wire WPL 2155658 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
