Model Whirlpool RS20AQXFN00 – Common Parts & Diagrams

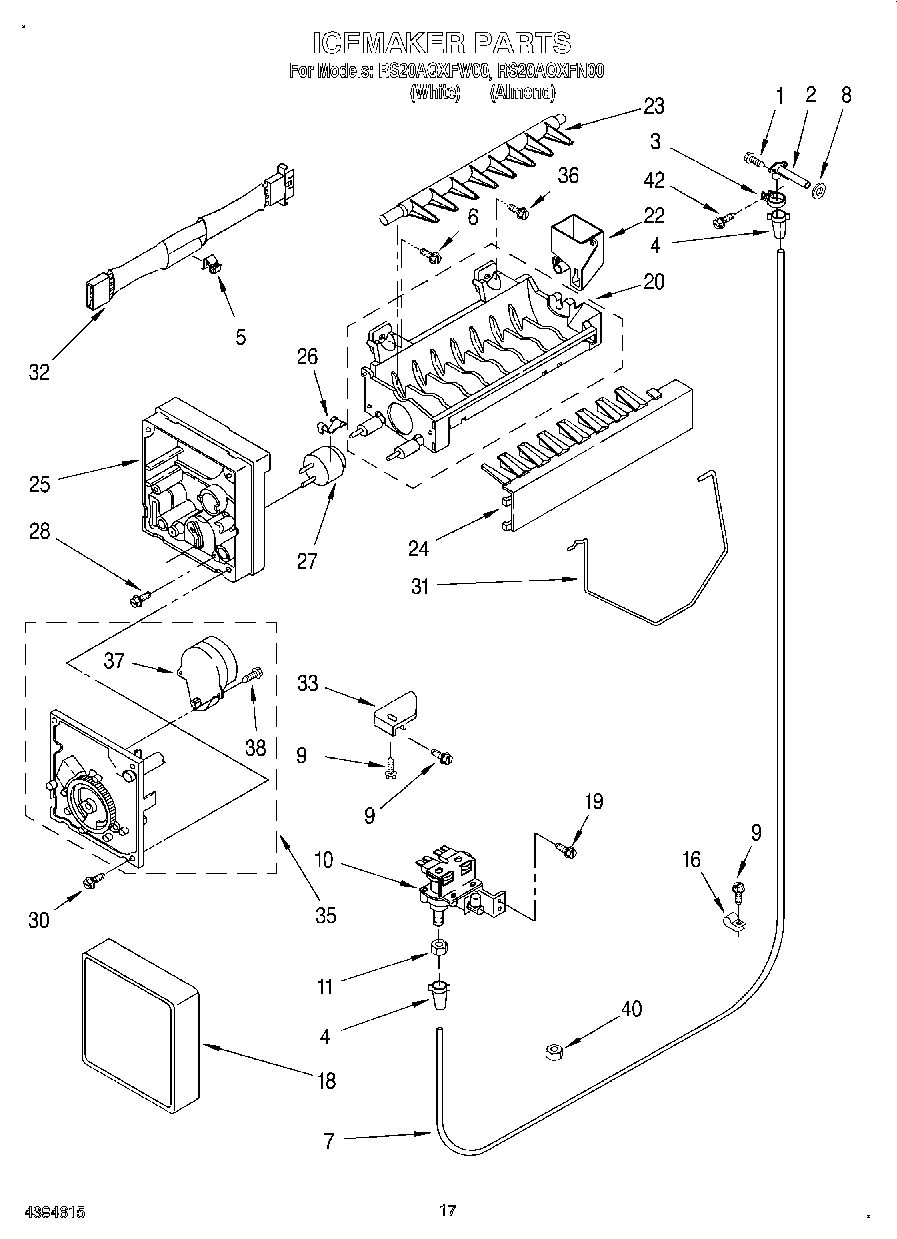

10 - ICEMAKER
04 - AIR FLOW
06 - REFRIGERATOR DOOR
03 - FREEZER LINER
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
09 - UNIT
11 - CONTROL, LIT/OPTIONAL
01 - CABINET
08 - DISPENSER FRONT
02 - REFRIGERATOR LINER
Common parts from model Whirlpool RS20AQXFN00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2194925 WPL LIT2194925 Contact Us For Availability
WPL LIT2198029 WPL LIT2198029 Contact Us For Availability
WPL LIT2198054 WPL LIT2198054 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123737A Contact Us For Availability
1
Housing, Dispenser (White) WPL 2180220 Contact Us For Availability
1
Housing, Dispenser (Almond) WPL 2180221 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123738A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
10
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
10
Louver WPL 2182147 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
12
Extension WPL 2179561 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI123741A Contact Us For Availability
16
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
16
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
17
Grille (White) WPL 2155477 Contact Us For Availability
17
Grille (Almond) WPL 2155478 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2194837N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2194837W Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI123740A Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Chute, Ice WPL 2180204 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194835N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194835W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
25
Hinge Cover (2) (White) WPL 1119787 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
25
Hinge Cover (2) (Almond) WPL 1119789 Contact Us For Availability
26
Harness, Intermediate WPL 2194746 Contact Us For Availability
26
Heater WPL 2198094 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Glass, Shelf WPL 2177978 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
Shim WPL 935075 Contact Us For Availability
29
Ice Crusher Mechanism Assembly WPL 2169939 Contact Us For Availability
29
Ice Container Assembly WPL 2196013 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, B WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Reflector WPL 1125594 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability
31
Insert, Bottom (White) WPL 2194773W Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
33
Insert Retainer (Top) WPL 2194771 Contact Us For Availability
34
Insert, Top (Almond) WPL 2194774N Contact Us For Availability
34
Insert, Top (White) WPL 2194774W Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
35
End Cap WPL 2156220 Contact Us For Availability
37
Seal, Door WPL 2180203 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
Clip, Wire WPL 2155658 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
