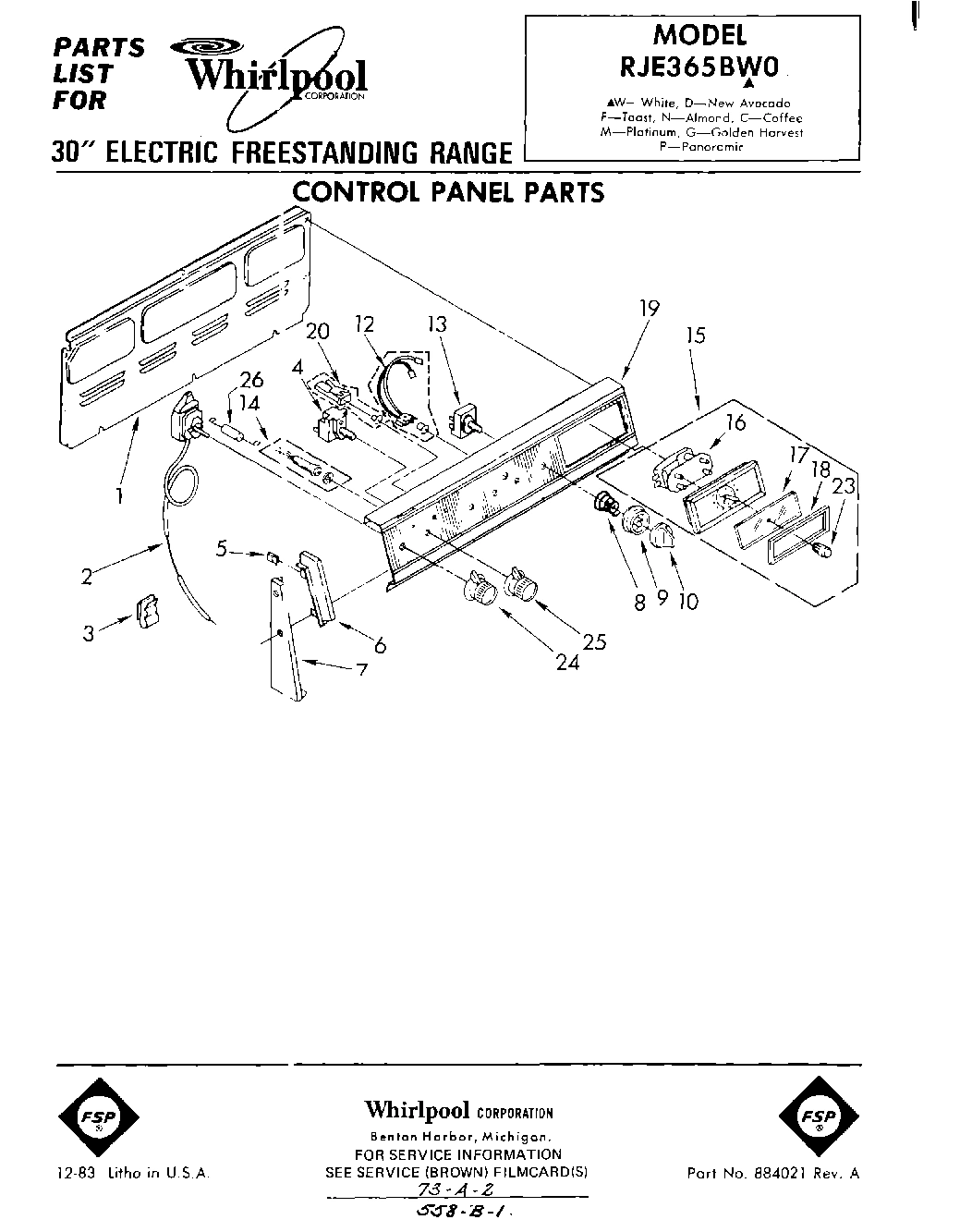

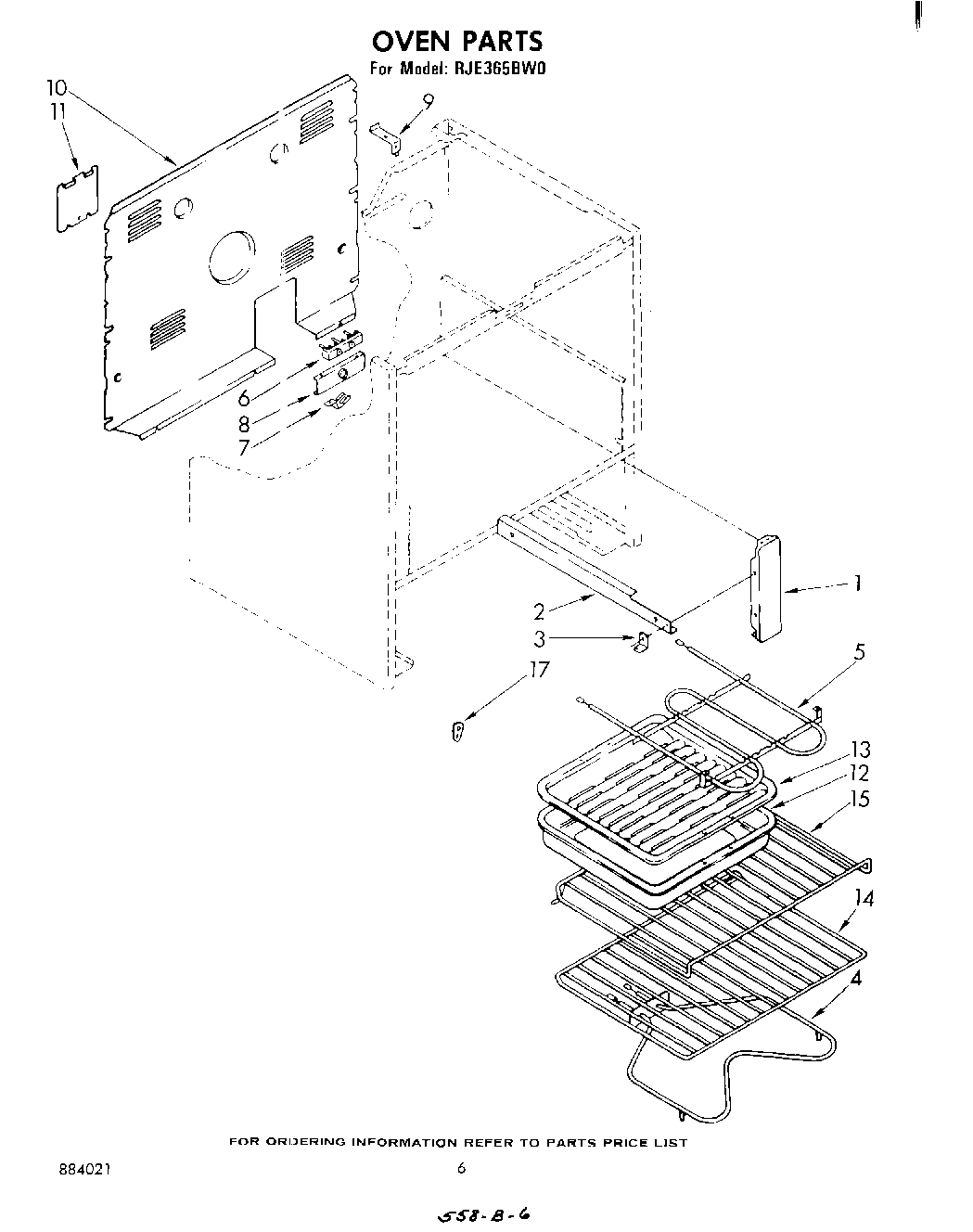

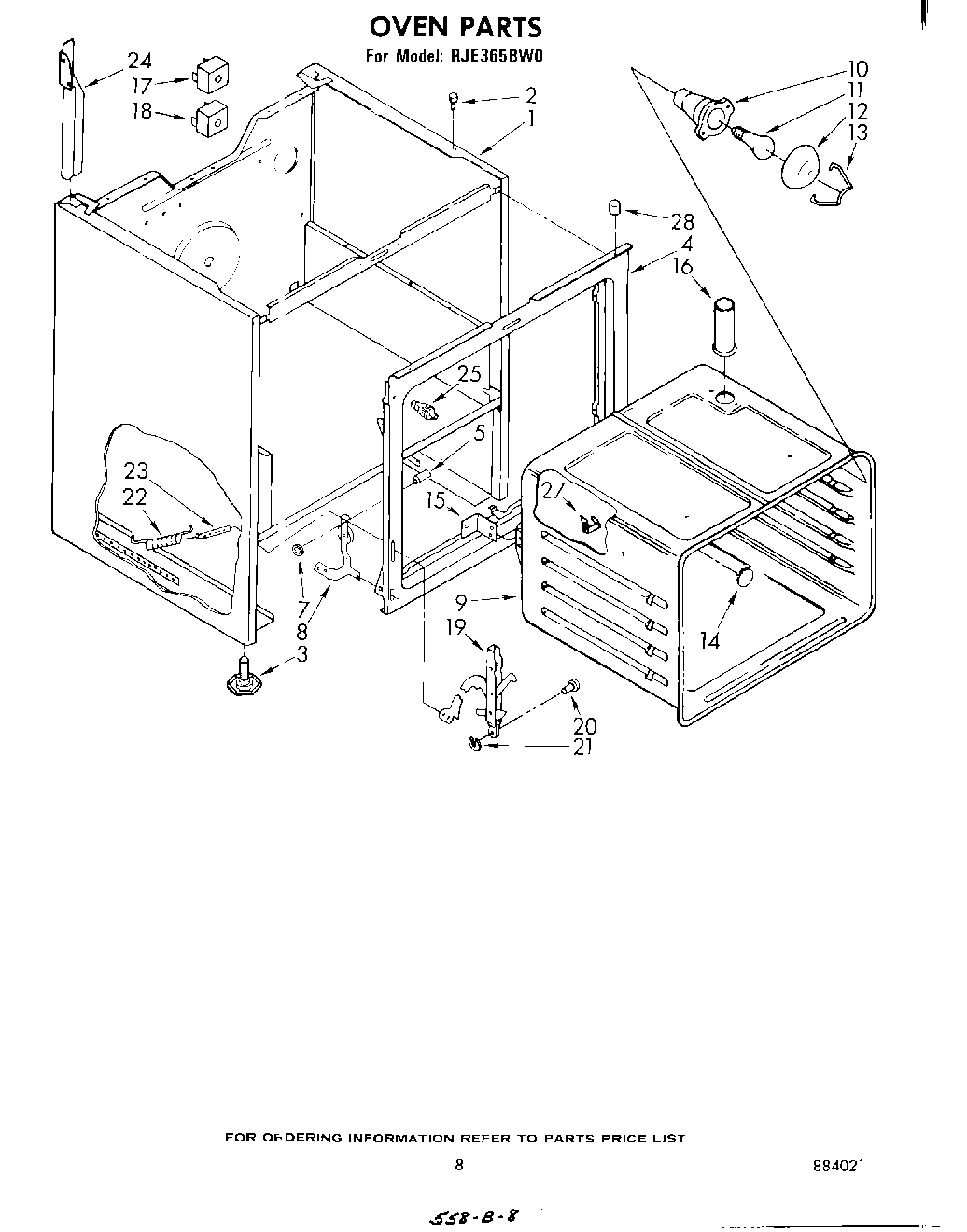

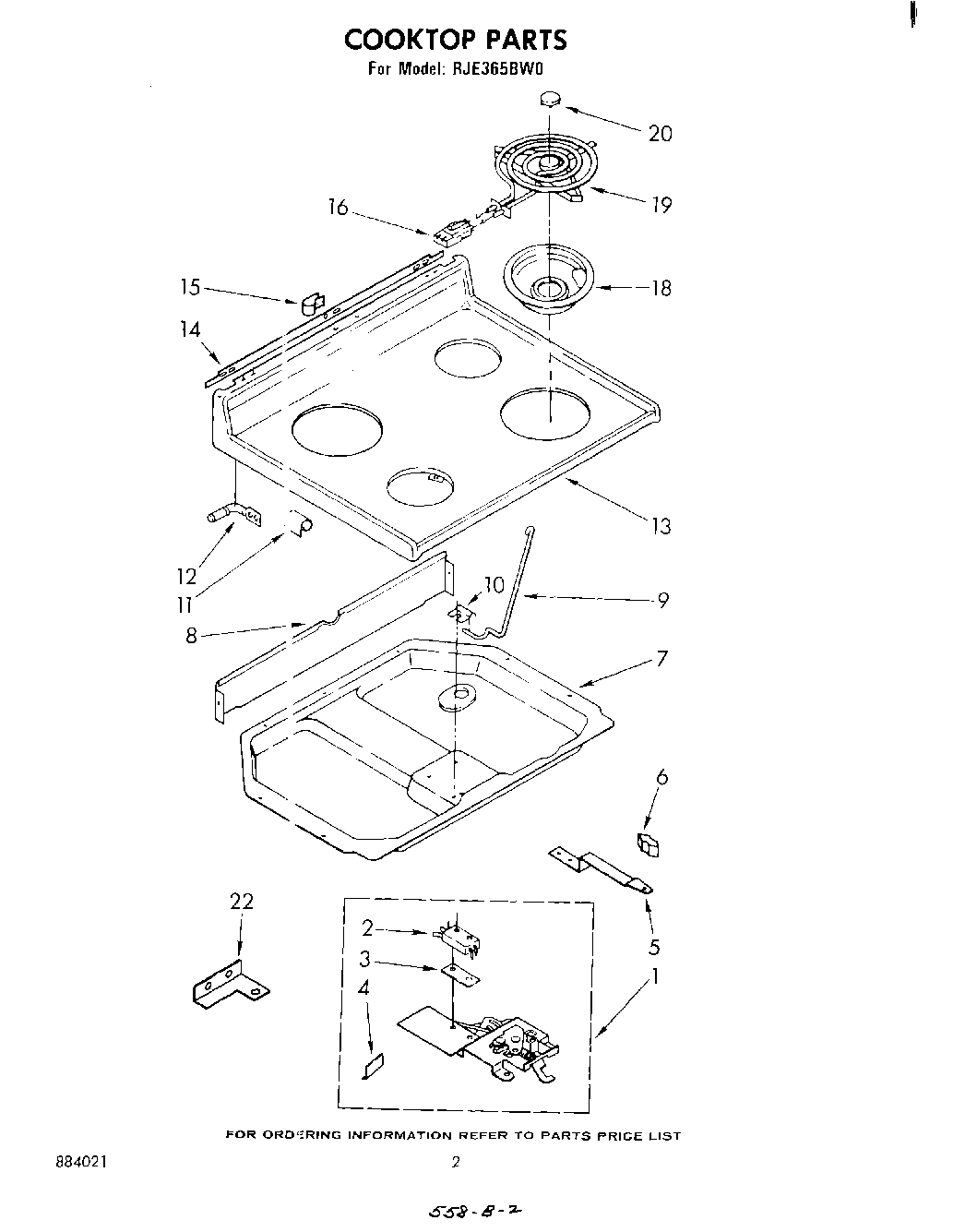

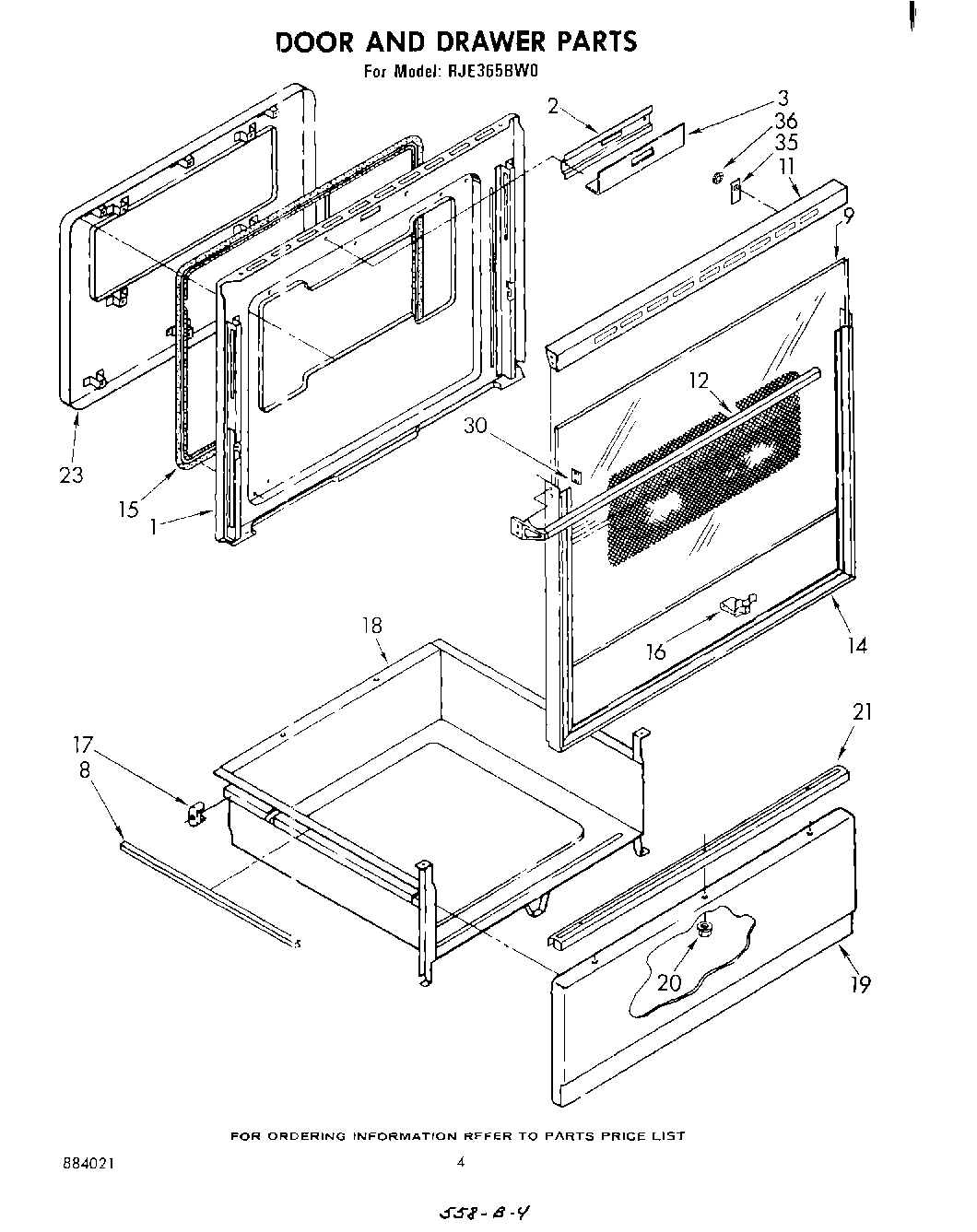

Model Whirlpool RJE365BW0 – Common Parts &amp; Diagrams

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

Main Chassis (White) WPL 327871 Contact Us For Availability

1

Main Chassis (New Avocado) WPL 327872 Contact Us For Availability

1

Main Chassis (Coffee) WPL 327873 Contact Us For Availability

1

Main Chassis (Golden Harvest) WPL 327874 Contact Us For Availability

1

main chassis (almond) WPL 327875 Contact Us For Availability

1

Main Chassis (Toast) WPL 330093 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330094 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 328585 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Cover, Rear WPL 308157 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability

2

rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability

2

Thermostat, Oven WPL 310016 Contact Us For Availability

2

Screw, 6-32 x 1/2 WPL 487384 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Glide, Front (2) WPL 307979 Contact Us For Availability

3

Clip, Tube WPL 309211 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Frame, Front WPL 327886 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Switch, Selector WPL 310009 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Screw (2) WPL 311056 Contact Us For Availability

5

Handle, Latch WPL 307976 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Clip, End Cap WPL 98084 Contact Us For Availability

6

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.90

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 307977 Contact Us For Availability

6

End Cap, R.H. WPL 312864 Contact Us For Availability

6

End Cap, L.H. WPL 312866 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

Pushnut WPL 308306 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

End Trim (R.H.) WPL 308854 Contact Us For Availability

7

End Trim (L.H.) WPL 308858 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Spring, Bezel (4) WPL 307828 Contact Us For Availability

9

Bezel, Control Knob (4) WPL 307456 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

9

Stand-Off (Bracket) WPL 309102 Contact Us For Availability

WP307458 Whirlpool Knob In Stock WPL WP307458 $9.15

Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability

Socket, Lamp (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability

Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability

Retainer, Cooktop WPL 307967 Contact Us For Availability

Cover, Rear WPL 307971 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

11

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

11

Cover, Service WPL 307972 Contact Us For Availability

Handle, Oven Door WPL 312722 Contact Us For Availability

Cover, Light WPL 308039 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Light, Indicator (125V) (Surface Unit) (Inclu WPL 312861 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Retainer, Light WPL 308038 Contact Us For Availability

Cooktop (Golden Harvest) WPL 307863 Contact Us For Availability

Cooktop (Coffee) WPL 307864 Contact Us For Availability

Cooktop (New Avocado) WPL 307865 Contact Us For Availability

Cooktop (White) WPL 307866 Contact Us For Availability

Cooktop (Almond) WPL 307871 Contact Us For Availability

Cooktop (Toast) WPL 313165 Contact Us For Availability

Cooktop (Platinum) WPL 313166 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

Barrier Strip WPL 309232 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Light, Indicator (Oven) (Includes Lens) WPL 310393 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Clock, Complete (Includes 16, 17, 18 & 23) WPL 311997 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Vent, Oven WPL 307961 Contact Us For Availability

Motor, Timer WPL 309822 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

Switch, Broil WPL 310643 Contact Us For Availability

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261810 WPL 261810 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 310615 WPL 310615 Contact Us For Availability

WPL 311982 WPL 311982 Contact Us For Availability

WPL 312718 WPL 312718 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 884021 WPL 884021 Contact Us For Availability

Glass, Clock WPL 312416 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Switch, Bake WPL 310644 Contact Us For Availability

Bezel, Knob WPL 312417 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Channel, Arm (2) WPL 329710 Contact Us For Availability

Control Panel WPL 312510 Contact Us For Availability

Screw, 8A x 5/8 (4) WPL 312604 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

20

Light, Indicator (Lock) (Includes Lens) WPL 310962 Contact Us For Availability

21

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

21

Handle, Drawer WPL 307956 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Screw, 10A x 1/2 WPL 307748 Contact Us For Availability

22

Shield, Insulation WPL 312320 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Panel, Inner WPL 328546 Contact Us For Availability

23

Knob, Timer WPL 308440 Contact Us For Availability

24

Knob, Thermostat WPL 328709 Contact Us For Availability

24

Support, Channel (R.H.) WPL 308131 Contact Us For Availability

24

Support, Channel (L.H.) WPL 308132 Contact Us For Availability

25

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

25

Switch, Door WPL 310345 Contact Us For Availability

25

Knob, Selector WPL 328707 Contact Us For Availability

26

Resistor & Terminal WPL 328923 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

30

Clip (2) WPL 311506 Contact Us For Availability

35

Clip (2) WPL 310705 Contact Us For Availability

36

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51
