Model Whirlpool RJE330PW0 – Common Parts & Diagrams

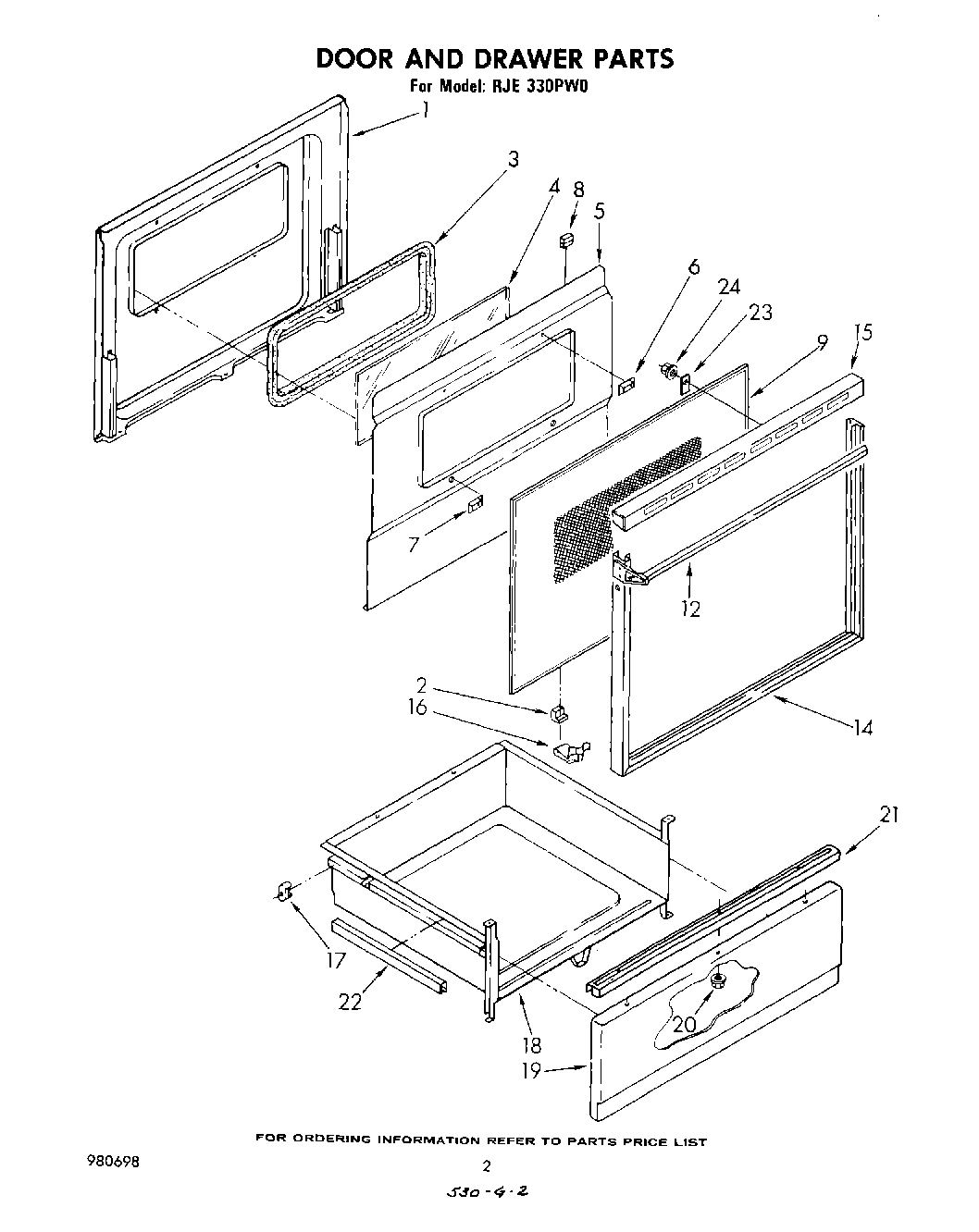

02 - DOOR AND DRAWER, LIT/OPTIONAL
05 - SECTION

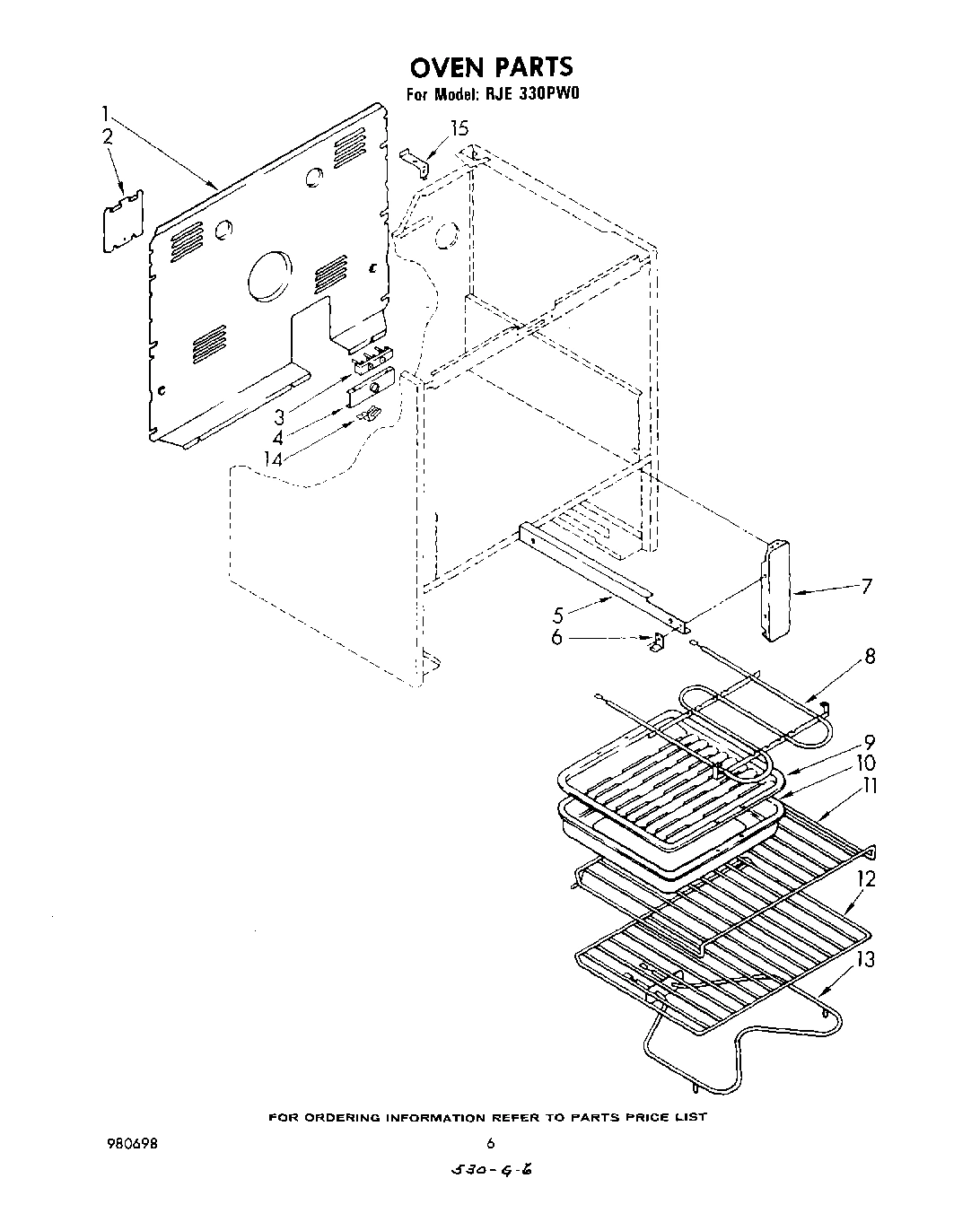

04 - OVEN
01 - COOKTOP
03 - CONTROL PANEL
Common parts from model Whirlpool RJE330PW0
WPL 799344 WPL 799344 Contact Us For Availability
1
Cover, Rear WPL 307971 Contact Us For Availability
1
Main Chassis (White) WPL 329962 Contact Us For Availability
1
Main Chassis (New Avocado) WPL 329963 Contact Us For Availability
1
Main Chassis (Coffee) WPL 329964 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 329965 Contact Us For Availability
1
Main Chassis (Almond) WPL 329966 Contact Us For Availability
1
Main Chassis (Toast) WPL 330093 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330094 Contact Us For Availability
1
Cover, Rear WPL 308157 Contact Us For Availability
2
Cover, Access WPL 307972 Contact Us For Availability
2
Cooktop (Golden Harvest) WPL 307863 Contact Us For Availability
2
Cooktop (Coffee) WPL 307864 Contact Us For Availability
2
Cooktop (New Avocado) WPL 307865 Contact Us For Availability
2
Cooktop (White) WPL 307866 Contact Us For Availability
2
Cooktop (Almond) WPL 307871 Contact Us For Availability
2
Cooktop (Toast) WPL 313165 Contact Us For Availability
2
Cooktop (Platinum) WPL 313166 Contact Us For Availability
2
Thermostat, Oven (Alternate) WPL 308483 Contact Us For Availability
2
Thermostat, Oven (Alternate) WPL 308789 Contact Us For Availability
2
Thermostat, Oven (Screw, 6-32 x 1/2) WPL 487384 Contact Us For Availability
3
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
3
Clip, Tube WPL 309211 Contact Us For Availability
4
Bracket, Service WPL 307970 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
4
Hinge Pin, Cooktop WPL 307966 Contact Us For Availability
4
Switch, Selector WPL 310348 Contact Us For Availability
5
Rail, R.H. (Includes Illus. 6) WPL 307982 Contact Us For Availability
5
Rail, L.H. (Includes Illus. 6) WPL 307983 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
6
Glide, Front (2) WPL 307979 Contact Us For Availability
6
Burner Box WPL 307929 Contact Us For Availability
6
End Cap, R.H. WPL 312864 Contact Us For Availability
6
End Cap, L.H. WPL 312866 Contact Us For Availability
7
Bracket, Mounting WPL 307981 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Medallion (4) WPL 309926 Contact Us For Availability
7
End Trim (R.H.) WPL 308854 Contact Us For Availability
7
End Trim (L.H.) WPL 308858 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Spring, Bezel (4) WPL 307828 Contact Us For Availability
9
Bezel, Control Knob (4) WPL 307456 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Continuous Clean) WPL 329001 Contact Us For Availability
9
Barrier WPL 309232 Contact Us For Availability
10
Socket, Light (Oven) (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Light (Oven) (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
10
Socket, Light (Oven) (Alternate) WPL 310208 Contact Us For Availability
11
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
11
Switch, Pushbutton WPL 255335 Contact Us For Availability
12
Handle, Oven Door WPL 312722 Contact Us For Availability
12
Rack, Oven WPL 308173 Contact Us For Availability
12
Plug Button WPL 257314 Contact Us For Availability
12
Rod, Cooktop WPL 307968 Contact Us For Availability
12
Light, Indicator (Surface Unit) (Includes Ill WPL 312861 Contact Us For Availability
13
Seal, Oven WPL 309107 Contact Us For Availability
13
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
13
Retainer, Cooktop WPL 307967 Contact Us For Availability
14
Ground Strap WPL 308498 Contact Us For Availability
14
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
14
Light, Indicator (Oven) WPL 310393 Contact Us For Availability
15
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
15
Bracket, Stand-Off (2) WPL 309102 Contact Us For Availability
15
Vent, Oven WPL 307960 Contact Us For Availability
15
Clock, Complete (Includes 16, 17, 18 & 23) WPL 308147 Contact Us For Availability
16
Motor, Timer WPL 308442 Contact Us For Availability
17
Channel, Arm (2) WPL 329712 Contact Us For Availability
17
Glass, Clock WPL 308441 Contact Us For Availability
18
Spring, Door Stop (2) WPL 308207 Contact Us For Availability
18
Bezel, Knob WPL 258851 Contact Us For Availability
19
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
19
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
19
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
19
Control Panel WPL 312507 Contact Us For Availability
19
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
20
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
21
Handle, Drawer WPL 307956 Contact Us For Availability
22
Protector, Drawer WPL 309329 Contact Us For Availability
22
Lens, Red (2) WPL 309221 Contact Us For Availability
23
Clip (2) WPL 310705 Contact Us For Availability
23
Support, Channel (R.H.) WPL 308131 Contact Us For Availability
23
Support, Channel (L.H.) WPL 308132 Contact Us For Availability
23
Knob, Timer WPL 308440 Contact Us For Availability
24
Knob, Thermostat WPL 328709 Contact Us For Availability
24
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
24
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
24
Wire (14 Ga WPL 242830 Contact Us For Availability
24
WPL 242832 WPL 242832 Contact Us For Availability
24
WPL 261582 WPL 261582 Contact Us For Availability
24
WPL 261886 WPL 261886 Contact Us For Availability
24
WPL 261888 WPL 261888 Contact Us For Availability
24
WPL 261890 WPL 261890 Contact Us For Availability
24
WPL 285365 WPL 285365 Contact Us For Availability
24
WPL 285366 WPL 285366 Contact Us For Availability
24
WPL 308500 WPL 308500 Contact Us For Availability
24
WPL 310598 WPL 310598 Contact Us For Availability
24
WPL 312618 WPL 312618 Contact Us For Availability
24
WPL 72108 WPL 72108 Contact Us For Availability
24
WPL 72112 WPL 72112 Contact Us For Availability
24
WPL 799351 WPL 799351 Contact Us For Availability
24
WPL 799832 WPL 799832 Contact Us For Availability
24
WPL 980698 WPL 980698 Contact Us For Availability
24
Plug Button WPL 308535 Contact Us For Availability
25
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
25
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
25
Knob, Selector WPL 328707 Contact Us For Availability
× ![]()
