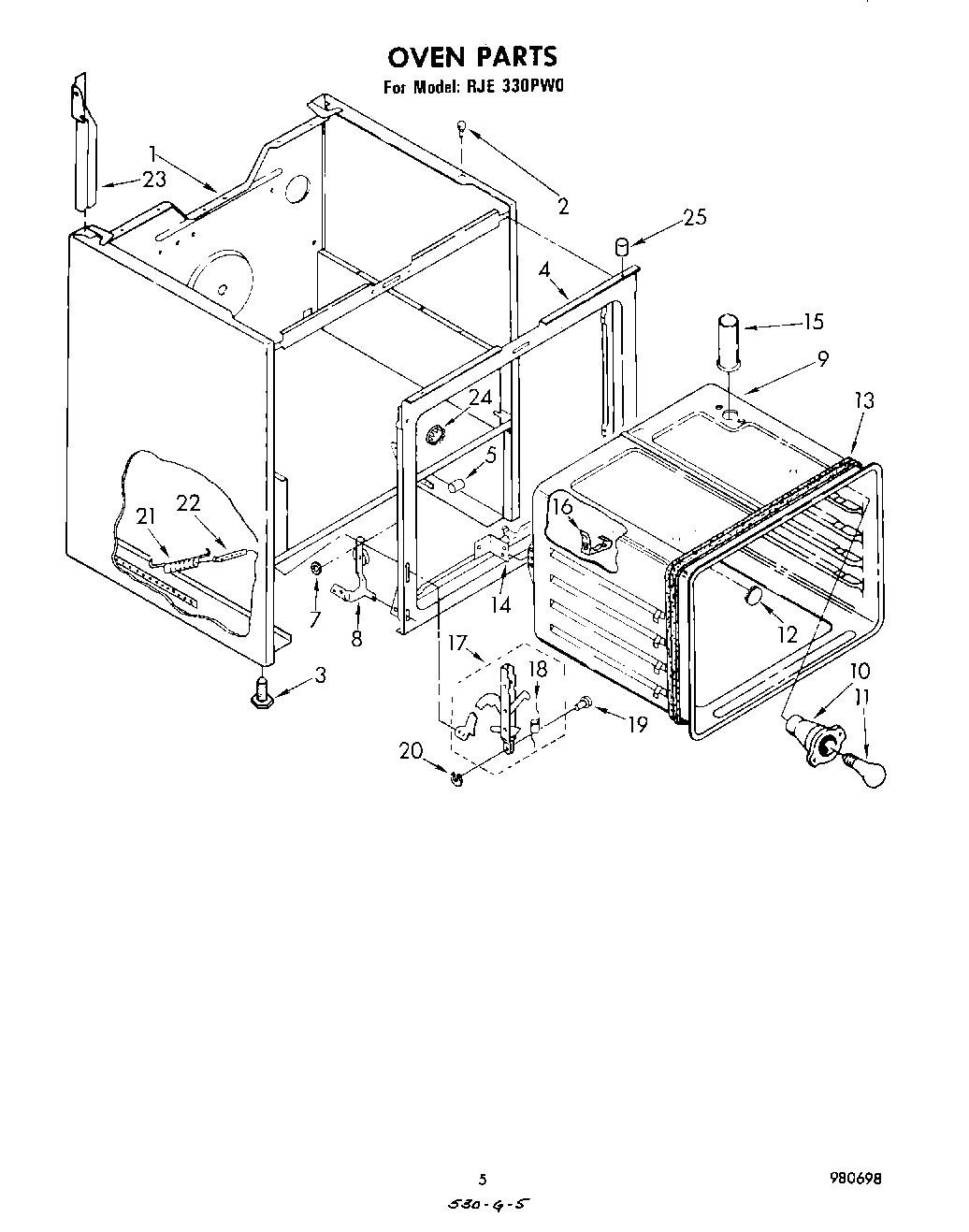

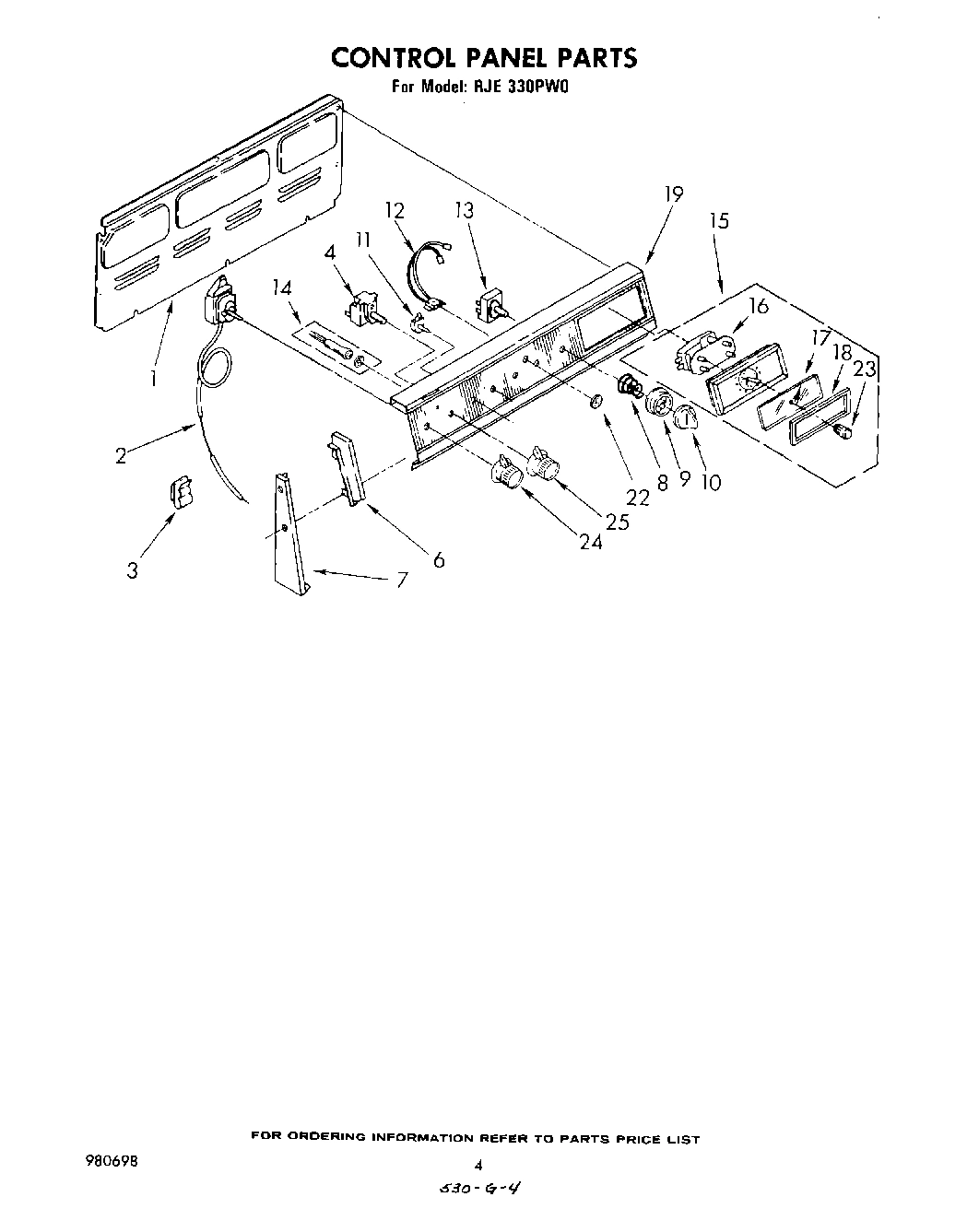

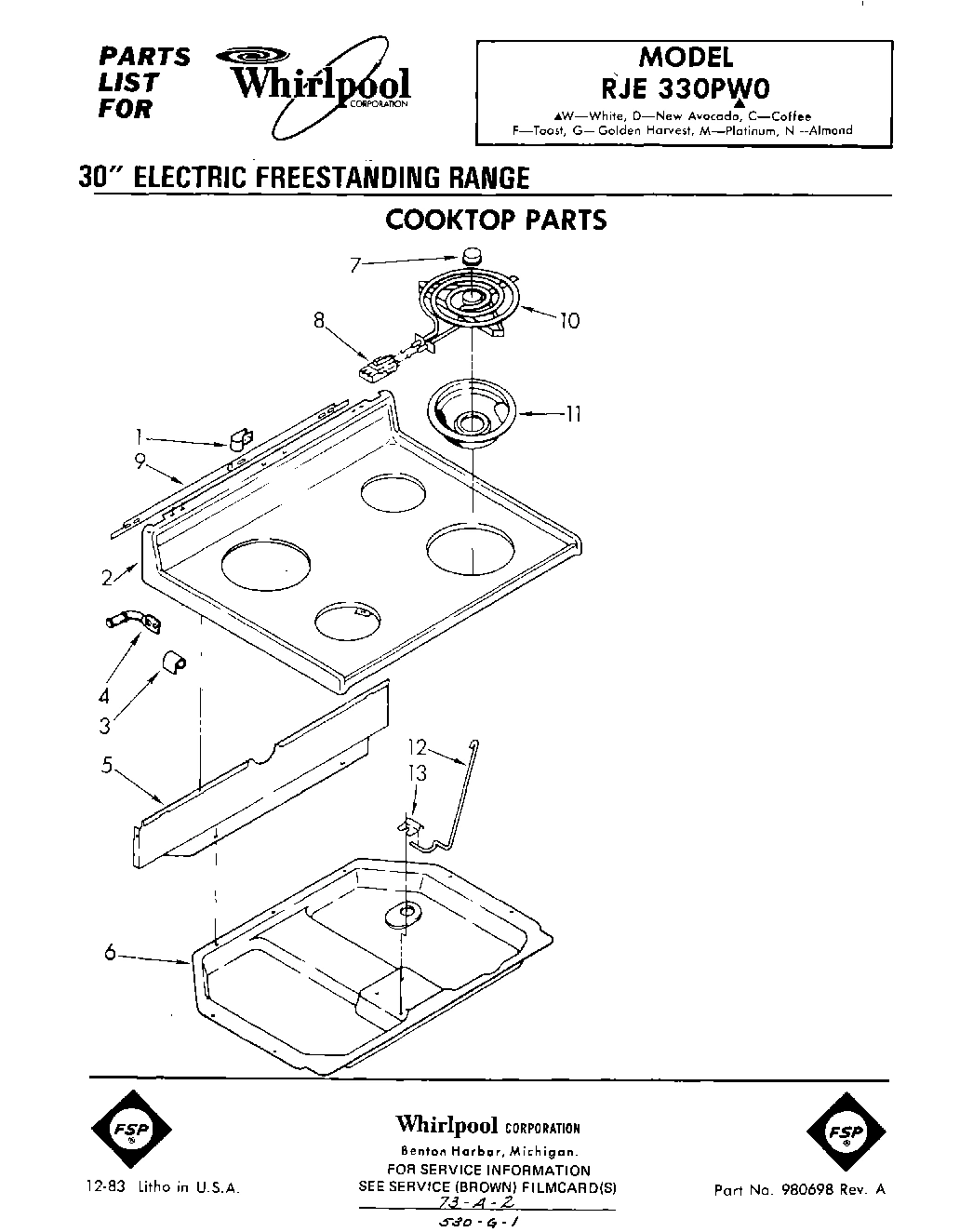

Model Whirlpool RJE330PW0 – Common Parts &amp; Diagrams

1

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

1

Cover, Rear WPL 307971 Contact Us For Availability

1

Main Chassis (White) WPL 329962 Contact Us For Availability

1

Main Chassis (New Avocado) WPL 329963 Contact Us For Availability

1

Main Chassis (Coffee) WPL 329964 Contact Us For Availability

1

Main Chassis (Harvest Gold) WPL 329965 Contact Us For Availability

1

Main Chassis (Almond) WPL 329966 Contact Us For Availability

1

Main Chassis (Toast) WPL 330093 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330094 Contact Us For Availability

1

Cover, Rear WPL 308157 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Cover, Access WPL 307972 Contact Us For Availability

2

Cooktop (Golden Harvest) WPL 307863 Contact Us For Availability

2

Cooktop (Coffee) WPL 307864 Contact Us For Availability

2

Cooktop (New Avocado) WPL 307865 Contact Us For Availability

2

Cooktop (White) WPL 307866 Contact Us For Availability

2

Cooktop (Almond) WPL 307871 Contact Us For Availability

2

Cooktop (Toast) WPL 313165 Contact Us For Availability

2

Cooktop (Platinum) WPL 313166 Contact Us For Availability

2

Thermostat, Oven (Alternate) WPL 308483 Contact Us For Availability

2

Thermostat, Oven (Alternate) WPL 308789 Contact Us For Availability

2

Thermostat, Oven (Screw, 6-32 x 1/2) WPL 487384 Contact Us For Availability

3

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

3

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

3

Bracket, Cooktop WPL 307965 Contact Us For Availability

3

Clip, Tube WPL 309211 Contact Us For Availability

4

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

4

Bracket, Service WPL 307970 Contact Us For Availability

4

Frame, Front WPL 327886 Contact Us For Availability

4

Hinge Pin, Cooktop WPL 307966 Contact Us For Availability

4

Switch, Selector WPL 310348 Contact Us For Availability

5

Rail, R.H. (Includes Illus. 6) WPL 307982 Contact Us For Availability

5

Rail, L.H. (Includes Illus. 6) WPL 307983 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Shield, Wiring WPL 307973 Contact Us For Availability

6

Glide, Front (2) WPL 307979 Contact Us For Availability

6

Burner Box WPL 307929 Contact Us For Availability

6

End Cap, R.H. WPL 312864 Contact Us For Availability

6

End Cap, L.H. WPL 312866 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

Bracket, Mounting WPL 307981 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Medallion (4) WPL 309926 Contact Us For Availability

7

End Trim (R.H.) WPL 308854 Contact Us For Availability

7

End Trim (L.H.) WPL 308858 Contact Us For Availability

8

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

8

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

8

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

8

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Spring, Bezel (4) WPL 307828 Contact Us For Availability

9

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

9

Bezel, Control Knob (4) WPL 307456 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Continuous Clean) WPL 329001 Contact Us For Availability

9

Barrier WPL 309232 Contact Us For Availability

WP307458 Whirlpool Knob In Stock WPL WP307458 $9.15

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Socket, Light (Oven) (Alternate) WPL 307856 Contact Us For Availability

Socket, Light (Oven) (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability

Socket, Light (Oven) (Alternate) WPL 310208 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Switch, Pushbutton WPL 255335 Contact Us For Availability

Handle, Oven Door WPL 312722 Contact Us For Availability

Rack, Oven WPL 308173 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

Rod, Cooktop WPL 307968 Contact Us For Availability

Light, Indicator (Surface Unit) (Includes Ill WPL 312861 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Seal, Oven WPL 309107 Contact Us For Availability

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

Retainer, Cooktop WPL 307967 Contact Us For Availability

14

Ground Strap WPL 308498 Contact Us For Availability

14

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

14

Light, Indicator (Oven) WPL 310393 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Bracket, Stand-Off (2) WPL 309102 Contact Us For Availability

Vent, Oven WPL 307960 Contact Us For Availability

Clock, Complete (Includes 16, 17, 18 & 23) WPL 308147 Contact Us For Availability

16

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

16

Motor, Timer WPL 308442 Contact Us For Availability

17

Channel, Arm (2) WPL 329712 Contact Us For Availability

17

Glass, Clock WPL 308441 Contact Us For Availability

18

Spring, Door Stop (2) WPL 308207 Contact Us For Availability

18

Bezel, Knob WPL 258851 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

Control Panel WPL 312507 Contact Us For Availability

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

20

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 $2.38

20

Ring, Retainer (2) WPL 307594 Contact Us For Availability

21

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

21

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

21

Handle, Drawer WPL 307956 Contact Us For Availability

22

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

22

Protector, Drawer WPL 309329 Contact Us For Availability

22

Lens, Red (2) WPL 309221 Contact Us For Availability

Clip (2) WPL 310705 Contact Us For Availability

Support, Channel (R.H.) WPL 308131 Contact Us For Availability

Support, Channel (L.H.) WPL 308132 Contact Us For Availability

Knob, Timer WPL 308440 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

Knob, Thermostat WPL 328709 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 310598 WPL 310598 Contact Us For Availability

WPL 312618 WPL 312618 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 980698 WPL 980698 Contact Us For Availability

Plug Button WPL 308535 Contact Us For Availability

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

Knob, Selector WPL 328707 Contact Us For Availability
