Model Whirlpool RJE313PP1 – Common Parts & Diagrams

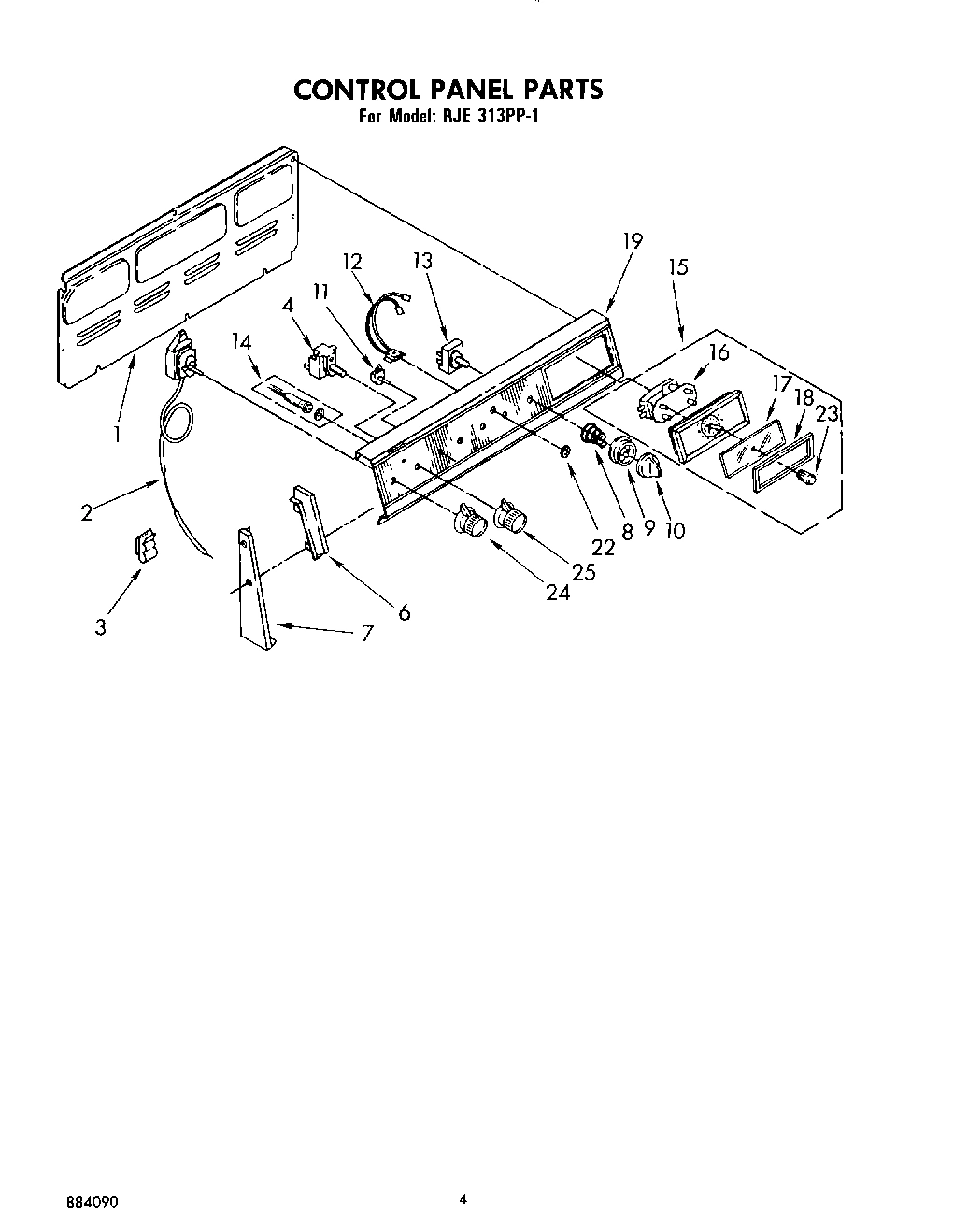

03 - CONTROL PANEL

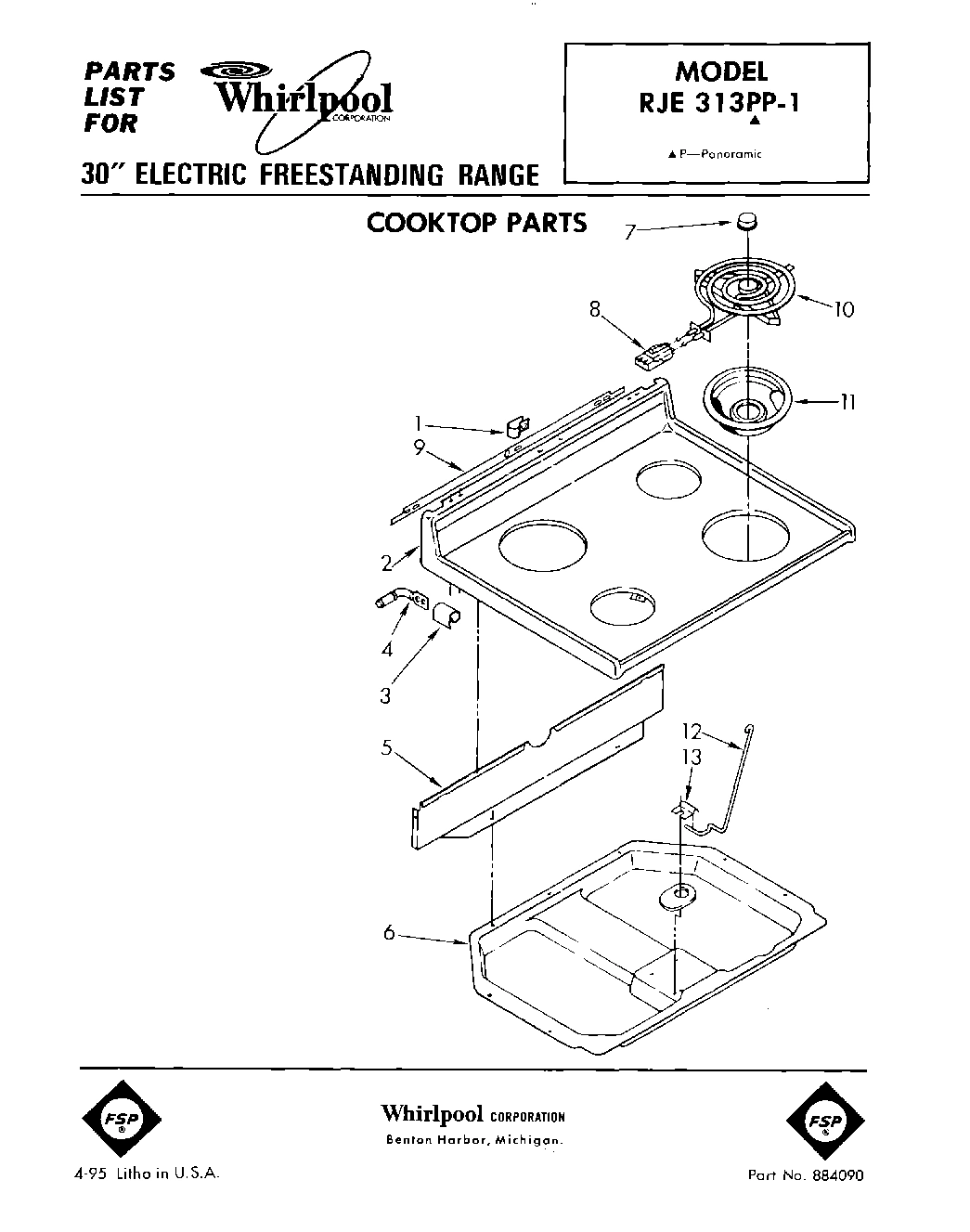

01 - COOK TOP
02 - DOOR AND DRAWER, LIT/OPTIONAL
04 - OVEN
05 - OVEN
Common parts from model Whirlpool RJE313PP1
WPL 285368 WPL 285368 Contact Us For Availability
1
Clip (2) WPL 311506 Contact Us For Availability
1
Liner, Door WPL 329687 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330092 Contact Us For Availability
1
Cover, Rear WPL 307971 Contact Us For Availability
2
Cooktop (Chrome) WPL 309922 Contact Us For Availability
2
Support, Channel (R.H.) WPL 308131 Contact Us For Availability
2
Support, Channel (L.H.) WPL 308132 Contact Us For Availability
2
Cover, Access WPL 307972 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
3
Seal, Glass WPL 258711 Contact Us For Availability
3
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
4
Hinge Pin, Cooktop WPL 307966 Contact Us For Availability
4
Glass, Inner WPL 258988 Contact Us For Availability
4
Ring, Retainer WPL 307594 Contact Us For Availability
4
Bracket, Service WPL 307970 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
5
baffle, insulation WPL 307924 Contact Us For Availability
5
Hinge (R.H.) WPL 327890 Contact Us For Availability
5
Hinge (L.H.) WPL 327891 Contact Us For Availability
5
Rail, R.H. (Includes Illus. 6) WPL 307982 Contact Us For Availability
5
Rail, L.H. (Includes Illus. 6) WPL 307983 Contact Us For Availability
6
Burner Box WPL 307929 Contact Us For Availability
6
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
6
Glide, Front (2) WPL 307979 Contact Us For Availability
7
Medallion (4) WPL 309195 Contact Us For Availability
7
Spacer, Baffle WPL 258990 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Bracket, Mounting WPL 307981 Contact Us For Availability
8
Channel, Rubber WPL 312783 Contact Us For Availability
8
Pin, Hinge WPL 307985 Contact Us For Availability
9
Bezel, Control Knob (4) WPL 307456 Contact Us For Availability
9
Barrier Strip WPL 309232 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Channel Arm WPL 329712 Contact Us For Availability
10
Spring, Oven Door WPL 308127 Contact Us For Availability
11
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
12
Handle, Oven Door WPL 312722 Contact Us For Availability
12
Rod, Cooktop WPL 307968 Contact Us For Availability
12
Frame, Front WPL 327886 Contact Us For Availability
12
Rack, Oven WPL 308173 Contact Us For Availability
13
Retainer, Cooktop WPL 307967 Contact Us For Availability
13
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
13
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
14
Light, Indicator (Oven) WPL 310393 Contact Us For Availability
14
Frame, Door WPL 310427 Contact Us For Availability
14
Vent, Oven WPL 307960 Contact Us For Availability
14
Ground Strap WPL 308498 Contact Us For Availability
15
Seal, Oven WPL 309107 Contact Us For Availability
15
Clock, Complete (Includes 16, 17, 18 & 23) WPL 308147 Contact Us For Availability
15
Top, Door Frame WPL 310428 Contact Us For Availability
15
Bracket, Stand-Off (2) WPL 309102 Contact Us For Availability
16
Motor, Timer WPL 308442 Contact Us For Availability
16
Screw, 10A x 1/2 (3) WPL 311056 Contact Us For Availability
16
clip, glass (10) WPL 310706 Contact Us For Availability
16
Oven WPL 329000 Contact Us For Availability
17
Glass, Clock WPL 308441 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
17
Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability
17
Socket, Lamp (Screw, 10-12 x 5/8) WPL 308043 Contact Us For Availability
17
Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability
18
Bezel, Knob WPL 258851 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Control Panel WPL 312500 Contact Us For Availability
19
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
19
Panel Drawer (Black) WPL 309923 Contact Us For Availability
19
Plug Button WPL 257314 Contact Us For Availability
20
Spring, Door Stop WPL 308207 Contact Us For Availability
21
Handle, Drawer WPL 313337 Contact Us For Availability
22
Lens, Red WPL 309221 Contact Us For Availability
22
Protector, Drawer WPL 309329 Contact Us For Availability
23
Knob, Timer WPL 308440 Contact Us For Availability
23
Clip (2) WPL 310705 Contact Us For Availability
24
Knob, Thermostat WPL 328709 Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
24
Grease WPL 261582 Contact Us For Availability
24
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
24
Book, Cooking Guide WPL 308500 Contact Us For Availability
24
Guide, Use & Care WPL 310595 Contact Us For Availability
24
Instructions, Installation WPL 312718 Contact Us For Availability
24
WPL 799351 WPL 799351 Contact Us For Availability
24
WPL 884090 WPL 884090 Contact Us For Availability
24
Plug Button WPL 308535 Contact Us For Availability
25
Knob, Selector WPL 328707 Contact Us For Availability
26
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
26
locator, cooktop WPL 311909 Contact Us For Availability
× ![]()
