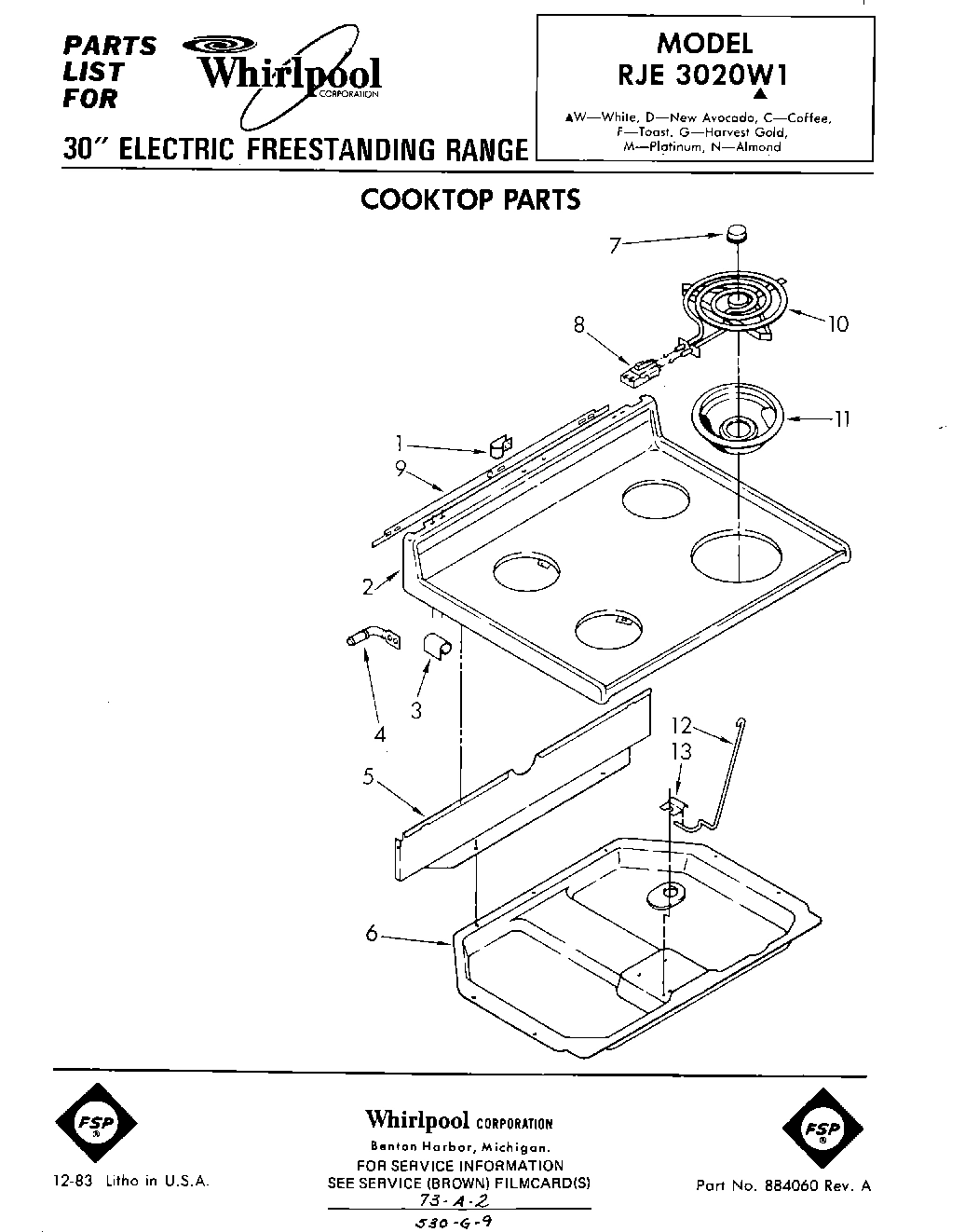

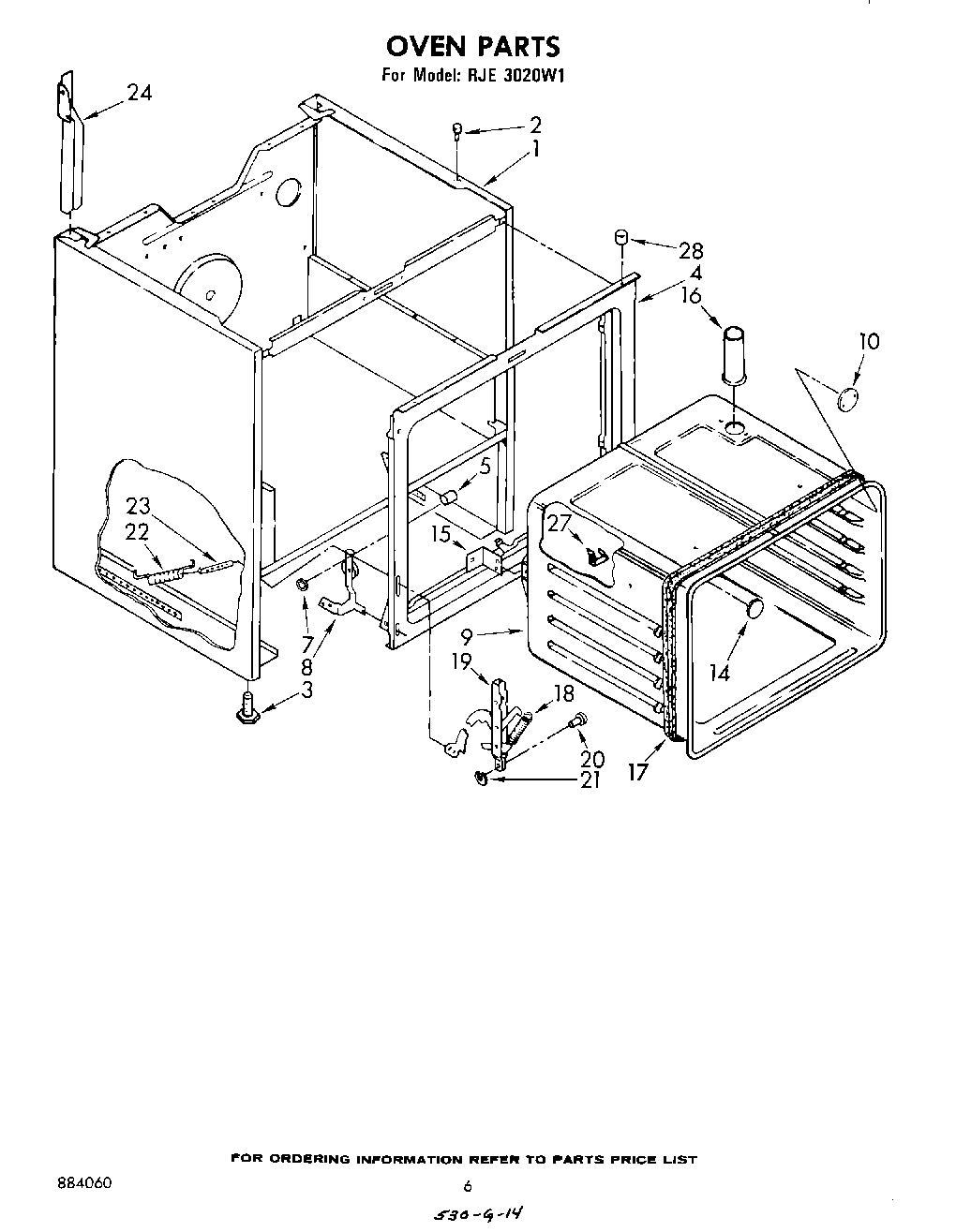

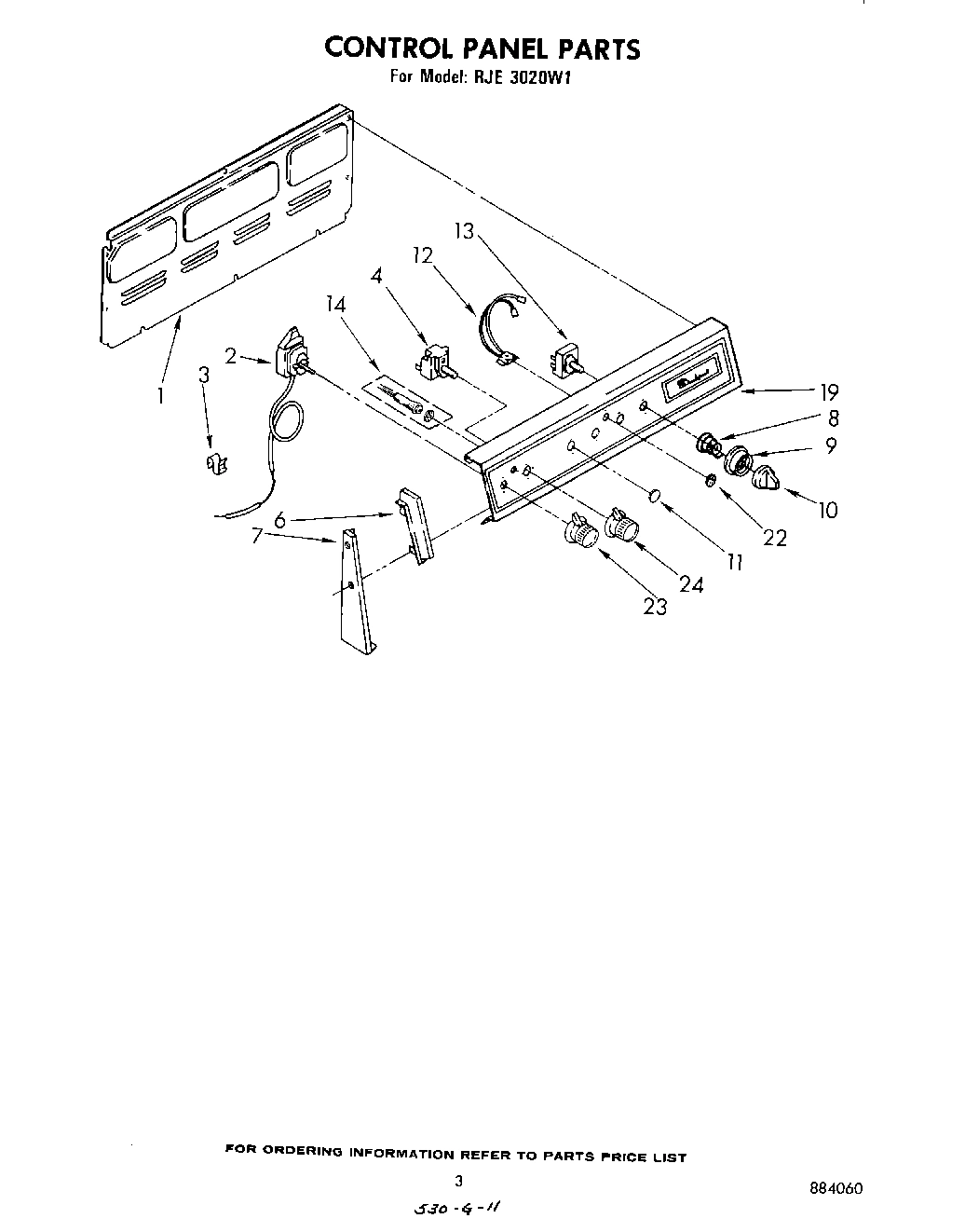

Model Whirlpool RJE3020W1 – Common Parts &amp; Diagrams

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

1

Liner, Door WPL 329688 Contact Us For Availability

1

Cover, Rear WPL 308157 Contact Us For Availability

1

Main Chassis (White) WPL 329962 Contact Us For Availability

1

Main Chassis (New Avocado) WPL 329963 Contact Us For Availability

1

Main Chassis (Coffee) WPL 329964 Contact Us For Availability

1

Main Chassis (Harvest Gold) WPL 329965 Contact Us For Availability

1

Main Chassis (Almond) WPL 329966 Contact Us For Availability

1

Main Chassis (Toast) WPL 330093 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330094 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Cooktop (Harvest Gold) WPL 307867 Contact Us For Availability

2

Cooktop (Coffee) WPL 307868 Contact Us For Availability

2

Cooktop (New Avocado) WPL 307869 Contact Us For Availability

2

Cooktop (White) WPL 307870 Contact Us For Availability

2

Cooktop (Almond) WPL 307872 Contact Us For Availability

2

Cooktop (Toast) WPL 313167 Contact Us For Availability

2

Cooktop (Platinum) WPL 313168 Contact Us For Availability

2

Thermostat, Oven (Alternate) WPL 308483 Contact Us For Availability

2

Thermostat, Oven (Alternate) WPL 308789 Contact Us For Availability

2

Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Protector, Drawer (2) WPL 309329 Contact Us For Availability

3

Bracket, Cooktop WPL 307965 Contact Us For Availability

3

Clip, Tube WPL 309211 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Hinge Pin, Cooktop WPL 307966 Contact Us For Availability

4

Switch, Selector WPL 310348 Contact Us For Availability

4

Frame, Front WPL 327886 Contact Us For Availability

5

Shield, Wiring WPL 307973 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

Burner Box WPL 307929 Contact Us For Availability

6

End Cap, R.H. WPL 312864 Contact Us For Availability

6

End Cap, L.H. WPL 312866 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

Medallion (4) WPL 309926 Contact Us For Availability

7

End Trim (R.H.) WPL 308854 Contact Us For Availability

7

End Trim (L.H.) WPL 308858 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

8

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

8

Spring, Bezel (4) WPL 307828 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Bezel, Control Knob (4) WPL 307456 Contact Us For Availability

9

Barrier WPL 309232 Contact Us For Availability

9

Screw (5) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329000 Contact Us For Availability

WP307458 Whirlpool Knob In Stock WPL WP307458 $9.15

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Cover, Plate WPL 308543 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Panel, Door (White) WPL 307889 Contact Us For Availability

Panel, Door (New Avocado) WPL 307891 Contact Us For Availability

Panel, Door (Coffee) WPL 307893 Contact Us For Availability

Panel, Door (Harvest Gold) WPL 307895 Contact Us For Availability

Panel, Door (Almond) WPL 307897 Contact Us For Availability

Panel, Door (Toast) WPL 313177 Contact Us For Availability

Panel, Door (Platinum) WPL 313178 Contact Us For Availability

Panel, Door (Screw, 8A x 1/2 (2)) WPL 388156 Contact Us For Availability

Plug Button WPL 308535 Contact Us For Availability

12

Handle, Oven Door WPL 311563 Contact Us For Availability

12

Rod, Cooktop WPL 307968 Contact Us For Availability

12

Light, Indicator (Surface Unit) (Includes Ill WPL 312861 Contact Us For Availability

13

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

13

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

13

Retainer, Cooktop WPL 307967 Contact Us For Availability

14

Light, Indicator (Oven) WPL 310393 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Gre WPL 261582 Contact Us For Availability

WPL 261810 WPL 261810 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 308172 WPL 308172 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 310593 WPL 310593 Contact Us For Availability

WPL 312718 WPL 312718 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 884060 WPL 884060 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

16

Vent, Oven WPL 307960 Contact Us For Availability

17

Seal, Oven WPL 309107 Contact Us For Availability

17

Glide, Rear (2) WPL 307980 Contact Us For Availability

18

Drawer, Utility WPL 327887 Contact Us For Availability

18

Spring, Door Stop WPL 308207 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability

Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability

Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

Control Panel (White) WPL 312495 Contact Us For Availability

Control Panel (New Avocado) WPL 312496 Contact Us For Availability

Control Panel (Harvest Gold) WPL 312497 Contact Us For Availability

Control Panel (Almond) WPL 312498 Contact Us For Availability

Control Panel (Coffee) WPL 312499 Contact Us For Availability

Control Panel (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability

Control Panel (Toast) WPL 313157 Contact Us For Availability

Control Panel (Platinum) WPL 313158 Contact Us For Availability

Channel, Arm (2) WPL 329712 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 $2.38

21

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

21

Handle, Drawer WPL 307956 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Lens, Red WPL 309221 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Knob, Thermostat WPL 328709 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Knob, Selector WPL 328707 Contact Us For Availability

Support, Channel (R.H.) WPL 308131 Contact Us For Availability

Support, Channel (L.H.) WPL 308132 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability
