Model Whirlpool RFE3000W1 – Common Parts & Diagrams

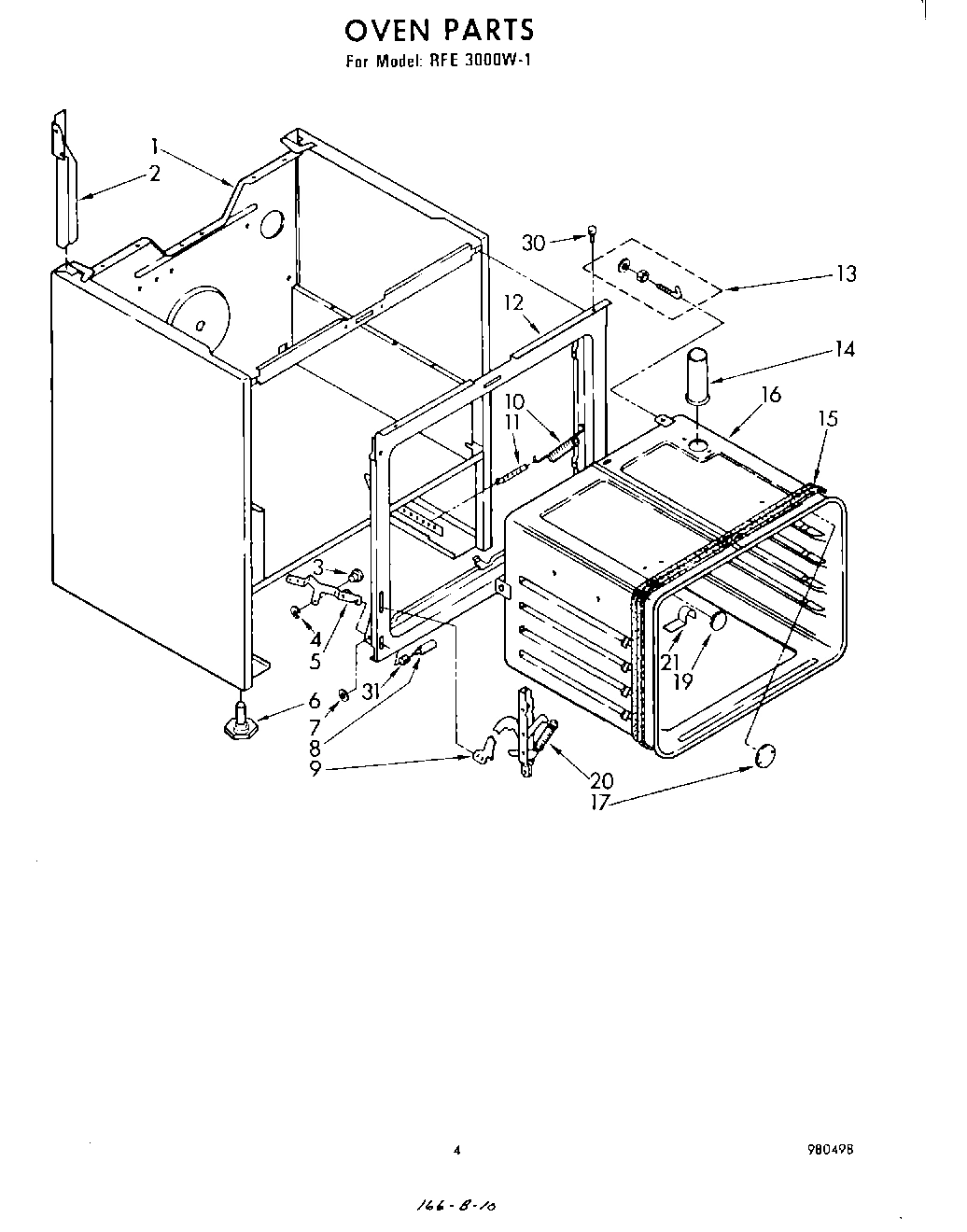

04 - OVEN

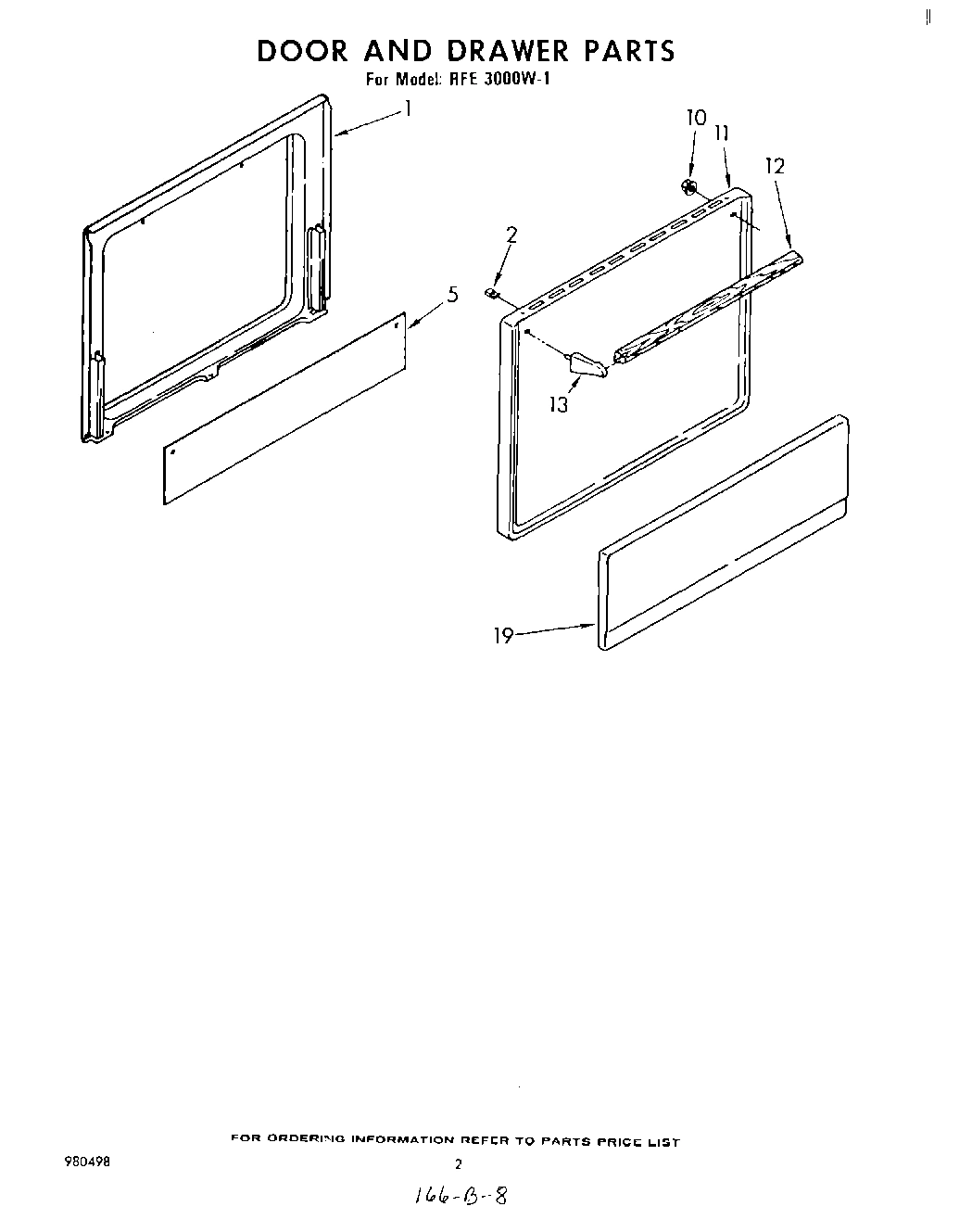

02 - DOOR AND DRAWER

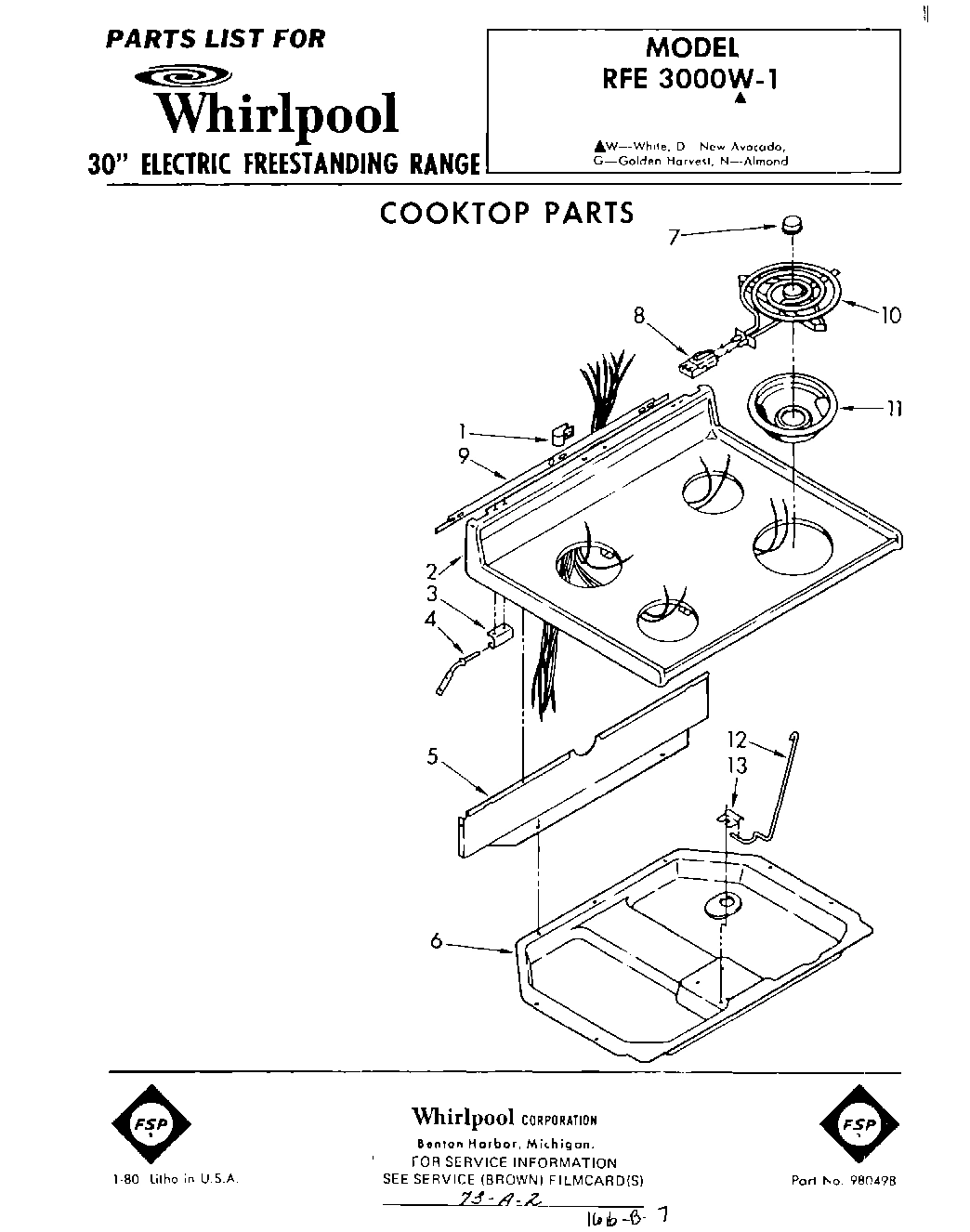

01 - COOKTOP

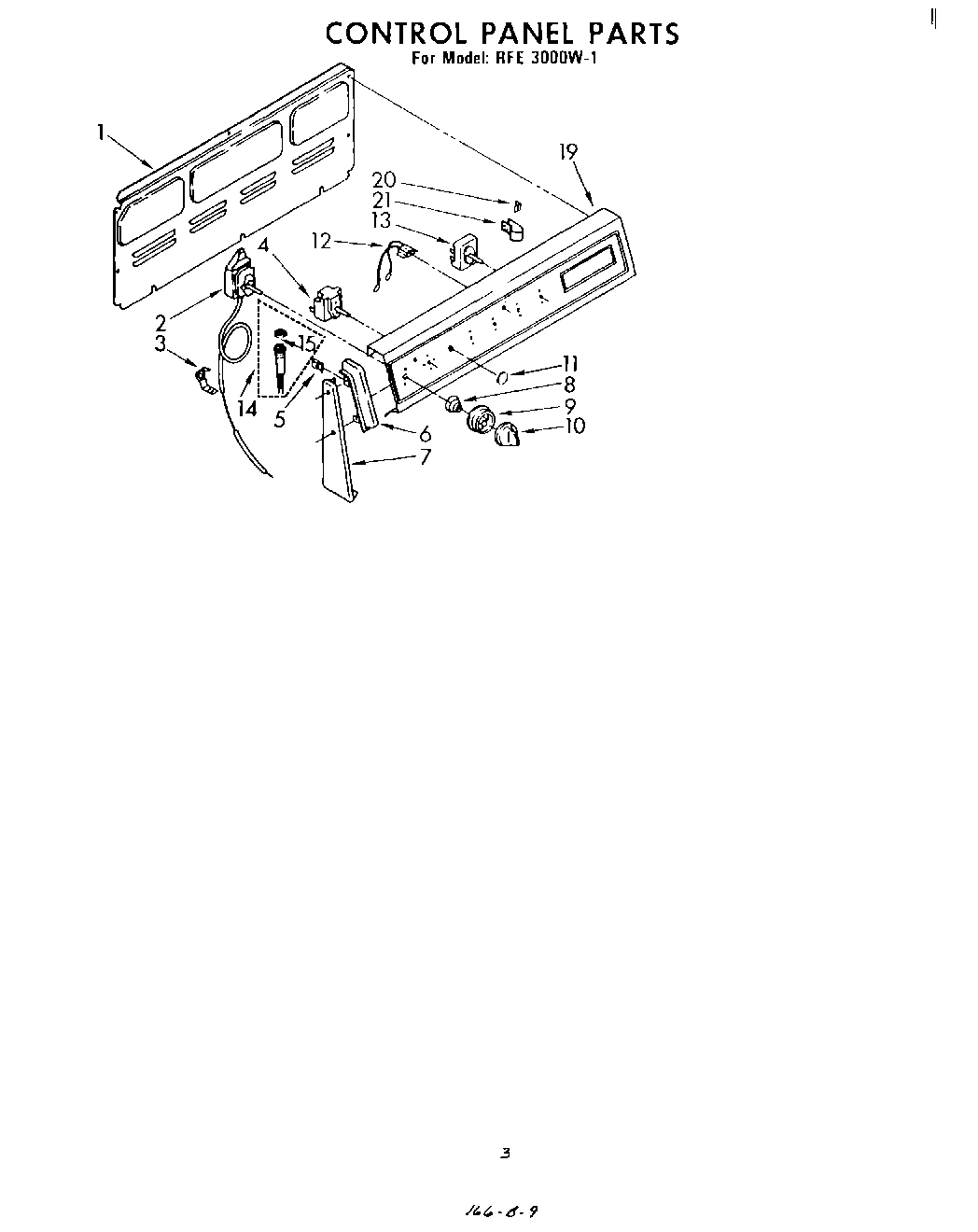

03 - CONTROL PANEL

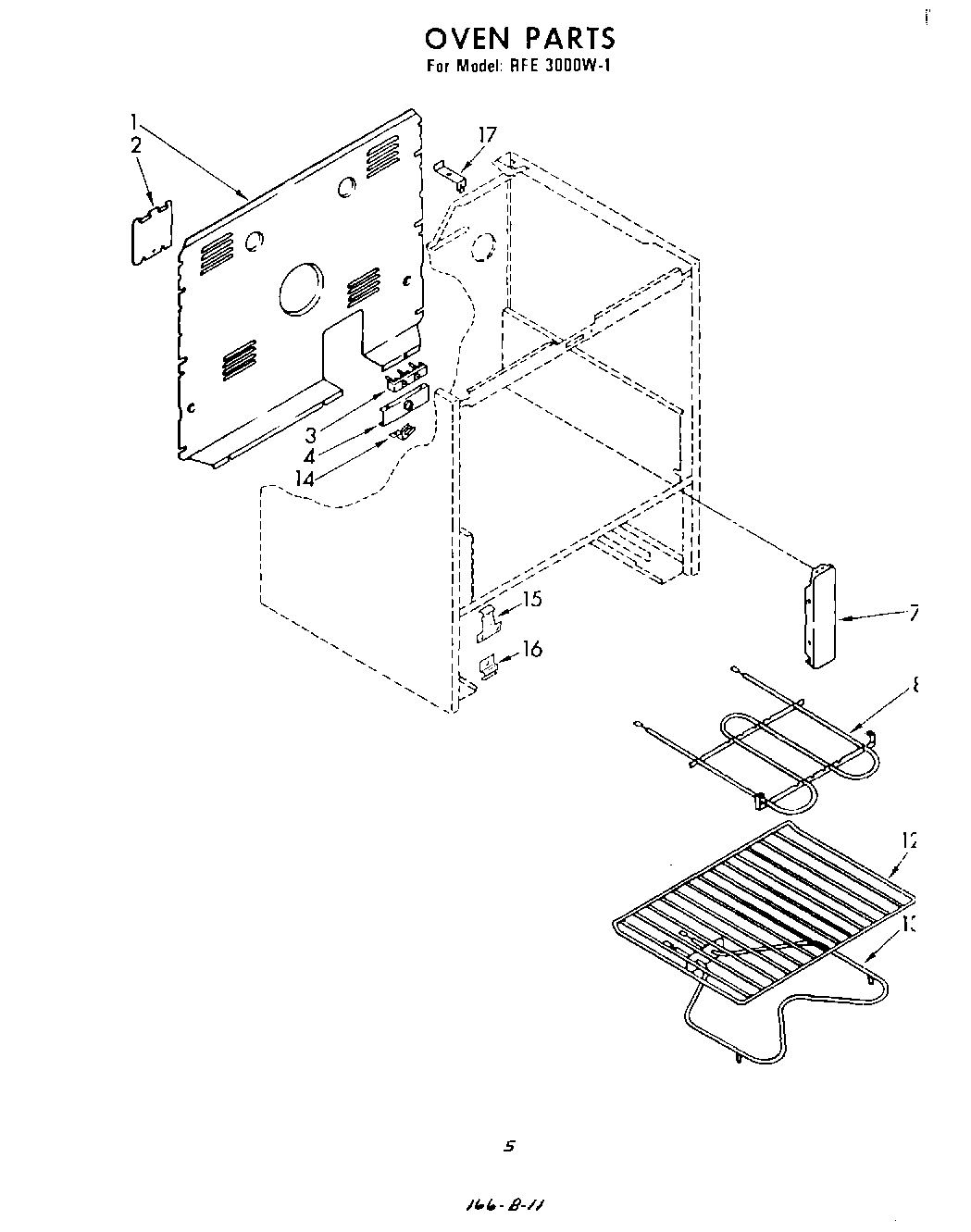

05 - LIT/OPTIONAL
Common parts from model Whirlpool RFE3000W1
1
Liner, Door WPL 327863 Contact Us For Availability
1
Cover, Rear WPL 308157 Contact Us For Availability
1
Cover, Rear WPL 307971 Contact Us For Availability
2
Clip (2) WPL 338177 Contact Us For Availability
2
Cooktop (Screw, 10A x 1/2) WPL 254230 Contact Us For Availability
2
Cooktop (Golden Harvest) WPL 307867 Contact Us For Availability
2
Cooktop (New Avocado) WPL 307869 Contact Us For Availability
2
Cooktop (White) WPL 307870 Contact Us For Availability
2
Cooktop (Almond) WPL 307872 Contact Us For Availability
2
Thermostat, Oven WPL 308483 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
2
Cover, Access WPL 307972 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
3
Clip, Speed WPL 309211 Contact Us For Availability
4
Hinge Pin, Cooktop WPL 307966 Contact Us For Availability
4
Bracket, Service WPL 307970 Contact Us For Availability
5
Panel, Weight Ballast WPL 309108 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
5
Clip, End Cap WPL 98084 Contact Us For Availability
6
Burner Box WPL 307929 Contact Us For Availability
6
Screw, 10 x .5 (2) (Hex Head) WPL 308581 Contact Us For Availability
6
End Cap, R.H. WPL 308144 Contact Us For Availability
6
End Cap, L.H. WPL 308146 Contact Us For Availability
7
Medallion (4) WPL 309926 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (White) WPL 308134 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (New Avocado) WPL 308135 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (Golden Harvest) WPL 308137 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (White) WPL 308139 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (New Avocado) WPL 308140 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (Golden Harvest) WPL 308142 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (Almond End Trim, L. WPL 308855 Contact Us For Availability
7
End Trim, R.H. (Cooktop) (Almond) WPL 308859 Contact Us For Availability
7
Bracket, Mounting WPL 307981 Contact Us For Availability
8
Spring, Bezel (6) WPL 307828 Contact Us For Availability
9
Bezel, Control Knob (6) WPL 307456 Contact Us For Availability
9
Barrier WPL 309232 Contact Us For Availability
10
Spring, Oven Door WPL 308127 Contact Us For Availability
10
Unit, Surface (Includes Illus. 7) (6`` (3)) WPL 309916 Contact Us For Availability
11
Panel, Door (Screw, 10A x 3/8 (3)) WPL 254217 Contact Us For Availability
11
Panel, Door (White) WPL 307889 Contact Us For Availability
11
Panel, Door (New Avocado) WPL 307891 Contact Us For Availability
11
Panel, Door (Golden Harvest) WPL 307895 Contact Us For Availability
11
Panel, Door (Almond) WPL 307897 Contact Us For Availability
11
Plug Button WPL 308535 Contact Us For Availability
12
Handle, Oven Door WPL 327919 Contact Us For Availability
12
Rod, Cooktop WPL 307968 Contact Us For Availability
12
Light, Pilot (Surface Unit) (Includes Lens) WPL 307719 Contact Us For Availability
12
Rack, Oven WPL 308173 Contact Us For Availability
13
End Cap, Handle WPL 308123 Contact Us For Availability
13
Retainer, Cooktop WPL 307967 Contact Us For Availability
13
Screw, 8-32 x 1/4 (8) WPL 309260 Contact Us For Availability
13
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
14
Light, Pilot (Oven) (Includes Illus. 15) WPL 310072 Contact Us For Availability
14
Ground Strap WPL 308498 Contact Us For Availability
15
Seal, Oven WPL 309107 Contact Us For Availability
15
Lens, Light WPL 310073 Contact Us For Availability
15
Spring, Panel (2) WPL 307958 Contact Us For Availability
16
Bracket, Mounting (2) WPL 307957 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
17
Wire, 18 Ga. (Red) (25 Ft.) WPL 253879 Contact Us For Availability
17
Wire, 14 Ga. (White) (25 Ft.) WPL 253881 Contact Us For Availability
17
Wire, 14 Ga. (Black) (25 Ft.) WPL 253882 Contact Us For Availability
17
Wire, 14 Ga. (Red) (25 Ft.) WPL 253883 Contact Us For Availability
17
Wire, 14 Ga. (Blue) (25 Ft.) WPL 253893 Contact Us For Availability
17
Wire, 14 Ga. (Orange) (25 Ft.) WPL 253894 Contact Us For Availability
17
Wire, 18 Ga. (Black) (25 Ft.) WPL 253895 Contact Us For Availability
17
Wire, 18 Ga. (White) (25 Ft.) WPL 253896 Contact Us For Availability
17
Wire, 16 Ga. (Black) (25 Ft.) WPL 253897 Contact Us For Availability
17
Wire, 16 Ga. (Red) (25 Ft.) WPL 253900 Contact Us For Availability
17
Wire, 16 Ga. (White) (25 Ft.) WPL 253901 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Enamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
17
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
17
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
17
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
17
WPL 308244 WPL 308244 Contact Us For Availability
17
WPL 308494 WPL 308494 Contact Us For Availability
17
WPL 308500 WPL 308500 Contact Us For Availability
17
WPL 309102 WPL 309102 Contact Us For Availability
17
WPL 799340 WPL 799340 Contact Us For Availability
17
WPL 799351 WPL 799351 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
WPL 980498 WPL 980498 Contact Us For Availability
19
Panel, Lower (Screw, 8D x 5/16) WPL 246135 Contact Us For Availability
19
Panel, Lower (White) WPL 308549 Contact Us For Availability
19
Panel, Lower (New Avocado) WPL 308550 Contact Us For Availability
19
Panel, Lower (Golden Harvest) WPL 308552 Contact Us For Availability
19
Panel, Lower (Almond) WPL 308862 Contact Us For Availability
19
Control Panel (White) WPL 308159 Contact Us For Availability
19
Control Panel (New Avocado) WPL 308160 Contact Us For Availability
19
Control Panel (Golden Harvest) WPL 308162 Contact Us For Availability
19
Control P WPL 308870 Contact Us For Availability
20
Spring, Door Stop WPL 308207 Contact Us For Availability
20
WPL 254225 WPL 254225 Contact Us For Availability
20
WPL 308574 WPL 308574 Contact Us For Availability
31
Snubber, Door WPL 309111 Contact Us For Availability
× ![]()
