Model Whirlpool RF390LXKP0 COOKTOP – Common Parts & Diagrams
04 - DOOR
05 - DRAWER AND BROILER, OPTIONAL

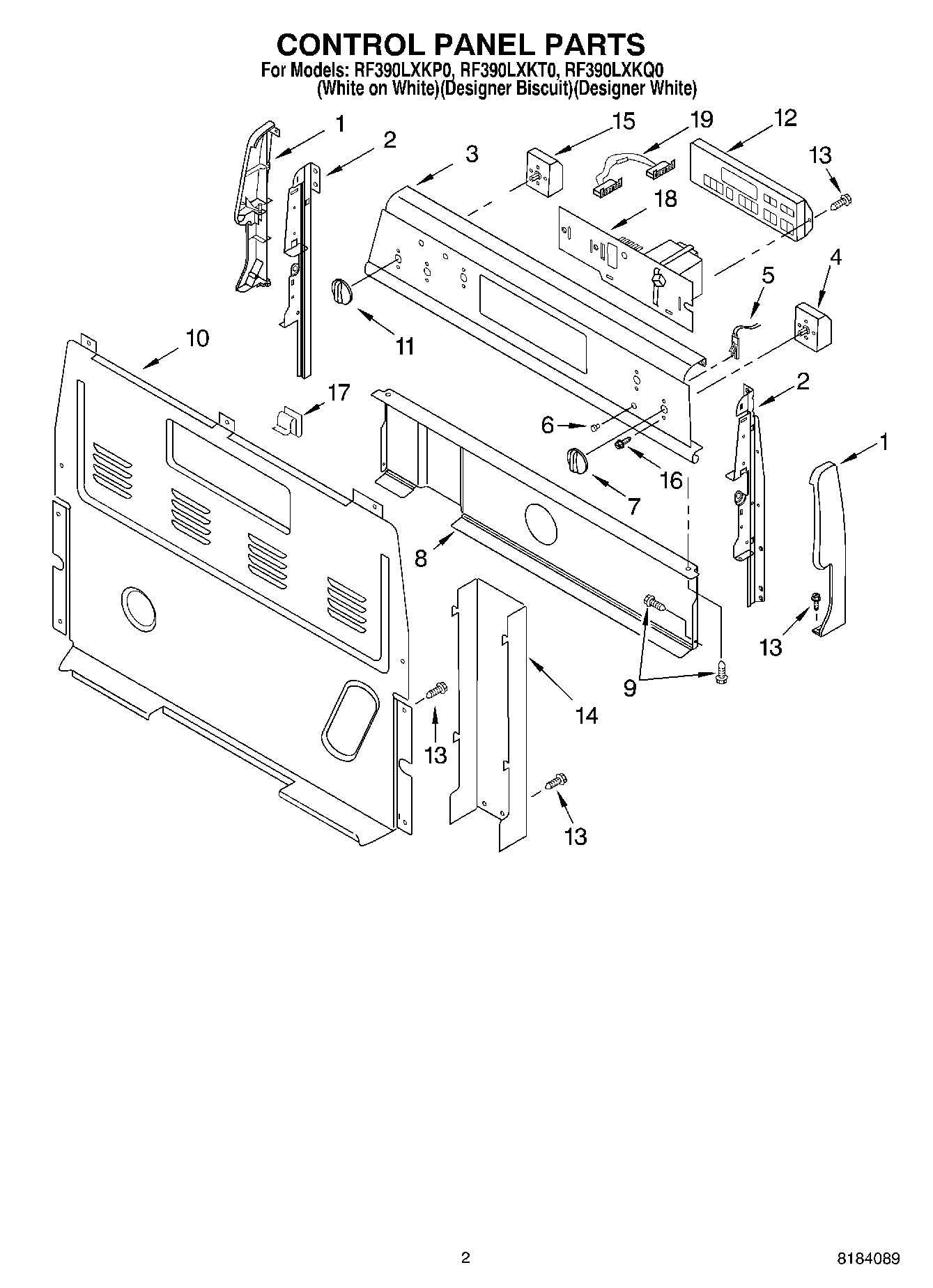

02 - CONTROL PANEL

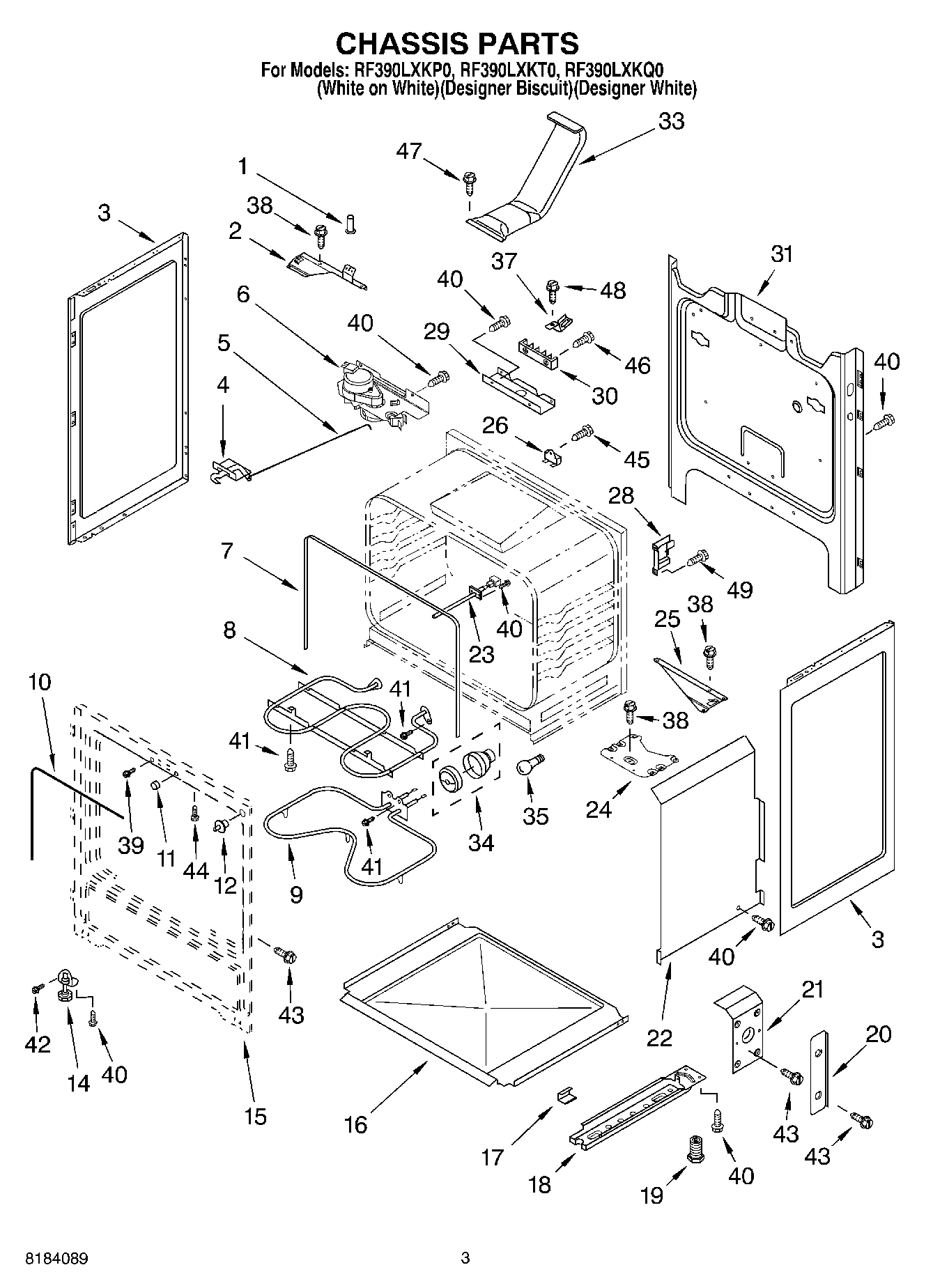

03 - CHASSIS

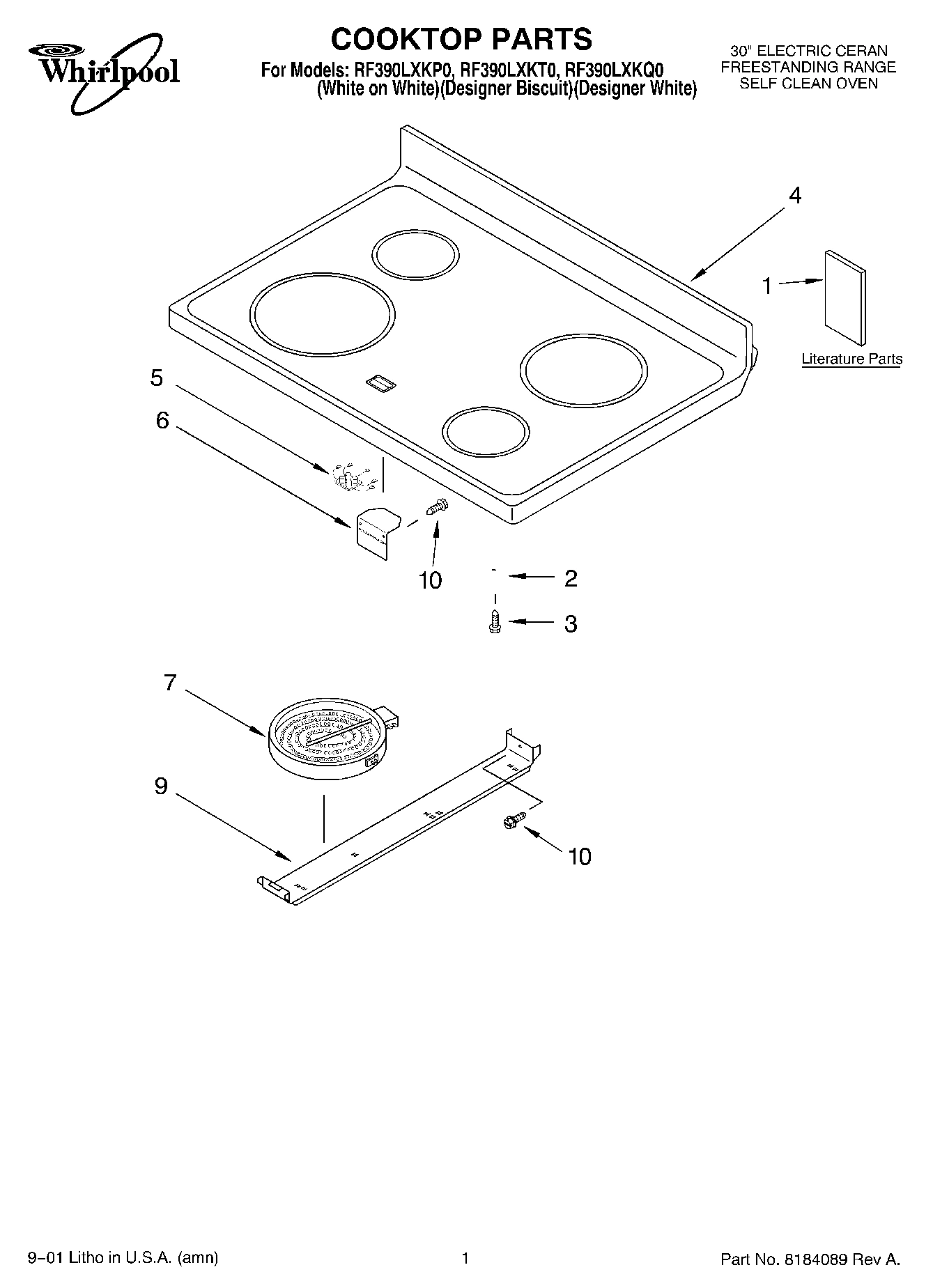

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool RF390LXKP0 COOKTOP
1
Endcap (White Left Hand) WPL 3186190 Contact Us For Availability
1
Endcap (White Right Hand) WPL 3186191 Contact Us For Availability
1
Endcap (Biscuit Left Hand) WPL 8272507 Contact Us For Availability
1
Endcap (Biscuit Right Hand) WPL 8272508 Contact Us For Availability
1
Tube, Oven Vent WPL 3169110 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instr (Templat WPL LIT3195945 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8522647 Contact Us For Availability
1
Guide, Use & Care WPL LIT8522773 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8522958 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
3
Panel, Backguard (White) WPL 8522820 Contact Us For Availability
3
Panel, Backguard (Biscuit) WPL 8522822 Contact Us For Availability
4
Cooktop (White) WPL 8053543 Contact Us For Availability
4
Cooktop (Biscuit/Honeycomb) WPL 8272513 Contact Us For Availability
4
Cooktop (White/White Glass) WPL 8522585 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Surface Unit (2)) WPL 8273301 Contact Us For Availability
5
Light, Indicator (Accusimmer) WPL 8273338 Contact Us For Availability
5
Rod, Latch WPL 3196961 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8274173 Contact Us For Availability
6
Bracket, Ind Light WPL 3195810 Contact Us For Availability
7
Knob, Infinite (4) (Biscuit) WPL 8522567 Contact Us For Availability
7
Seal, Oven Flange WPL 3195737 Contact Us For Availability
8
Shield, Heat WPL 8053911 Contact Us For Availability
9
Screw WPL 4449746 Contact Us For Availability
9
Bracket, Element WPL 3196455 Contact Us For Availability
11
Knob, Accusimmer (White) WPL 8522569 Contact Us For Availability
11
Knob, Accusimmer (Biscuit) WPL 8522571 Contact Us For Availability
12
Control, Range (White) WPL 8522527 Contact Us For Availability
12
Control, Range (Biscuit) WPL 8522528 Contact Us For Availability
15
Switch, Accusimmer WPL 8053511 Contact Us For Availability
15
Frame, Front (Not Serviceable) WPL ARI161967A Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
WPL 799344 WPL 799344 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Clip, Ground Wire WPL 313660 Contact Us For Availability
16
WPL 4392900 WPL 4392900 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 8272999 WPL 8272999 Contact Us For Availability
16
WPL 8273266 WPL 8273266 Contact Us For Availability
16
WPL 8522789 WPL 8522789 Contact Us For Availability
16
WPL 8523023 WPL 8523023 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
18
Power Supply, PCA WPL 9755076 Contact Us For Availability
19
Jumper w/ Fuse WPL 8273906 Contact Us For Availability
20
Shield, Outer (2) WPL 3196091 Contact Us For Availability
21
Shield, Inner (2) WPL 3196092 Contact Us For Availability
22
Retainer, Side (2) WPL 3195717 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
31
Back, Main WPL 8274034 Contact Us For Availability
37
Strap, Ground WPL 3169573 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
× ![]()
