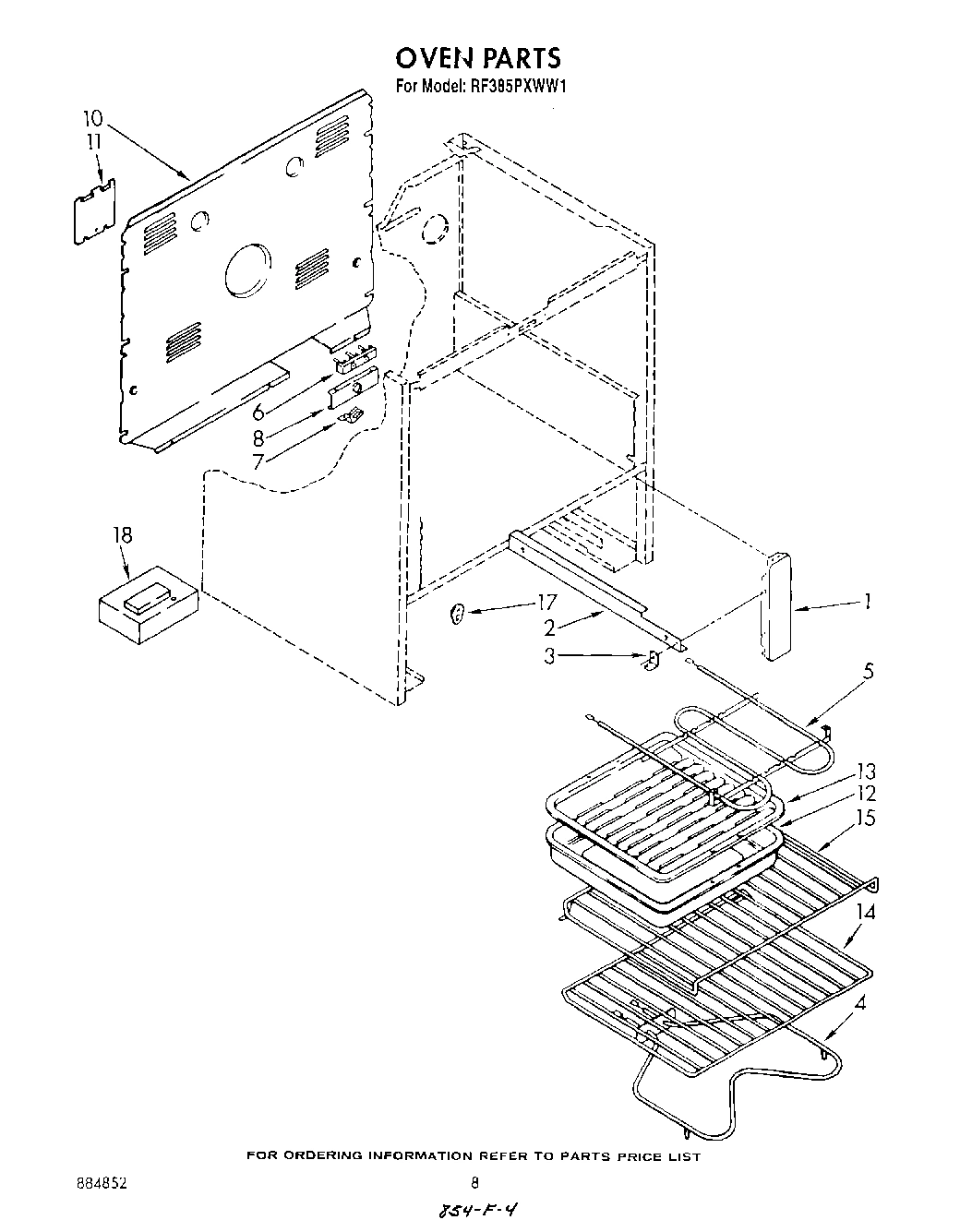

Model Whirlpool RF385PXWN1 – Common Parts &amp; Diagrams

1

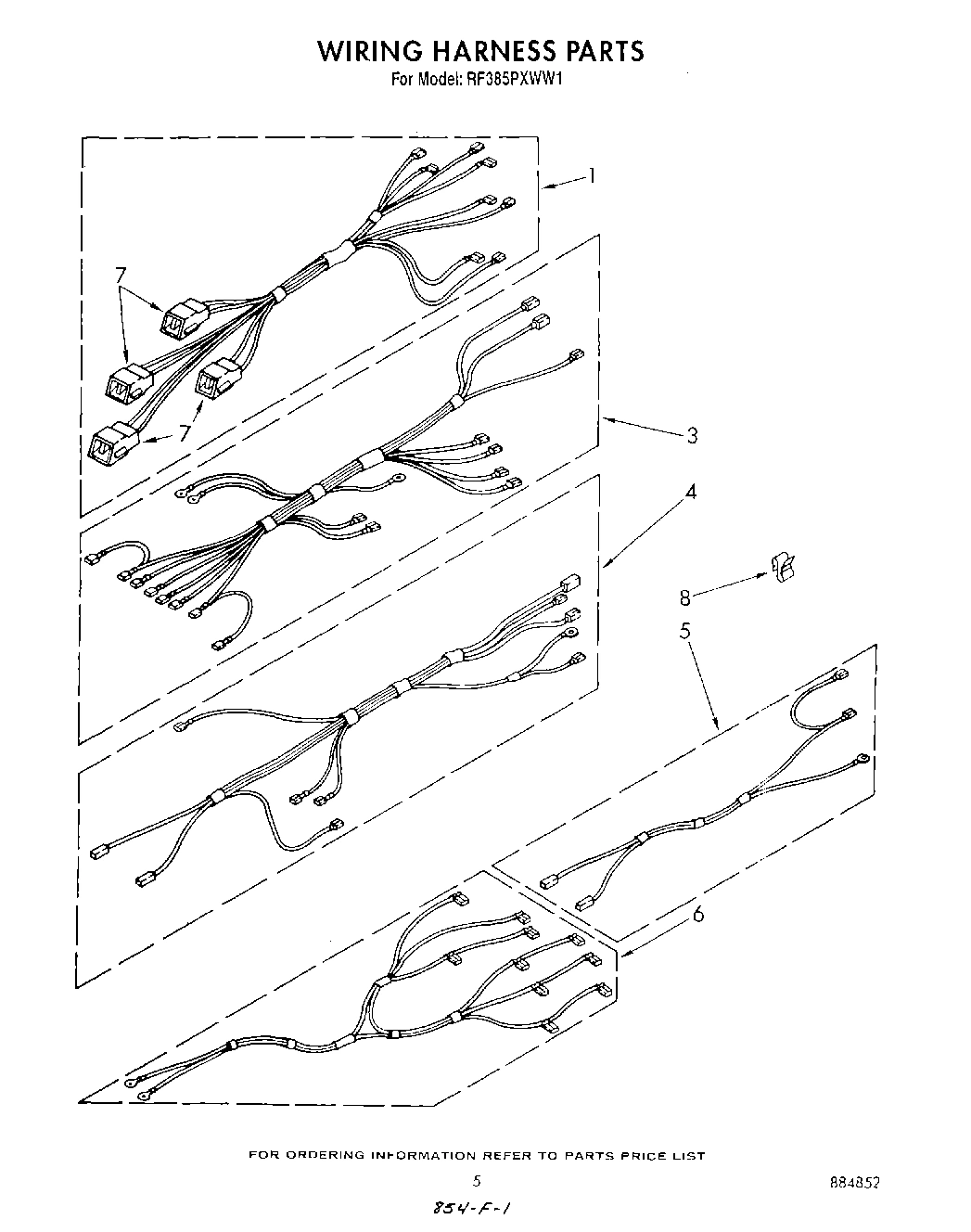

Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability

1

Latch Assembly WPL 3171148 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Screw (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Harness, Wire (Oven) WPL 3148780 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Bracket, Timer (2) WPL 3148817 Contact Us For Availability

4

Harness, Wire (Lock Switch) WPL 3148675 Contact Us For Availability

4

Screw,6-3/8 (2) WPL 309258 Contact Us For Availability

4

Shield, Latch WPL 313035 Contact Us For Availability

4

Frame, Front WPL 3172194 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3147065 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Lens, Light (5) WPL 313101 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Harness, Wire (Infinite Switch) WPL 313147 Contact Us For Availability

6

Seal, Door WPL 3148284 Contact Us For Availability

6

Button, Set (4) WPL 314132 Contact Us For Availability

7

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

Box, Burner WPL 3150186 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

8

Tube Clamp WPL 313570 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

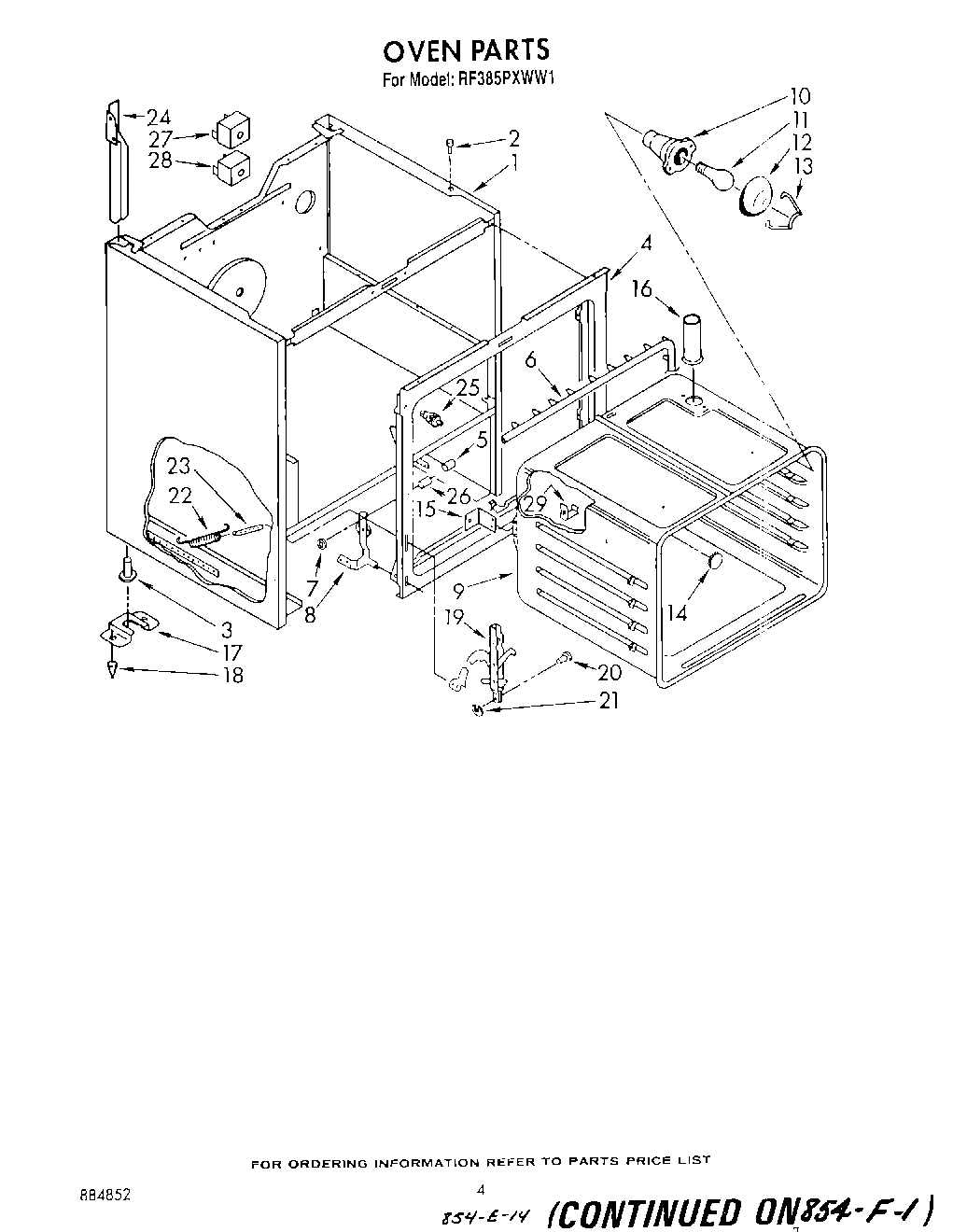

Oven (30`` Pyro) WPL 3172456 Contact Us For Availability

10

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

10

Socket, Lamp WPL 660556 Contact Us For Availability

10

Timer WPL 3149808 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

11

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

12

Cover, Light WPL 308039 Contact Us For Availability

12

Glass, Timer WPL 3149880 Contact Us For Availability

13

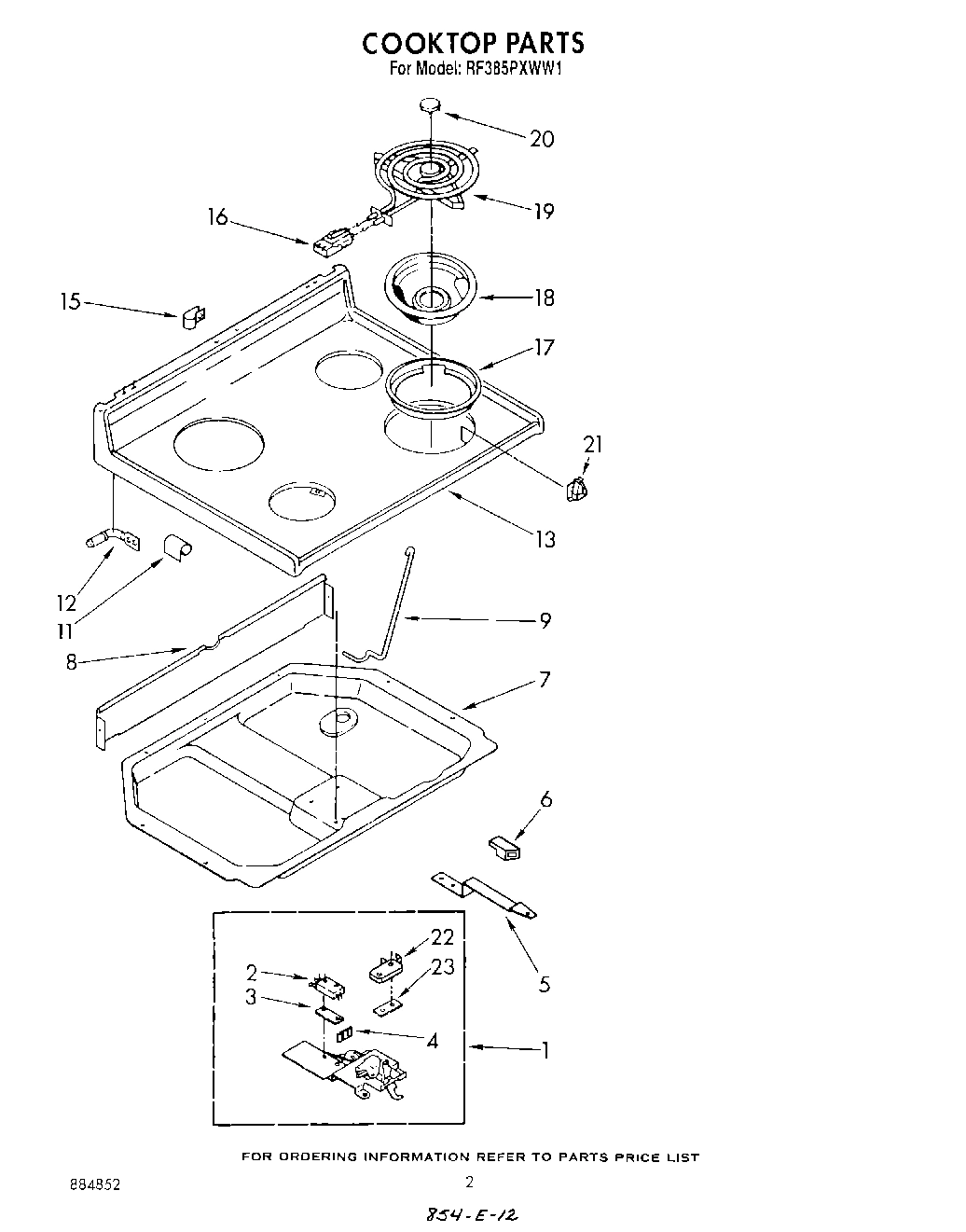

Cooktop (White) WPL 3170981 Contact Us For Availability

13

Cooktop (Almond) WPL 3170982 Contact Us For Availability

13

Retainer, Light WPL 308038 Contact Us For Availability

14

Screw (3) WPL 3149333 Contact Us For Availability

14

Trim, Panel WPL 3148223 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

15

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

screw (6) WPL 3148443 Contact Us For Availability

Frame, Inner Glass WPL 3148234 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

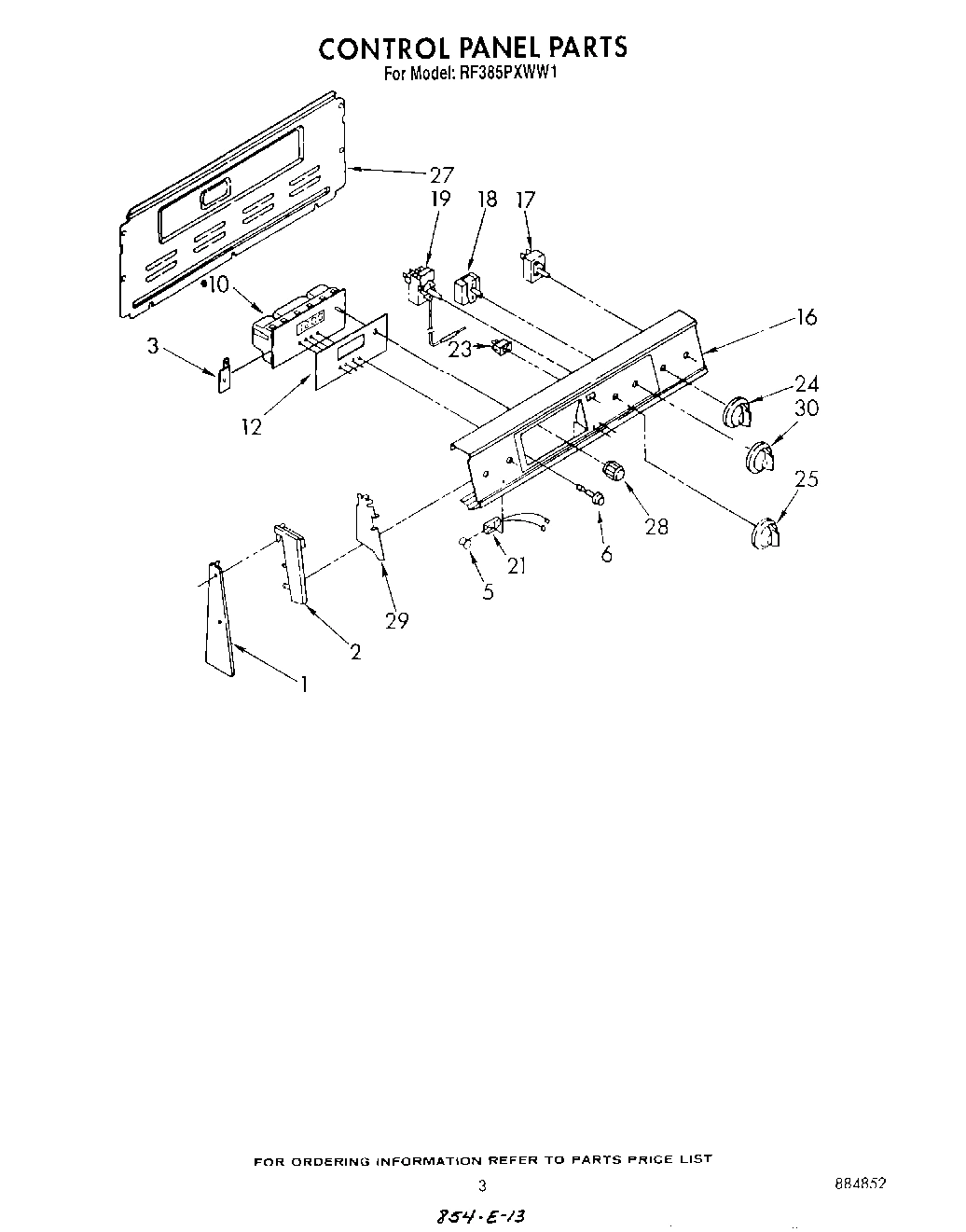

Control, Panel WPL 3148845 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $29.99

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $31.11

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

screw (2) WPL 3148604 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

Drawer, Utility WPL 327887 Contact Us For Availability

Reflector Pan (6`` (2)) WPL 3150198 Contact Us For Availability

Anchor, Plastic WPL 3148605 Contact Us For Availability

Switch, Selector WPL 312288 Contact Us For Availability

Nut (2) WPL 3147832 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Thermostat, Oven WPL 3148933 Contact Us For Availability

Protector, Drawer Side (2) WPL 309329 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Glide, Rear (2) WPL 307980 Contact Us For Availability

20

Medallion (4) WPL 309195 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Light, Indicator (Oven Heat) WPL 314031 Contact Us For Availability

Light, Indicator (Infinite Switch (2)) WPL 313102 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Nut (4) WPL 814102 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Light, Indicator (Locked) WPL 3148719 Contact Us For Availability

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Handle, Drawer WPL 313337 Contact Us For Availability

Switch, Lock WPL 3148669 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

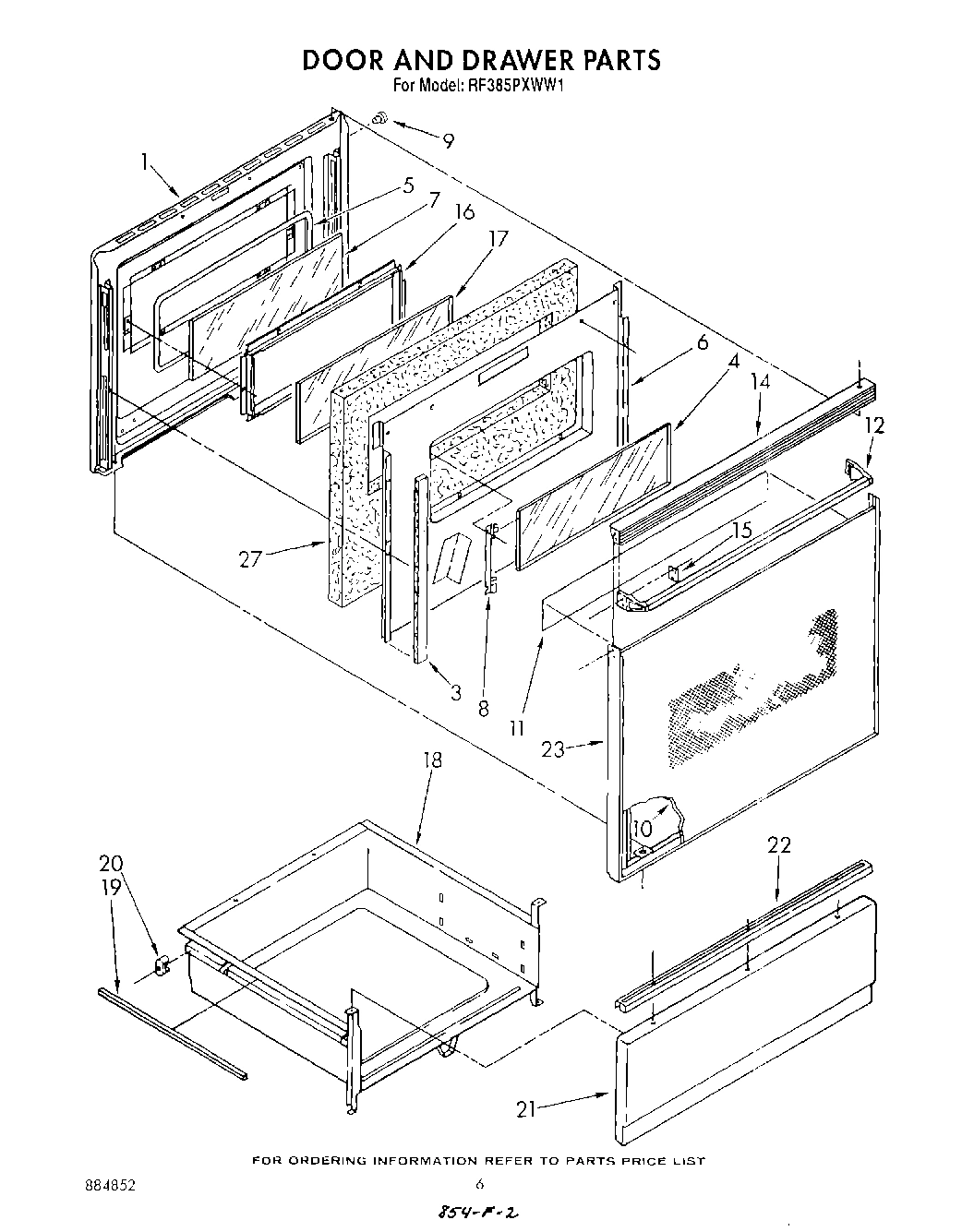

Frame, Door WPL 3148235 Contact Us For Availability

Insulator, Switch WPL 3147864 Contact Us For Availability

24

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

24

Support, L.H. Post WPL 313196 Contact Us For Availability

24

Support, R.H. Post WPL 313197 Contact Us For Availability

25

Switch, Door (2) WPL 310345 Contact Us For Availability

25

Knob, Thermostat WPL 3149988 Contact Us For Availability

26

Snubber, Door WPL 309111 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie (RCK 81) WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3147861 WPL 3147861 Contact Us For Availability

WPL 3147951 WPL 3147951 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Broil Switch WPL 314209 Contact Us For Availability

Rear Cover Control Panel WPL 313195 Contact Us For Availability

28

Knob, Bit Generator WPL 313523 Contact Us For Availability

28

Screw, No.6 WPL 314215 Contact Us For Availability

28

Bake Switch WPL 314210 Contact Us For Availability

29

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

29

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

29

Shield, Control Panel (2) WPL 313608 Contact Us For Availability

30

Knob, Selector WPL 3149986 Contact Us For Availability
