Model Whirlpool RF370PXDN0 – Common Parts & Diagrams

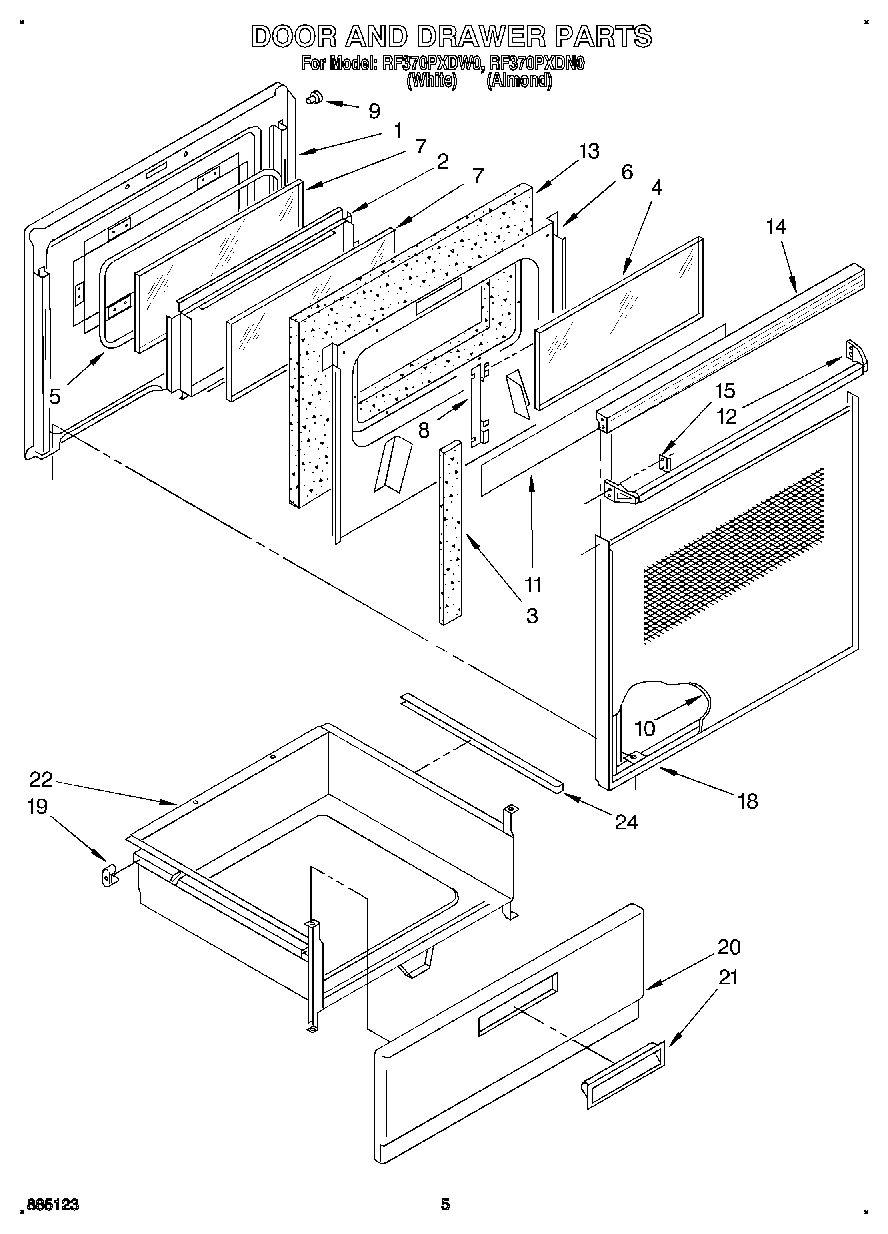

04 - DOOR AND DRAWER

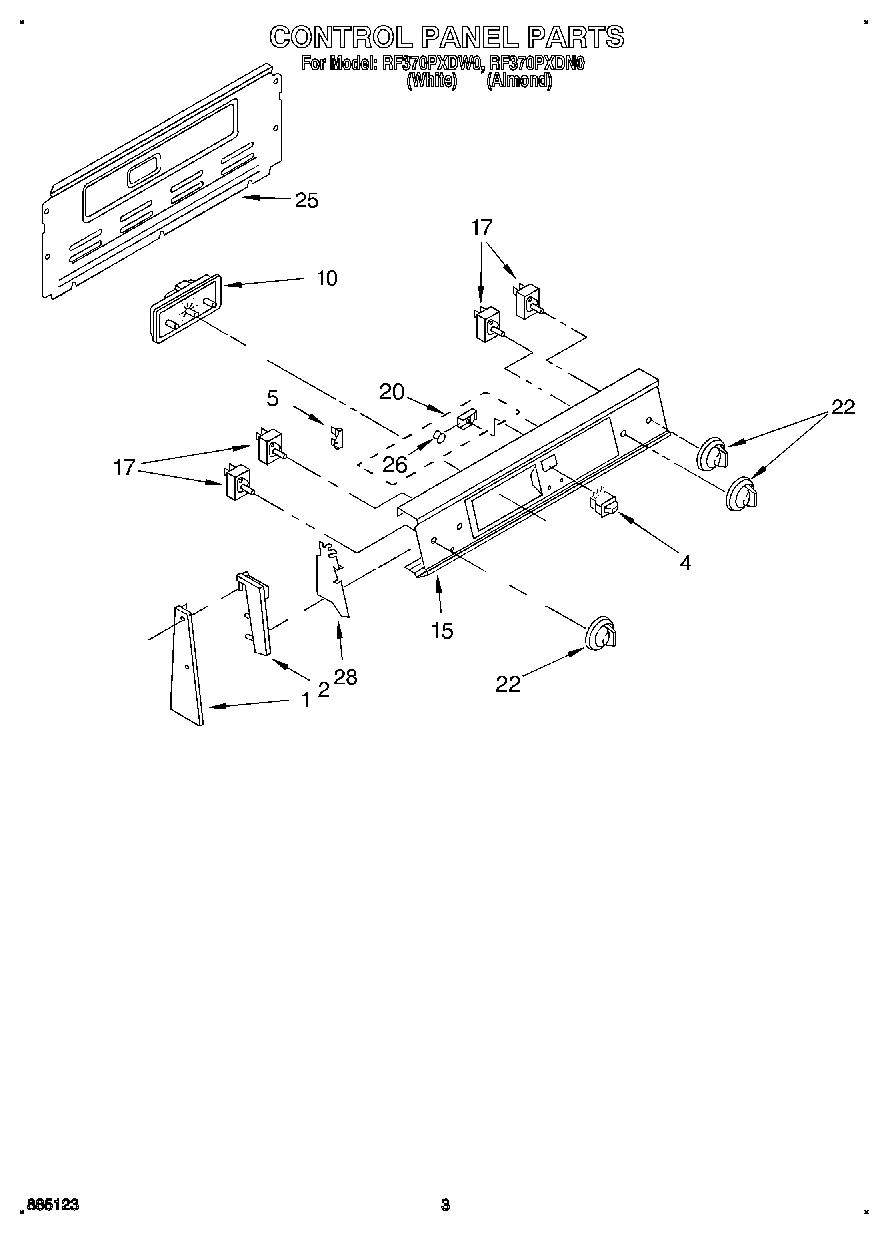

02 - CONTROL PANEL

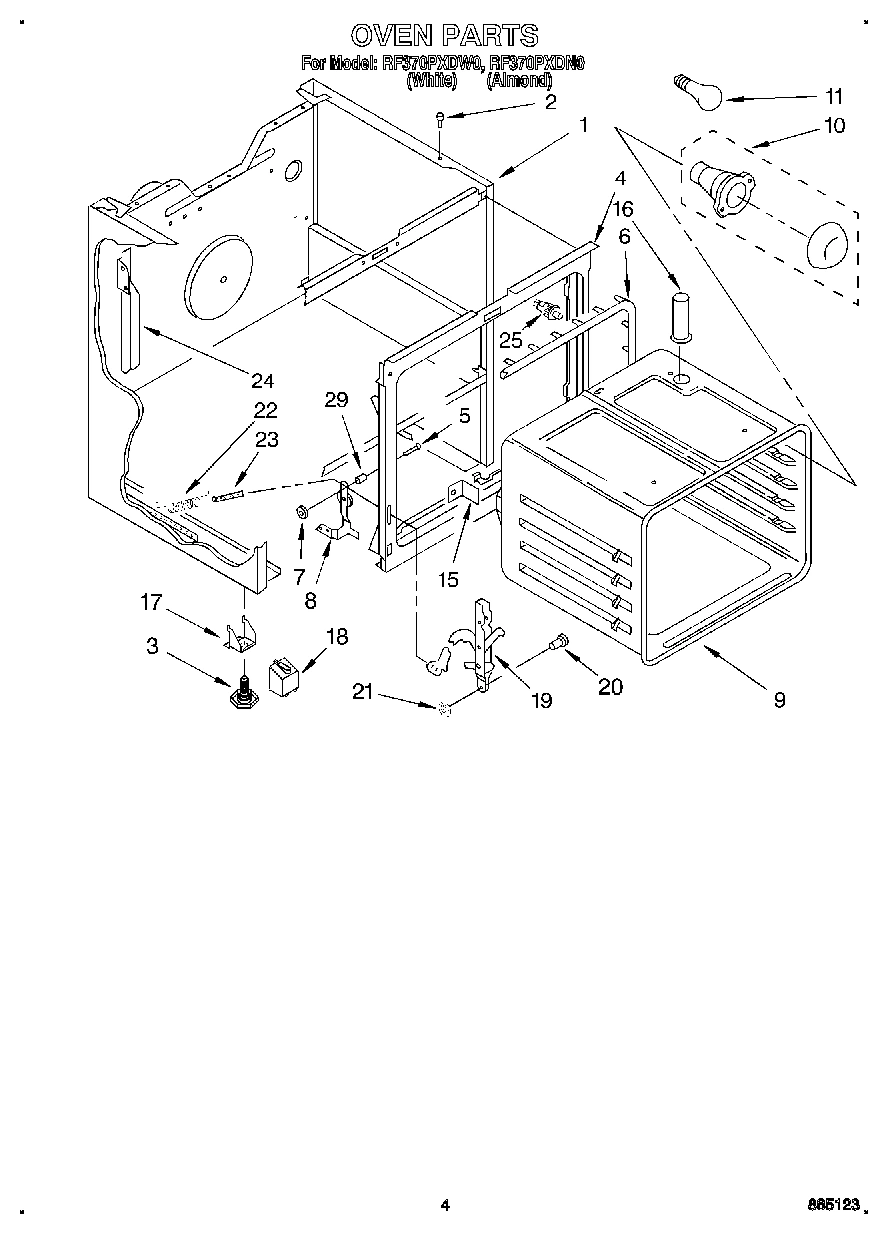

03 - OVEN

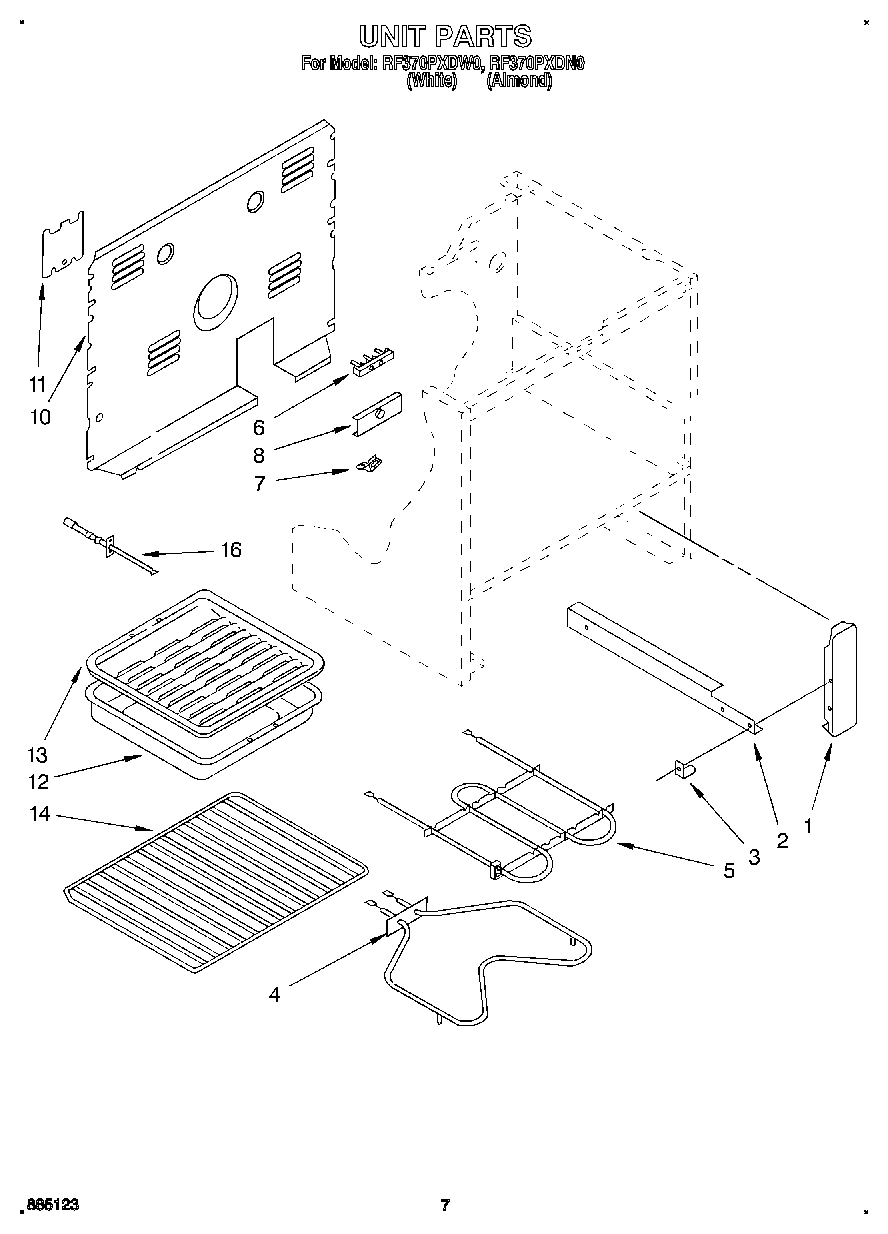

05 - UNIT

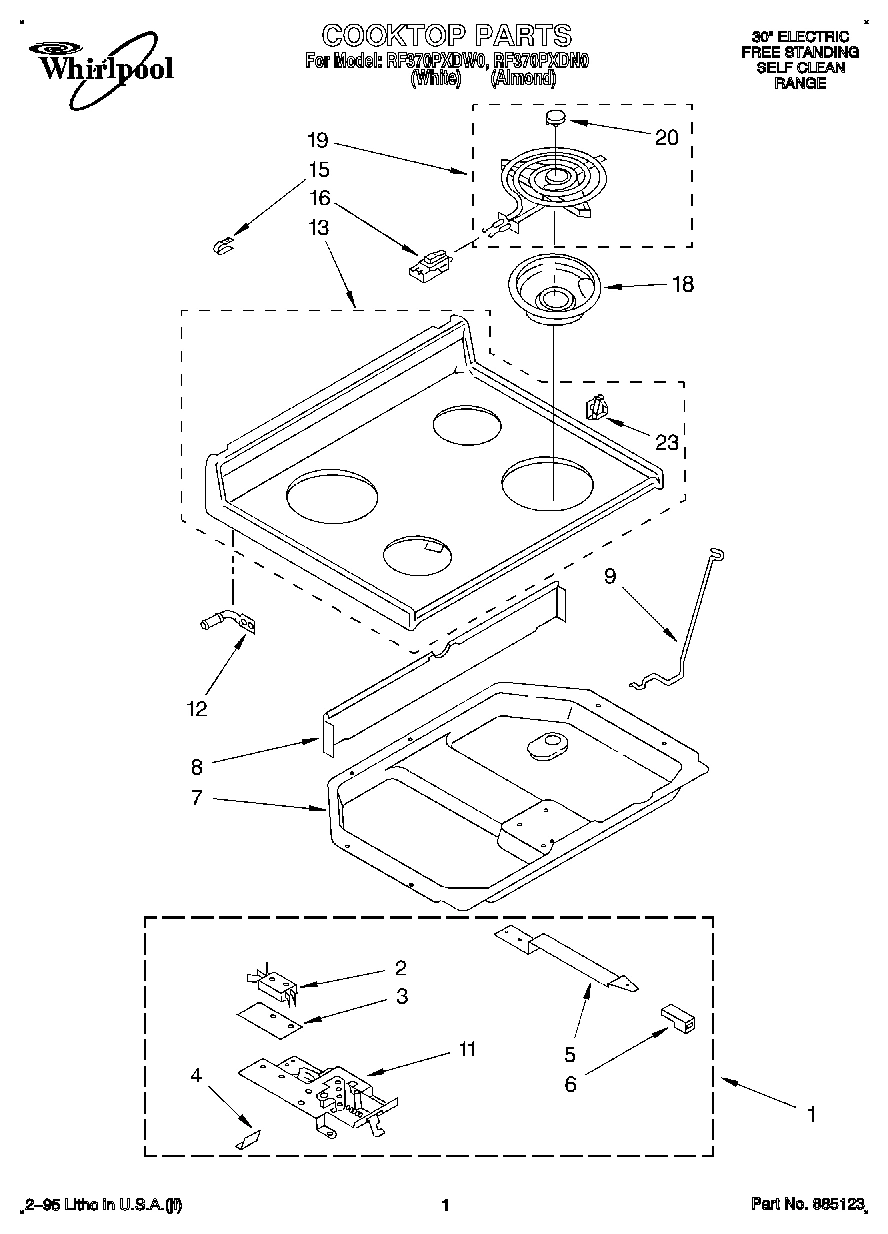

01 - COOKTOP, LITERATURE

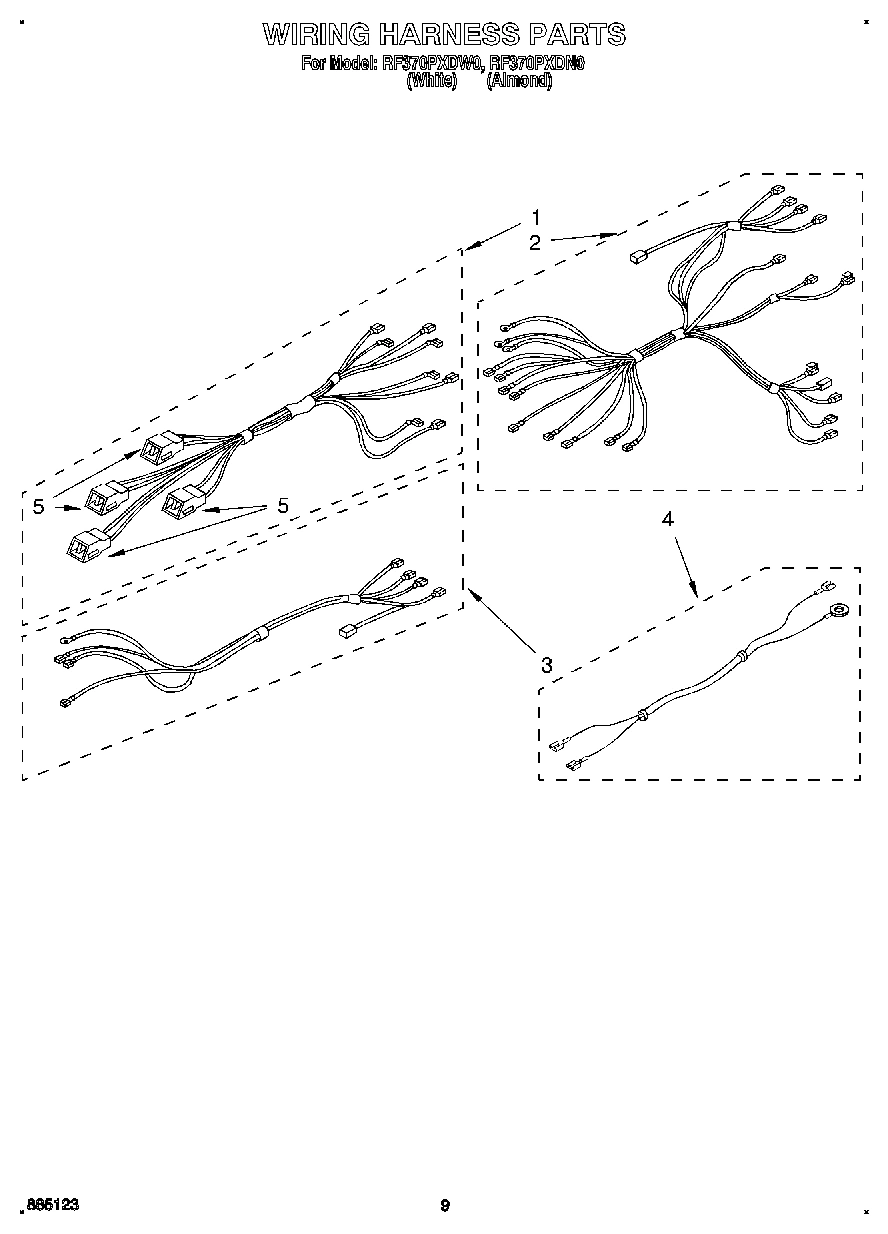

06 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RF370PXDN0
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169518 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Guide, Use & Care WPL LIT3189076 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
Latch Asm Complete W/Wire Harness WPL 3189211 Contact Us For Availability
1
Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability
2
End Cap L.H. WPL 3187792 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Safety Switch WPL 3183096 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169504 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Harness, Wire (Lock Switch) WPL 3169476 Contact Us For Availability
4
Switch, Rocker WPL 3182717 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
4
Screw (2) WPL 308422 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
5
Fuse, Thermal WPL 3187848 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw (2) WPL 3150532 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
5
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
5
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
5
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
5
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
5
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
5
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
5
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
5
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
5
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
5
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
5
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
5
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
5
Grease WPL 261582 Contact Us For Availability
5
Coffee WPL 261886 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
Harvest Gold WPL 261890 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Toast WPL 285365 Contact Us For Availability
5
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
5
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
5
Platinum (Uncut) WPL 285368 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
Paint, (Touch-Up WPL 72112 Contact Us For Availability
5
WPL 799832 WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Control, Electronic WPL 3195182 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Latch Mechanism WPL 3148668 Contact Us For Availability
12
Handle, Door WPL 3188695 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Panel, Control WPL 3189219 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Sensor, Oven WPL 3148440 Contact Us For Availability
16
Screw (2) WPL 98520 Contact Us For Availability
17
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
17
Support, Foot (2) WPL 3169418 Contact Us For Availability
18
Screw (3) WPL 3149333 Contact Us For Availability
18
Cover, Foot (2) WPL 3169448 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Light, Indicator WPL 3169457 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Oven Light WPL 310345 Contact Us For Availability
25
Rear Cover WPL 3187332 Contact Us For Availability
26
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
Shield, Glass (2) WPL 313608 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
Insulation, Wrap WPL 3169093 Contact Us For Availability
29
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
