Model Whirlpool RF365PXDN0 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE – Common Parts & Diagrams

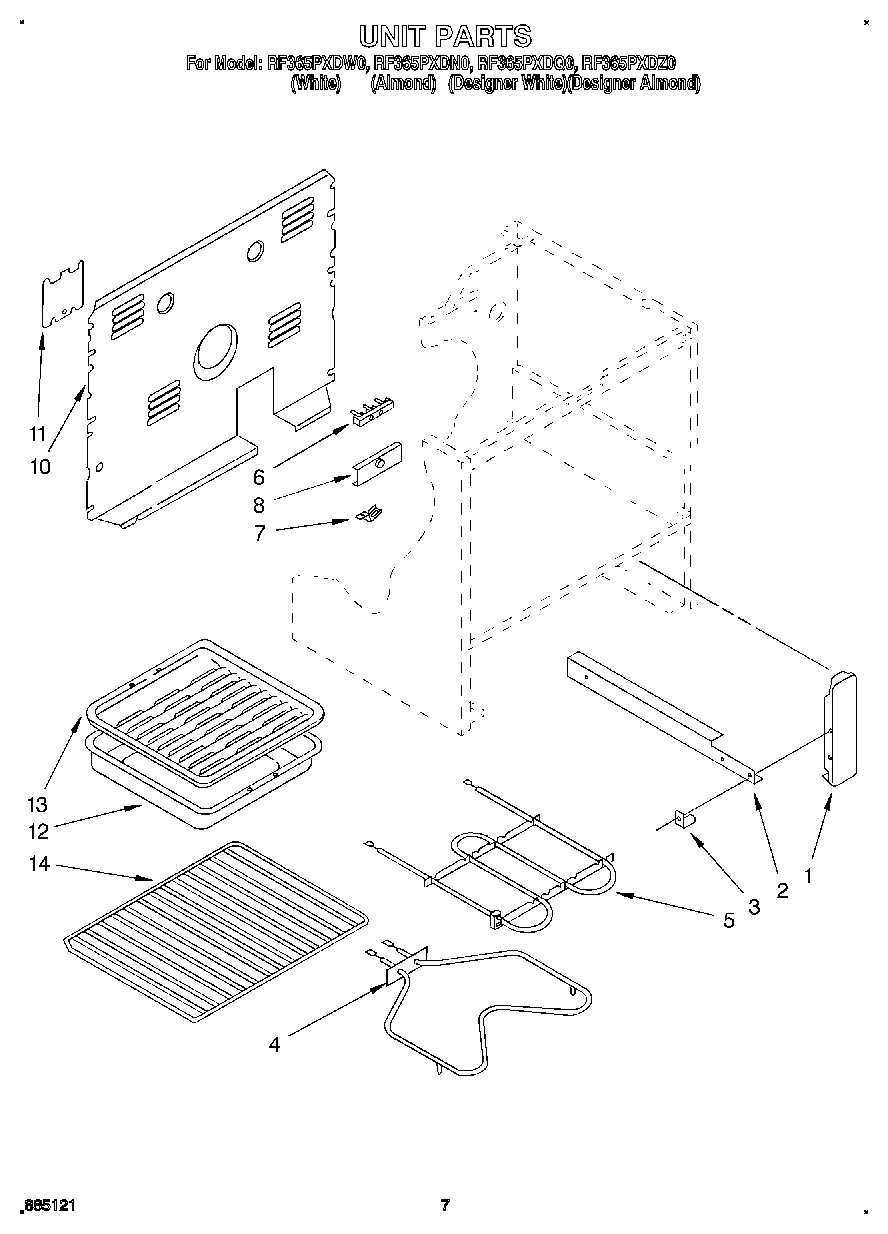

05 - UNIT

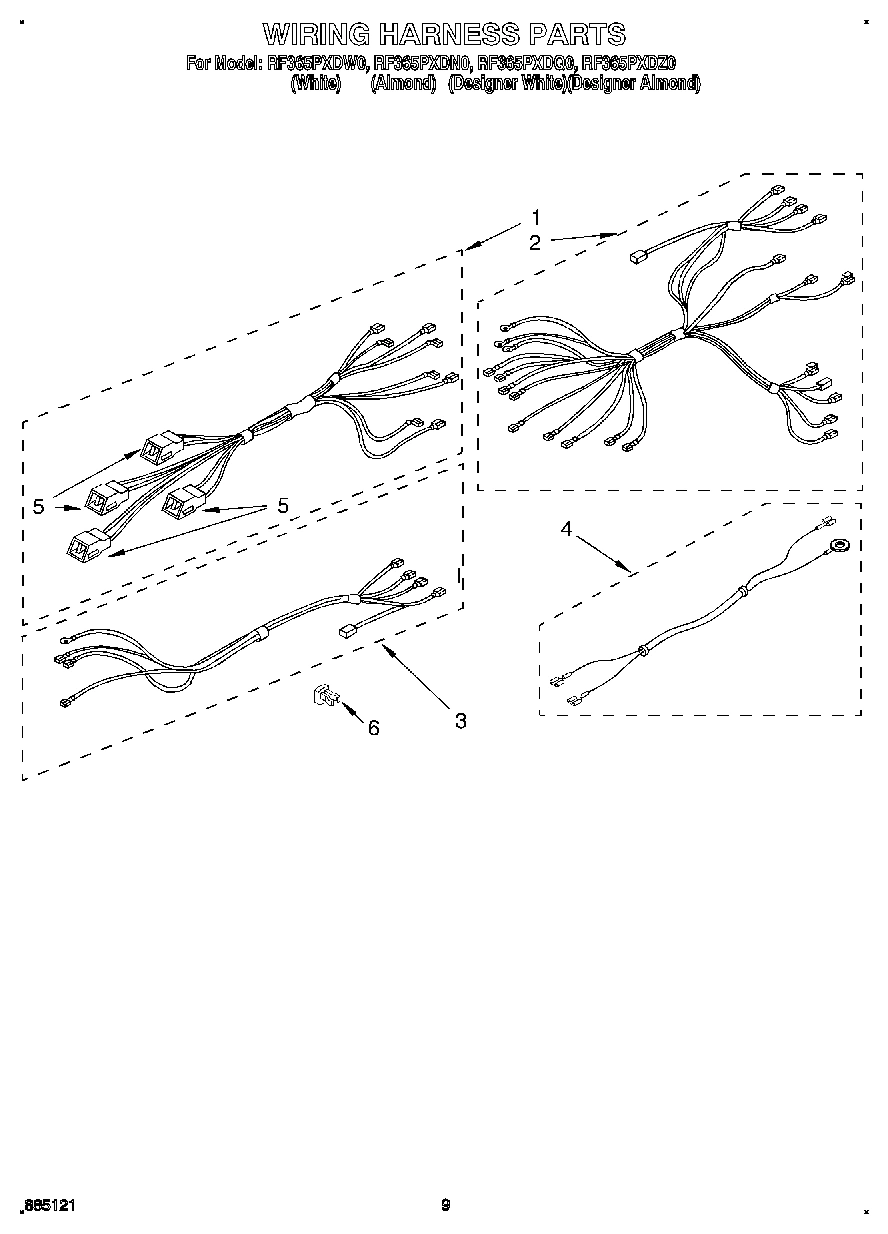

06 - WIRING HARNESS, OPTIONAL
01 - COOKTOP, LITERATURE
03 - OVEN
02 - CONTROL PANEL
04 - DOOR AND DRAWER
Common parts from model Whirlpool RF365PXDN0 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE
WPL 241430 WPL 241430 Contact Us For Availability
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169517 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Guide, Use & Care WPL LIT3189075 Contact Us For Availability
1
Latch Mechanism WPL 3148668 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
End Trim (Screw (4)) (Black) WPL 3169366 Contact Us For Availability
1
End Trim R.H. (Designer Almond) WPL 3169468 Contact Us For Availability
1
End Trim (LH, Designer Almond) WPL 3169469 Contact Us For Availability
1
End Trim (Screw (4)) (Designer Almond Mdl.) WPL 3169471 Contact Us For Availability
1
End Trim R.H. (Black) WPL 3187671 Contact Us For Availability
1
End Trim (LH, Black) WPL 3187672 Contact Us For Availability
1
End Trim R.H. (Designer White) WPL 3188992 Contact Us For Availability
1
End Trim (LH, Designer White) WPL 3188993 Contact Us For Availability
1
End Trim (Screw (4)) (Designer White Mdl.) WPL 3188996 Contact Us For Availability
1
Liner, Oven Door WPL 3172218 Contact Us For Availability
2
Screw (2) WPL 312717 Contact Us For Availability
2
Safety Switch WPL 3169497 Contact Us For Availability
2
End Cap, R.H. (Black) WPL 3187791 Contact Us For Availability
2
End Cap L.H. (Black) WPL 3187792 Contact Us For Availability
2
End Cap R.H. (Designer White) WPL 3187793 Contact Us For Availability
2
End Cap L.H. (Designer White) WPL 3187794 Contact Us For Availability
2
End Cap R.H. (Designer Almond) WPL 3187795 Contact Us For Availability
2
End Cap L.H. (Designer Almond) WPL 3187796 Contact Us For Availability
2
Frame, Inner Glass WPL 3148234 Contact Us For Availability
3
Insulator, Switch WPL 3169498 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
4
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
4
Switch, Rocker (Designer White) WPL 3182718 Contact Us For Availability
4
Switch, Rocker (Designer Almond) WPL 3182719 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Handle, Latch (Designer Mdls.) WPL 3150175 Contact Us For Availability
5
Handle, Latch (White/Alm. Mdls.) WPL 3169081 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Knob, Latch (White/Alm. Mdls.) WPL 3148684 Contact Us For Availability
6
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
6
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
6
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
6
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
6
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
6
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
6
Grease WPL 261582 Contact Us For Availability
6
Coffee WPL 261886 Contact Us For Availability
6
New Avocado WPL 261888 Contact Us For Availability
6
Harvest Gold WPL 261890 Contact Us For Availability
6
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
6
Toast WPL 285365 Contact Us For Availability
6
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
6
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
6
Platinum (Uncut) WPL 285368 Contact Us For Availability
6
Clip, Snap-In WPL 3169449 Contact Us For Availability
6
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
6
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
6
WPL 799832 WPL 799832 Contact Us For Availability
6
WPL 978883 WPL 978883 Contact Us For Availability
6
Knob, Latch (Designer White) WPL 3150174 Contact Us For Availability
6
Knob, Latch (Designer Almond) WPL 3169459 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Screw (4) WPL 3185647 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Timer, Clock (Designer White) WPL 3169272 Contact Us For Availability
10
Timer, Clock (Designer Almond (Includes No.6) WPL 3169470 Contact Us For Availability
10
Timer, Clock (White/Alm. Mdls.) WPL 661458 Contact Us For Availability
10
Outer Glass, Door (Designer White) WPL 3188738 Contact Us For Availability
10
Outer Glass, Door (Black) WPL 3188739 Contact Us For Availability
10
Outer Glass, Door (Designer Almond) WPL 3189263 Contact Us For Availability
11
Glass, Timer WPL 313513 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
12
Handle, Door (Black) WPL 3188695 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
12
Handle, Door (Designer White) WPL 3188696 Contact Us For Availability
12
Handle, Door (Designer Almond) WPL 3188697 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
14
Top, Door Vent (Black) WPL 3188692 Contact Us For Availability
14
Top, Door Vent (Designer White) WPL 3188693 Contact Us For Availability
14
Top, Door Vent (Designer Almond) WPL 3188694 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Panel, Control (Designer White) WPL 3188682 Contact Us For Availability
15
Panel, Control (Designer Almond) WPL 3188957 Contact Us For Availability
15
Panel, Control (Black) WPL 3189222 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Cap, Door Top (Screw (2)) WPL 3188399 Contact Us For Availability
16
Cap, Door Top (Screw (2)) WPL 3188400 Contact Us For Availability
16
Cap, Door Top (Designer White Mdl.) WPL 3189001 Contact Us For Availability
16
Cap, Door Top (Designer Almond) WPL 3189002 Contact Us For Availability
18
Frame, Outer Glass (Screw (3)) WPL 3149333 Contact Us For Availability
18
Screw (2) WPL 308119 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 3169311 Contact Us For Availability
18
Frame, Outer Glass (Screw (4)) WPL 3149253 Contact Us For Availability
18
Frame, Outer Glass (Screw (3)) WPL 3185918 Contact Us For Availability
18
Frame, Outer Glass (Screw (4)) WPL 3188403 Contact Us For Availability
18
Frame, Outer Glass (Screw (4)) WPL 3188404 Contact Us For Availability
18
Frame, Outer Glass (Black) WPL 3188997 Contact Us For Availability
18
Frame, Outer Glass (Designer White) WPL 3188998 Contact Us For Availability
18
Frame, Outer Glass (Designer Almond) WPL 3188999 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
19
Thermostat, 0ven WPL 3169526 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
20
Light, Indicator (Ov WPL 314031 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Panel, Drawer (White) WPL 3169430 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 3169431 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
WPL 3169457 WPL 3169457 Contact Us For Availability
21
WPL 3150612 WPL 3150612 Contact Us For Availability
21
WPL 3150613 WPL 3150613 Contact Us For Availability
22
WPL 3188723 WPL 3188723 Contact Us For Availability
22
WPL 327887 WPL 327887 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
23
WPL 3188724 WPL 3188724 Contact Us For Availability
23
WPL 3188725 WPL 3188725 Contact Us For Availability
23
WPL 3188726 WPL 3188726 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
24
WPL 309329 WPL 309329 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
WPL 3187332 WPL 3187332 Contact Us For Availability
26
Support, Foot (2) WPL 3169418 Contact Us For Availability
26
WPL 313101 WPL 313101 Contact Us For Availability
27
WPL 3169467 WPL 3169467 Contact Us For Availability
28
Cover, Foot (2) WPL 3169448 Contact Us For Availability
28
WPL 313608 WPL 313608 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
Insulation, Wrap WPL 3169093 Contact Us For Availability
29
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
