Model Whirlpool RF365BXVN0 – Common Parts & Diagrams
02 - COOKTOP
05 - DOOR AND DRAWER

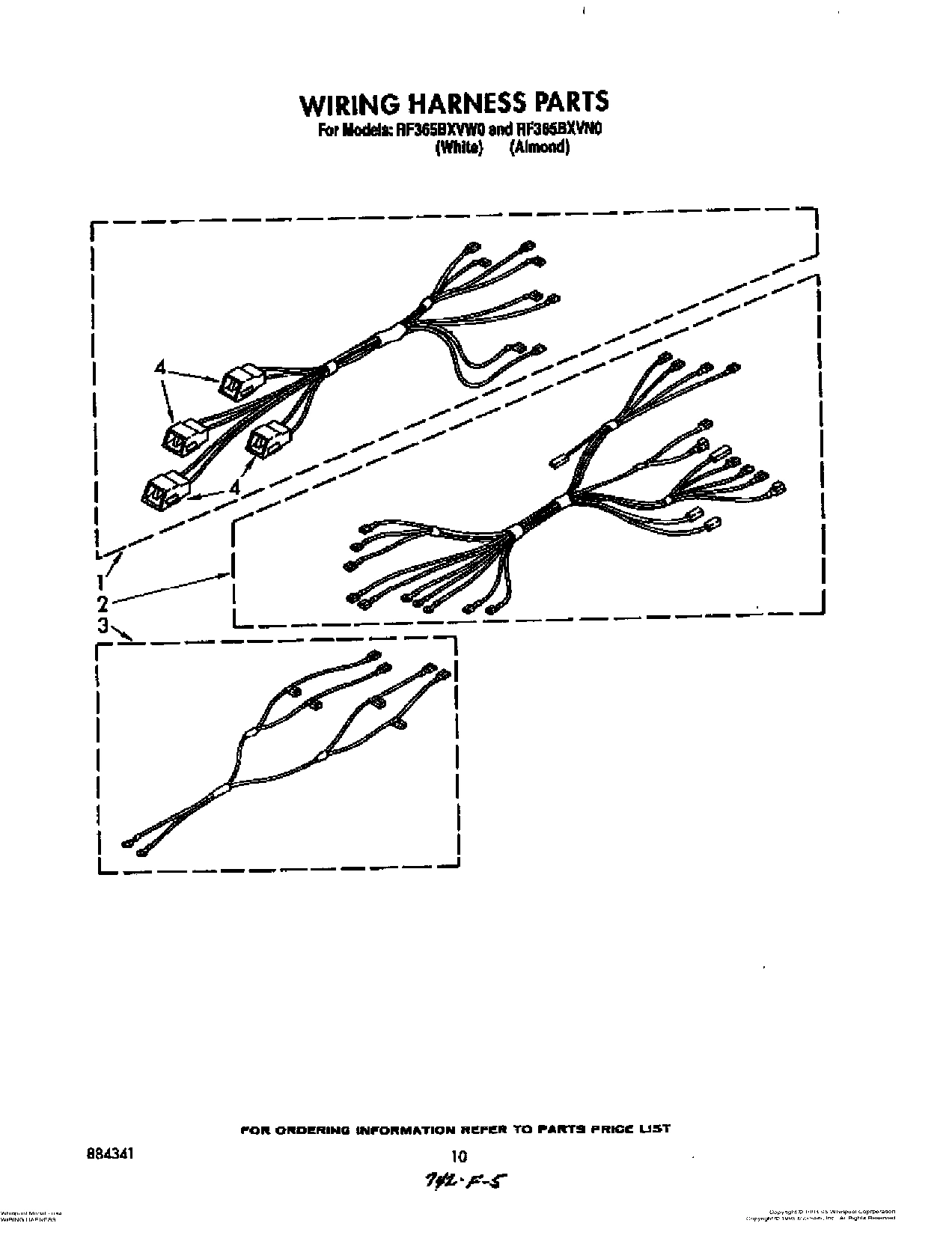

07 - WIRING HARNESS

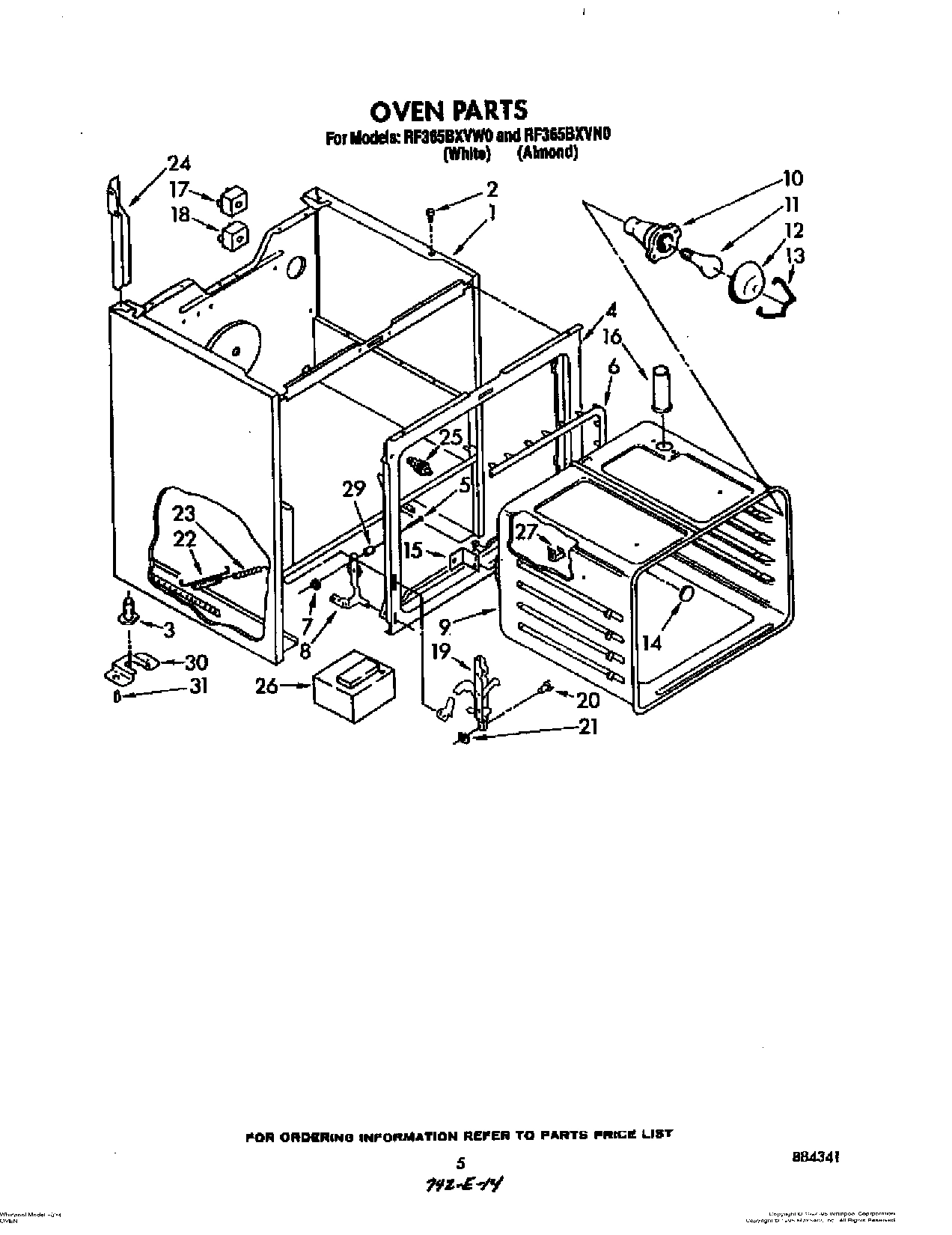

04 - OVEN
06 - OVEN (CONTINUED), LIT/OPTIONAL

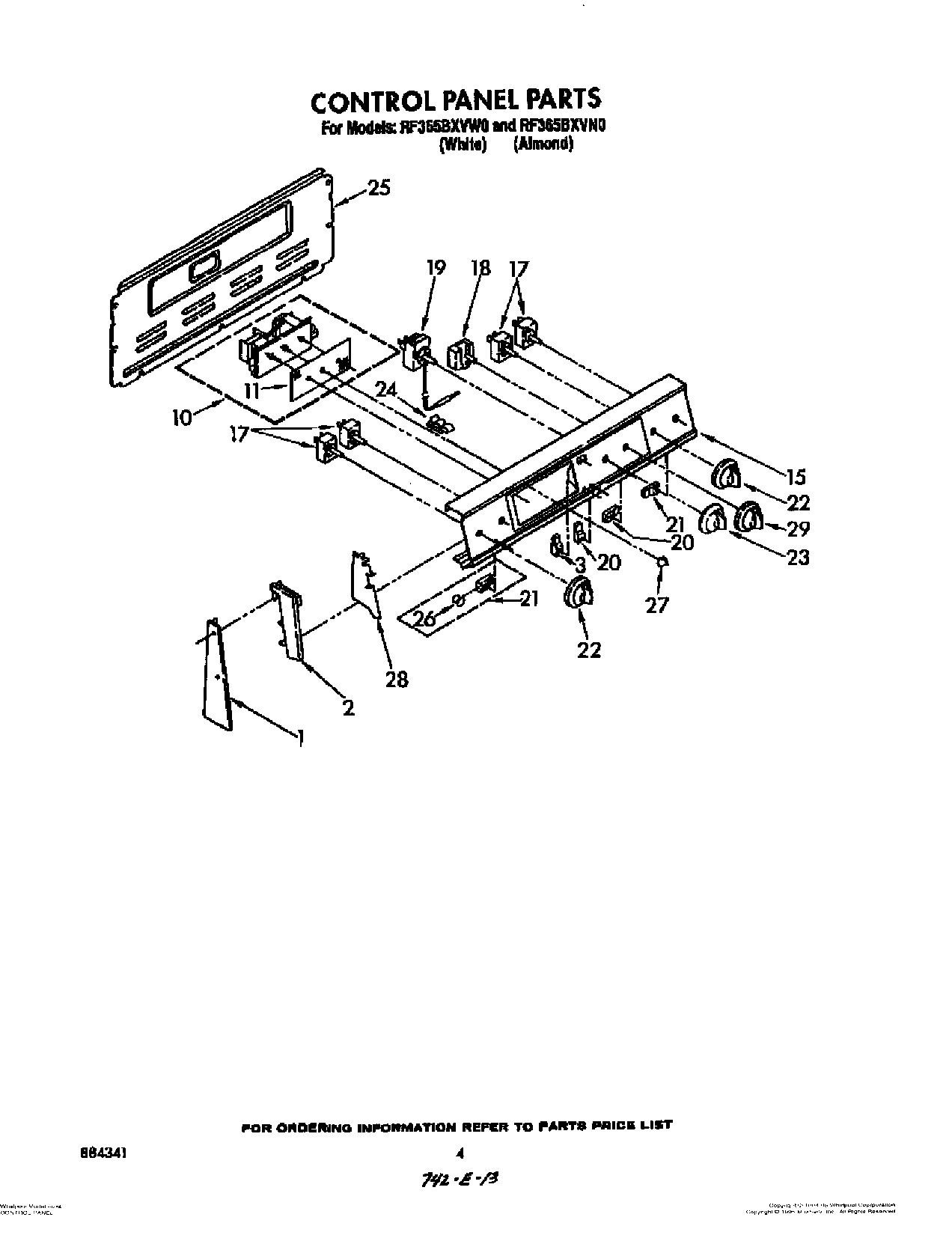

03 - CONTROL PANEL
Common parts from model Whirlpool RF365BXVN0
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
WPL 312308 WPL 312308 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148056 WPL LIT3148056 Contact Us For Availability
WPL LIT3148614 WPL LIT3148614 Contact Us For Availability
WPL LIT318539 WPL LIT318539 Contact Us For Availability
WPL LIT884341 WPL LIT884341 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
End Trim L.H. WPL 313188 Contact Us For Availability
1
End Trim R.H. WPL 313189 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3148778 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Screw, 10-16 x 1/2 WPL 343461 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
3
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
3
Harness, Wire (Lock Switch) WPL 3148699 Contact Us For Availability
3
Harness, Wire (Latch & Switch) WPL 3171162 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Light, Indicator WPL 3148719 Contact Us For Availability
4
Panel, Glass WPL 3148186 Contact Us For Availability
4
Frame, Front WPL 3170856 Contact Us For Availability
5
Foil, Door WPL 3148184 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw (3) WPL 3149333 Contact Us For Availability
6
Handle, Door WPL 3148229 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Screw (8) WPL 313045 Contact Us For Availability
7
Frame, Door Top WPL 3148223 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Clip, Handle (2) WPL 3148282 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
9
Frame, Door WPL 3148235 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
10
Glide, Rear (2) WPL 307980 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Timer, Auto WPL 3148053 Contact Us For Availability
11
Panel Drawer (White) WPL 307935 Contact Us For Availability
11
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Glass, Timer WPL 313513 Contact Us For Availability
12
Handle, Drawer WPL 313337 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
13
Drawer, Utility WPL 327887 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
14
Rack, Literature WPL 357645 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Protector, Drawer (2) WPL 309329 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3148841 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
WPL 307748 WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 2 WPL 242832 Contact Us For Availability
16
WPL 242985 WPL 242985 Contact Us For Availability
16
WPL 261582 WPL 261582 Contact Us For Availability
16
WPL 261886 WPL 261886 Contact Us For Availability
16
WPL 261887 WPL 261887 Contact Us For Availability
16
WPL 261888 WPL 261888 Contact Us For Availability
16
WPL 261889 WPL 261889 Contact Us For Availability
16
WPL 261890 WPL 261890 Contact Us For Availability
16
WPL 261891 WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 312288 Contact Us For Availability
19
Thermostat, Oven Pyro WPL 3148933 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
Light, Indicator (3) (Oven, Lock, Clean) (Inc WPL 314031 Contact Us For Availability
21
Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Control (4) WPL 330171 Contact Us For Availability
23
Screw (2) WPL 310410 Contact Us For Availability
23
Knob, Control WPL 330169 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
24
Tube Clip WPL 313570 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Rear Cover Control Panel WPL 313195 Contact Us For Availability
26
Block, Balance WPL 312804 Contact Us For Availability
26
Lens, Amber (5) WPL 313101 Contact Us For Availability
27
Spring, Knob WPL 313311 Contact Us For Availability
28
Shield, Glass (2) WPL 313608 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
KNOB, CONTROL WPL 330172 Contact Us For Availability
30
screw (2) WPL 3148604 Contact Us For Availability
31
Anchor, Plastic WPL 3148605 Contact Us For Availability
× ![]()
