Model Whirlpool RF362BXBQ1 – Common Parts & Diagrams

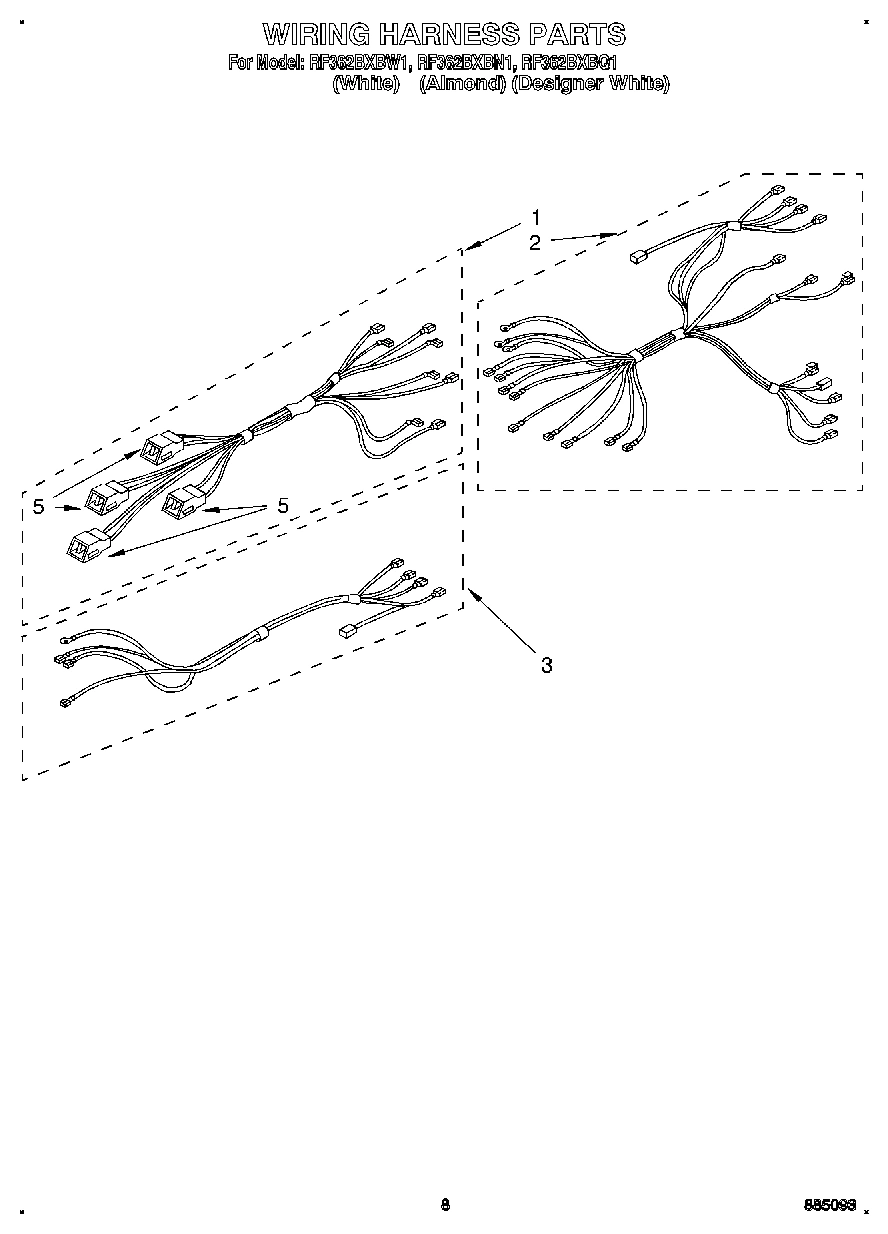

06 - WIRING HARNESS

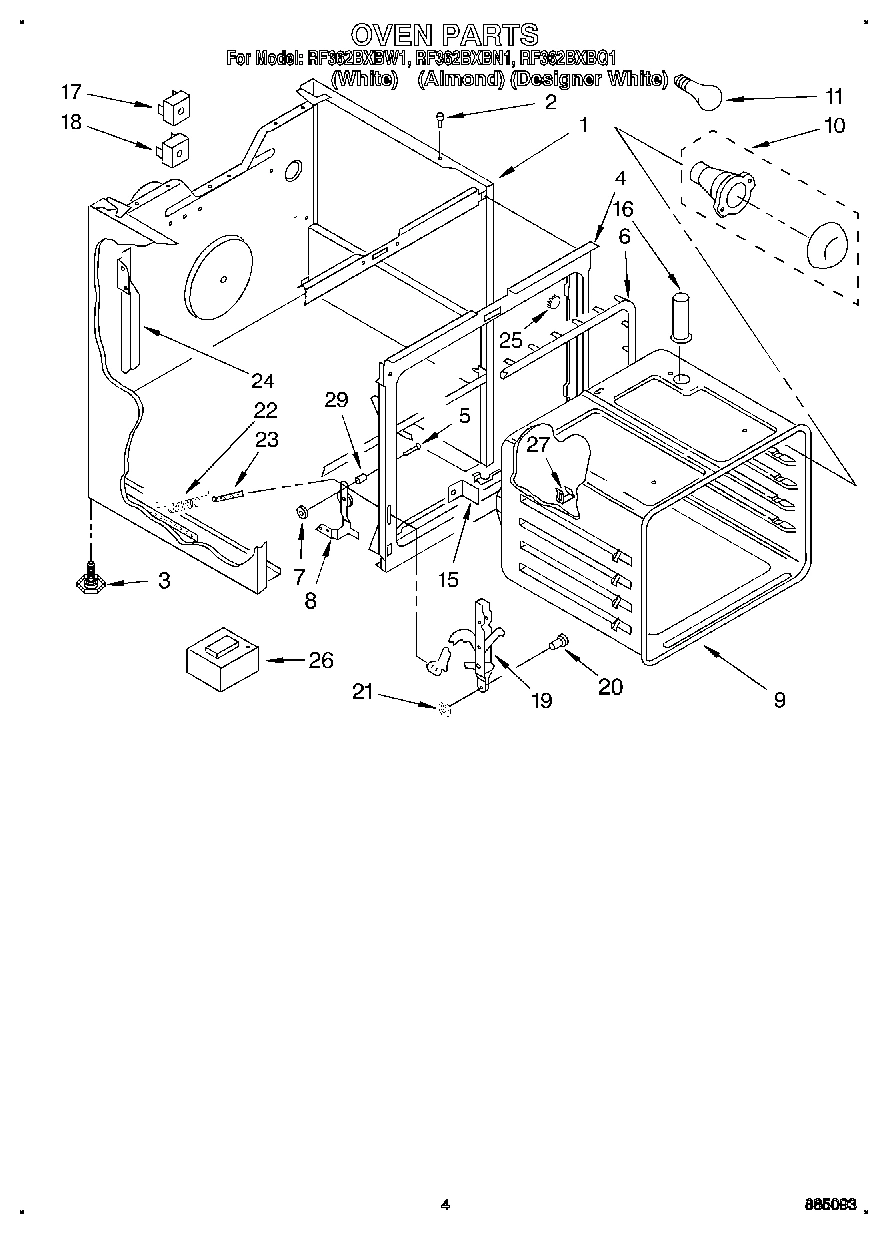

03 - OVEN
05 - DOOR AND DRAWER
02 - CONTROL PANEL
01 - COOKTOP, LITERATURE
04 - UNIT, OPTIONAL
Common parts from model Whirlpool RF362BXBQ1
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169415 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Use & Care Guide WPL LIT3187475 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
screw (6) WPL 3148443 Contact Us For Availability
1
Liner, Oven Door WPL 3172219 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Designer White Mdl WPL 3183320 Contact Us For Availability
1
Latch Asm Complete W/Wire Harness WPL 3183322 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Retainer, Insulation WPL 3148160 Contact Us For Availability
2
Screw (4) WPL 3185647 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap Designer White Mdl WPL 313230 Contact Us For Availability
2
End Cap Designer White Mdl WPL 313231 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Safety Switch WPL 3182741 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Panel, Glass WPL 3148186 Contact Us For Availability
4
Designer White Mdl WPL 3149051 Contact Us For Availability
4
Switch, Rocker WPL 3182717 Contact Us For Availability
4
Designer White Mdl WPL 3182718 Contact Us For Availability
4
Screw (2) WPL 308422 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
5
Handle, Door WPL 3148228 Contact Us For Availability
5
Designer White Mdl WPL 3149354 Contact Us For Availability
5
Designer White Mdl WPL 3150175 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Screw (2) WPL 3150532 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Door Top WPL 3148223 Contact Us For Availability
6
Designer White Mdl WPL 3149355 Contact Us For Availability
6
Knob, Latch (Designer White Mdl.) WPL 3150174 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Glide, Rear (2) WPL 307980 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
10
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
10
Timer, Electronic WPL 3183186 Contact Us For Availability
10
Designer White Mdl WPL 3183187 Contact Us For Availability
10
Latch Mechanism WPL 3148668 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
11
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Drawer, Utility WPL 327887 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Protector (2) WPL 309329 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
Insulation WPL 3147951 Contact Us For Availability
14
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
14
Toast WPL 285365 Contact Us For Availability
14
Paint, Spray WPL 285366 Contact Us For Availability
14
WPL 285367 WPL 285367 Contact Us For Availability
14
WPL 285368 WPL 285368 Contact Us For Availability
14
WPL 308172 WPL 308172 Contact Us For Availability
14
WPL 308173 WPL 308173 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
15
Cap, Door Top (Designer Model) WPL 3181363 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3169402 Contact Us For Availability
15
Designer White Mdl WPL 3169403 Contact Us For Availability
17
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
19
Thermostat, 0ven Pyro WPL 3185625 Contact Us For Availability
20
Light, Indicator (Oven Unit) WPL 314031 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Light, Indicator (Surface Unit) WPL 3183695 Contact Us For Availability
22
Knob, (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Designer White Mdl WPL 3183117 Contact Us For Availability
23
Knob, Thermostat WPL 3183105 Contact Us For Availability
23
Designer White Mdl WPL 3183108 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
24
Tube Clip WPL 313570 Contact Us For Availability
25
Rear Cover WPL 3187332 Contact Us For Availability
26
Block, Balance WPL 3149258 Contact Us For Availability
26
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
Shield, Glass (2) WPL 313608 Contact Us For Availability
29
Knob (Selector) WPL 3183115 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
Insulation, Wrap WPL 3169093 Contact Us For Availability
29
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
29
Designer White Mdl WPL 3183116 Contact Us For Availability
× ![]()
