Model Whirlpool RF362BBDN0 – Common Parts & Diagrams

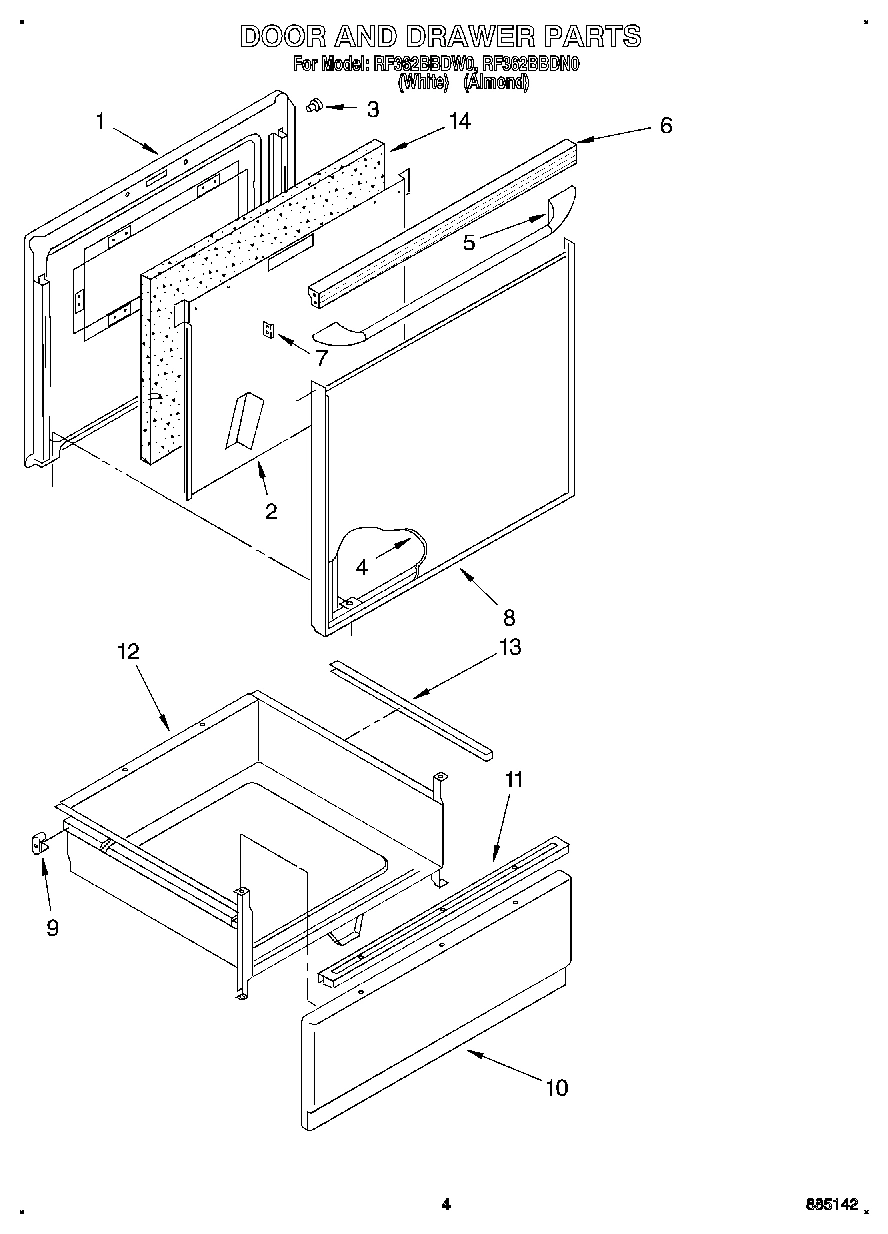

04 - DOOR AND DRAWER

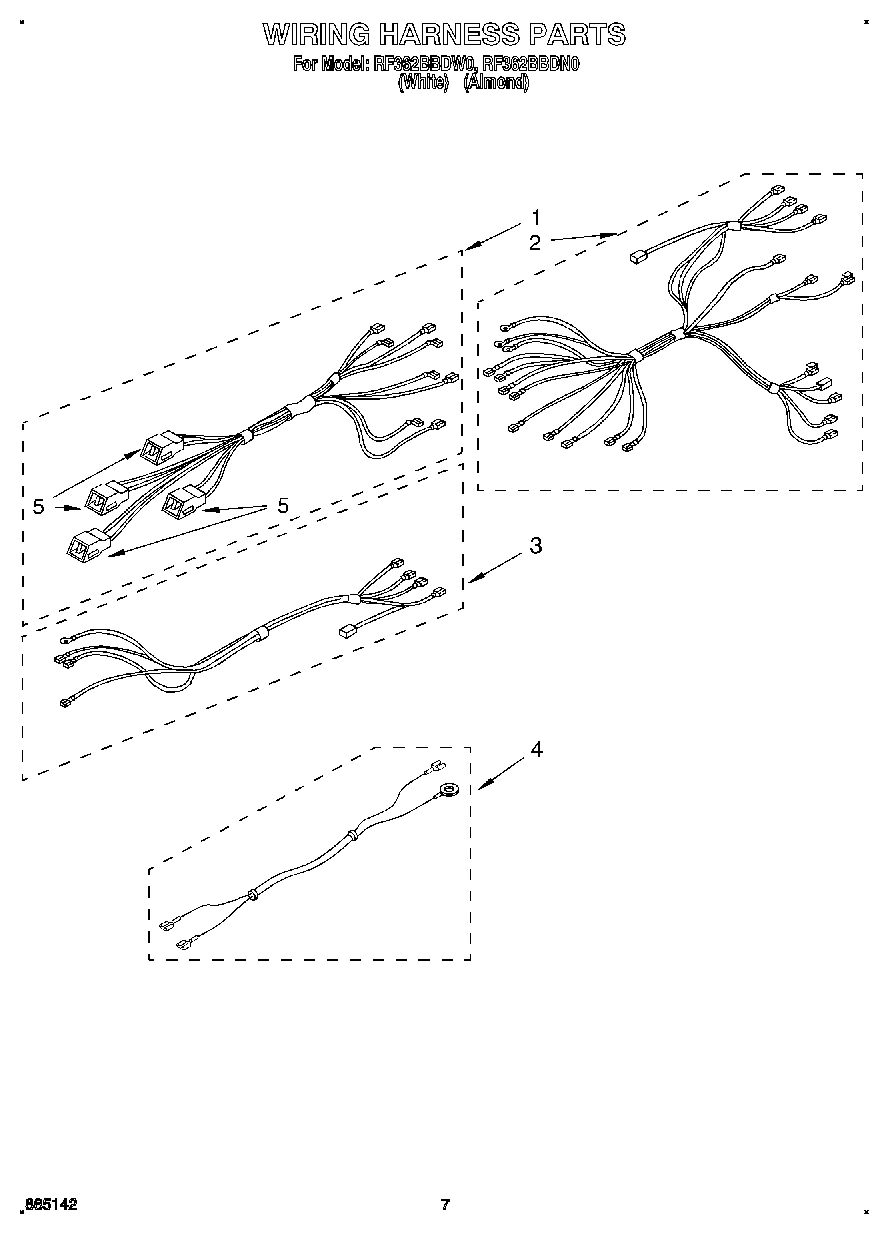

06 - WIRING HARNESS, LITERATURE

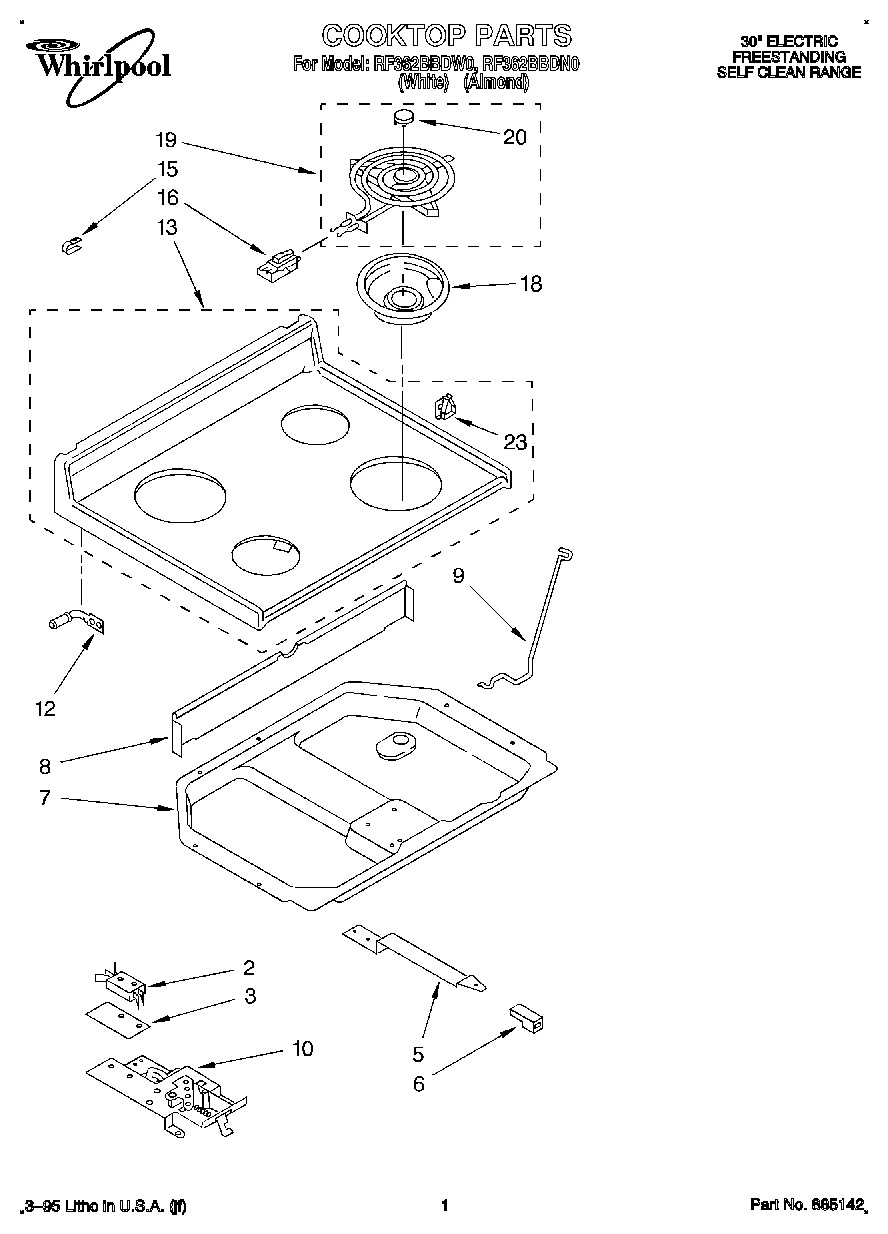

01 - COOKTOP

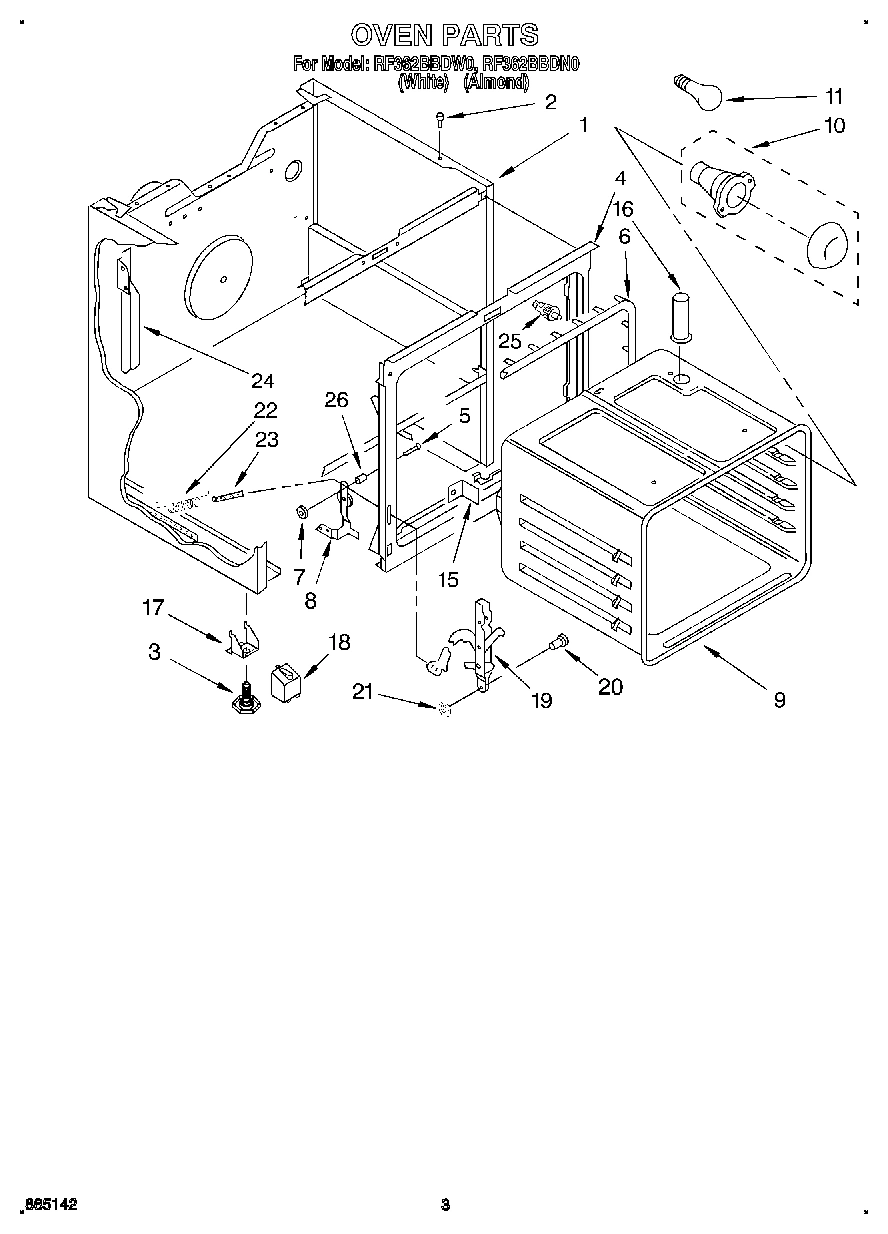

03 - OVEN

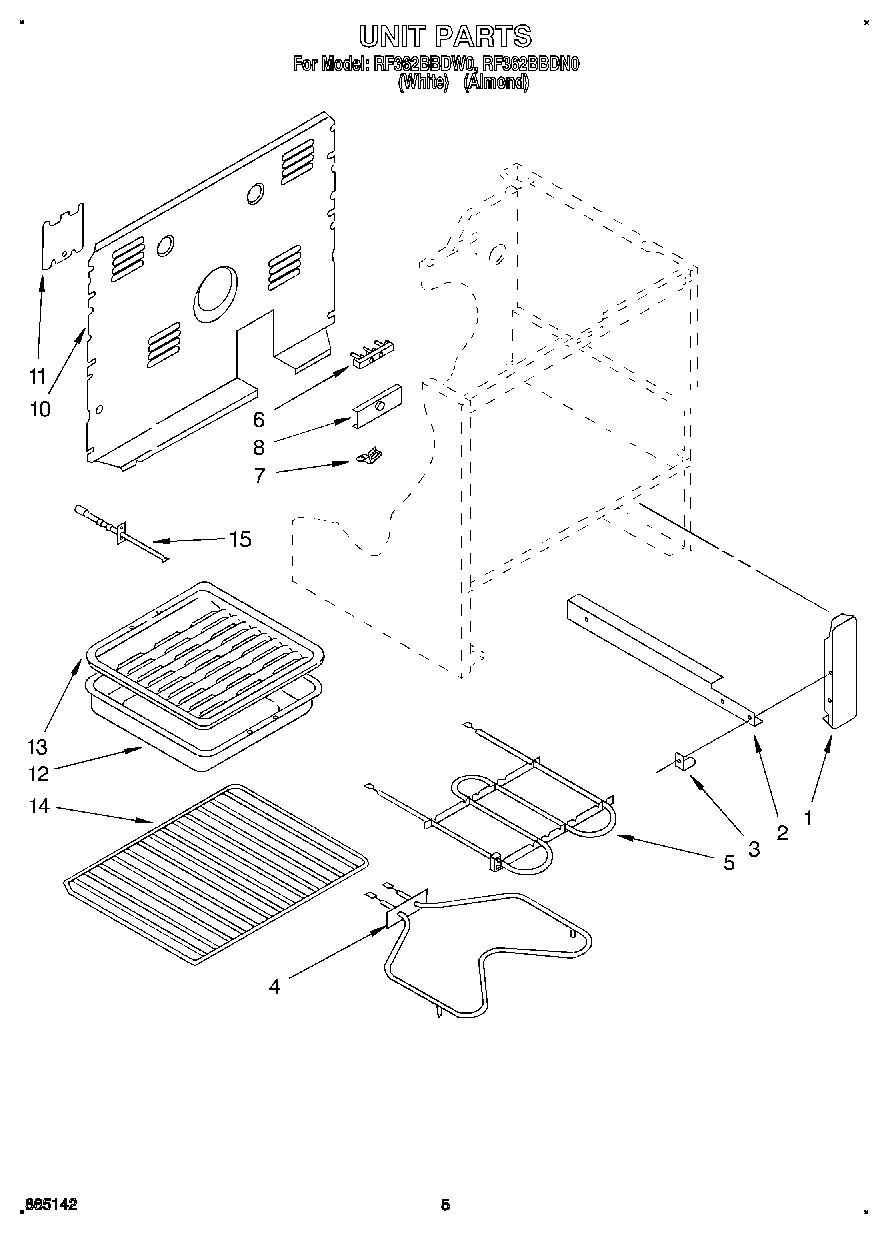

05 - UNIT, OPTIONAL

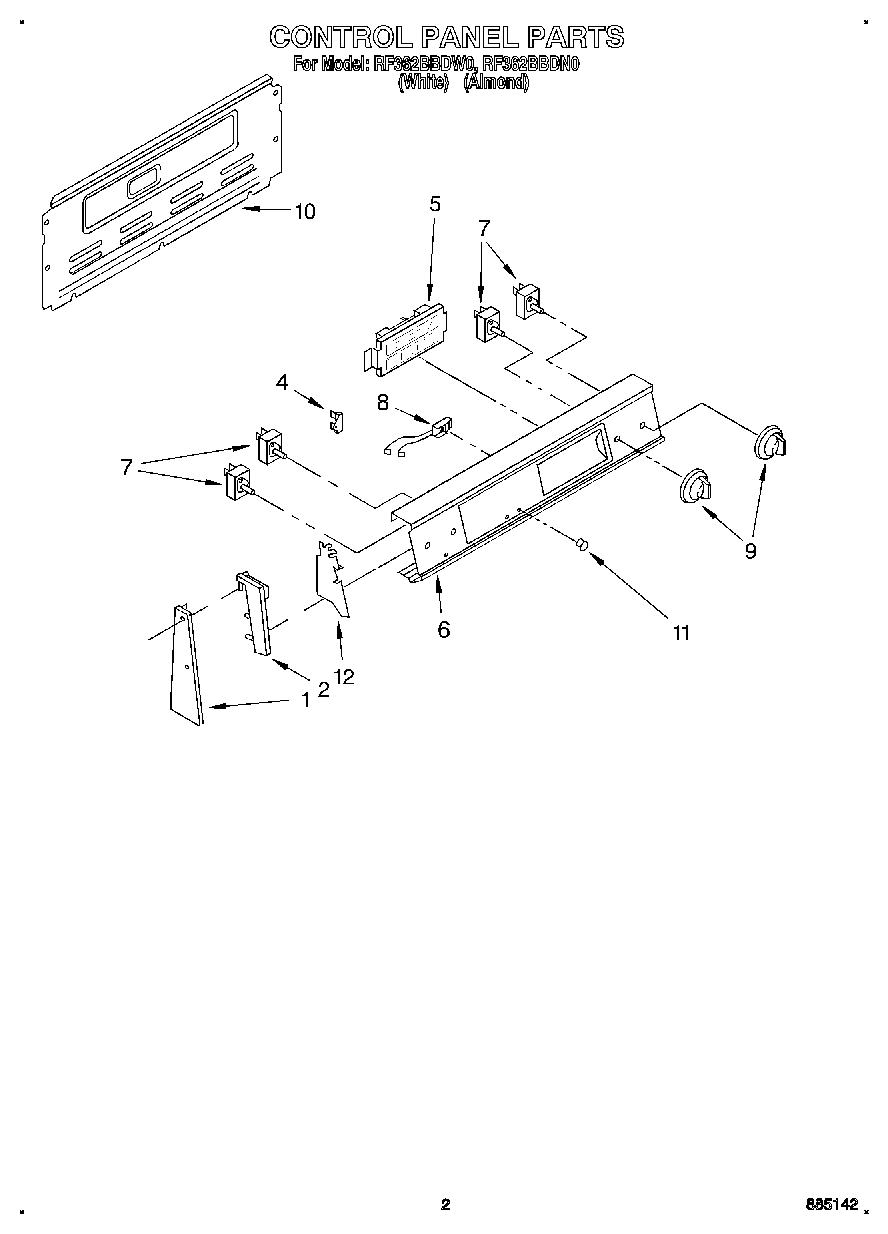

02 - CONTROL PANEL
Common parts from model Whirlpool RF362BBDN0
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
End Trim R.H. WPL 3187671 Contact Us For Availability
1
End Trim L.H. WPL 3187672 Contact Us For Availability
2
Screw (2) WPL 312717 Contact Us For Availability
2
Safety Switch WPL 3169497 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3187791 Contact Us For Availability
2
End Cap L.H. WPL 3187792 Contact Us For Availability
3
Harness, Wire (Lock Switch) WPL 3169508 Contact Us For Availability
3
Insulator, Switch WPL 3169498 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
4
Fuse WPL 3187848 Contact Us For Availability
5
Handle, Door WPL 3188695 Contact Us For Availability
5
Screw WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw (2) WPL 3150532 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
5
Timer, Electronic WPL 3195182 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Panel, Control WPL 3188687 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
8
Screw (3) WPL 3149333 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Indicator Light (2) WPL 3169457 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Latch Mechanism WPL 3148668 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Rear Cover WPL 3187332 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Lens, Amber (2) WPL 313101 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
12
Shield, Glass (2) WPL 313608 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Rack, Offset WPL 308172 Contact Us For Availability
14
Rack, Oven WPL 308173 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
Coffee WPL 261886 Contact Us For Availability
15
New Avocado WPL 261888 Contact Us For Availability
15
Harvest Gold WPL 261890 Contact Us For Availability
15
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
15
WPL 285365 WPL 285365 Contact Us For Availability
15
WPL 285366 WPL 285366 Contact Us For Availability
15
WPL 285367 WPL 285367 Contact Us For Availability
15
WPL 285368 WPL 285368 Contact Us For Availability
15
WPL 3148440 WPL 3148440 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 72112 WPL 72112 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 978883 WPL 978883 Contact Us For Availability
15
WPL 98520 WPL 98520 Contact Us For Availability
17
Support, Foot (2) WPL 3169418 Contact Us For Availability
18
Cover, Foot (2) WPL 3169448 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Oven Light WPL 310345 Contact Us For Availability
26
Snubber, Door (2) WPL 309111 Contact Us For Availability
26
Insulation, Wrap WPL 3169093 Contact Us For Availability
26
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
