Model Whirlpool RF3620XVN0 – Common Parts &amp; Diagrams

WPL 246127 WPL 246127 Contact Us For Availability

Book, Cooking WPL LIT313358 Contact Us For Availability

Instructions, Installation WPL LIT3148056 Contact Us For Availability

Guide, Use & Care WPL LIT3148538 Contact Us For Availability

List, Parts WPL LIT884339 Contact Us For Availability

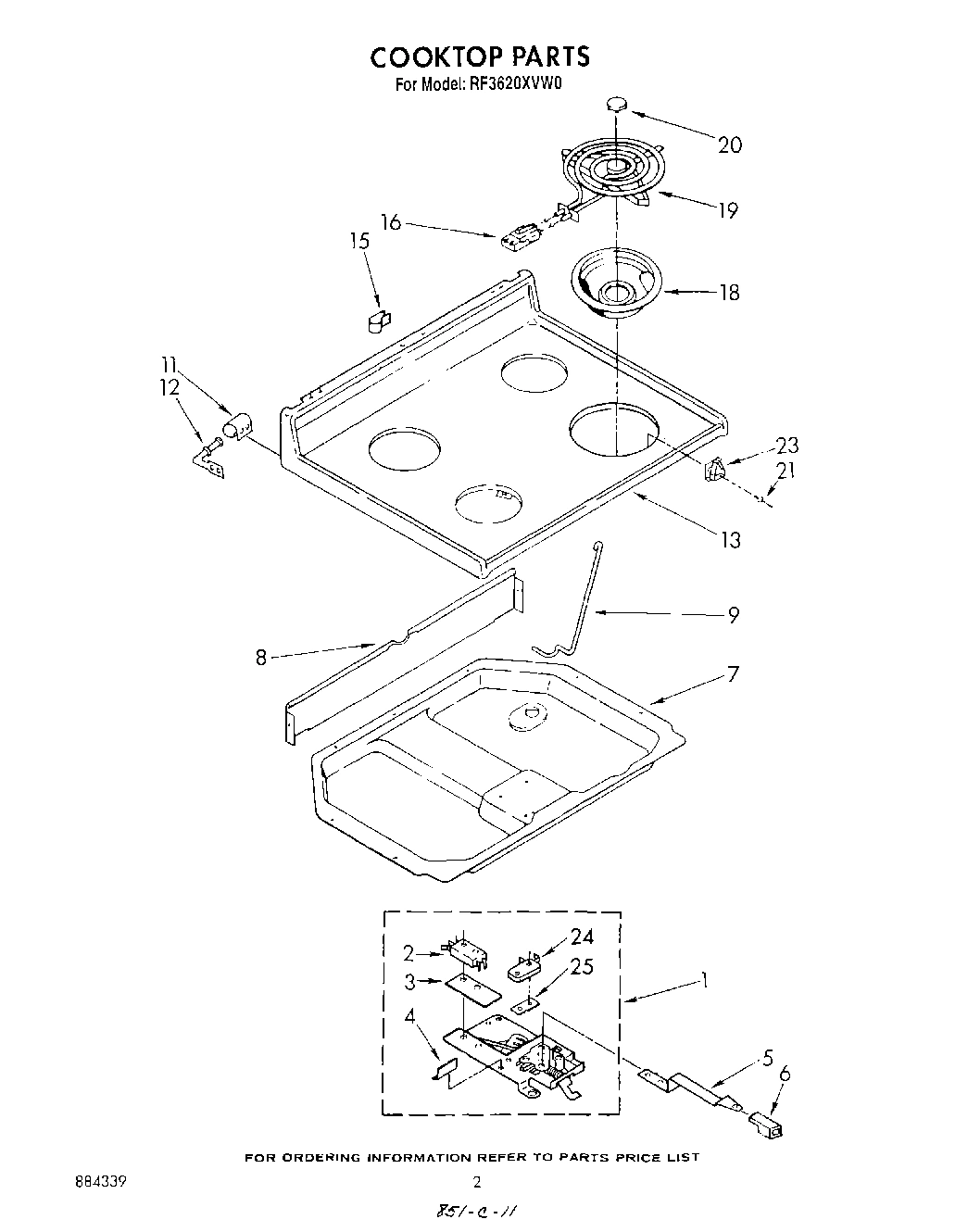

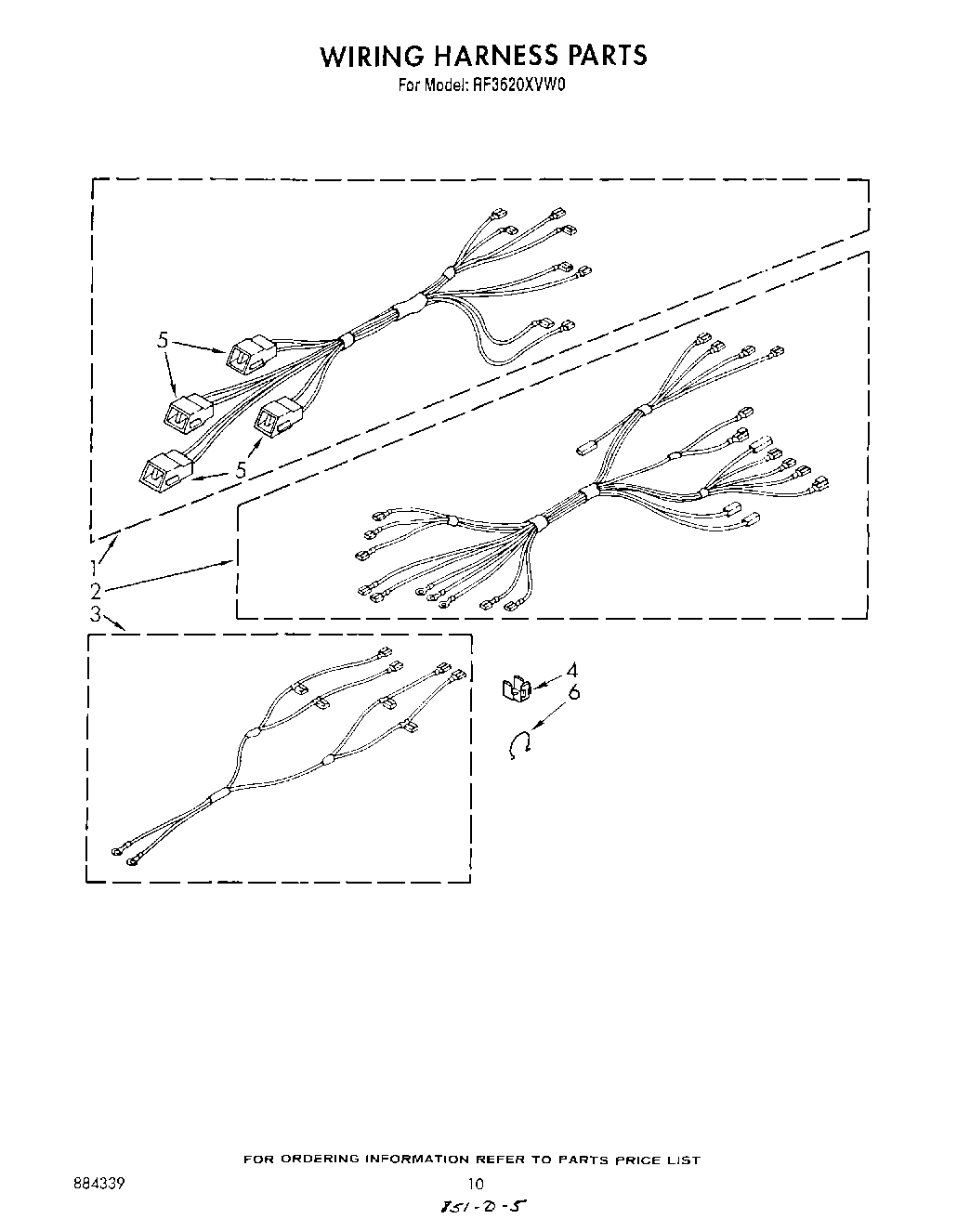

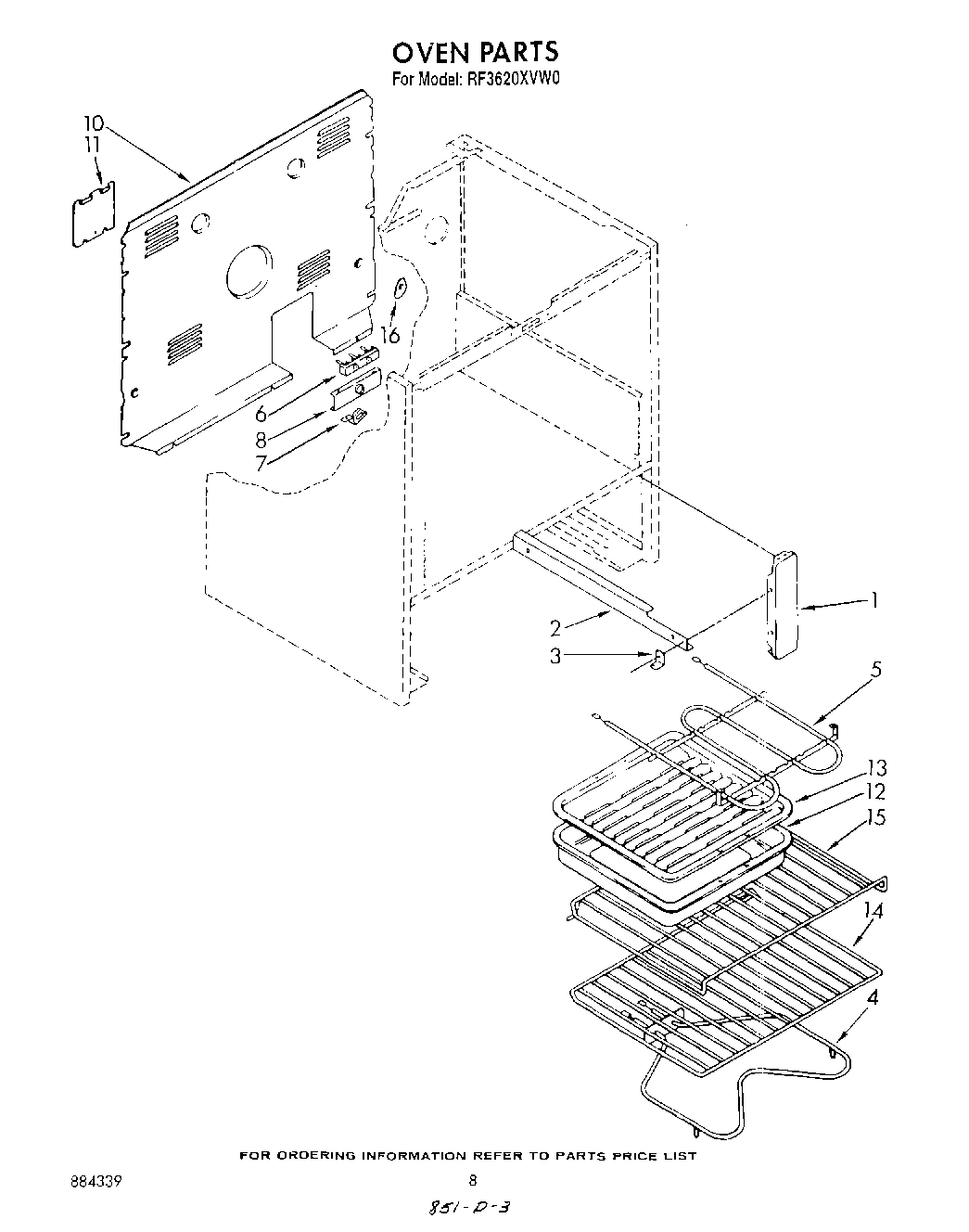

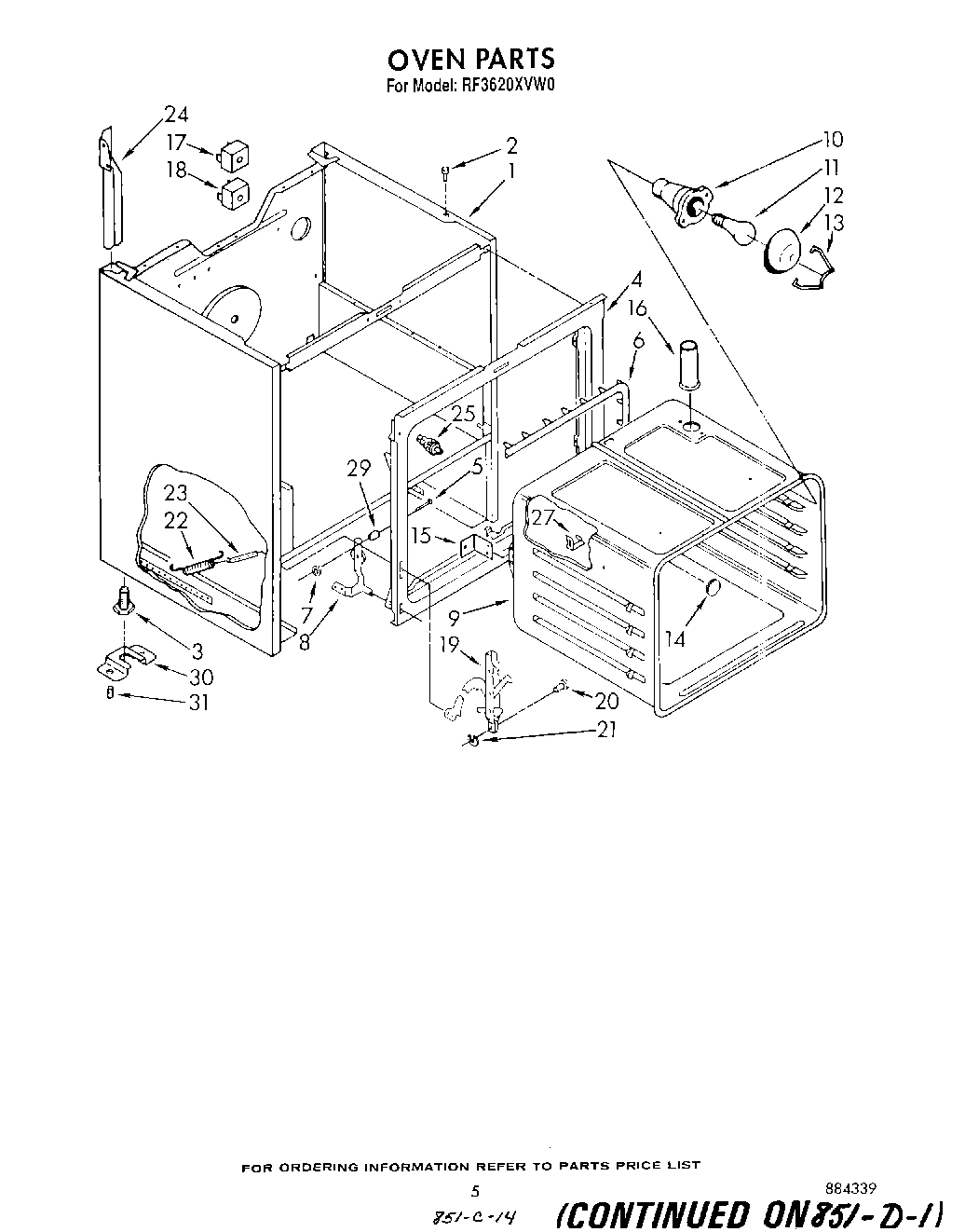

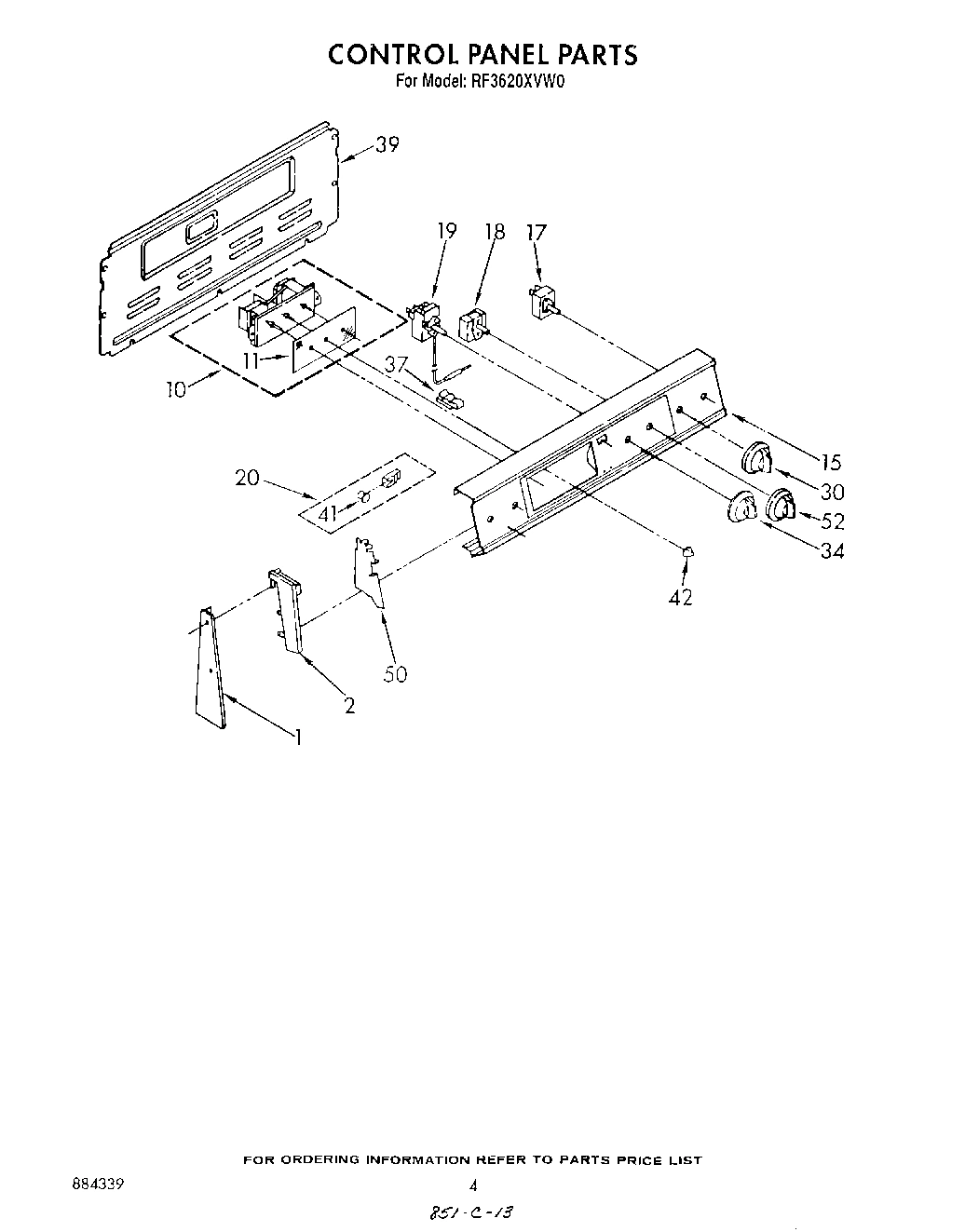

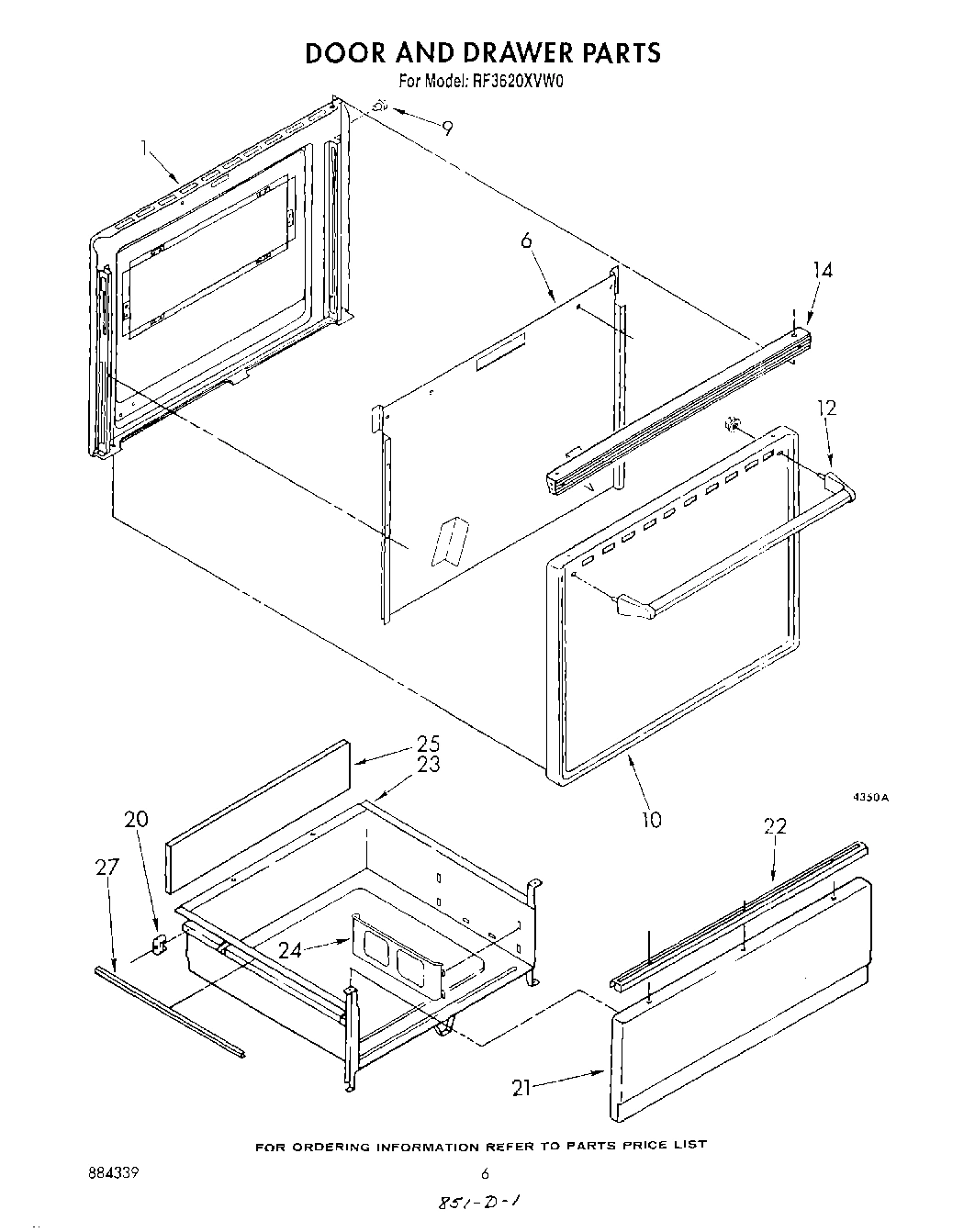

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Liner, Door WPL 3170707 Contact Us For Availability

1

Latch & Switch Assembly WPL 3171148 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3148778 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

3

Harness, Wire (Lock Switch) WPL 3148699 Contact Us For Availability

3

Harness, Wire (Latch & Switch) WPL 3171162 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Adapter, Terminal WPL 3147832 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

5

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3147065 Contact Us For Availability

6

16515 Whirlpool Clip Backorder WPL 16515 $11.62

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Screw (4) WPL 3148443 Contact Us For Availability

6

Retainer, Insulation WPL 3148160 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Box, Burner WPL 3149194 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

9

Bumper, Door (4) WPL 3148182 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

Timer, Auto WPL 3148851 Contact Us For Availability

Panel, Door (White) WPL 3148206 Contact Us For Availability

Panel, Door (Almond) WPL 3148210 Contact Us For Availability

11

Cover, Service WPL 307972 Contact Us For Availability

11

Glass, Timer WPL 313513 Contact Us For Availability

11

Bracket (2) WPL 307965 Contact Us For Availability

12

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

12

Handle, Door WPL 311563 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

13

Cooktop (Almond) WPL 3170988 Contact Us For Availability

13

Cooktop (White) WPL 3170989 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Pushnut (2) WPL 3148181 Contact Us For Availability

14

Frame, Door Top WPL 3148188 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 3148835 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 311982 WPL 311982 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

17

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $49.10

17

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

18

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.23

18

Switch, Selector (5 Position) WPL 312288 Contact Us For Availability

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Thermostat, Oven Pyro WPL 3148933 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Light, Indicator (Oven On) WPL 314031 Contact Us For Availability

Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Light, Indicator (Locked) WPL 3148719 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 3170981 Contact Us For Availability

22

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Handle, Drawer WPL 313337 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Drawer, Utility WPL 327887 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

24

Rack, Literature WPL 357645 Contact Us For Availability

24

Switch, Lock WPL 3148669 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Sound, Pad WPL 302340 Contact Us For Availability

25

insulator WPL 3147864 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

27

Protector, Drawer (2) WPL 309329 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

30

screw (2) WPL 3148604 Contact Us For Availability

30

Knob, Control (4) (Surface Unit) WPL 330177 Contact Us For Availability

31

Anchor, Plastic WPL 3148605 Contact Us For Availability

34

Knob, Control (Thermostat) WPL 330175 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (5) WPL 313101 Contact Us For Availability

42

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

42

Spring, Knob WPL 313311 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

52

Knob, Control WPL 330178 Contact Us For Availability
