Model Whirlpool RF3600XYW0 – Common Parts & Diagrams
06 - OVEN
02 - COOKTOP

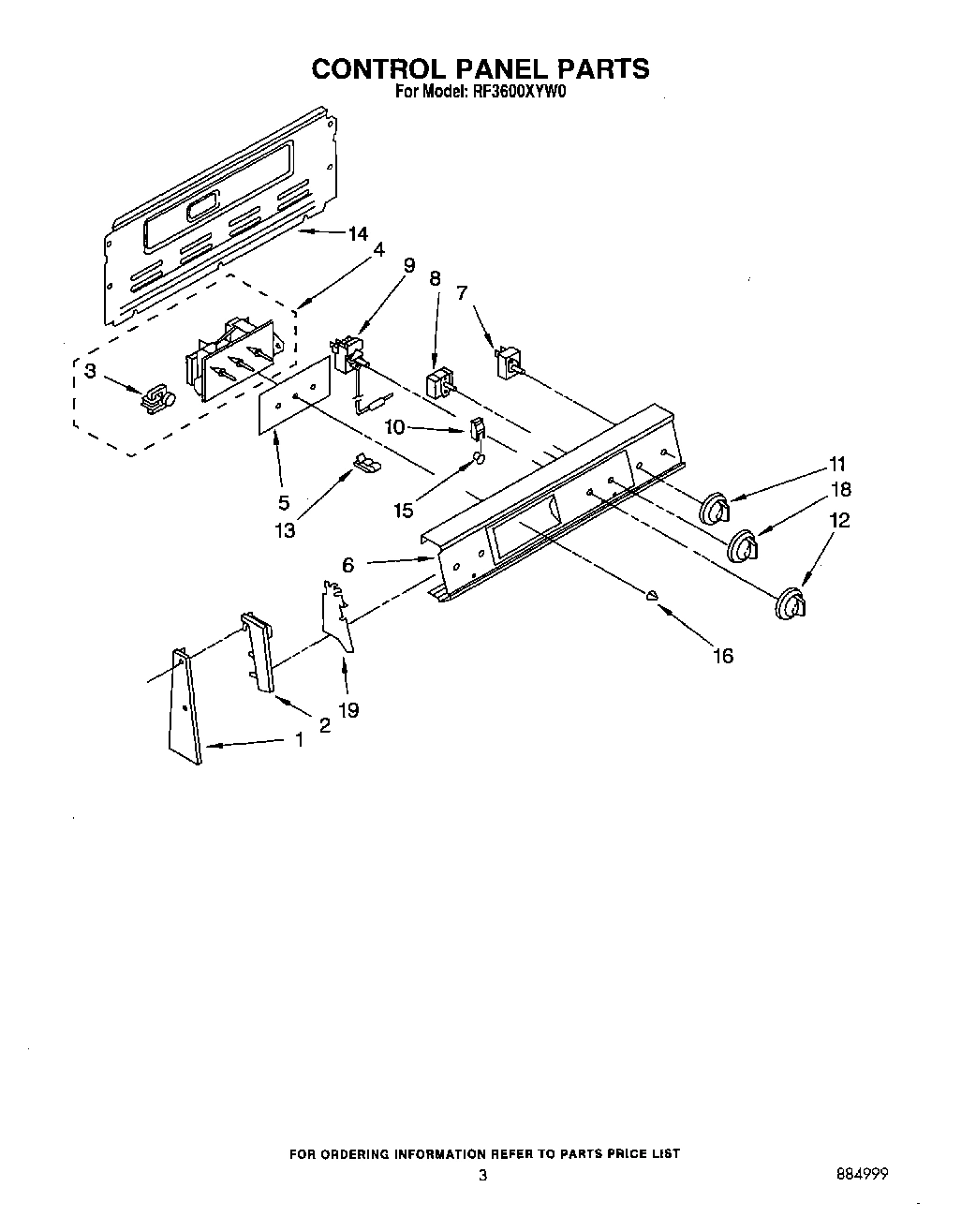

03 - CONTROL PANEL

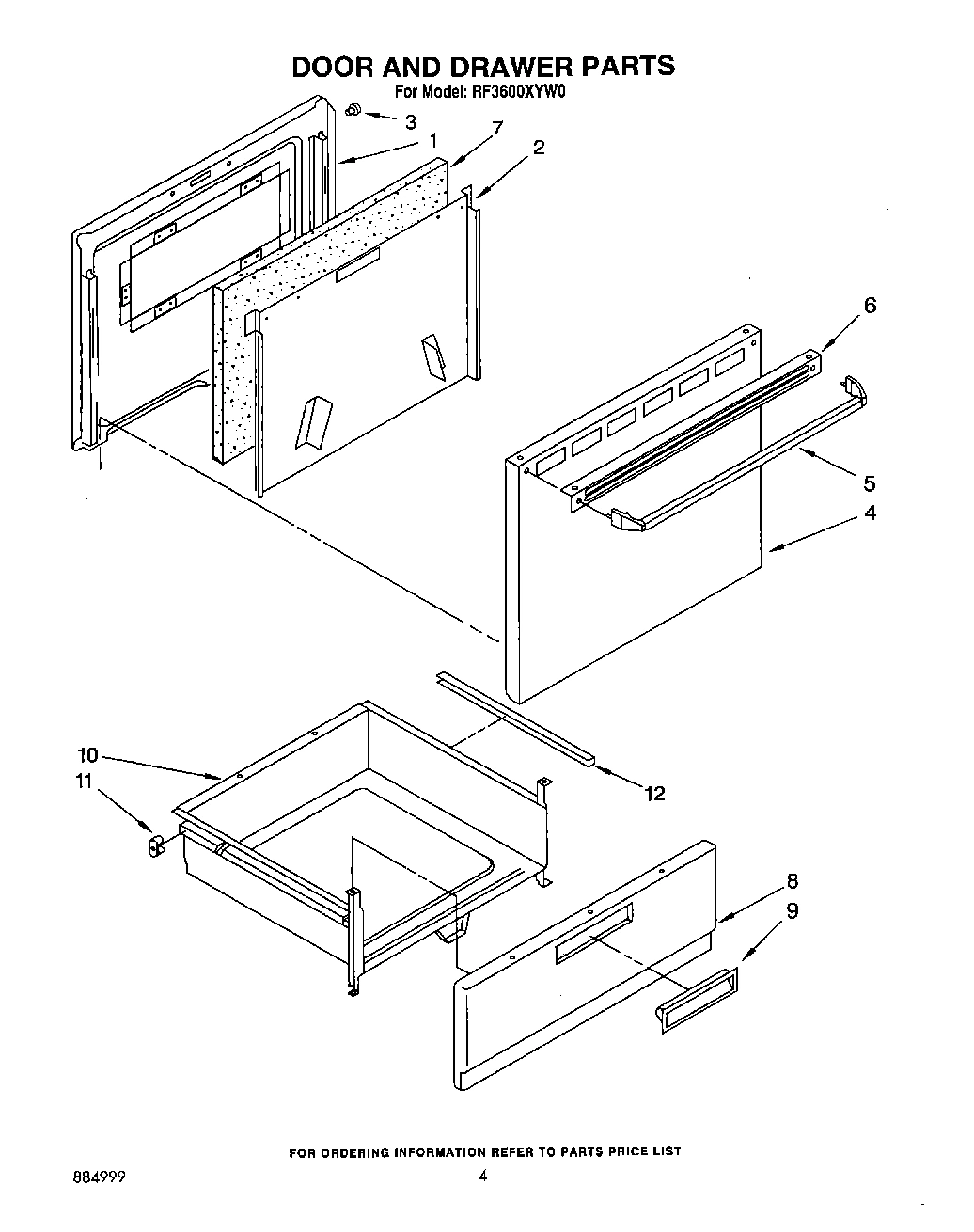

04 - DOOR AND DRAWER

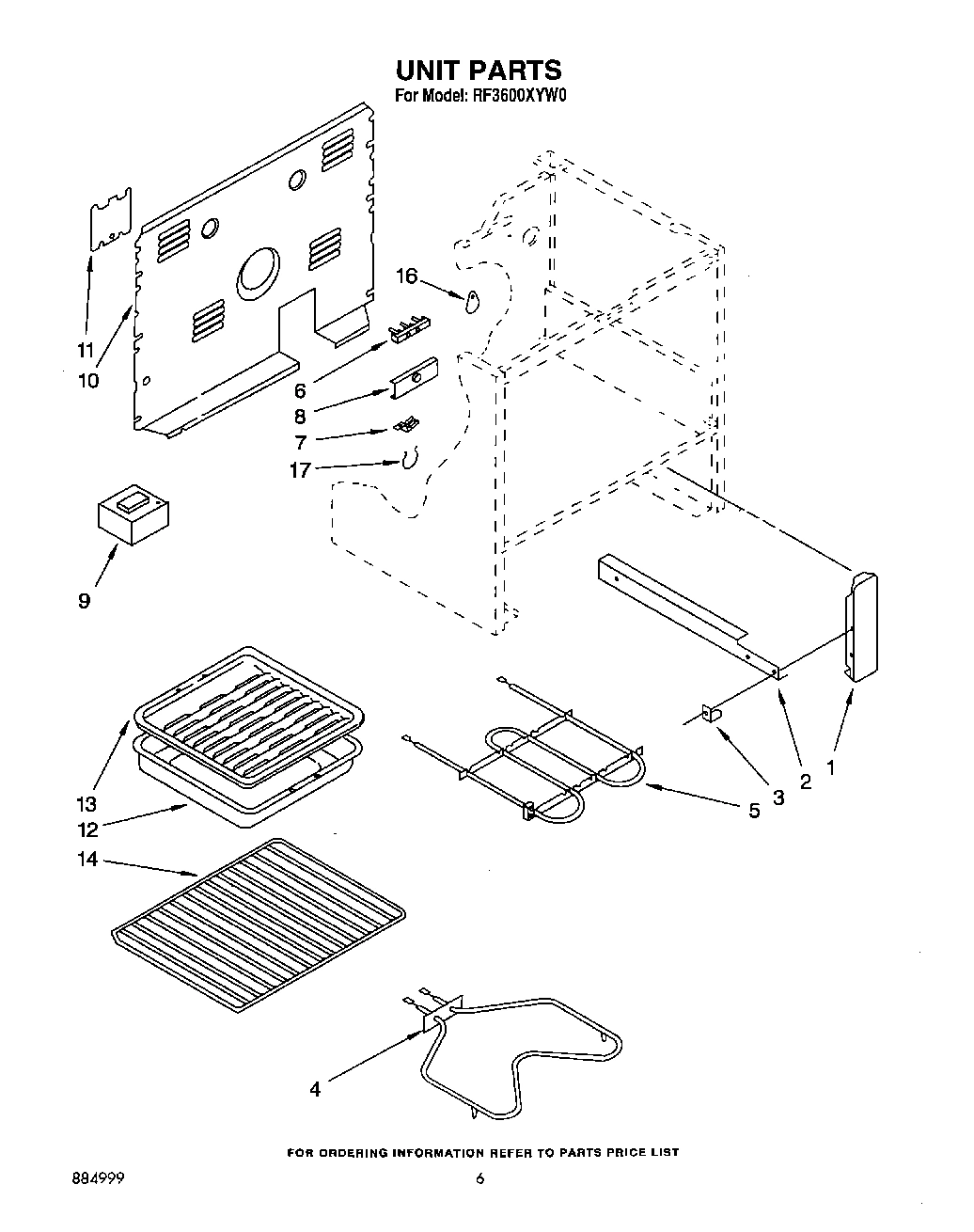

05 - UNIT, LIT/OPTIONAL

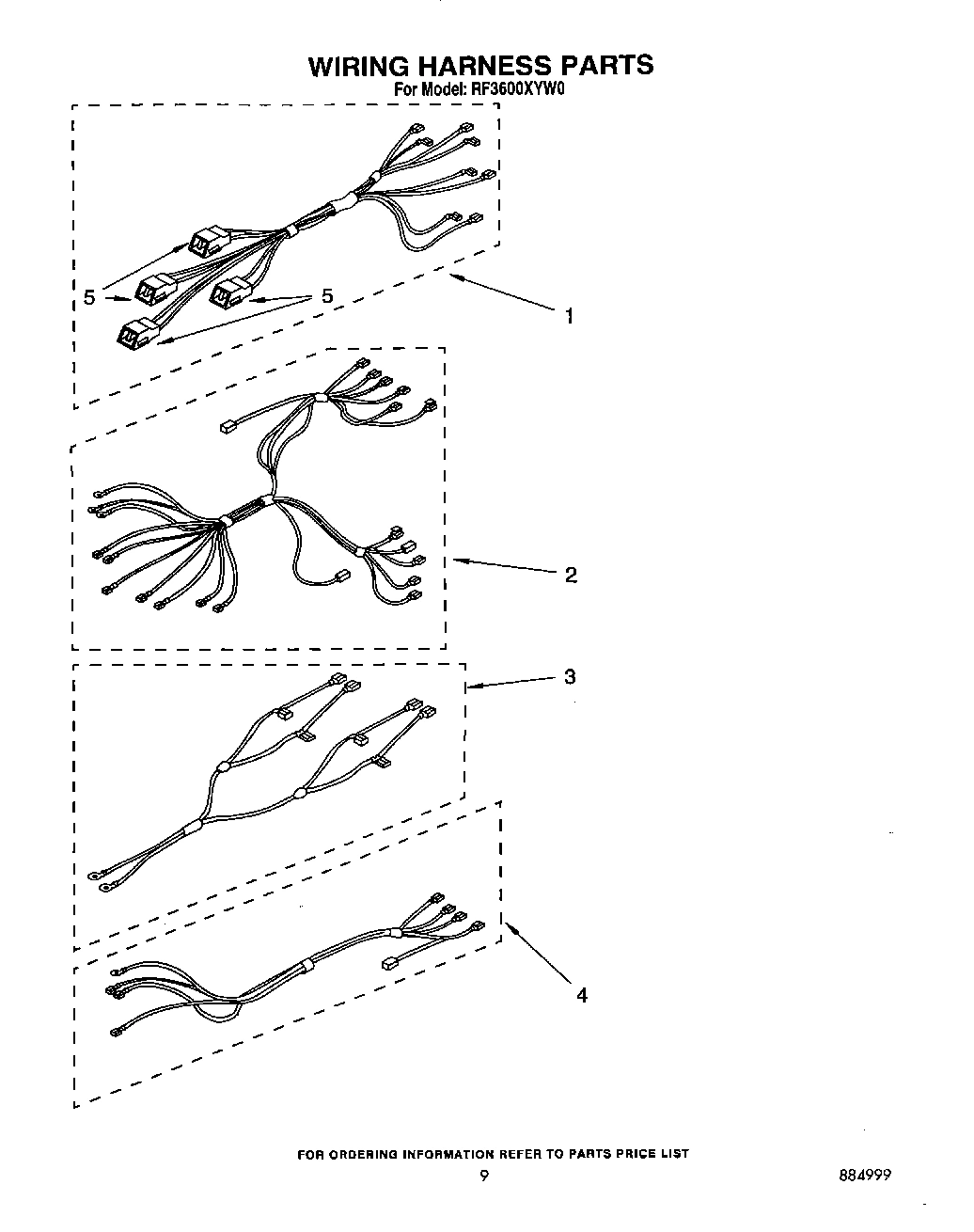

07 - WIRING HARNESS
Common parts from model Whirlpool RF3600XYW0
WPL LIT3147395 WPL LIT3147395 Contact Us For Availability
WPL LIT3150287 WPL LIT3150287 Contact Us For Availability
WPL LIT3150657 WPL LIT3150657 Contact Us For Availability
WPL LIT884999 WPL LIT884999 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Screw (4) WPL 3148443 Contact Us For Availability
2
Retainer, Insulation WPL 3148160 Contact Us For Availability
2
Rail, RH (Includes No.3) WPL 3149255 Contact Us For Availability
2
Rail, LH (Includes No.3) WPL 3149256 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3150658 Contact Us For Availability
3
Motor, Timer WPL 309822 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
4
Timer, Clock WPL 3183063 Contact Us For Availability
4
Panel, Door (White) WPL 3148206 Contact Us For Availability
4
Panel, Door (Almond) WPL 3148210 Contact Us For Availability
4
Harness, Wire (Lock Switch) WPL 313550 Contact Us For Availability
5
Door Handle WPL 311563 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Glass, Timer WPL 313513 Contact Us For Availability
5
Fastener (2) WPL 3148181 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw (2) WPL 3149333 Contact Us For Availability
6
Control Panel WPL 3183810 Contact Us For Availability
6
Top, Door WPL 3148188 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Insulation WPL 3147951 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
8
Front Drawer Panel (White) WPL 3150676 Contact Us For Availability
8
Front Drawer Panel (Almond) WPL 3150677 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Thermostat, Oven WPL 3148933 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
9
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
9
Block, Balance WPL 312804 Contact Us For Availability
10
Indicator Light (Oven) WPL 314031 Contact Us For Availability
10
Indicator Light (Surface Unit) WPL 3150647 Contact Us For Availability
10
Drawer, Utility WPL 327887 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Knob, (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Glide, Rear (2) WPL 307980 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Knob (Temp) WPL 3183103 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Side Protector (2) WPL 309329 Contact Us For Availability
13
Cooktop (White) WPL 3170989 Contact Us For Availability
13
Cooktop (Almond) WPL 3170990 Contact Us For Availability
13
Tube Clip WPL 313570 Contact Us For Availability
14
Rear Cover Control Panel WPL 313195 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Lens, Amber (2) WPL 313101 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Plate, Cover (2) WPL 311982 Contact Us For Availability
17
WPL W10355051 No Longer Available
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
WPL 799344 WPL 799344 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
WPL 261582 WPL 261582 Contact Us For Availability
17
WPL 261886 WPL 261886 Contact Us For Availability
17
WPL 261888 WPL 261888 Contact Us For Availability
17
WPL 261890 WPL 261890 Contact Us For Availability
17
WPL 261891 WPL 261891 Contact Us For Availability
17
WPL 285365 WPL 285365 Contact Us For Availability
17
WPL 285366 WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 3169093 WPL 3169093 Contact Us For Availability
17
WPL 3169094 WPL 3169094 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
18
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
18
Knob (Selector) (Timer) WPL 3183115 Contact Us For Availability
19
Shield (2) WPL 313608 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Nut (4) WPL 814102 Contact Us For Availability
× ![]()
