Model Whirlpool RF330PXYN1 – Common Parts & Diagrams
06 - UNIT, OPTIONAL
05 - DOOR AND DRAWER, LIT/OPTIONAL

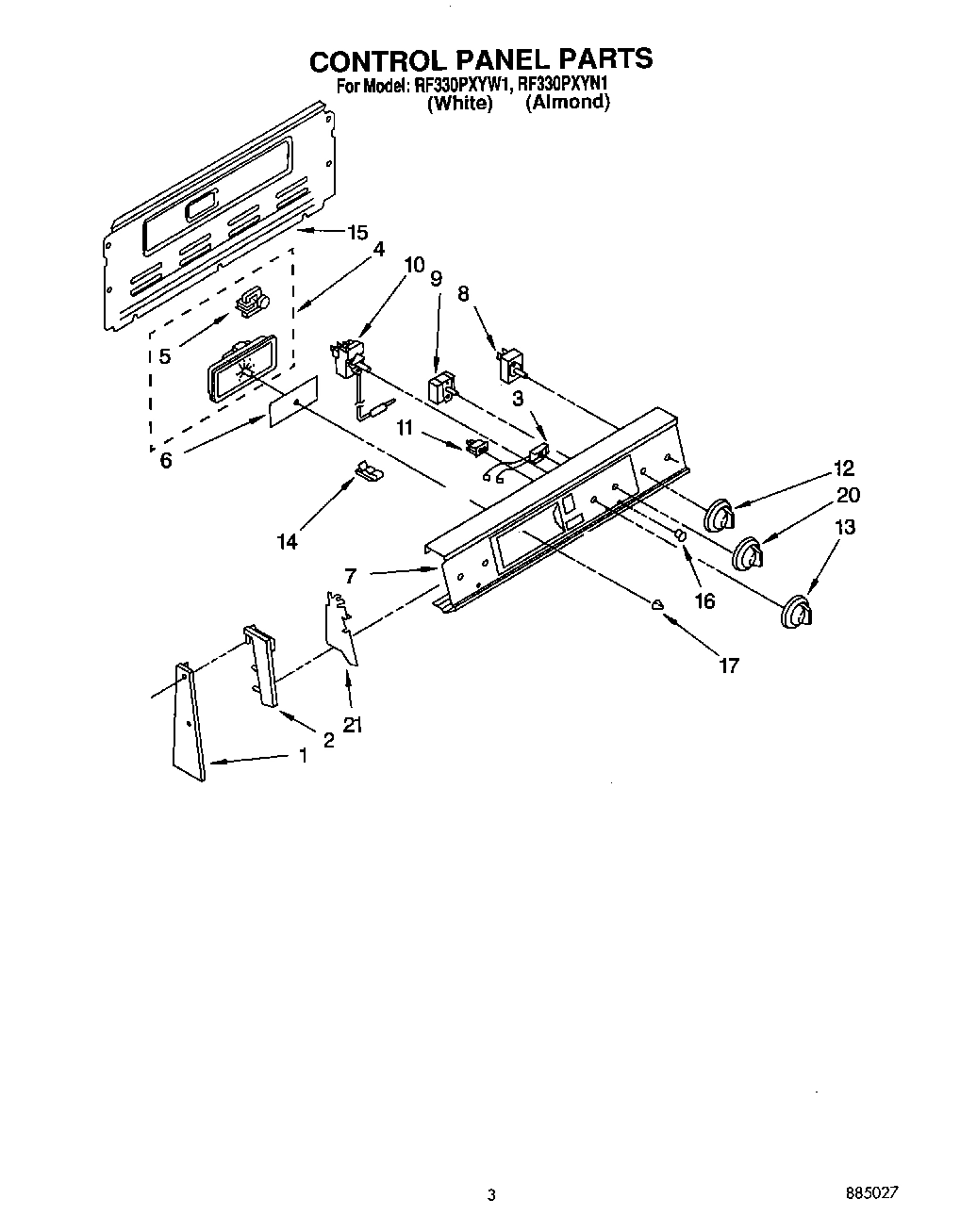

02 - CONTROL PANEL

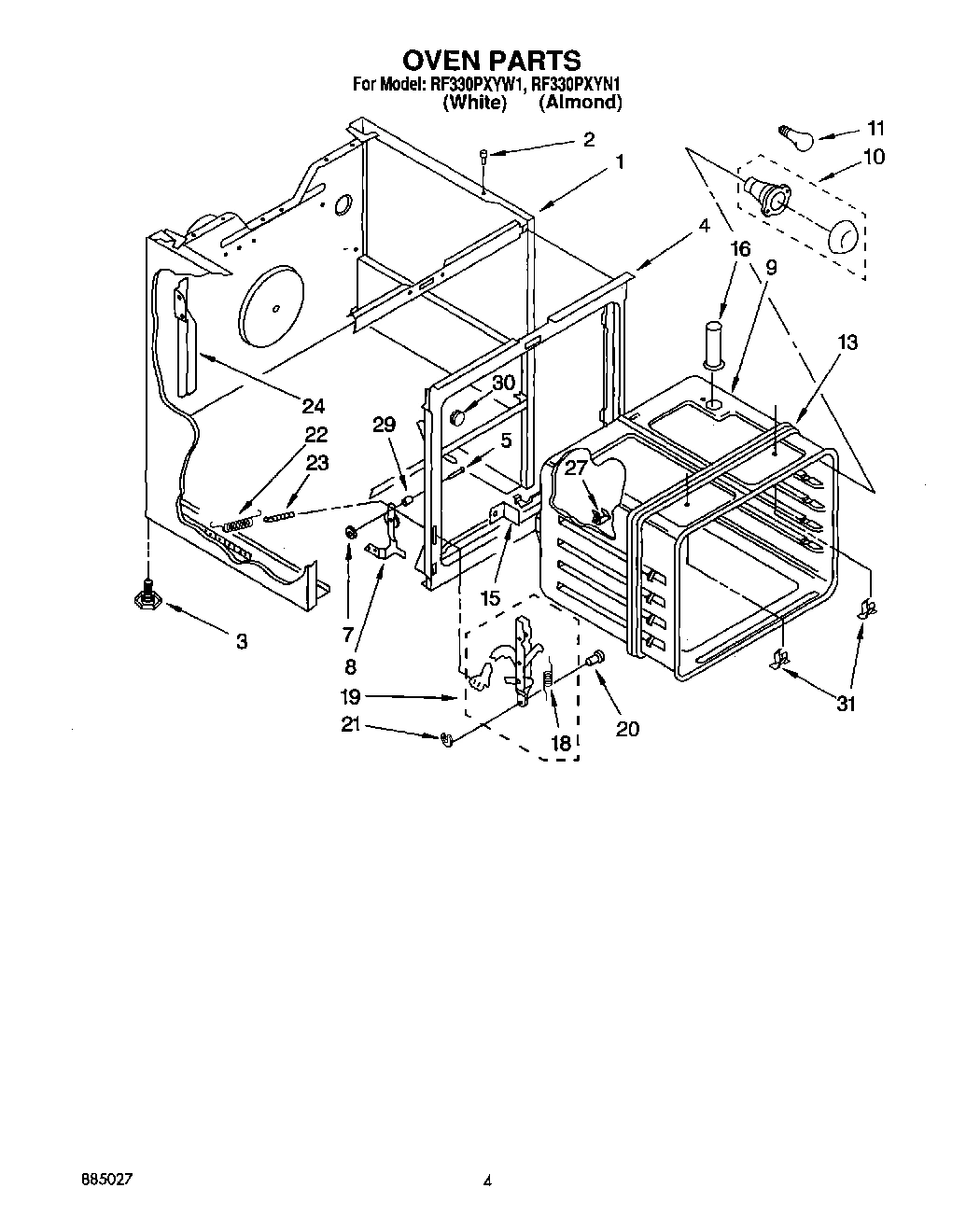

03 - OVEN

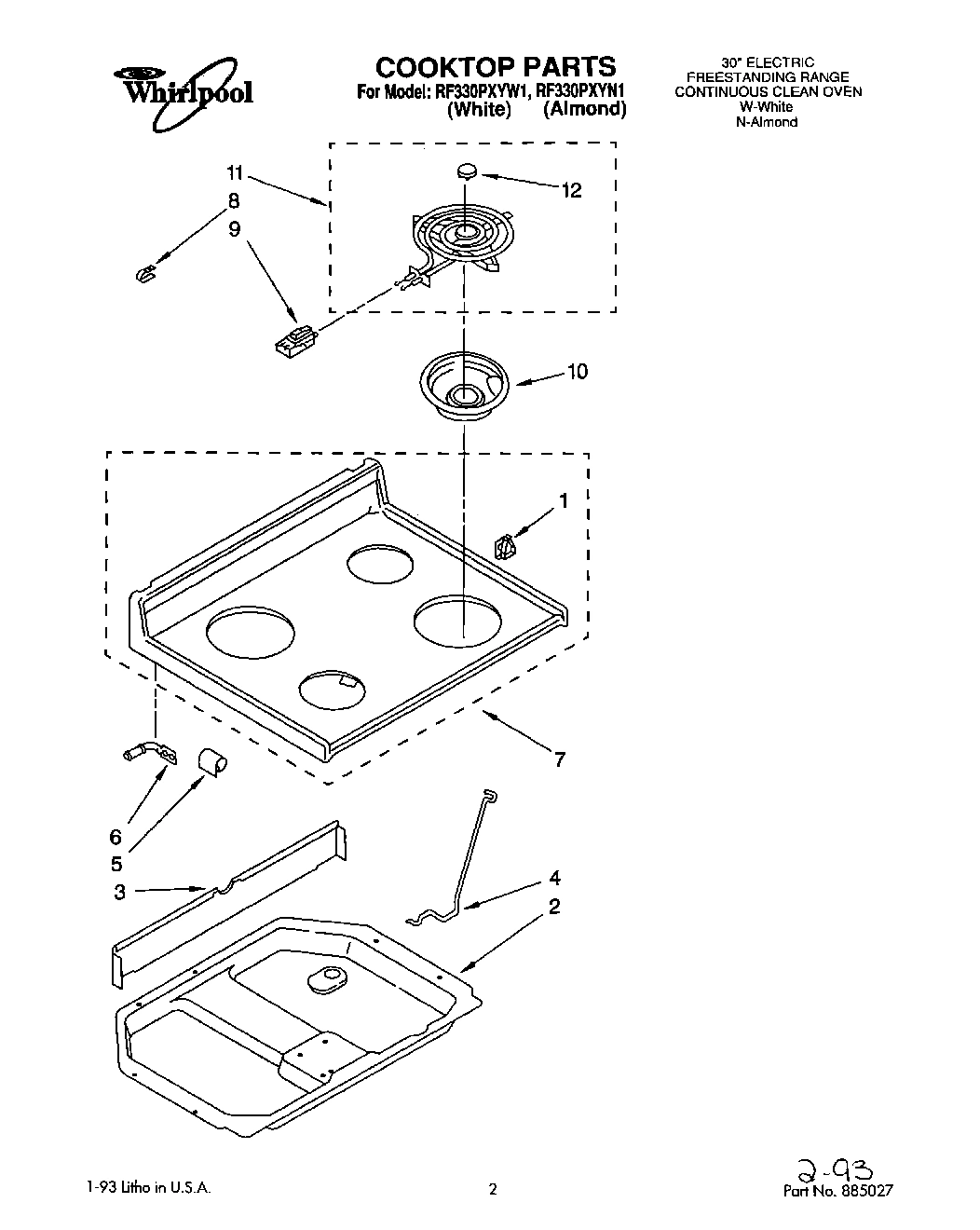

01 - COOKTOP

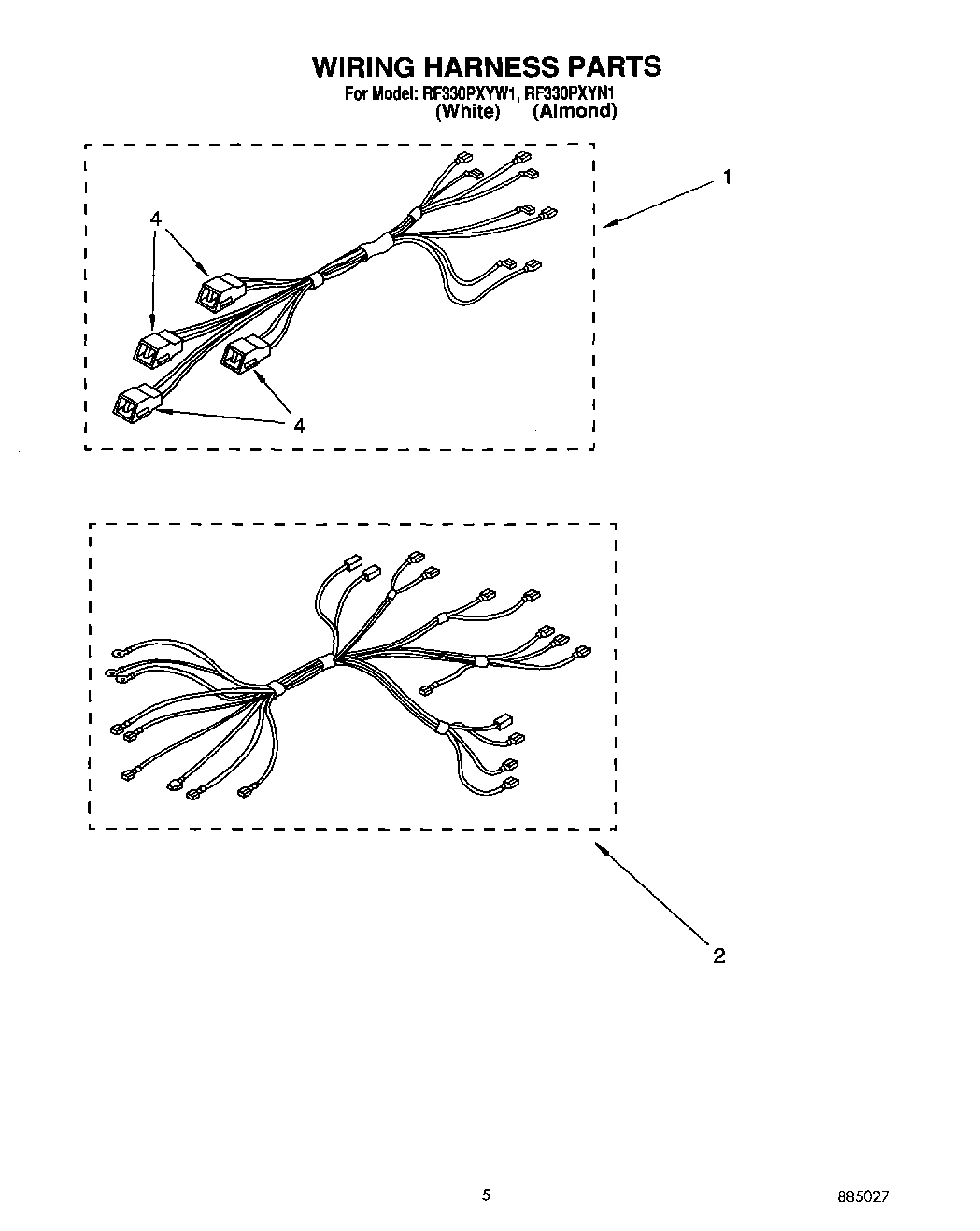

04 - WIRING HARNESS
Common parts from model Whirlpool RF330PXYN1
Instructions, Installation WPL LIT3147400 Contact Us For Availability
Guide, Use & Care WPL LIT3150286 Contact Us For Availability
Wiring Diagram WPL LIT3150656 Contact Us For Availability
Repair Parts List WPL LIT885027 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Nut (4) WPL 814102 Contact Us For Availability
1
Harness, Wire (Surface Units) WPL 3149881 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Box, Burner WPL 3169186 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169148 Contact Us For Availability
3
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability
3
Shield, Wiring WPL 307973 Contact Us For Availability
4
Glass, Inner WPL 3169202 Contact Us For Availability
4
Timer, Clock WPL 3183059 Contact Us For Availability
4
Frame, Front WPL 3176681 Contact Us For Availability
4
Rod, Cooktop WPL 3148659 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability
5
Motor, Timer WPL 309822 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Bracket (2) WPL 307965 Contact Us For Availability
6
Glass, Timer WPL 3148852 Contact Us For Availability
6
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
7
Control Panel WPL 3183813 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Cooktop (White) WPL 3170981 Contact Us For Availability
7
Cooktop (Almond) WPL 3170982 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Panel, Outer (Black Glass) WPL 3148185 Contact Us For Availability
9
Oven 30`` (Continuous Clean) WPL 3176609 Contact Us For Availability
10
(Alt.) WPL 310864 Contact Us For Availability
10
(Alt.) WPL 311498 Contact Us For Availability
10
Thermostat, Oven WPL 661150 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
12
Knob, Infinite (4) (Surface Unit) WPL 3183118 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
12
Medallion (4) WPL 309195 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
13
Knob, Temp Control WPL 3183106 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
14
Tube Clip WPL 313570 Contact Us For Availability
15
Screw (2) WPL 3149333 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
15
Rear Cover Control Panel WPL 313195 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Lens, Amber (2) WPL 313101 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Red WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
14 Ga. 200c~ (Yellow) WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 309961 WPL 309961 Contact Us For Availability
18
WPL 312804 WPL 312804 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Spring, Door Stop WPL 308207 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
20
Knob, Selector WPL 3183109 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Shield (2) WPL 313608 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer WPL 309329 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug Button WPL 308535 Contact Us For Availability
31
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
