Model Whirlpool RF330PXXW1 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

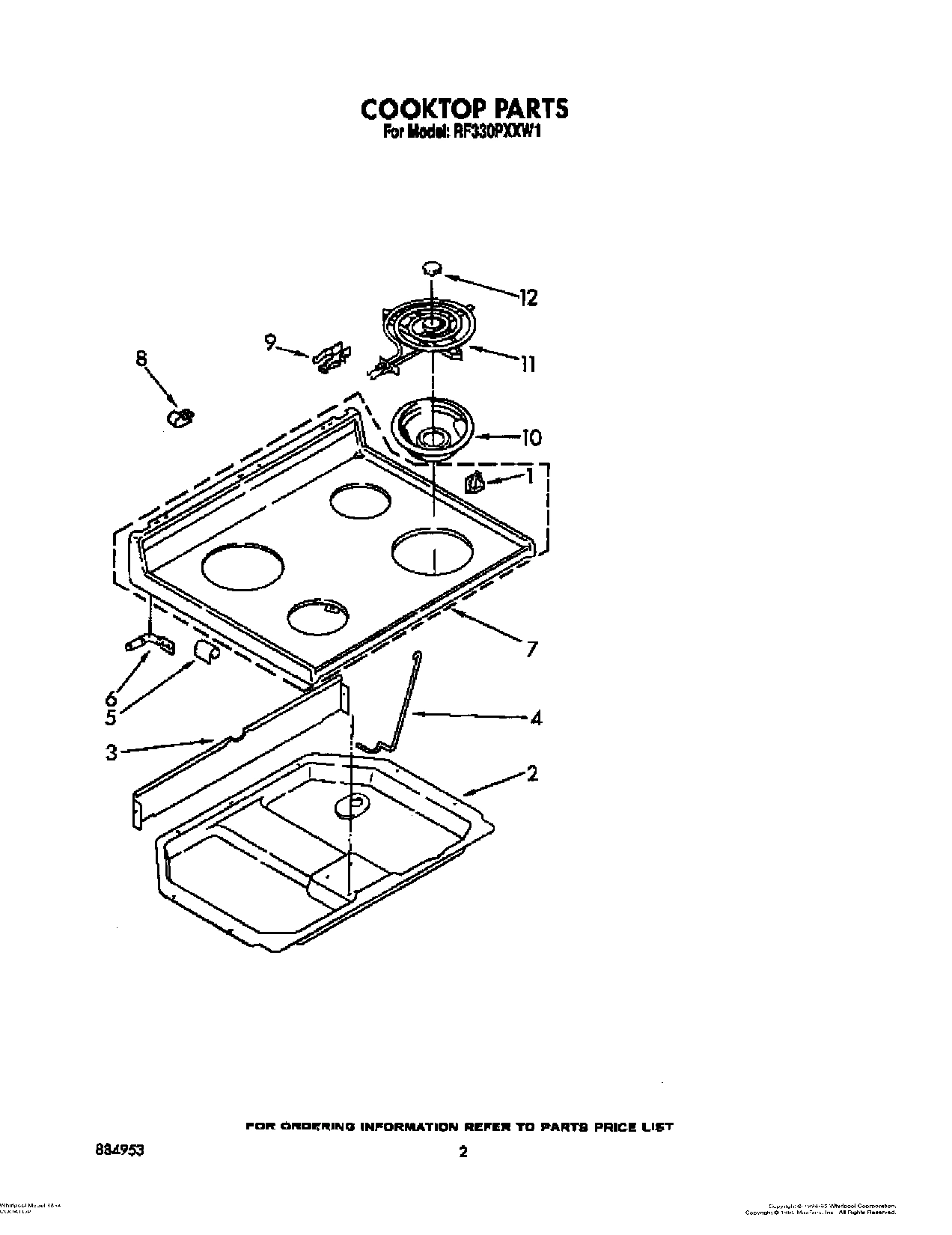

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Instructions, Installation WPL LIT3147395 Contact Us For Availability

Guide, Use & Care WPL LIT3150292 Contact Us For Availability

Wiring Diagram WPL LIT3150656 Contact Us For Availability

Repair Parts List WPL LIT884953 Contact Us For Availability

1

814103 Whirlpool Clip Backorder WPL 814103 $3.95

1

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Screw, 10A x 1/2 (4) WPL 311056 Contact Us For Availability

1

Nut (4) WPL 814102 Contact Us For Availability

1

Harness, Wire (Surface Units) WPL 3149881 Contact Us For Availability

1

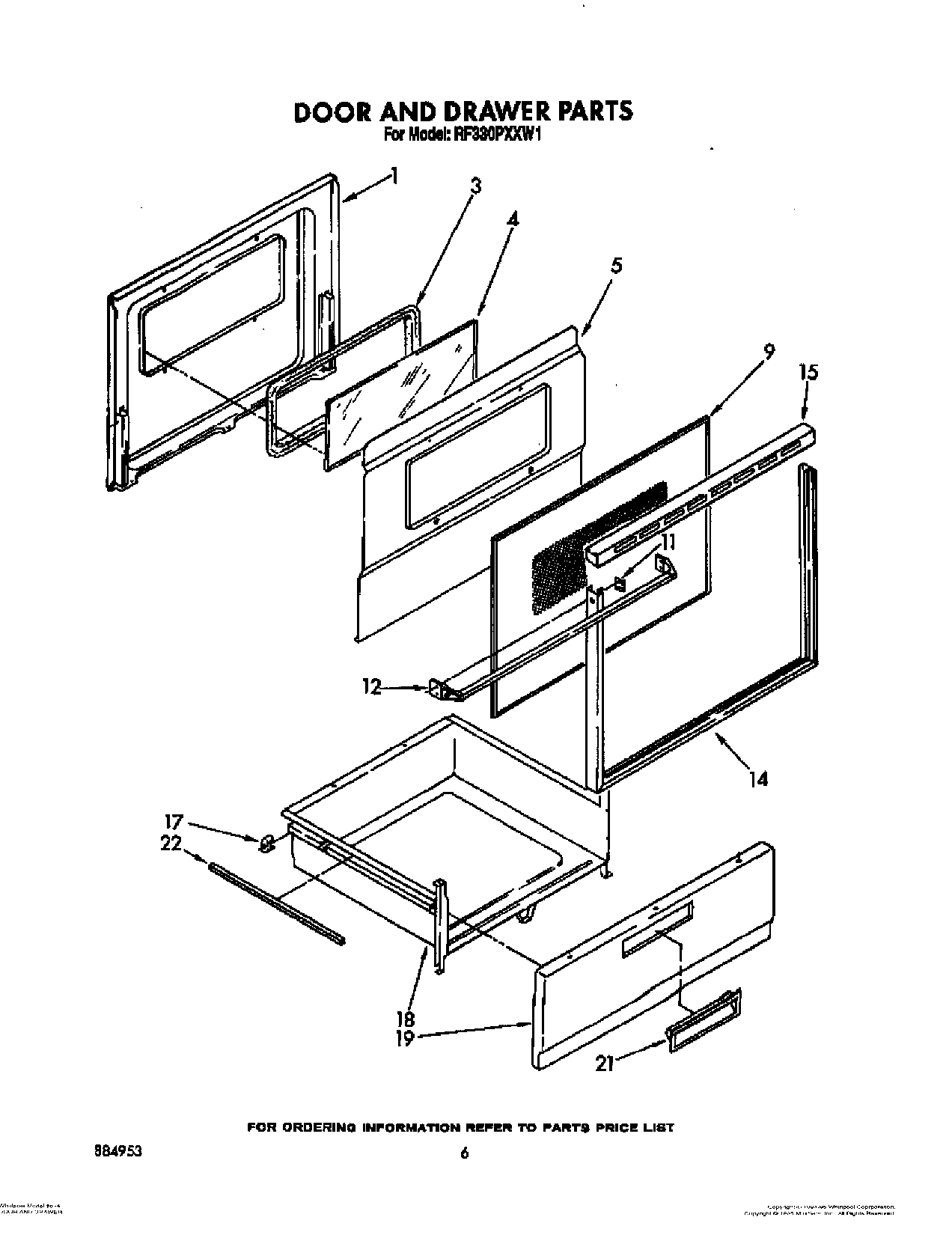

Liner, Door WPL 3170710 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 3181677 Contact Us For Availability

2

End Cap L.H. WPL 3181678 Contact Us For Availability

2

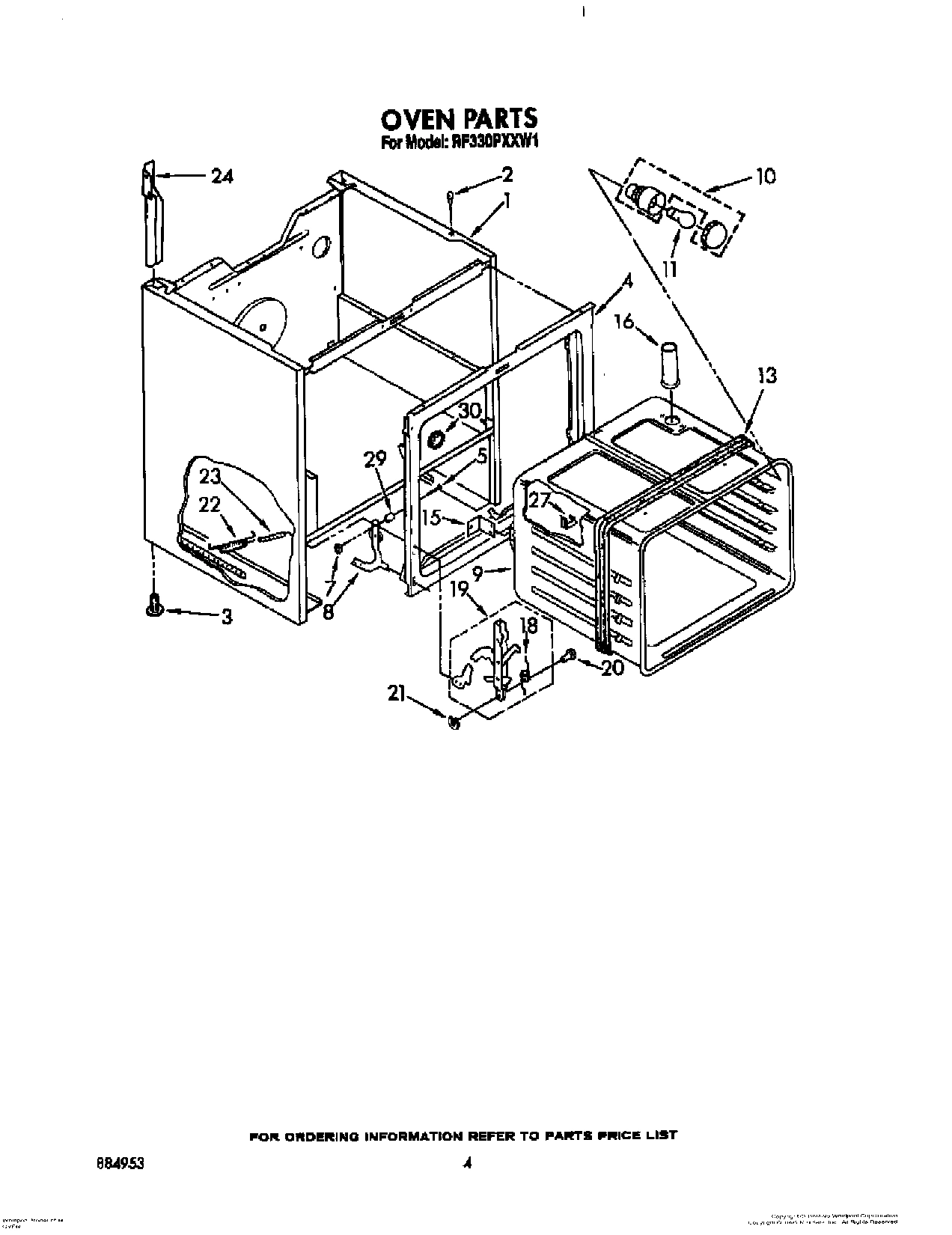

Box, Burner WPL 3150186 Contact Us For Availability

2

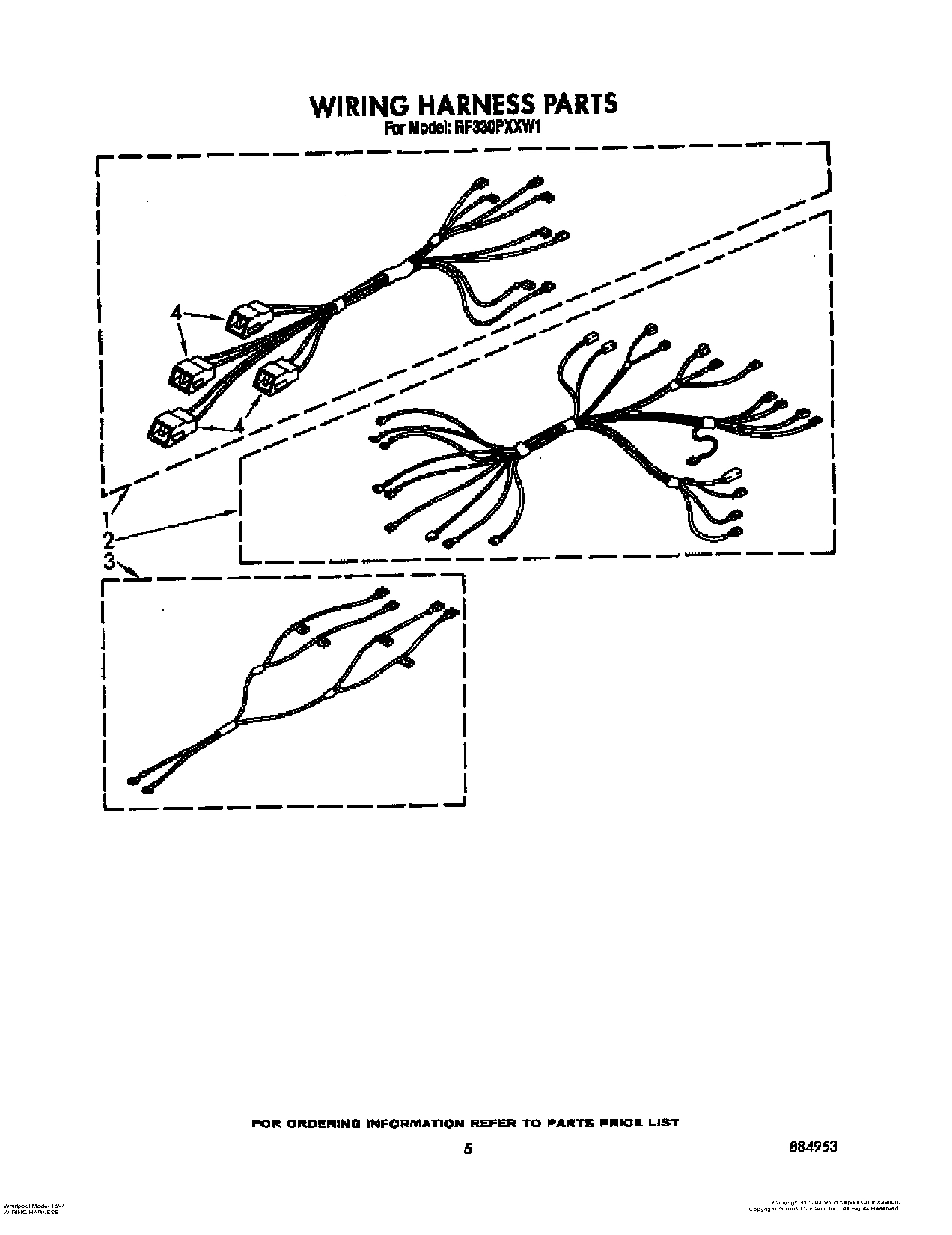

Harness, Wire (Oven) WPL 3150694 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.52

3

Light, Indicator (Oven On) WPL 314031 Contact Us For Availability

3

Seal, Glass WPL 3148183 Contact Us For Availability

3

Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability

3

Shield, Wiring WPL 307973 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

4

Timer, Clock WPL 3149835 Contact Us For Availability

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3172204 Contact Us For Availability

4

Rod, Cooktop WPL 3148659 Contact Us For Availability

4

Glass, Inner WPL 3148179 Contact Us For Availability

5

Motor, Timer WPL 313512 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Bracket (2) WPL 307965 Contact Us For Availability

5

Retainer, WPL 3148287 Contact Us For Availability

5

Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

Glass, Timer WPL 308441 Contact Us For Availability

6

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

7

Panel, Control (White) WPL 3150467 Contact Us For Availability

7

Panel, Control (Almond) WPL 3150468 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

Cooktop (White) WPL 3170981 Contact Us For Availability

7

Cooktop (Almond) WPL 3170982 Contact Us For Availability

8

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

8

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $49.10

8

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

8

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

9

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

9

Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability

9

Oven 30`` (Continuous Clean) WPL 3172549 Contact Us For Availability

9

Panel, Outer (Black Glass) WPL 3148185 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.01

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.06

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

Thermostat, Oven WPL 661150 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $31.90

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

Clip (2) WPL 3148282 Contact Us For Availability

12

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

12

Medallion (4) WPL 309195 Contact Us For Availability

12

Handle, Oven Door WPL 3148228 Contact Us For Availability

13

Seal, Heat WPL 309107 Contact Us For Availability

13

Knob, Temp. Control WPL 3149987 Contact Us For Availability

14

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

14

Tube Clip WPL 313570 Contact Us For Availability

14

Frame, Door WPL 3148235 Contact Us For Availability

Screw (2) WPL 3149333 Contact Us For Availability

Rear Cover Control Panel WPL 313195 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Top, Door Frame WPL 3148223 Contact Us For Availability

16

Lens, Amber (2) WPL 313101 Contact Us For Availability

16

Vent, Oven WPL 307960 Contact Us For Availability

17

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

17

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

17

Glide, Rear WPL 307980 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $29.65

340184 Whirlpool Screw Backorder WPL 340184 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

white WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Red 14 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Yellow WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

T WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 309961 WPL 309961 Contact Us For Availability

WPL 312804 WPL 312804 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Spring, Knob WPL 313311 Contact Us For Availability

Spring, Door Stop WPL 308207 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Channel, Arm (2) WPL 329712 Contact Us For Availability

Panel, Drawer (White) WPL 3150676 Contact Us For Availability

Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Knob, Selector WPL 3149984 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Shield (2) WPL 313608 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Protector, Drawer WPL 309329 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Plug Button WPL 308535 Contact Us For Availability
