Model Whirlpool RF3300XVW3 – Common Parts & Diagrams
07 - WIRING HARNESS
06 - DOOR AND DRAWER

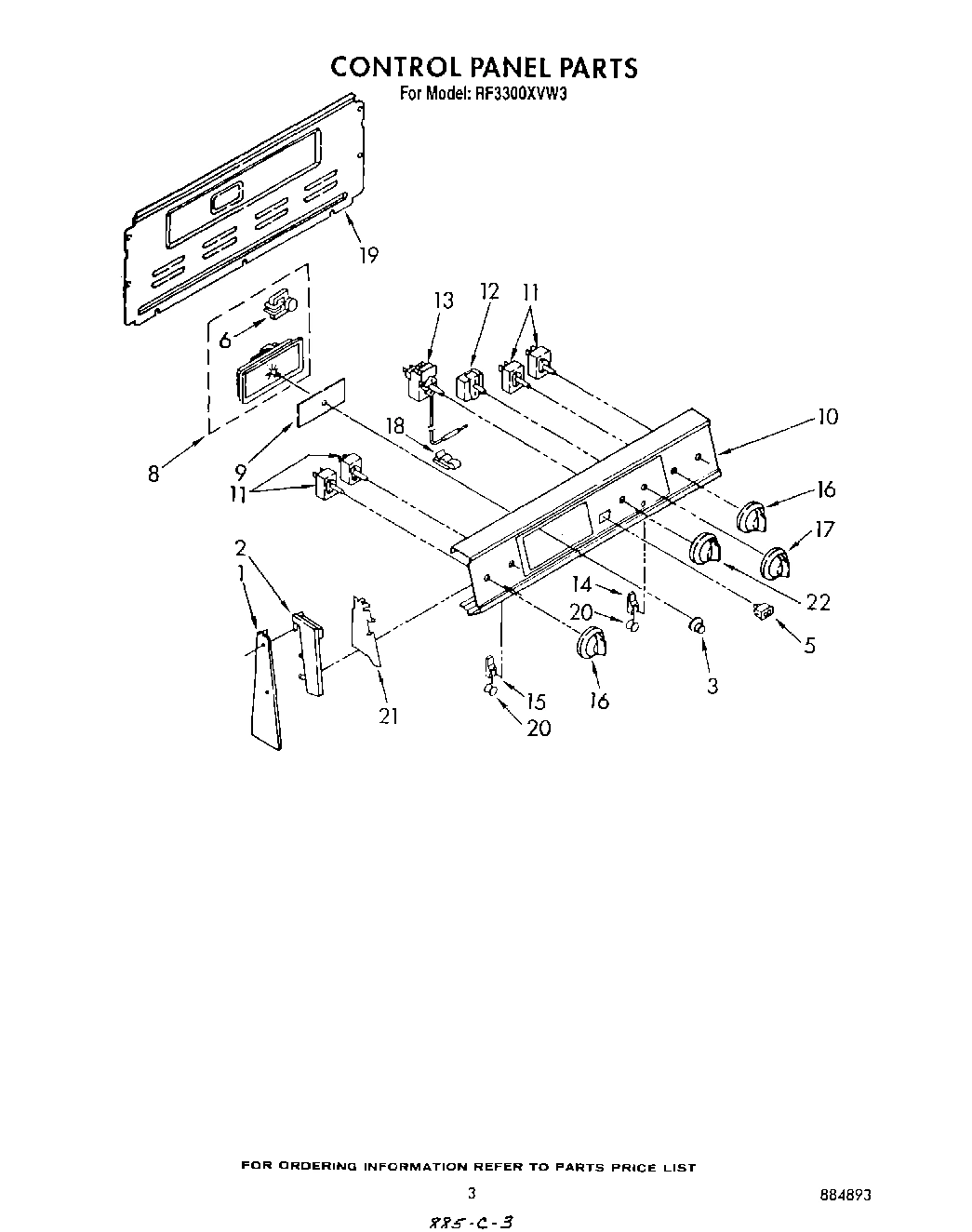

03 - CONTROL PANEL

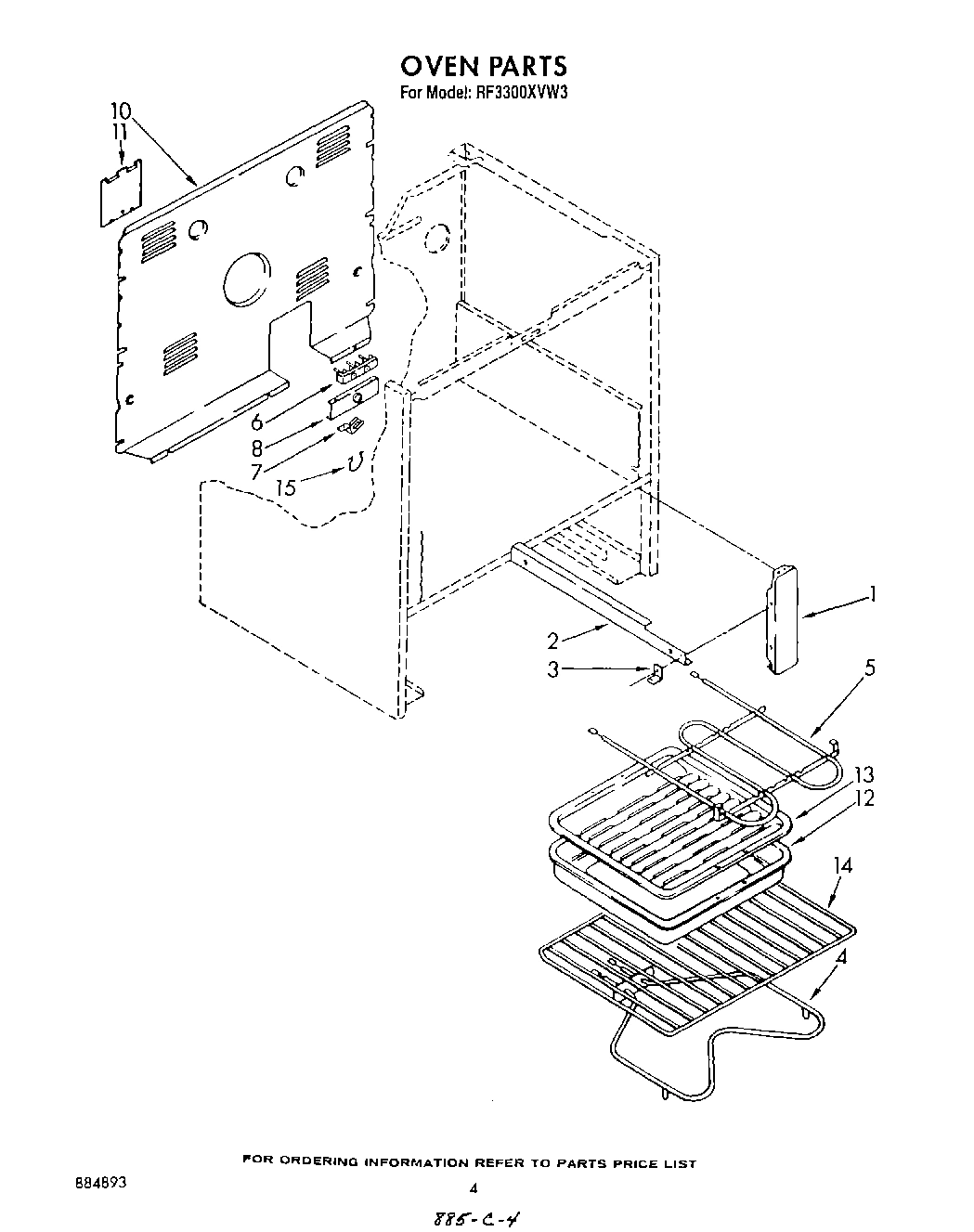

04 - OVEN , LIT/OPTIONAL

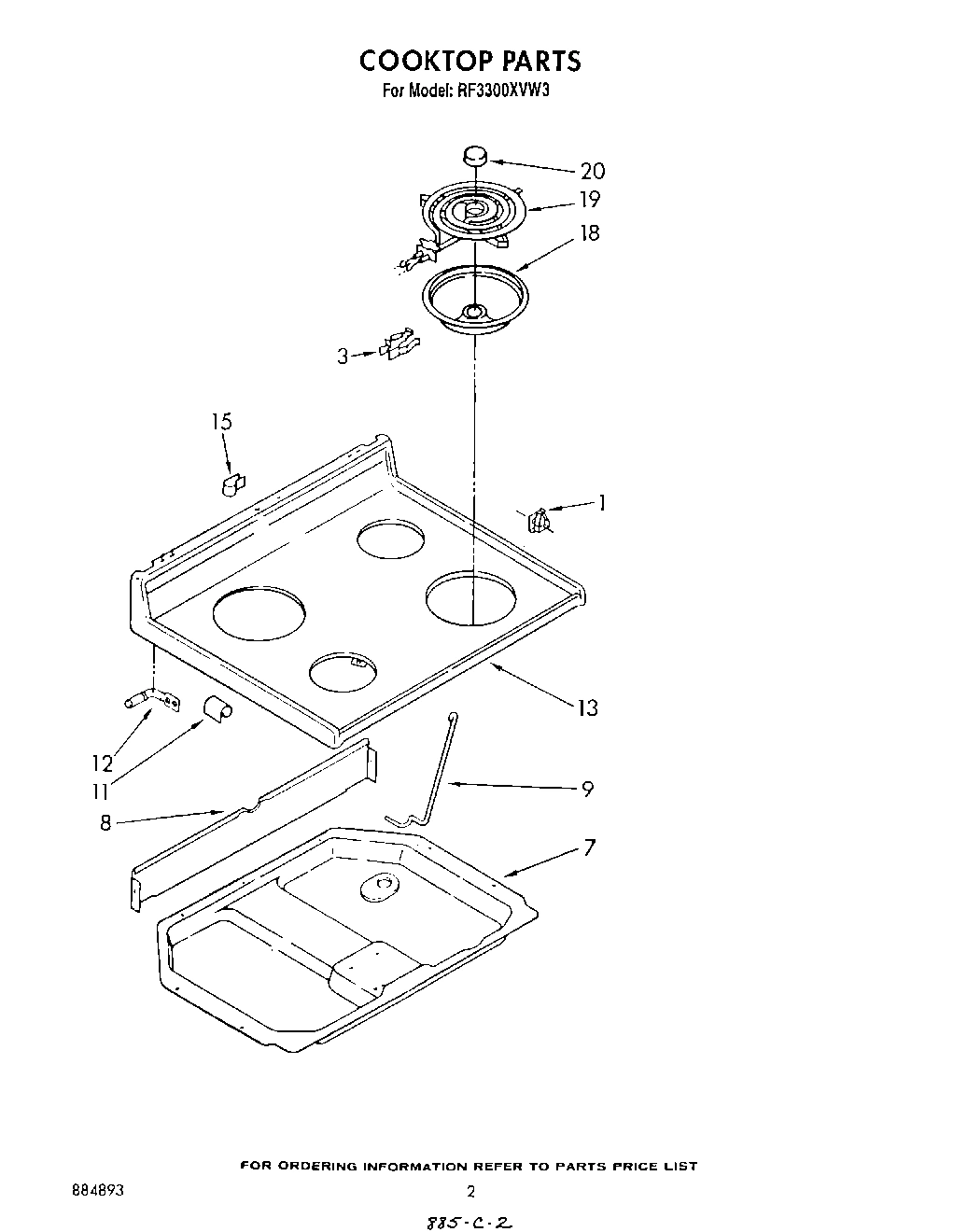

02 - COOKTOP

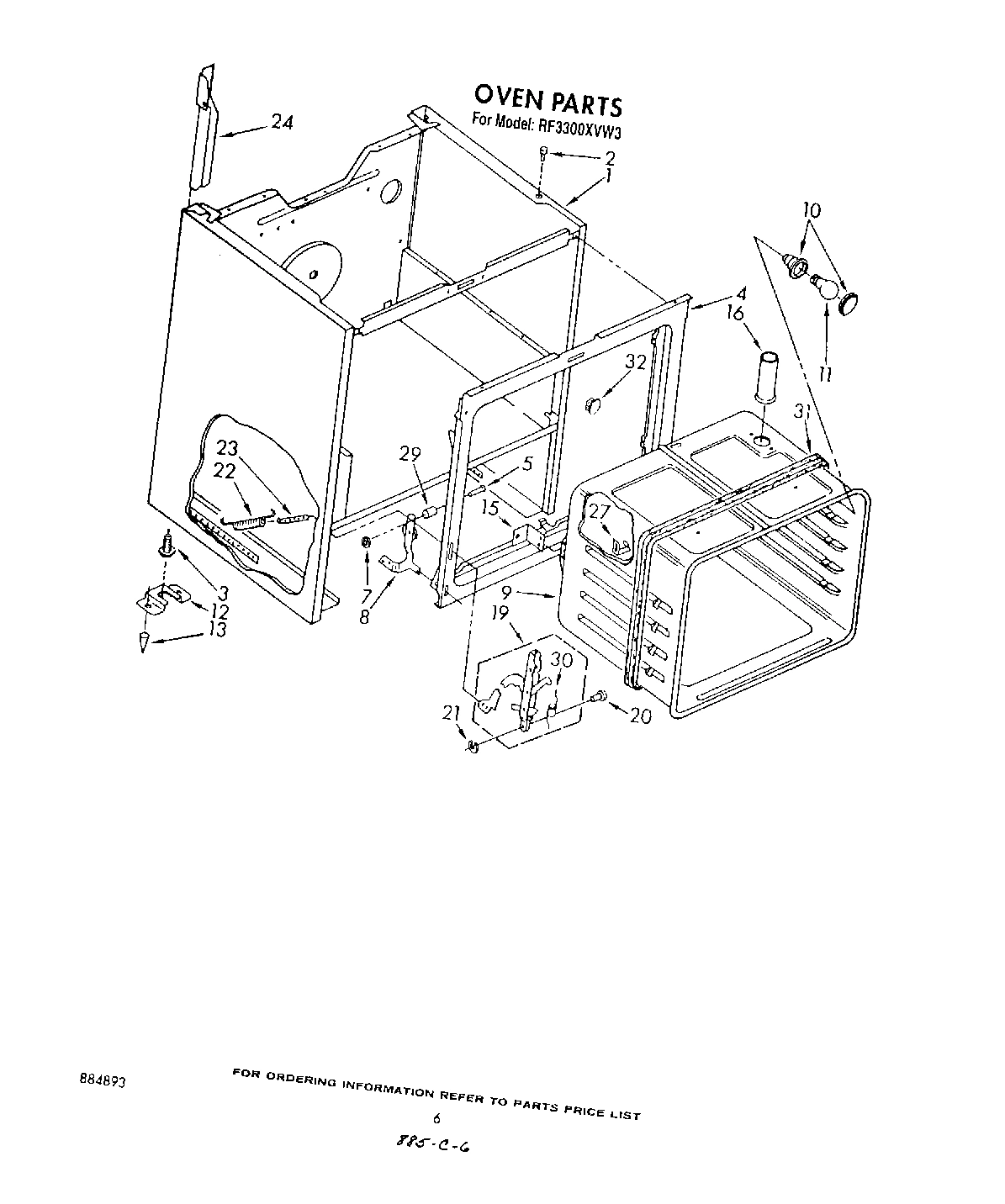

05 - SECTION
Common parts from model Whirlpool RF3300XVW3
Instructions, Installation WPL LIT3147389 Contact Us For Availability
Wiring Diagram WPL LIT3150558 Contact Us For Availability
Guide, Use & Care WPL LIT3150568 Contact Us For Availability
List, Parts WPL LIT884893 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Nut (4) WPL 814102 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Frame, Window WPL 3149277 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
3
Seal, Door WPL 3148183 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Retainer, Frame WPL 307792 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3150186 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Timer, Clock WPL 3149836 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Glass, Timer WPL 3148852 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven Liner (Continuous Clean) WPL 3172549 Contact Us For Availability
10
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
10
Panel, Control WPL 3148834 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
12
Handle, Oven Door WPL 311563 Contact Us For Availability
12
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
screw (2) WPL 3148604 Contact Us For Availability
13
Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability
13
Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability
13
Thermostat, Oven WPL 661150 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Anchor, Plastic WPL 3148605 Contact Us For Availability
14
Light, Indicator (Oven) (Includes Illus. 20) WPL 314031 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
Coffee WPL 261886 Contact Us For Availability
15
Coffee (Uncut) WPL 261887 Contact Us For Availability
15
New Avocado WPL 261888 Contact Us For Availability
15
New Avocado (Uncut) WPL 261889 Contact Us For Availability
15
Har WPL 261890 Contact Us For Availability
15
WPL 261891 WPL 261891 Contact Us For Availability
15
WPL 285365 WPL 285365 Contact Us For Availability
15
WPL 285366 WPL 285366 Contact Us For Availability
15
WPL 285367 WPL 285367 Contact Us For Availability
15
WPL 285368 WPL 285368 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 72112 WPL 72112 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 978883 WPL 978883 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 307960 Contact Us For Availability
17
Knob, Selector WPL 3149984 Contact Us For Availability
18
Tube Clip WPL 313570 Contact Us For Availability
19
Rear Cover Control Panel WPL 313195 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Lens, Amber (3) WPL 313101 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Shield, Glass (2) WPL 313608 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Thermostat WPL 3149987 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
32
Plug Button WPL 308535 Contact Us For Availability
× ![]()
