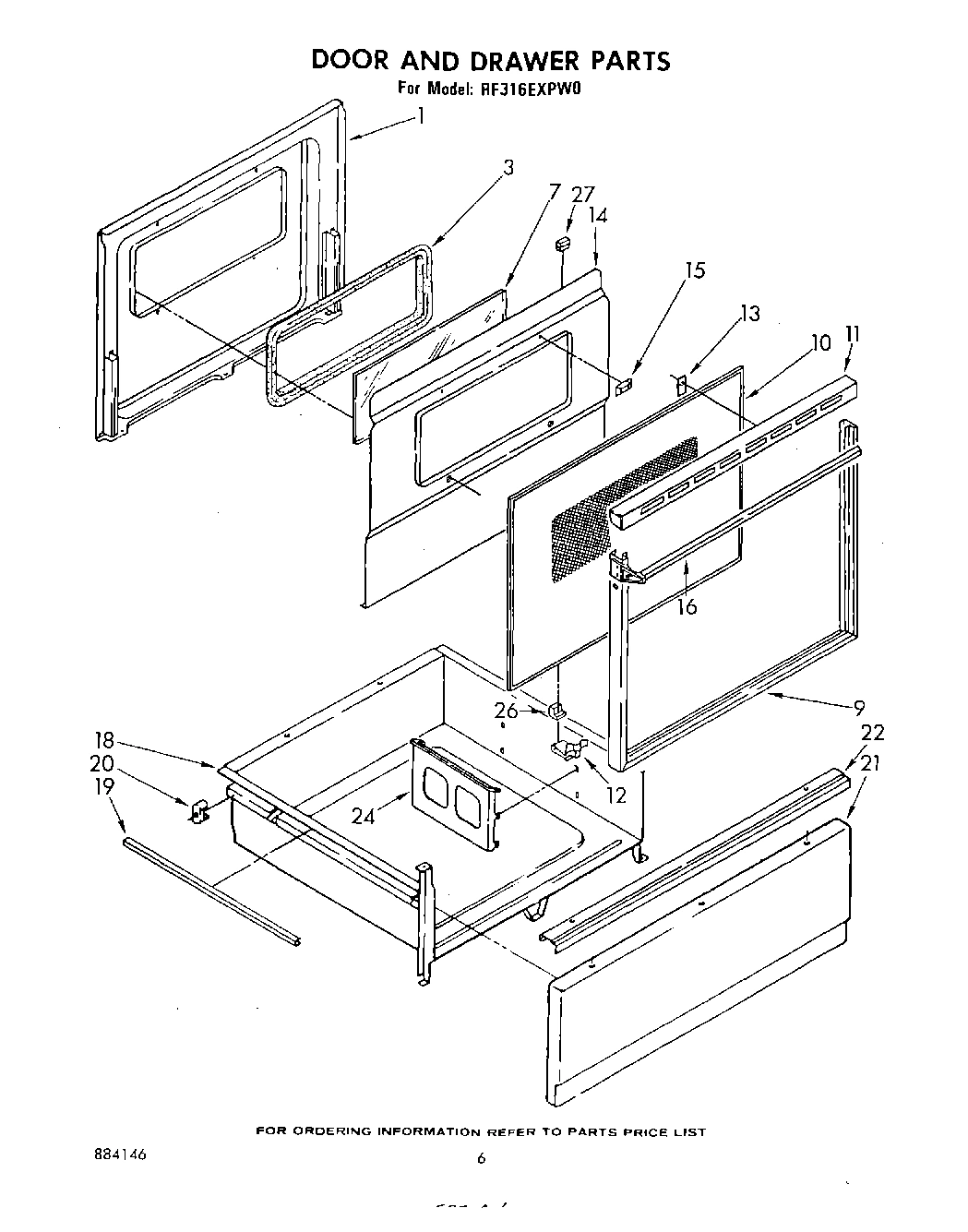

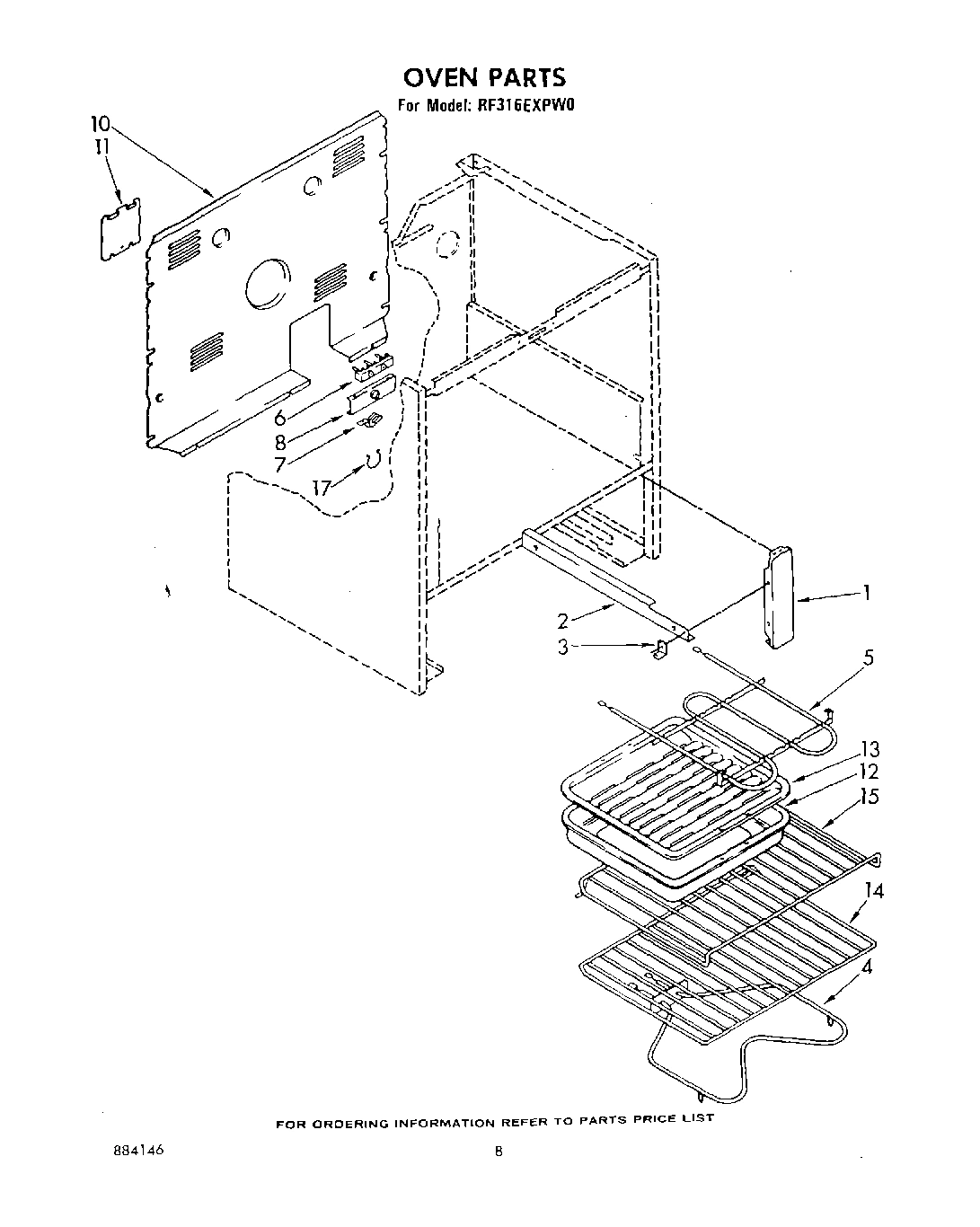

Model Whirlpool RF316EXPW0 – Common Parts &amp; Diagrams

1

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

1

Liner, Door WPL 329687 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Main Chassis (Toast) WPL 330091 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Seal, Fiberglass WPL 258711 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

4

Frame, Front WPL 330166 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

7

Glass, Inner WPL 258988 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Glass, Timer WPL 309821 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Frame, Door WPL 310427 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329000 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

Glass, Outer WPL 309069 Contact Us For Availability

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

Socket, Lamp 307856 (Alt.) 310208 (Alt.) WPL 660556 Contact Us For Availability

Retainer, Cooktop WPL 307967 Contact Us For Availability

Timer, Auto WPL 310792 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Top, Door Frame WPL 310428 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Motor, Timer WPL 309822 Contact Us For Availability

12

clip, glass (10) WPL 310706 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

12

Bezel, Timer WPL 309823 Contact Us For Availability

Clip (2) WPL 311506 Contact Us For Availability

Cooktop (White) WPL 307870 Contact Us For Availability

Cooktop (Almond) WPL 307872 Contact Us For Availability

Cooktop (Toast) WPL 313167 Contact Us For Availability

Cooktop (Platinum) WPL 313168 Contact Us For Availability

Knob, Timer (3) WPL 308440 Contact Us For Availability

14

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

14

Baffle, Heat WPL 307924 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Spacer (4) WPL 258990 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 313713 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Handle, Oven Door WPL 313472 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Vent, Oven WPL 307960 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150 oC WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200 oC WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Drawer, Utility WPL 327887 Contact Us For Availability

Switch, Selector (4 Position) WPL 310349 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Protector, Drawer Side (2) WPL 309329 Contact Us For Availability

Channel, Arm (2) WPL 329712 Contact Us For Availability

Thermostat WPL 308485 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Glide, Rear (2) WPL 307980 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

Light, Indicator (1) (Includes Illus. 41) WPL 313111 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Handle, Drawer WPL 313337 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

24

Rack, Literature WPL 357645 Contact Us For Availability

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

26

Bumper (4) WPL 312783 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

27

Clip (2) WPL 310705 Contact Us For Availability

28

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

WP307458 Whirlpool Knob In Stock WPL WP307458 $9.15

30

Seal, Rubber WPL 309107 Contact Us For Availability

31

Bezel, Knob (4) WPL 307456 Contact Us For Availability

31

Spring, Door Stop WPL 308207 Contact Us For Availability

32

Spring, Knob (4) WPL 307828 Contact Us For Availability

34

Knob, Control WPL 328709 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

39

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (3) WPL 313101 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

52

Screw WPL 310410 Contact Us For Availability

52

Knob, Control WPL 328707 Contact Us For Availability
