Model Whirlpool RF315PXXW2 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE – Common Parts & Diagrams
06 - OVEN
05 - DOOR AND DRAWER

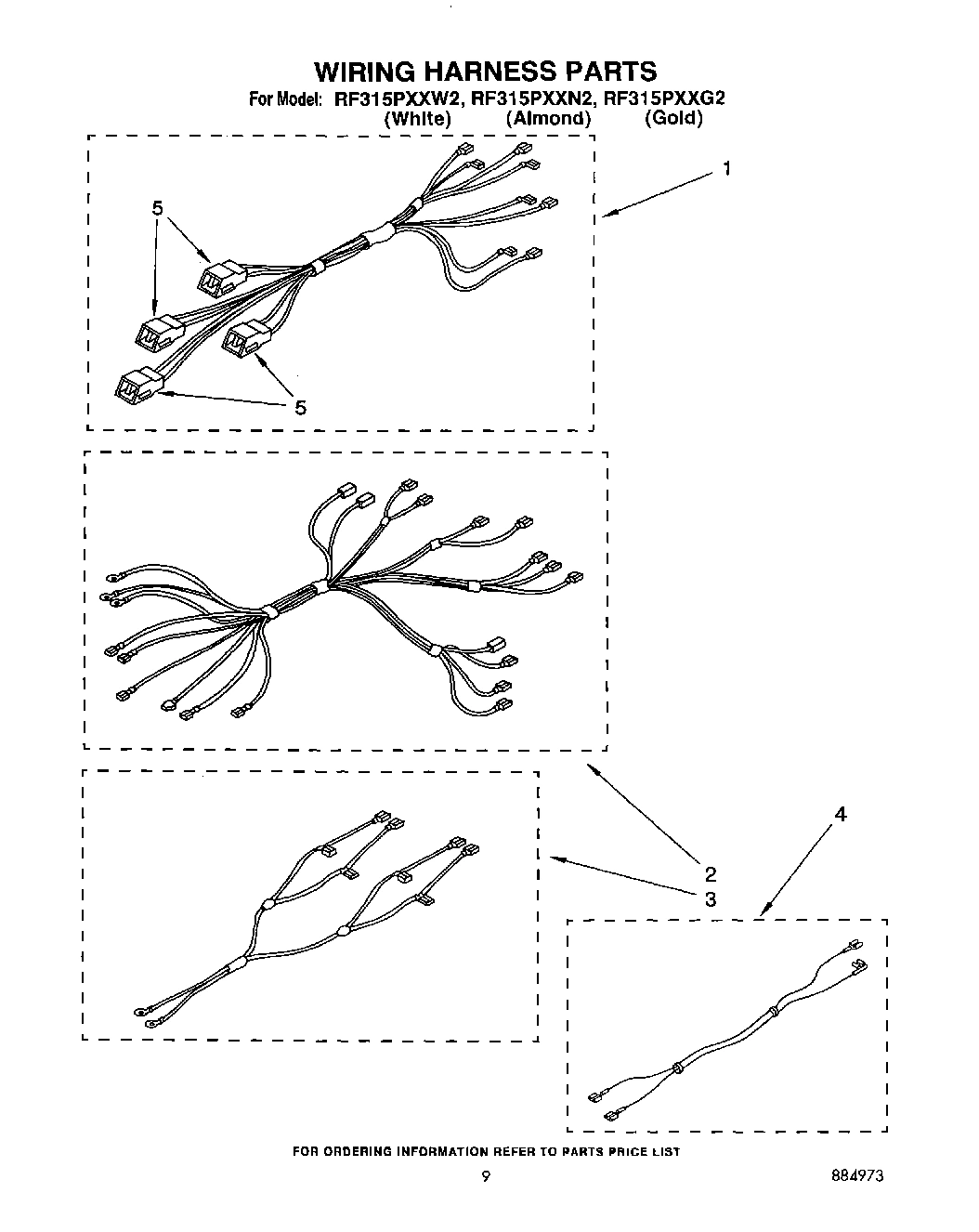

07 - WIRING HARNESS

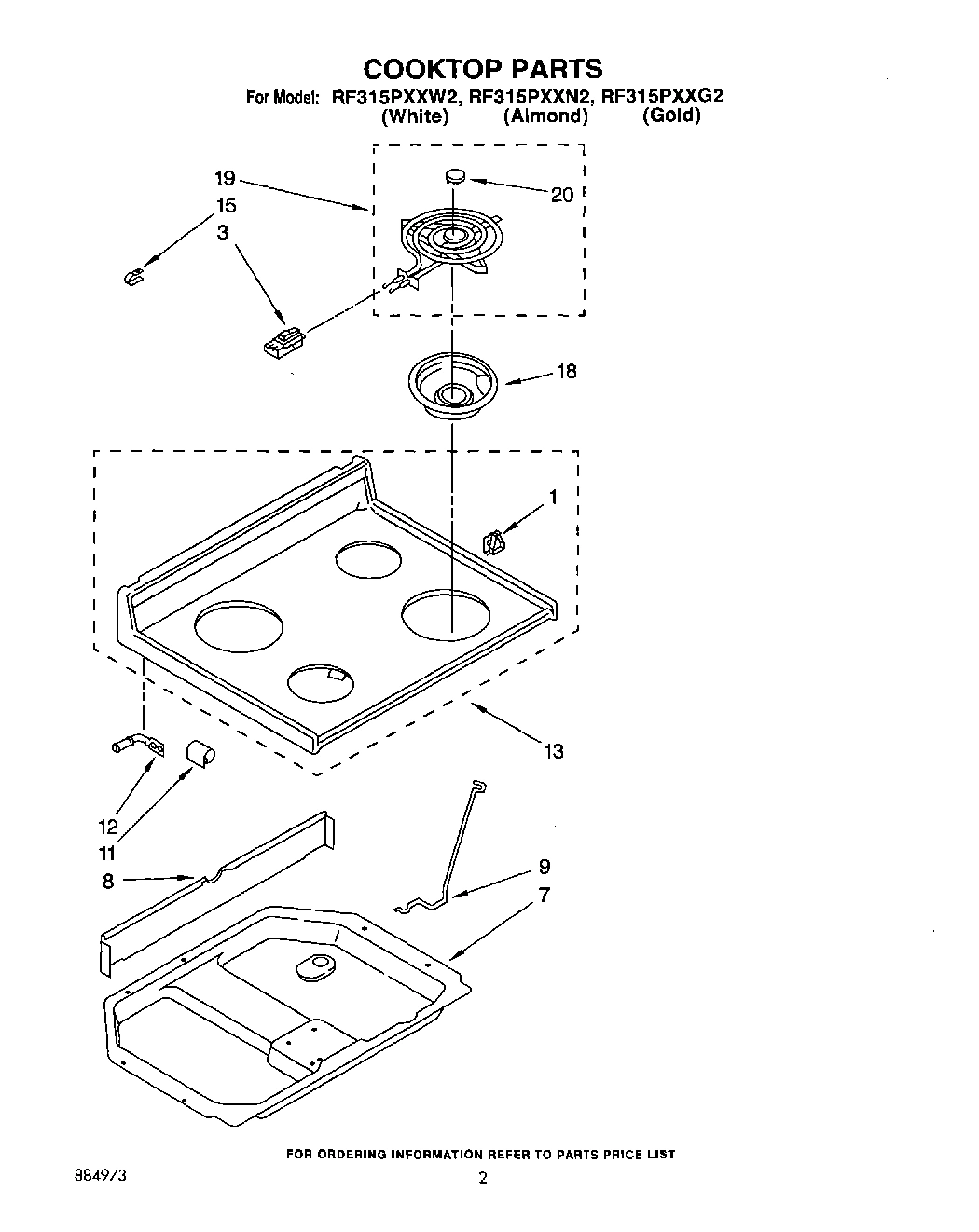

02 - COOKTOP, LIT/OPTIONAL

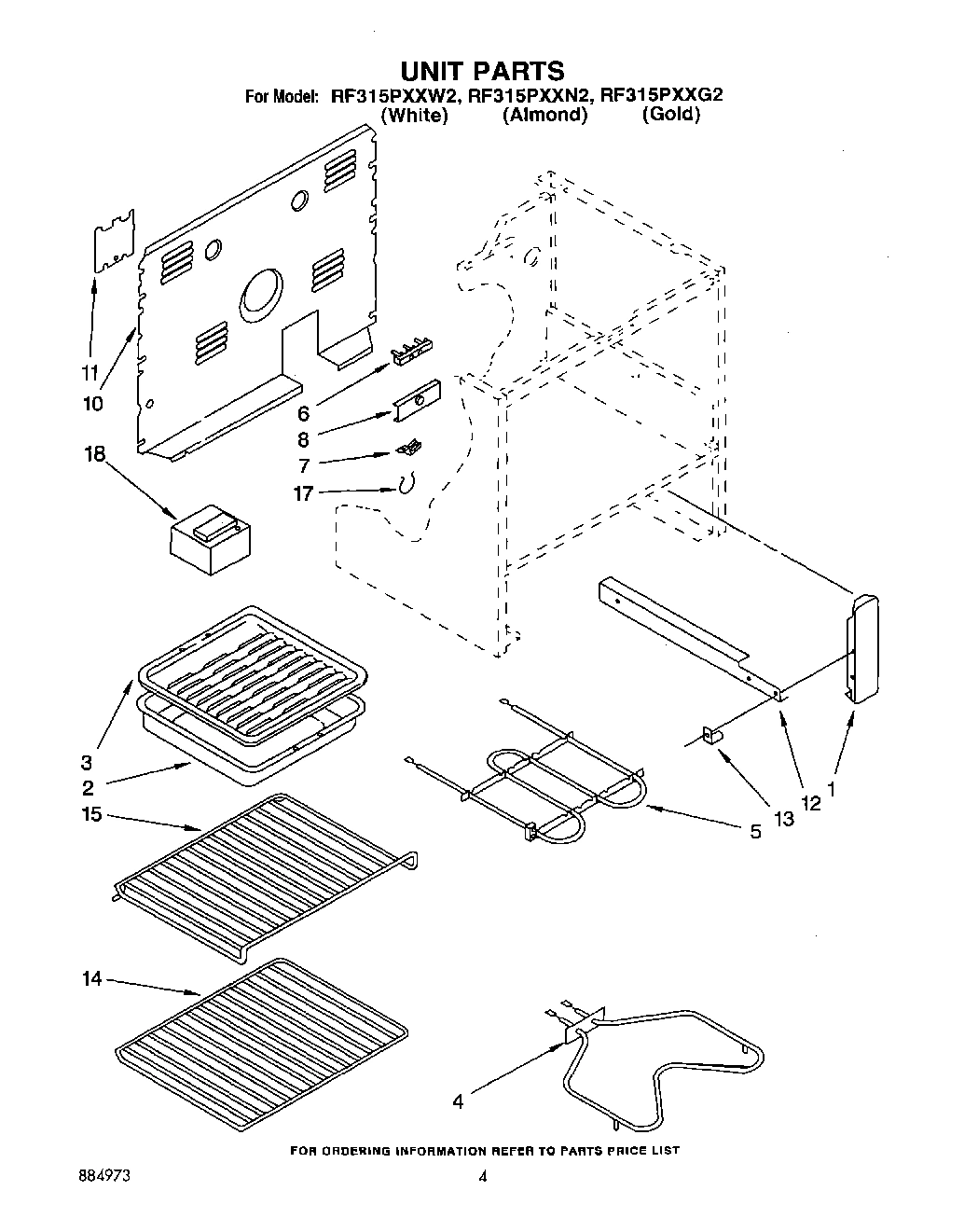

04 - UNIT, OPTIONAL

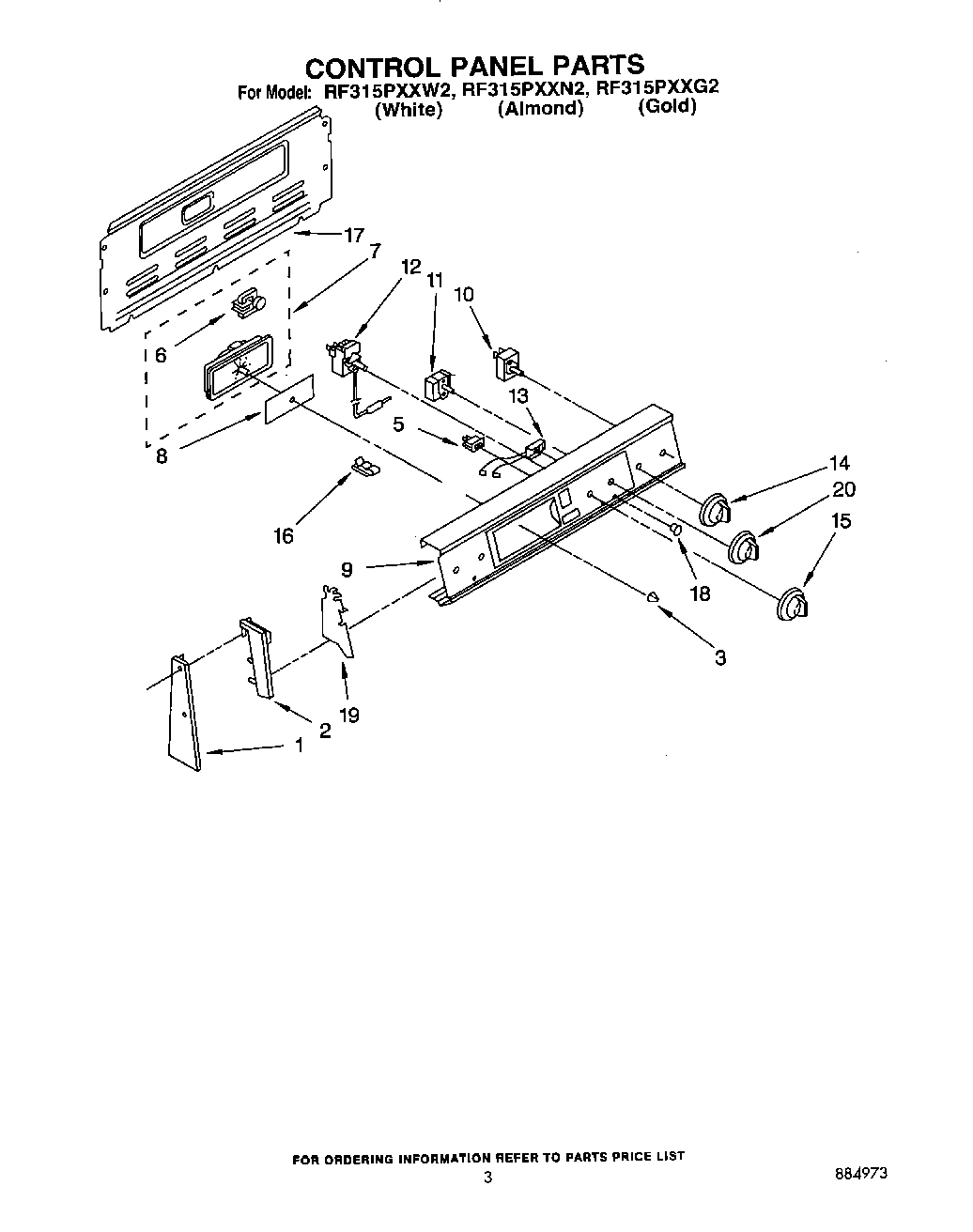

03 - CONTROL PANEL
Common parts from model Whirlpool RF315PXXW2 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE
Instructions, Installation WPL LIT3147395 Contact Us For Availability
Cooking Guide WPL LIT3149507 Contact Us For Availability
Use & Care Guide WPL LIT3150295 Contact Us For Availability
Wiring Diagram WPL LIT3181470 Contact Us For Availability
Repair Parts List WPL LIT884973 Contact Us For Availability
1
Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability
1
Nut WPL 814102 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Wiring Harness (Oven) WPL 3181473 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
3
Wiring Harness (Supply) WPL 313147 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Clip (2) WPL 3148282 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Timer, Clock (Includes No.6) WPL 3149505 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Glass, Timer WPL 313513 Contact Us For Availability
9
Screw (2) WPL 3149333 Contact Us For Availability
9
Top, Door Frame WPL 3148223 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
9
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
9
Panel, Control WPL 3150629 Contact Us For Availability
10
Glide, Rear WPL 307980 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
12
Panel Drawer (White) WPL 307935 Contact Us For Availability
12
Panel, Drawer (Gold) WPL 307938 Contact Us For Availability
12
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability
12
Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability
12
(Alt.) WPL 310864 Contact Us For Availability
12
(Alt.) WPL 311498 Contact Us For Availability
12
Thermostat, 0ven WPL 661150 Contact Us For Availability
13
Indicator Light (Oven Unit On) WPL 314031 Contact Us For Availability
13
Handle, Drawer WPL 313337 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Cooktop (Gold) WPL 3170985 Contact Us For Availability
13
Glide, Drawer (2) WPL 3149257 Contact Us For Availability
13
Indicator Light (Surface Unit On) WPL 3150647 Contact Us For Availability
14
Protector, Drawer (2) WPL 309329 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
15
Rack, Offset WPL 308172 Contact Us For Availability
16
Tube Clip WPL 313570 Contact Us For Availability
17
Rear Cover Control Panel WPL 313195 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Leveler (Thinner) (2 Oz.) Paint, Bulk 1 Qt. WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Coffee (Uncut) WPL 261887 Contact Us For Availability
18
Ne WPL 261888 Contact Us For Availability
18
WPL 261890 WPL 261890 Contact Us For Availability
18
WPL 261891 WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 309961 WPL 309961 Contact Us For Availability
18
WPL 312804 WPL 312804 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
Lens, Amber (2) WPL 313101 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Knob, Control (Selector) WPL 3149985 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
× ![]()
